CAT5REMOTECAM1-S
OVERVIEW &INSTALLATION GUIDELINES
www.soundcontrol.net Page 4 of 8
28 Knight Street, Norwalk, CT., 06851 Phone (203) 854-5701 Fax (203) 854-5702
© SOUND CONTROL TECHNOLOGIES, INC., 2006 RC1S_04d.DOC-9/1/2006
SOUND CONTROL
TECHNOLOGIES
Polycom® Powercam™ SCT part number: RC1-SP™
Included in this package are:
1. Mounting Bracket: This bracket mounts to a standard 2-gang wall box for clean, convenient mounting of the
camera. Typical electrical boxes would be:
a. new construction 2-gang switch box
b. “mud” box
c. old work (retrofit) boxes.
2. Mounting Screw: A thumb screw is provided for attaching the camera to the mounting bracket shelf.
3. Interface Modules: This pair of interfaces provides S-Video, power and control (RX, TX, GND & IR) for the
camera. One small electronics enclosure is required at the rack or head end and a
second module is mounted to the back of the camera mounting plate, housed in the 2-
gang box.
4. Power Supply: The included 30VDC power supply is designed to operate a camera up to 300’ from the
head-end while providing clean, regulated power for safe operation of the camera. 30
Volts from the head end power supply is regulated to 12 VDC at the camera for clean,
reliable operation.
5. Molded Cables: Two molded cables are included in this kit.
a. SP001 Camera cable is a molded 8-Pin mini DIN cable for the camera mount
electronics that connects S-Video, power and control to the Powercam™.
b. Sx003 Head end cable is a molded 8-Pin mini DIN plug (Blue) for the head
end electronics that breaks out to a molded S-Video jack (Yellow) and a
molded BD9 (Black) for remote control.

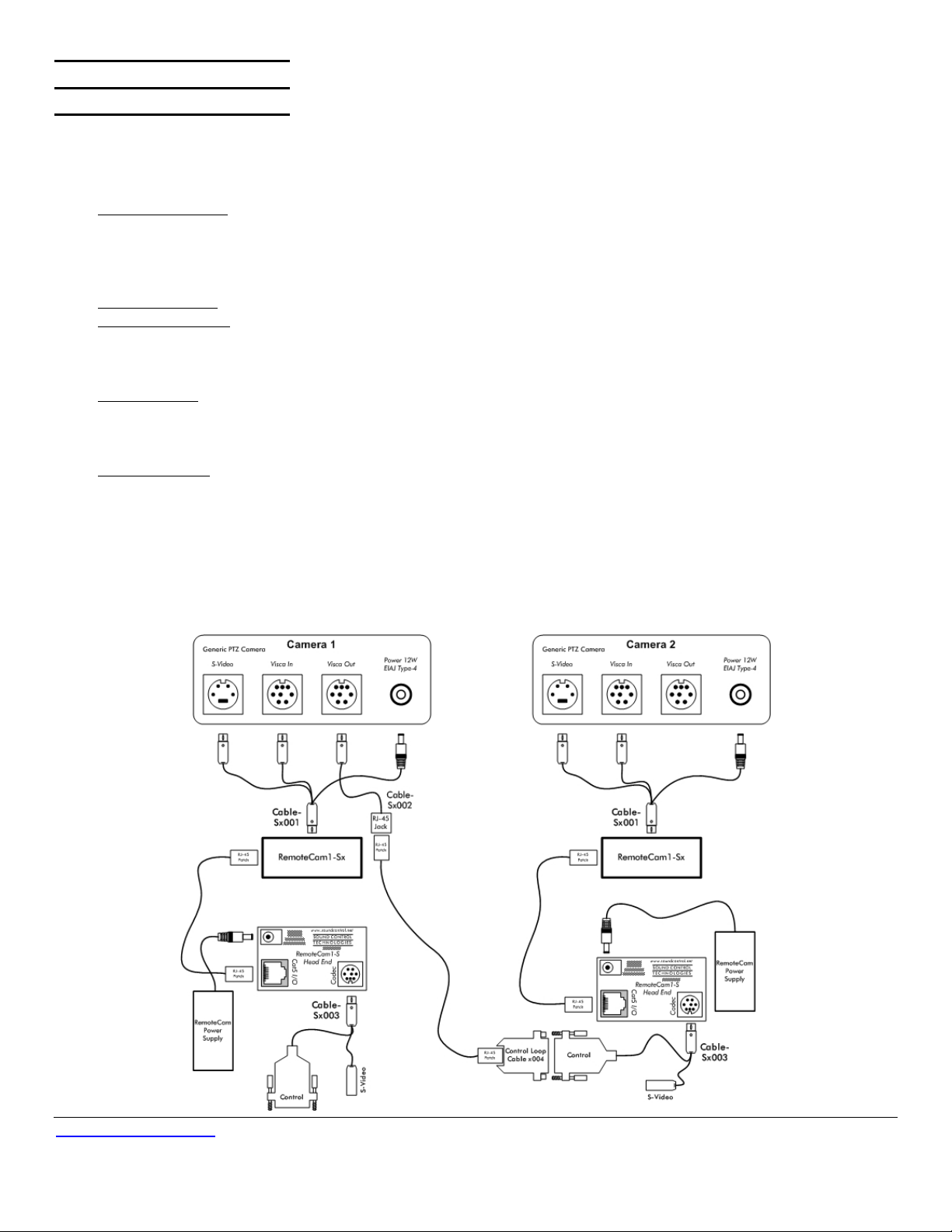

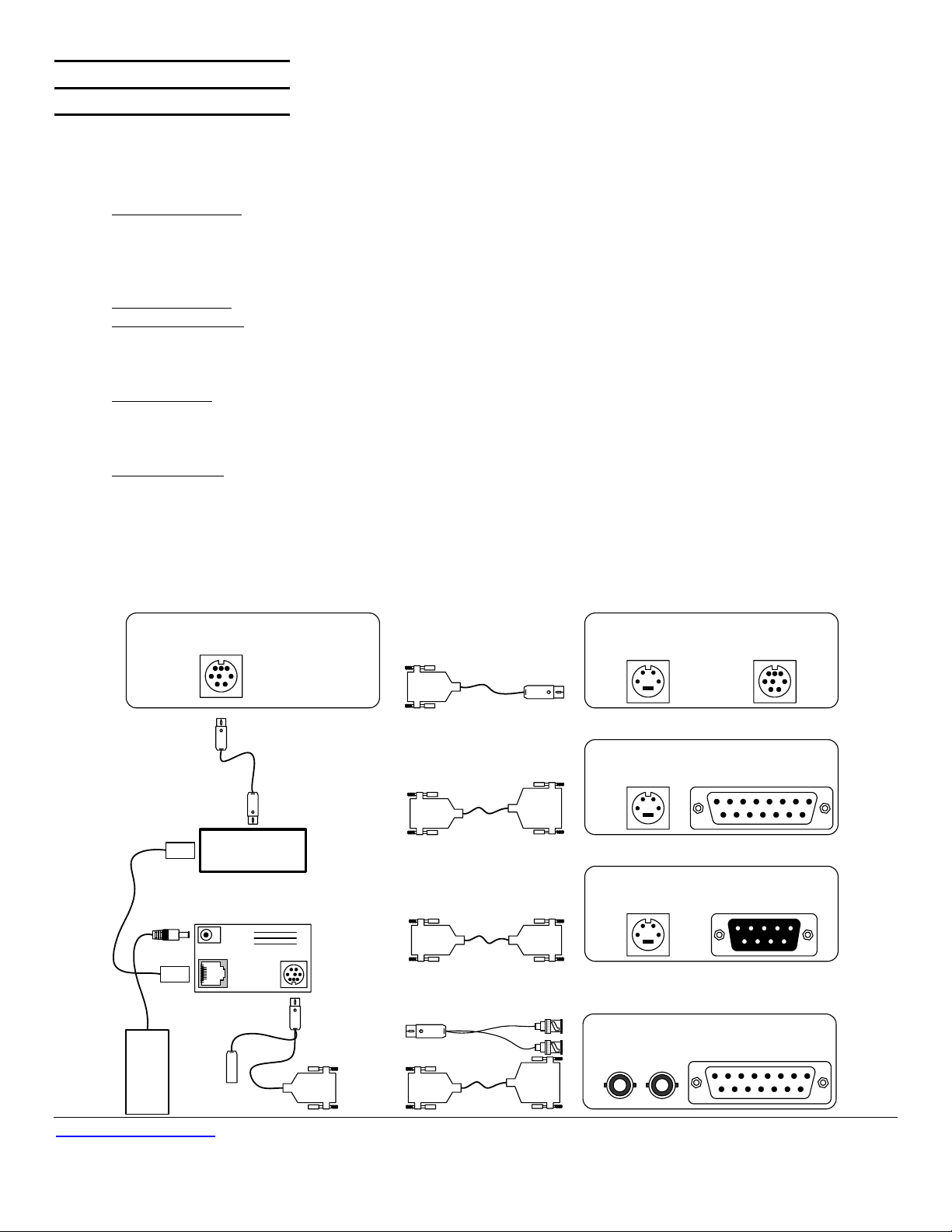

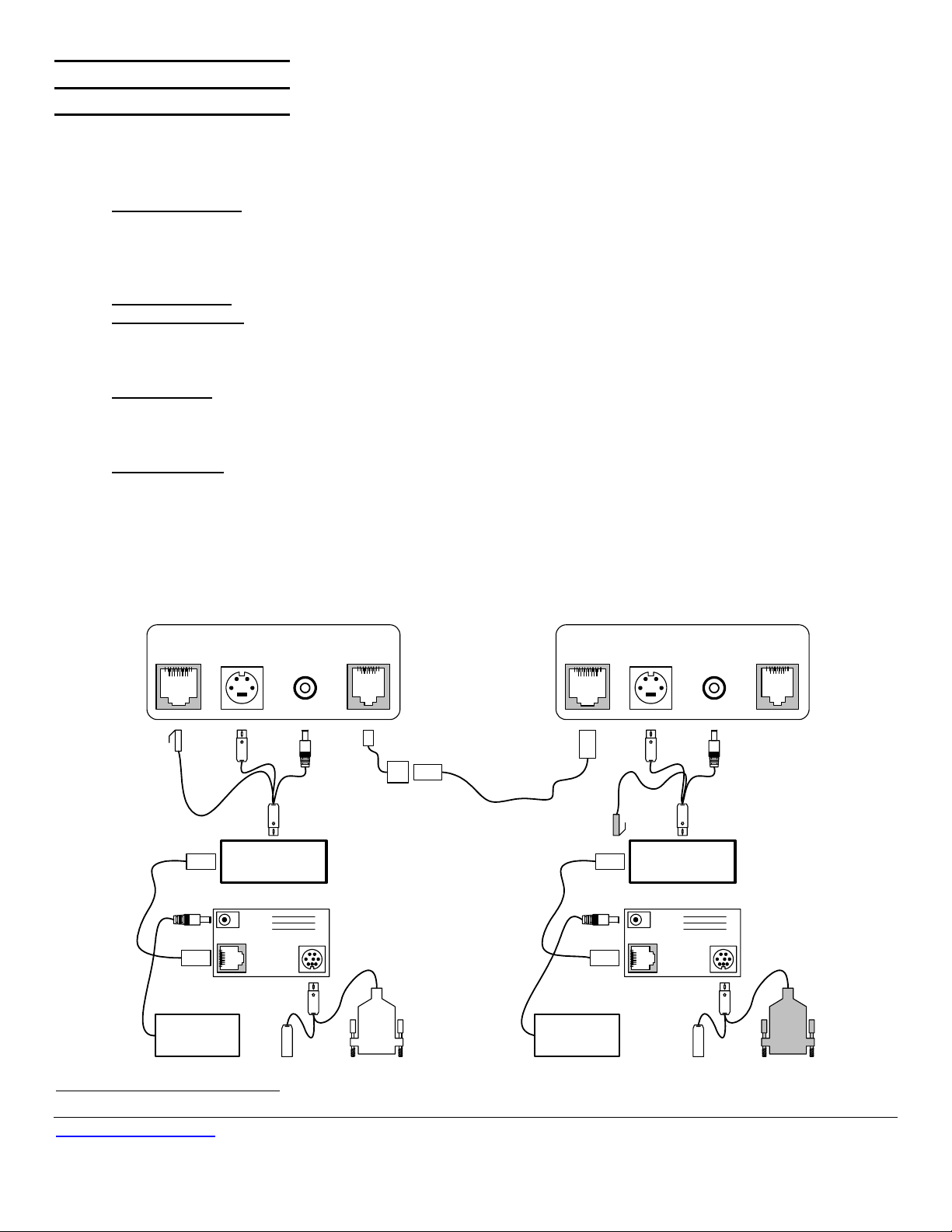

Simple RC1-SP™ System Diagram
RemoteCam1-S-P
Cable-
SP001
Cat5 I/O
USE ONLY
PROVIDED
+30VDC@2A
POWER SUPPLY
RemoteCam1-SP
Head End
SOUND CONTROL
TECHNOLOGIES
www.soundcontrol.net
©SCT, 2003
Codec
Cable-
Sx003
RemoteCam
Power
Supply
RJ-45
Patch
RJ-45
Patch
S-Video
Camera I/O
Polycom® Powercam™
Control
Polycom® VSX8000™ Main Camera
S-Video
(Dual BNC) Control (DB15-Female)
Polycom® VSX7000e™ Main Camera
S-Video Control (DB15-Female)
DB-9 Female

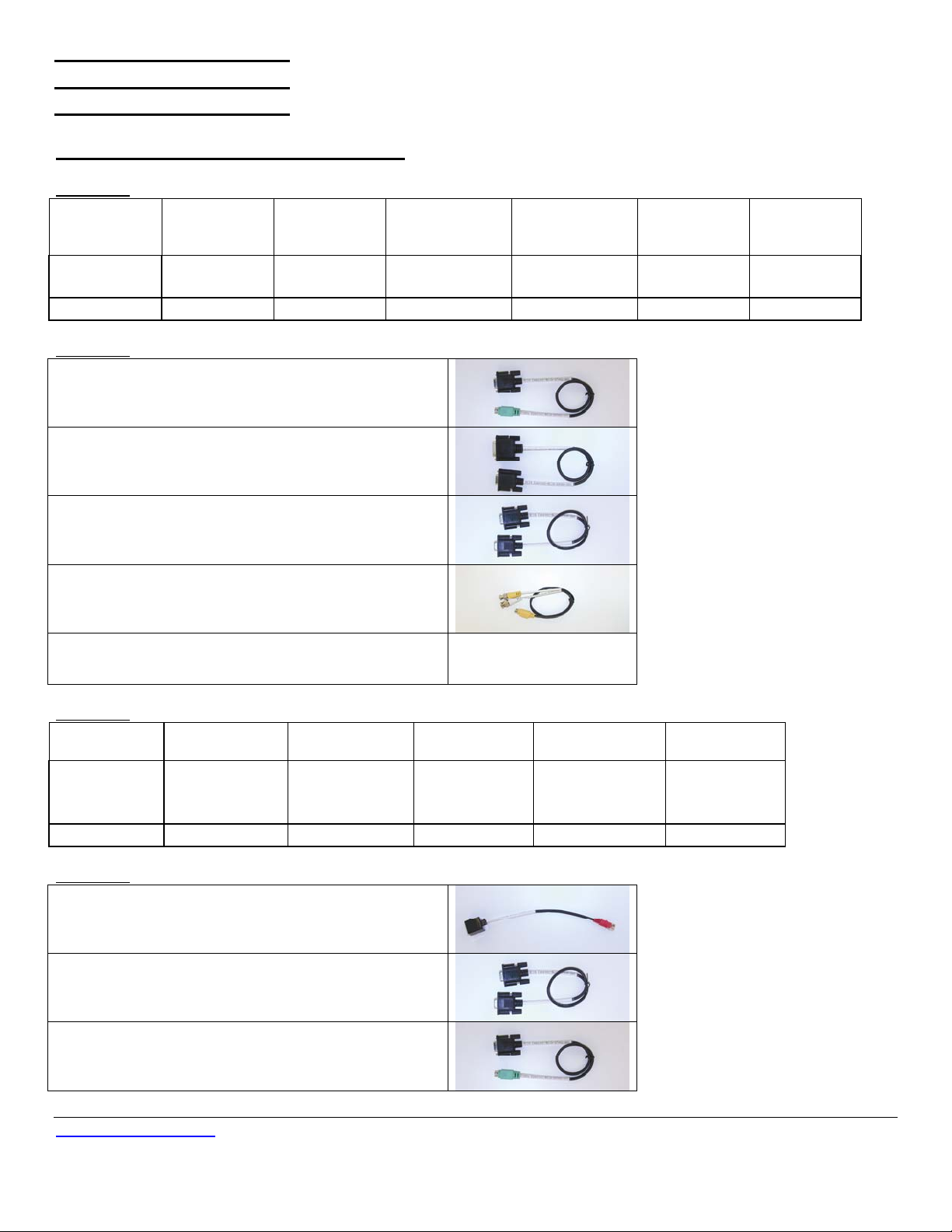

SP002
DB-9 Female DB-15 Female
SP003
DB-9 Female DB-9 Female
SP004
DB-9 Female DB-15 Female
SP003
SP005
Polycom® VSX 8000 & VSX7000e™ 2nd Camera
S-Video Control (DB9-Male)
Polycom® VSX7000™ & VSX7000s™
2nd Camera
S-Video Control
