Sound Sation Jukey-61 Manuale utente

ELECTRONIC KEYBOARD with 61 piano keys

And AUDIO PLAYER

Please read this manual carefully and properly take care of it

USER MANUAL

Leggete questo manuale e conservatelo per future consultazioni

MANUALE UTENTE

Dear customer,

First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy

all possible needs of musical instrument and professional audio users oering a wide

range of products using the latest technologies.

We hope you will be satised with this item and, if you want to collaborate, we are

looking for a feedback from you about the operation of the product and possible

improvements to introduce in the next future. Go to our website www.soundsation-

music.com and send an e-mail with your opinion, this will help us to build instruments

ever closer to customer’s real requirements.

One last thing: read this manual before using the instrument, an incorrect operation

can cause damages to you and to the unit. Take care!

The SOUNDSATION Team

Gentile Cliente,

Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione è quella di

orire ai nostri utenti una vasta gamma di strumenti musicali ed apparecchiature audio

e lighting con tecnologie di ultima generazione.

Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-

mo lieti di ricevere un vostro feedback sulla qualità del prodotto al ne di migliorare

costantemente la nostra produzione. Visitate il nostro sito www.soundsationmusic.

com ed inviateci una mail con la vostra opinione, questo ci aiuterà a sviluppare nuovi

prodotti quanto più vicini alle vostre esigenze.

Un’ultima cosa, leggete il presente manuale al ne di evitare danni alla persona ed al

prodotto, derivanti da un utilizzo non corretto.

Il Team SOUNDSATION

ENGLISH

JUKEY-61 User manual

TABLE OF CONTENTS

1. INTRODUCTION..........................................................................................................................6

1.1. Unpacking.................................................................................................................................................................6

1.2. Accessories...............................................................................................................................................................6

2. OVERVIEW ...................................................................................................................................7

3. MAIN FEATURES .........................................................................................................................7

4. CONTROL PANEL ........................................................................................................................8

5. REAR PANEL ................................................................................................................................9

5.1. Use power adaptor................................................................................................................................................9

5.2. Use Batteries............................................................................................................................................................9

5.3. Use Headphones..................................................................................................................................................10

5.4. Sustain Pedal..........................................................................................................................................................10

5.5. Microphone Input................................................................................................................................................10

5.6. Audio Stereo Input..............................................................................................................................................10

5.7. Audio Stereo Output ..........................................................................................................................................11

5.8. USB Socket (Audio Player)................................................................................................................................11

6. BASIC OPERATION................................................................................................................... 11

6.1. Turn on Power.......................................................................................................................................................11

6.2. Master Volume adjustment..............................................................................................................................12

7. TONES ....................................................................................................................................... 12

7.1. Tones selection......................................................................................................................................................12

7.2. Lower Tone (SPLIT) ..............................................................................................................................................13

8. EFFECTS and CONTROLS......................................................................................................... 13

8.1. Sustain......................................................................................................................................................................13

8.2. Vibrato......................................................................................................................................................................14

8.3. Tempo.......................................................................................................................................................................14

8.4. Transpose ................................................................................................................................................................15

8.5. Metronome ............................................................................................................................................................15

9. MANUAL DRUM....................................................................................................................... 16

9.1. Drum Pads ..............................................................................................................................................................16

10. STYLES SELECTION .................................................................................................................. 17

11. STYLE CONTROLS .................................................................................................................... 17

11.1. Chords recognition mode ................................................................................................................................17

11.2. Start/Stop................................................................................................................................................................19

11.3. Sync ...........................................................................................................................................................................20

11.4. Intro/Ending...........................................................................................................................................................20

11.5. Fill In..........................................................................................................................................................................20

11.6. Style Variation........................................................................................................................................................21

11.7. Accompaniment Drum Volume adjustment..............................................................................................21

11.8. Chords Volume adjustment .............................................................................................................................21

12. SONGS....................................................................................................................................... 22

13. SONG LEARNING MODE ......................................................................................................... 23

14. AUDIO PLAYBACK from USB .................................................................................................. 24

14.1. Play / Pause ............................................................................................................................................................24

14.2. Volume Adjustment ............................................................................................................................................24

14.3. Loop ..........................................................................................................................................................................24

14.4. Previous Song / Next Song..............................................................................................................................25

14.5. Play Mode...............................................................................................................................................................25

14.6. Equalization Mode...............................................................................................................................................25

15. TONES LIST ............................................................................................................................... 26

16. STYLES LIST .............................................................................................................................. 32

17. DEMO SONG LIST .................................................................................................................... 35

18. SPECIFICATIONS ...................................................................................................................... 36

19. WARRANTY AND SERVICE ..................................................................................................... 37

20. WARNING................................................................................................................................. 38

ENGLISH

JUKEY-61 User manual

IMPORTANT SAFETY SYMBOLS

The symbol is used to indicate that some hazardous live terminals are

involved within this apparatus, even under the normal operating con-

ditions, which may be sucient to constitute the risk of electric shock

or death.

The symbol is used in the service documentation to indicate that spe-

cic component shall be replaced only by the component specied in

that documentation for safety reasons.

Protective grounding terminal

Alternating current/voltage

Hazardous live terminal

Denotes the apparatus is turned on

Denotes the apparatus is turned o

WARNING: Describes precautions that should be observed to prevent the danger

of injury or death to the operator.

CAUTION: Describes precautions that should be observed to prevent danger of

the apparatus.

To protect the environment, please try to recycle the packing material

as much as possible

Don’t throw this product away just as general trash, please deal with

the product follow the abandon electronic product regulation in your

country.

TAKING CARE OF YOUR PRODUCT

fRead these instructions

fKeep these instructions

fHeed all warning

fFollow all instructions

ENGLISH

JUKEY-61 User manual

1) Water / Moisture

The keyboard should be protected from moisture and rain and can not be used near

water; for example near a bathtub, a kitchen sink, a swimming pool, etc.

2) Heat

The keyboard should be located away from heat sources such as radiators, stoves or

other appliances that produce heat. Don not use it when maximum ambient tempera-

ture is higher than 40°C.

3) Object and Liquid Entry

Objects do not fall into and liquids are not spilled into the inside of the keyboard for

safety.

4) Power ADAPTER

Please use specied Adapter, otherwise fault adaptermay cause damage of your elec-

tronic keyboard. Do not place adapter or power cord near heating source such as cen-

tral heating or heat radiator. Regularly check power plug and clean surface dirt. Do not

pull out power plug with wet hands. Do not overbend wire and place heavy matters on

wire with other matters to avoid damaging wire. Unplug the keyboard from the mains

during lightning storms or when unused for long periods of time.

5) CleaninG and MAINTENANCE

To clean the body of the electronic keyboard, please use dry soft cloth. Do not use

paint, organic solvent, alcohol or chemically impregnated cloth.

6) Servicing

Do not open the case of electronic keyboard and try to disassemble any part of it or

make any change to it. Should any abnormal function occur in use, please stop operat-

ing it immediately and send the keyboard for repair by qualied service personnel only.

Only use accessories/attachments or parts recommended by the manufacturer.

NOTICE:

fSpecications are subject to change without notice

fShould any description of product function be not specied in detail or some typing

error occurs, please forgive us.

fWhat is shown on the LED display in these instructions is for explanation purposes

only and may dier from the actual display.

ENGLISH

JUKEY-61 User manual

1. INTRODUCTION

Thank you for purchasing our JUKEY61 keyboard. Enjoy your new equipment and make

sure to read this manual carefully before operation.

This user manual is made to provide both an overview of controls, as well as informa-

tion on how to use them.

1.1. Unpacking

Your JUKEY-61 keyboard was carefully packed to ensure safe transport. Despite this,

we recommend you to carefully examine the package and its contents for any signs of

physical damage, which can occur during transport. Each unit has the following parts:

f1 x JUKEY-61 Electronic Keyboard

f1 x Power Adapter

f1 x Music Stand

f1 x Jack adapter for Sustain Pedal or Microphone Inputs

f1 x User Manual

ATTENTION: Packaging cartons are not a toys! Keep out of reach of chil-

dren!!! Keep in a safe place the original packaging material for future use.

If anything damaged during transport, notify the shipper immediately and keep the

packing material for inspection. Again, please save the carton and all packing materials.

If the keyboard must be returned to the manufacturer, it is important that it is returned

in the original manufacturer box and packing. Please do not take any action without

rst contacting us.

1.2. Accessories

SOUNDSATION can supply a wide range of quality accessories that you can use with

your JUKEY-61 keyboard, like Audio cables, Headphones, Keyboard stands, external

speakers and a wide range of other dedicated items.

All products in our catalogue has been long tested with this device, so we recommend

you to use Genuine SOUNDSATION Accessories and Parts.

Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com

for any accessories you could need to ensure best performance of the product.

ENGLISH

JUKEY-61 User manual

2. OVERVIEW

The Soundsation JUKEY-61 keyboard is perfect for beginners who want to start playing.

The JUKEY-61 keyboard has 61 piano-type keys, 510 dierent sounds, 300 accompani-

ment styles, and 30 demo songs to practice playing with. A sustain pedal (not includ-

ed) can also be added for more authentic piano playing. Thanks to the wide range of

sounds and styles that this keyboard oers, you can have fun spanning various musical

genres. It can play audio tracks in dierent formats (mp3, Wav, Wma) thanks to the USB

Host connection where a USB Flash Drive can be inserted. Audio playback takes place

through two integrated 3 Watt speakers. The compactness and the possibility of battery

operation make this keyboard an instrument geared towards school use. The result of

all the features is to have a good keyboard with a great value in its market range.

3. MAIN FEATURES

f61-key piano-type keyboard

f3 x Seven Segments LED Display

fPower Supply DC 12V (Bundled Adaptor)

f510 Tones

f300 Automatic accompaniments (Styles) with relative controls

f30 Demo Songs

fManual Drum Function

fSplit Lower Function

fIntelligent self-learning system

fAudio Player (MP3, WAV and WMA)

fBattery operation

fMusic Stand included

ENGLISH

JUKEY-61 User manual

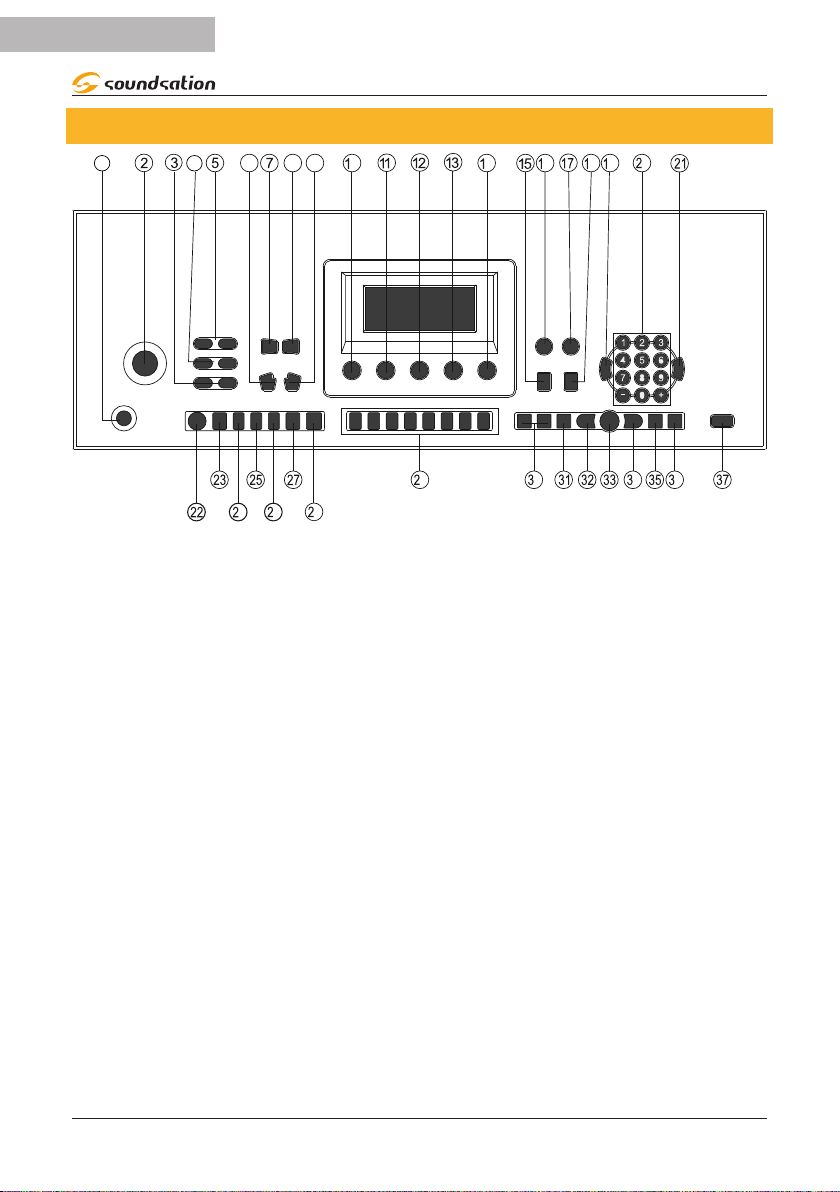

4. CONTROL PANEL

1 4 68 9

046

8 9

46 8

0 4 6

1. Power ON/OFF Switch 14. Exercise Lesson 3 27. Chord Mode

ONE FINGER

2. Master Volume

regulation knob 15. Sustain 28. Chord Mode

MULTI FINGER

3. Accompaniment

Volume Adjustment 16. Metronome 29. Drum PADS

4. Tempo Adjustment 17. Manual Drum 30. Volume adjustment

for Audio Player

5. Transpose Adjustment 18. Vibrato

6. Turns o Automatic

chords

19. TONES mode

selection 31. LOOP

Chords Volume

Adjustment

20. Numeric

Buttons(0..9) +/- 32. Previous Song

21. STYLES mode

selection

33. Play /Pause

9. SPLIT/LOWER

Function

22. START/STOP Style 34. Next Song

10. Single Demo Song

Playback 23. FILL-IN 35. Playback Mode

11. All Demo Songs

Playback 24. INTRO/ENDING 36. Equalization Mode

12. Exercise Lesson 1 25. SYNC 37. USB Audio Player

13. Exercise Lesson 2 26. STYLE VARIATION

ENGLISH

JUKEY-61 User manual

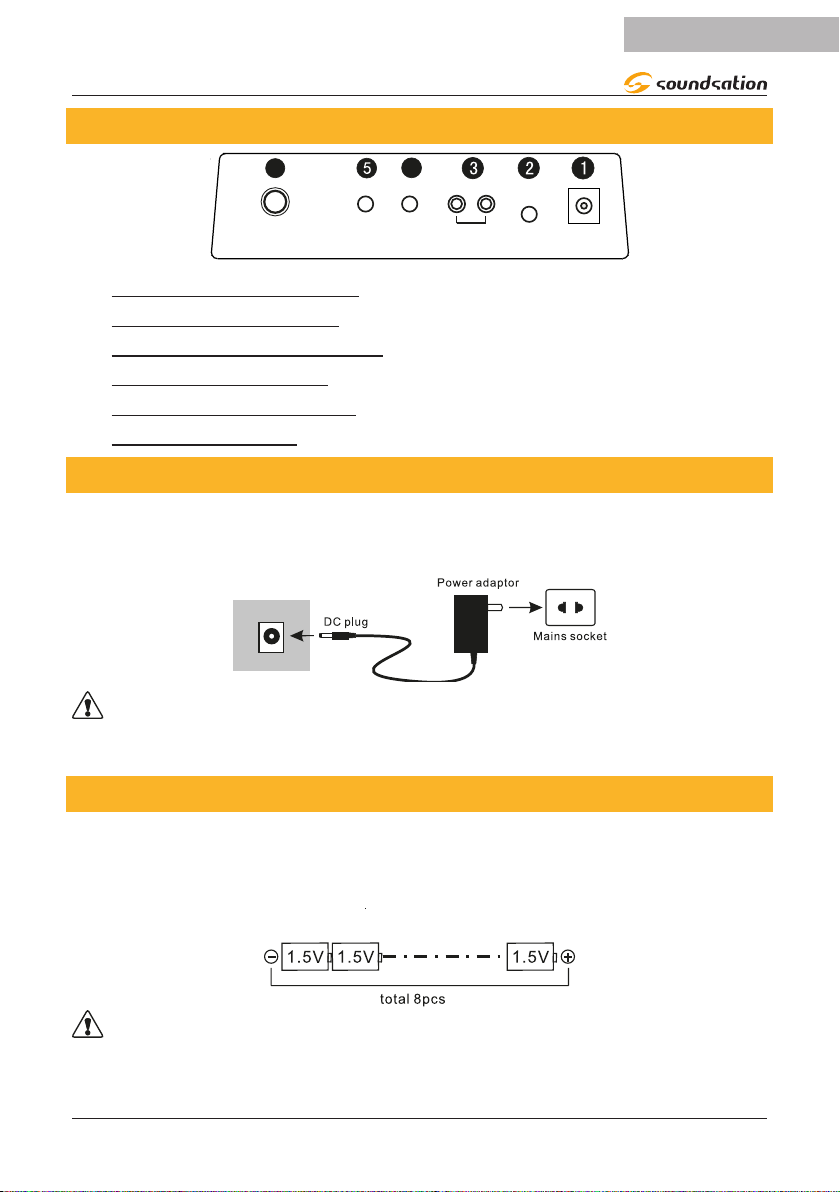

5. REAR PANEL

12VPHONES

L R

OUT

PEDAL MIC

AUDIO

INPUT

1) DC12V INPUT Socket

2) HEADPHONES JACK

3) AUDIO STEREO OUTPUT

4) MICROPHONE JACK

5) AUDIO STEREO INPUT

6) SUSTAIN PEDAL

5.1. Use power adaptor

Please use the special power adaptor that was equipped with this electronic keyboard,

Insert the DC plug of power adaptor into the DC jack of electronic keyboard, then,

insert the other end into Mains socket, nally turn on power switch.

DC 12V

CAUTION: When you don’t use this electronic keyboard, you should pull out the

plug of power adaptor from power socket safely to avoid the parts trouble or other

accidents.

5.2.Use Batteries

Open the battery lid at the bottom of electronic keyboard and load 8pcs l.5V size D

batteries,ensure the polarity of the batteries should conform to the anode and cath-

ode direction of batteries marked in battery internal slot.Cover the battery lid after the

installation.

CAUTION: Please replace all batteries at one time when them need the replace-

ment. Don’ t use dierent kinds of batteries and not mix new and old batteries at the

same time. Please take out the batteries as to avoid possible damage caused by the

batteries leakage if you don’t use the keyboard for long time.

ENGLISH

JUKEY-61 User manual

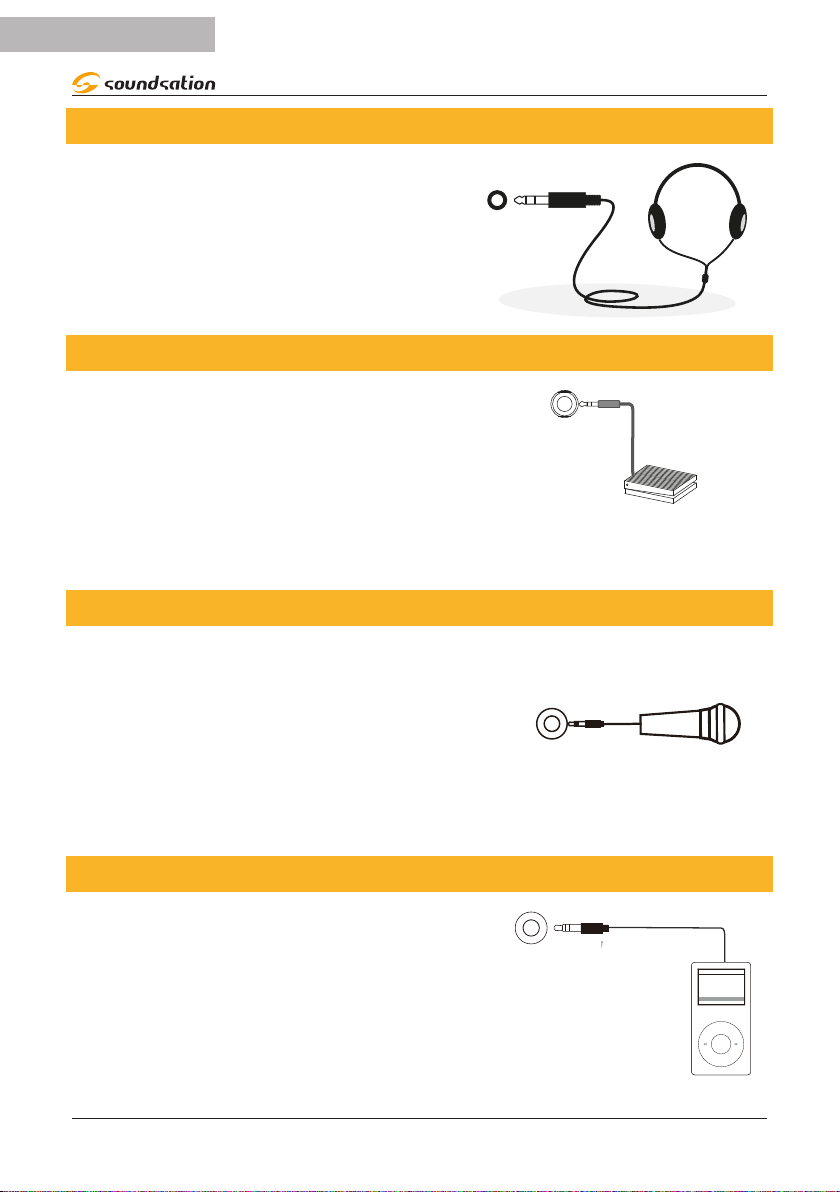

5.3.Use Headphones

Insert headphone plug into [PHONES] jack in

back of keyboard. The internal speaker system of

electronic keyboard cuts o automatically now.

PHONES

5.4.Sustain Pedal

An optional footswitch can be plugged into the

sustain jack and be used to switch sustain on or

o. Simply by pressing a sustain footswitch, you

will have a natural sustain as you play..

SUSTAIN

5.5.Microphone Input

By connecting a microphone to the dedicated

connector, you can sing while playing or during

song playback via the MP3 player. Before turning on

the instrument, set the master volume to minimum.

Then connect a microphone to the MIC jack and

after turning on the instrument, adjust the master

volume while singing using the microphone.

MIC

5.6.Audio Stereo Input

By connecting the audio output of an MP3 / CD

player or other audio source to the AUDIO INPUT

connector on the rear panel, the audio input signal

is mixed with the instrument signal and therefore, it

is possible to play the keyboard at the same time.

AUDIO

INPUT

Indice

Lingue:

Altri manuali Sound Sation Tastiera elettronica

Sound Sation

Sound Sation KeyLite 25 Manuale utente

Manuali Tastiera elettronica popolari di altre marche

Casio

Casio LK-50 Guida alla configurazione

Casio

Casio VZ-1 Guida alla risoluzione dei problemi

Casio

Casio Privia PX-100 Manuale utente

Yamaha

Yamaha PortaTone PSR-225GM Manuale utente

Behringer

Behringer U-CONTROL UMX49 Manuale utente

Yamaha

Yamaha Portatone X2500 Manuale utente

Yamaha

Yamaha Portatone PSR-100 Manuale utente

Casio

Casio WK-1600 Manuale utente

Keith McMillen Instruments

Keith McMillen Instruments K-Board Pro 4 Scheda tecnica

Yamaha

Yamaha PortaSound PCS-30 Manuale utente

Roland

Roland Juno-6 Manuale utente

McGrey

McGrey 6170 Manuale utente

Yamaha

Yamaha PortaTone PSR-41 Manuale utente

HDC

HDC Kurzweil KP300X Manuale utente

Casio

Casio Celviano AP-45 Manuale utente

Akai

Akai MPK88 Manuale utente

Waldorf

Waldorf IRIDIUM Manuale utente

Yamaha

Yamaha NP-30 Istruzioni per il montaggio
