CONTENTS LIST

2 SAFETY INFORMATION

3 DISC AND FORMAT SUPPORTS

4 ACCESSORY INCLUDED

5 INSTALLATION

7 DETACHABLE CONTROL PANEL

8 WIRING DIAGRAM-AUDIO/VIDEO CONNECTIONS

9 WIRING DIAGRAM-POWER/SPEAKERS

10 CONTROL PANEL FUNCTION

11 REMOTE FUNCTION

13 BASIC OPERATIONS

15 AUDIO OPERATION

15 TUNER OPERATION

16 CD OPERATION

19 MP3/WMA OPERATION

22 JPEG CD OPERATION

23 DVD OPERATON

29 SYSTEM SET UP MENU

34 SPECIFICATION

35 TROUBLE SHOOTING

PAGE CONTENTS

When Driving

Keep the volume level Iow enough to be aware of the road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or

other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a

chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system (the regular

system in a North American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player. Failure to follow this may cause

malfunction or permanent damage due to the precise mechanism of this unit.

1. SAFETY INFORMATION

CAUTION:

THIS MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. THIS UNIT USES A VISIBLE/INVISIBLE

LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION IF EXPOSED DIRECTLY . BE SURE

TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OR PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF PLEASE REFER SERVICING TO A

QUALIFIED TECHNICIAN.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE

ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain

U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights

owners. Use of this copyright protection technology must be authorized by Macrovision Corporation,

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

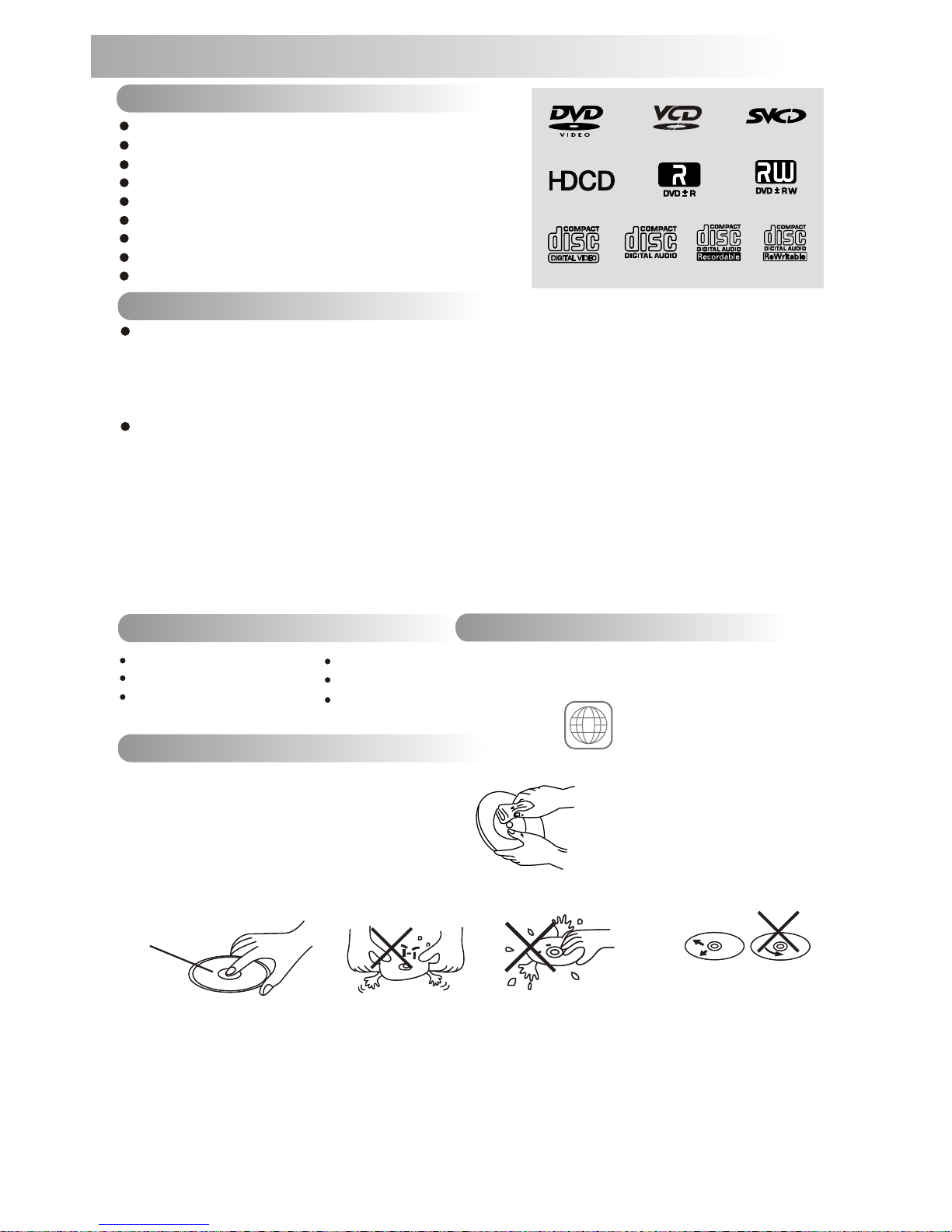

2. DISC AND FORMAT SUPPORTS

Do not bend

Before playing, wipe the disc using a clean cloth, working from the center hole

towards the outside edge.

Never use benzene, thinners, cleaning fluids

or anti-static liquids or any other solvent.

Label side

Never touch

the under side

of a disc

Wipe the disc surface

from the

center to the edge.

Note: A disc may become somewhat scratched (although not enough to make it unusable) depending on you

handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with

the player.

8 cm disc

CD ROM

CDV, CDI, CDG,

DVD ROM

DVD RAM

DVD players and DVD Video discs have their own

Region Code numbers. This unit can play the

disc of all region code numbers.

ALL

A. DISCS CAN PLAY WITH THIS UNIT

C. DISCS WHICH CAN NOT BE PLAYED D. NOTE ON REGION CODE

E. DISC MAINTENANCE

B. FORMAT CAN PLAY WITH THIS UNIT

Digital Versatile Discs (DVDs)

Video CDs (VCDs)

Super Video CDs (SVCDs)

HDCD

Digital Versatile Discs Recordable(DVD+/-R)

Digital Versatile Discs Rewritable(DVD+/-RW)

Compact Discs (CDs)

CD Recordable (CD-R)

CD Rewritable (CD-RW)

AUDIO FORMAT

Playback CD-DA and MP3 or WMA digital music file on CD-ROM or DVD-ROM

Note of MP3 and WMA:

Supported Sampling frequencies; 32kHz, 44.1kHz, 48kHz.

Supported Bit-Rates: 32-256 kbps variable bit rate

VIDEO FORMAT

Playback IMAGE JPEG, DVD Video, MP4, Divx and, Xvid. on CD-ROM or DVD-ROM

Noted of Mp4

Supported decoding MPEG-4 video defined by ISO 14496-2 Standard

a. Simple Profile (SP) and

b. Advance Simple Profile (ASP)

Supported file format: .mp4 and .m4a (audio only)

Noted of Divx

Supported Divx Home Theatre Profile

Supported Divx version: 3.11, 4.12 and 5.x

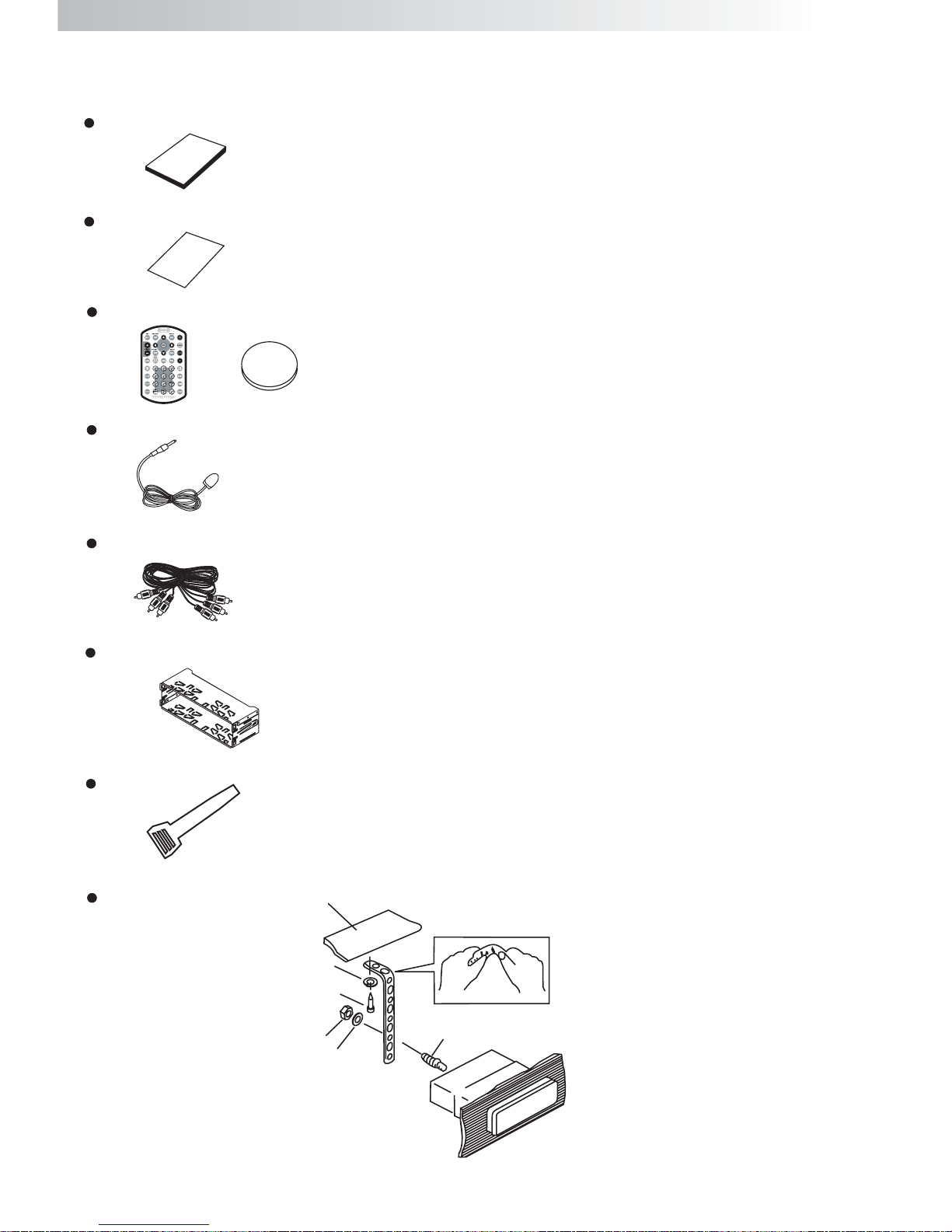

3.ACCESSORY INCLUDED

When first unpacking your new , please check first that the package

contains all of the items below. If something is missing, contact the store where you purchased the

player.

full detachable DVD head unit

Remote control & Lithium Battery

Extended remote control sensor jack & cable

Audio/Video cable

Half Sheeve

Insert Key

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4X12mm)

5. Screw

6. Support Strap

7. Plain washer

Owner’s

manual

Owner’s Manual

Warranty

Card

Warranty Card

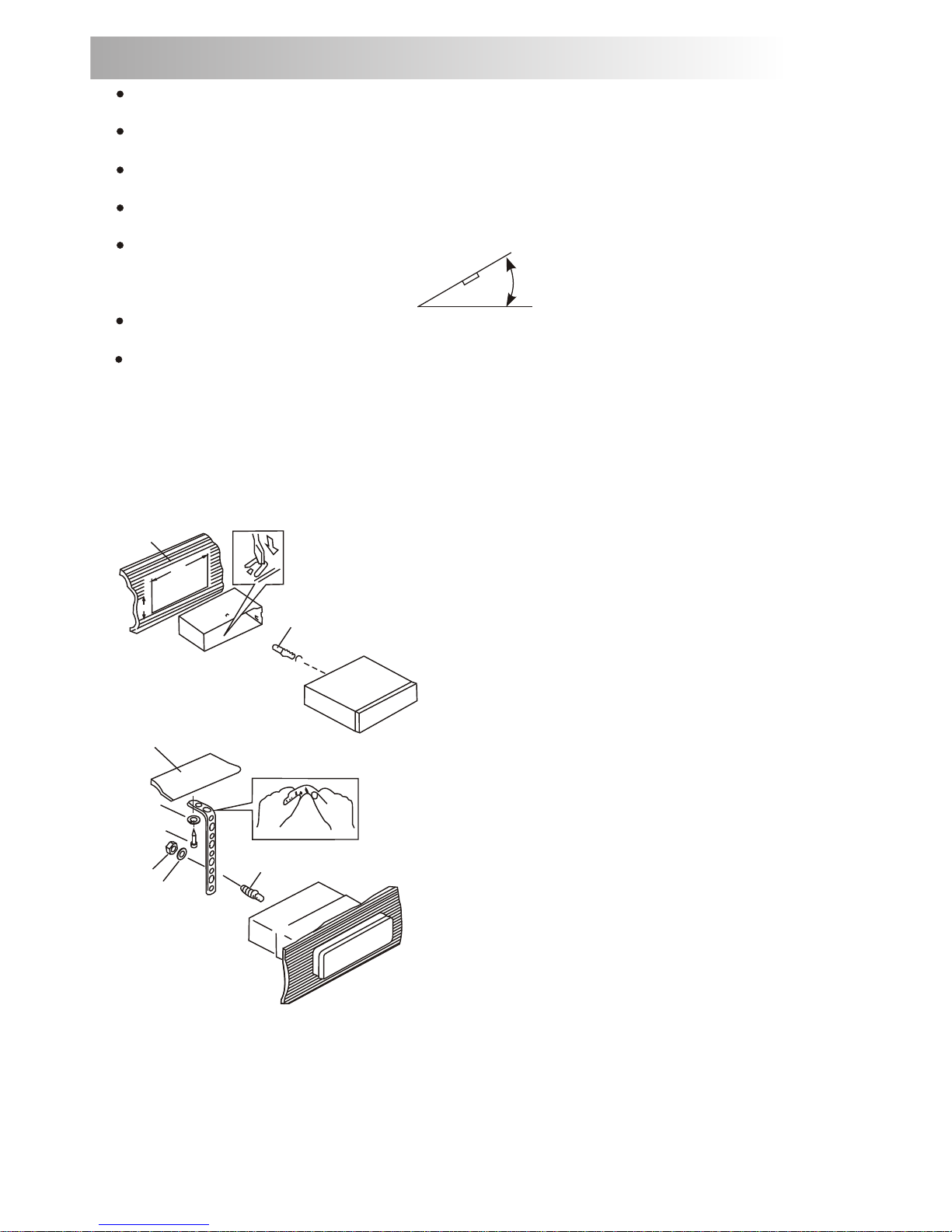

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up

properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts

can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of

the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

If installation angle exceeds 30° from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from heater, or where it would be subject to dust dirt or excessive vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer

to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

3. Screw

30°

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4X12mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure

the back of the unit in place. The strap can

be bent by hand to the desired angle.

7. Plain washer

182

4. INSTALLATION

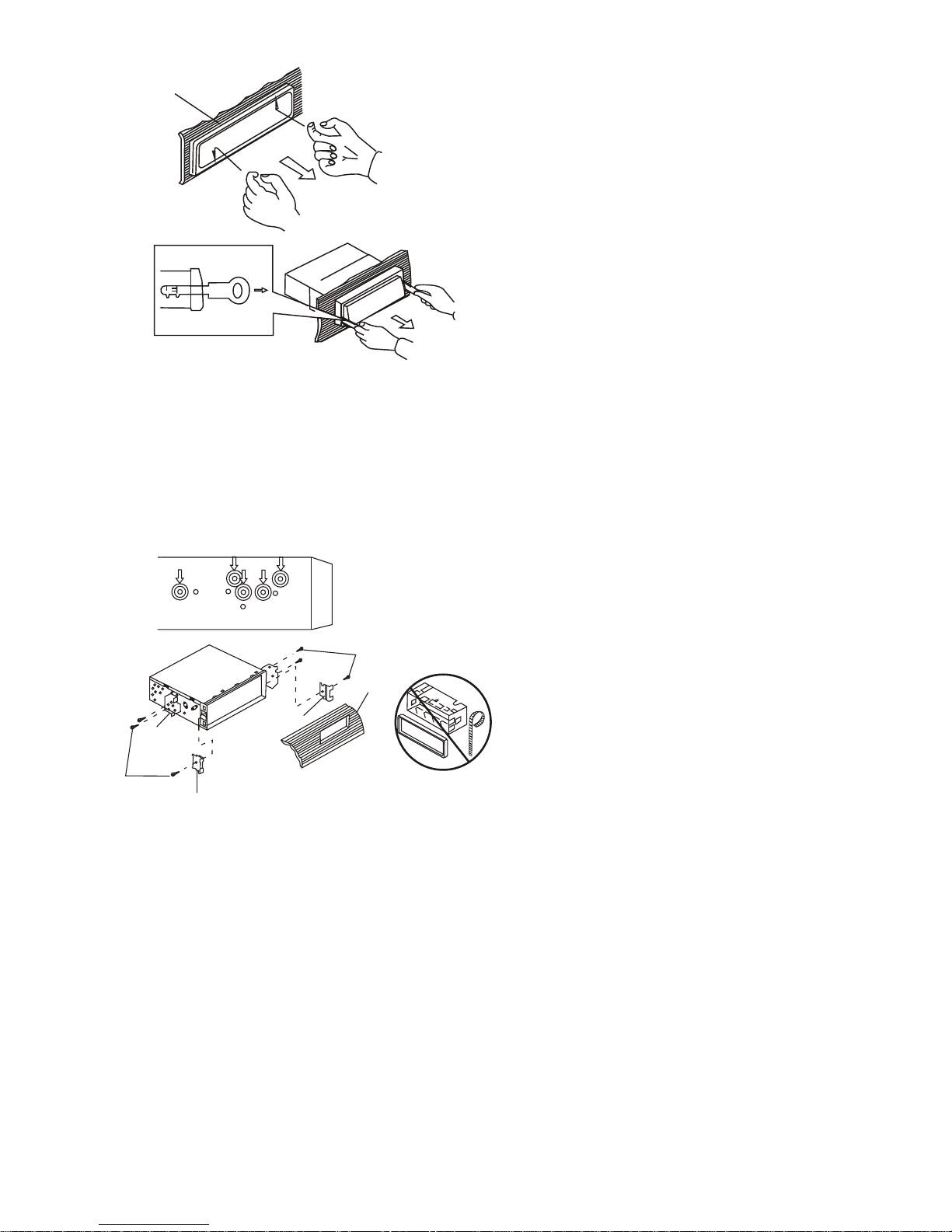

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw

holes of the bracket and the screw

holes of the main unit become

aligned (are fitted) and tighten the

screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method

B installation.

a. Frame

b. Insert fingers into the groove in the

front of frame and pull out to remove

the frame. (When re-attaching the

frame, point the side with a groove

down wards and attach it.)

c. Insert the levers supplied with the

unit into the grooves at both sides of

the unit as shown in figure until they

click. Pulling the levers makes it

possible to remove the unit from the

dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

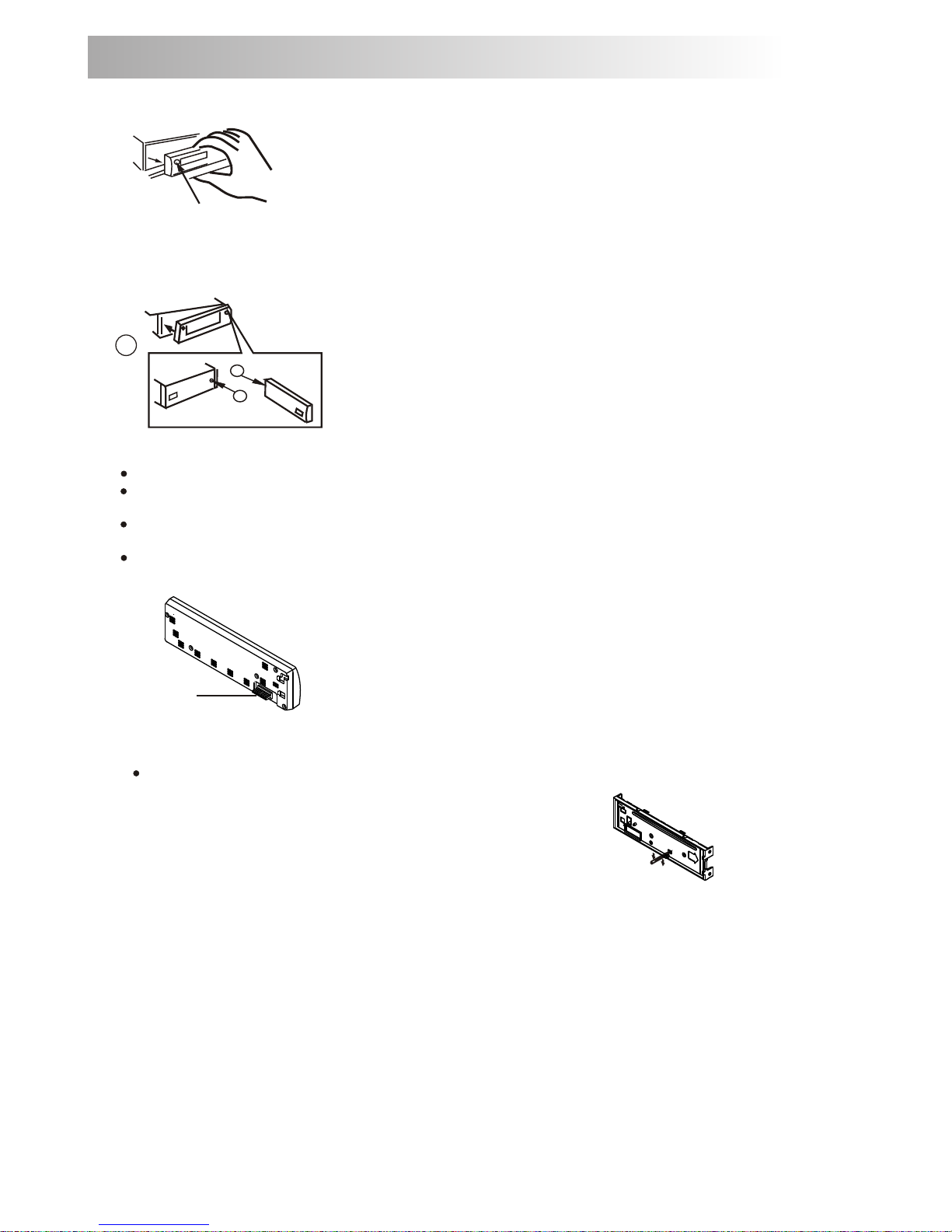

5. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with

point B on the main unit touching point A on the

D.C.P. (As shown on the digram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to

drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent

damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

Socket

RESETTING THE UNIT:

After releasing the front panel, use a pencil or any non-metalic object to press & hold the

reset button for five seconds to reset the unit.

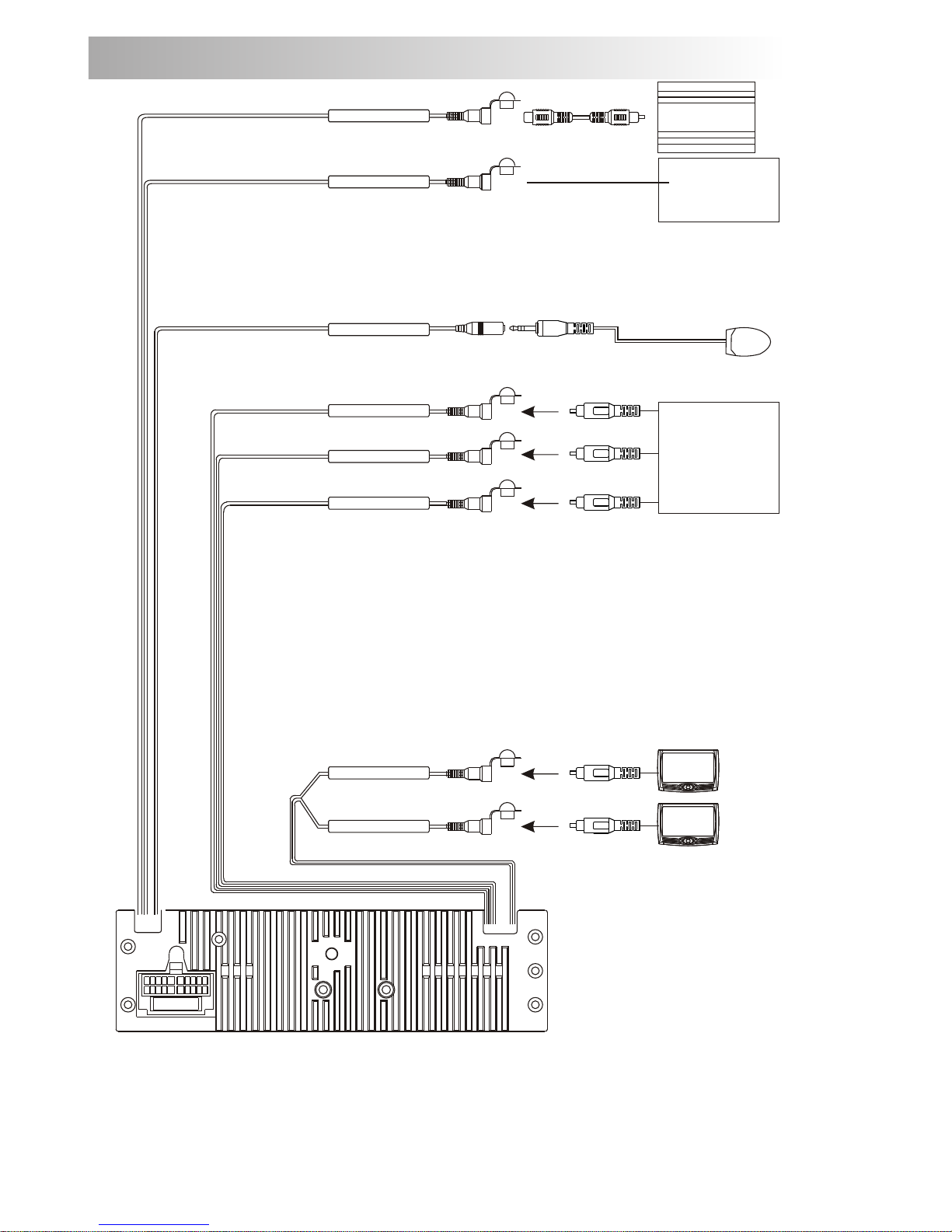

6. WIRING DIAGRAM-AUDIO/VIDEO CONNECTIONS

HEAD PHONE

SUB

WOOFER

SUB-W OUT

DIGITAL OUT

SUB-WOOFER OUTPUT

2nd AUDIO OUTPUT

BLUE

BLACK

2nd AUDIO OUT

DIGITAL OUTPUT

EXTERNAL REMOTE JACK

ORANGE

PINK

REMOTE

VIDEO IN (1)

VIDEO (1) INPUT YELLOW

AUDIO IN (1) R

AUDIO (1) INPUT (RIGHT)

AUDIO IN (1) L

AUDIO (1) INPUT (LEFT)

VIDEO OUT (1)

VIDEO (1) OUTPUT

VIDEO OUT (2)

VIDEO (2) OUTPUT

DOLBY DIGITAL

& DTS

DECODER

RED

WHITE

YELLOW

(Option)

VCR or DVD

GAME CONSOLE

FUSE

EXTERNAL REMOTE

RECEIVER

AMP

RIGHT REAR

RIGHT FRONT

WHITE-BLACK LF

GREEN-BLACK LR

WHITE LF+

LEFT REAR

GREEN LR+

LEFT FRONT

GREY RF+

VIOLET RR+

VIOLET-BLACK RR

GREY-BLACK RF

RED

FUSE

YELLOW

BLACK

L-CH

R-CH

L-CH

WHITE

R-CH

RED

WHITE

RED

BLUE

20-PIN

AUDIO/POWER

HARNESS

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

(Not supplied)

GREY

FRONT

CHANNEL

1 2 3 4 5 6 7 8 9 10

11 12 13 14 15 16 17 18 19 20

Figure 1Pin View

20 PIN HARNESS PIN CHART

PIN WIRE COLOR FUNCTION / LABEL

GREY / BLACK

GREY

VIOLET

VIOLET/BLACK

PINK

GREEN

GREEN / BLACK

RED

BLACK

RED

WHITE

WHITE / BLACK

BLUE/WHITE

BLUE

YELLOW

BLACK

WHITE

RED

BLACK

WHITE

RIGHT FRONT SPEAKER ( )

LEFT REAR SPEAKER (+)

PARKING BRAKE ( )

LEFT FRONT SPEAKER (+)

POWER AMPLIFIER REMOTE (+)

CHASSIS GROUND

LEFT FRONT PRE-AMPLIFIER LINE OUT

LEFT REAR PRE-AMPLIFIER LINE OUT

LEFT FRONT SPEAKER ( )

POWER ANTENNA

BATTERY (+)

RIGHT FRONT PRE-AMPLIFIER LINE OUT

FRONT PRE-AMPLIFIER LINE OUT COMMON

RIGHT FRONT SPEAKER (+)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

LEFT REAR SPEAKER ( )

IGNITION (ACC)

REAR PRE-AMPLIFIER LINE OUT COMMON

RIGHT REAR PRE-AMPLIFIER LINE OUT

(See Figure 1 )

POWER

AMPLIFIER

REMOTE

REAR

CHANNEL

BLACK

BLUE/WHITE

STRIPE

PINK

PARKING

BRAKE ( )

Connect to power amplifier, If not used,

Tape bare end of wire.

Power Antenna

Connect to power antenna or amplifier,

If not used, Tape bare end of wire.

Ground

Connect to ground terminal or clean

unpainted metal part of chassis.

Memory / Battery

Connect to battery or 12 volt power source

that is always live. The radio will not work if

this wire is not connected.

Accessory / Ignition

Connect to existing radio wire or radio fuse.

RCA-TO-RCA

CABLES

(Not supplied)

20 PIN AUDIO / POWER HARNESS

POWER ANTENNA/

AMPLIFIER REMOTE

GROUND

+12 VOLTS

CONSTANT

+12 VOLTS

SWITCHED

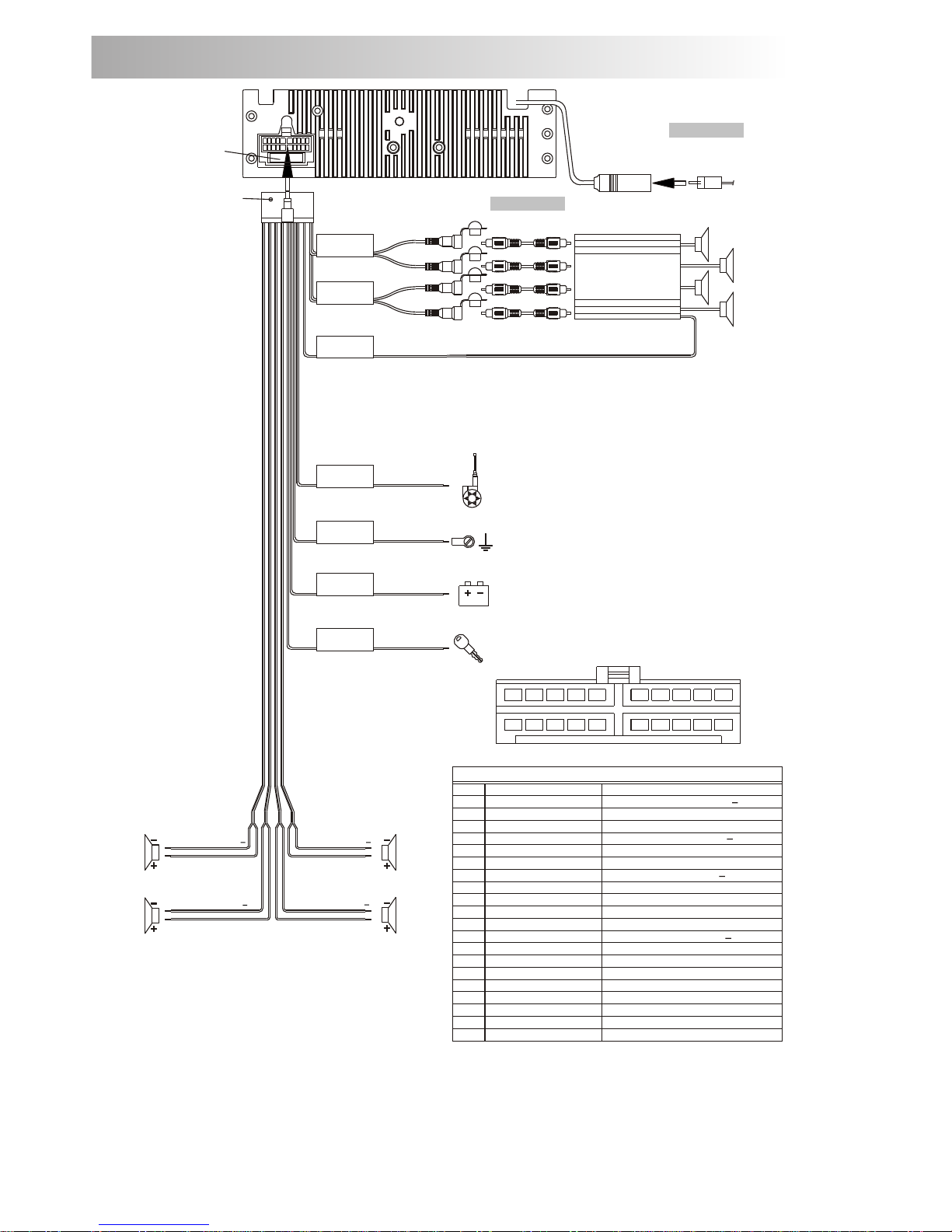

7. WIRING DIAGRAM - POWER / SPEAKERS (20 PIN)

Ground

Brake Switch

2.5m extension wire (optional)

Connect to Parking Brake.

EMPTY N/A

Indice

Altri manuali Sound Storm Ricevitore per auto

Sound Storm

Sound Storm SCD-300 Manuale utente

Sound Storm

Sound Storm SD320 Manuale utente

Sound Storm

Sound Storm SD743TS Manuale utente

Sound Storm

Sound Storm SDC90RDS Manuale utente

Sound Storm

Sound Storm M312USA Manuale utente

Sound Storm

Sound Storm SD140V Manuale utente

Sound Storm

Sound Storm SD709MBI Manuale utente

Sound Storm

Sound Storm ML44USA Manuale utente

Sound Storm

Sound Storm SCD-150 Manuale utente

Sound Storm

Sound Storm SD812TS Manuale utente

Sound Storm

Sound Storm SDVD500 Manuale utente

Sound Storm

Sound Storm SCP250 Manuale utente

Sound Storm

Sound Storm SD870TS Manuale utente

Sound Storm

Sound Storm ML39USA Manuale utente

Sound Storm

Sound Storm DD661B Manuale utente

Sound Storm

Sound Storm SD720MI Manuale utente

Sound Storm

Sound Storm S638BTA Manuale utente

Sound Storm

Sound Storm SDC22A Manuale utente

Sound Storm

Sound Storm SCD-350 Manuale utente

Sound Storm

Sound Storm SCD-850R Manuale utente

Sound Storm

Sound Storm RDSM35A Manuale utente

Sound Storm

Sound Storm SD642T Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Sound Storm

Sound Storm SD735 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente

Medion

Medion Car Audio Manuale utente
