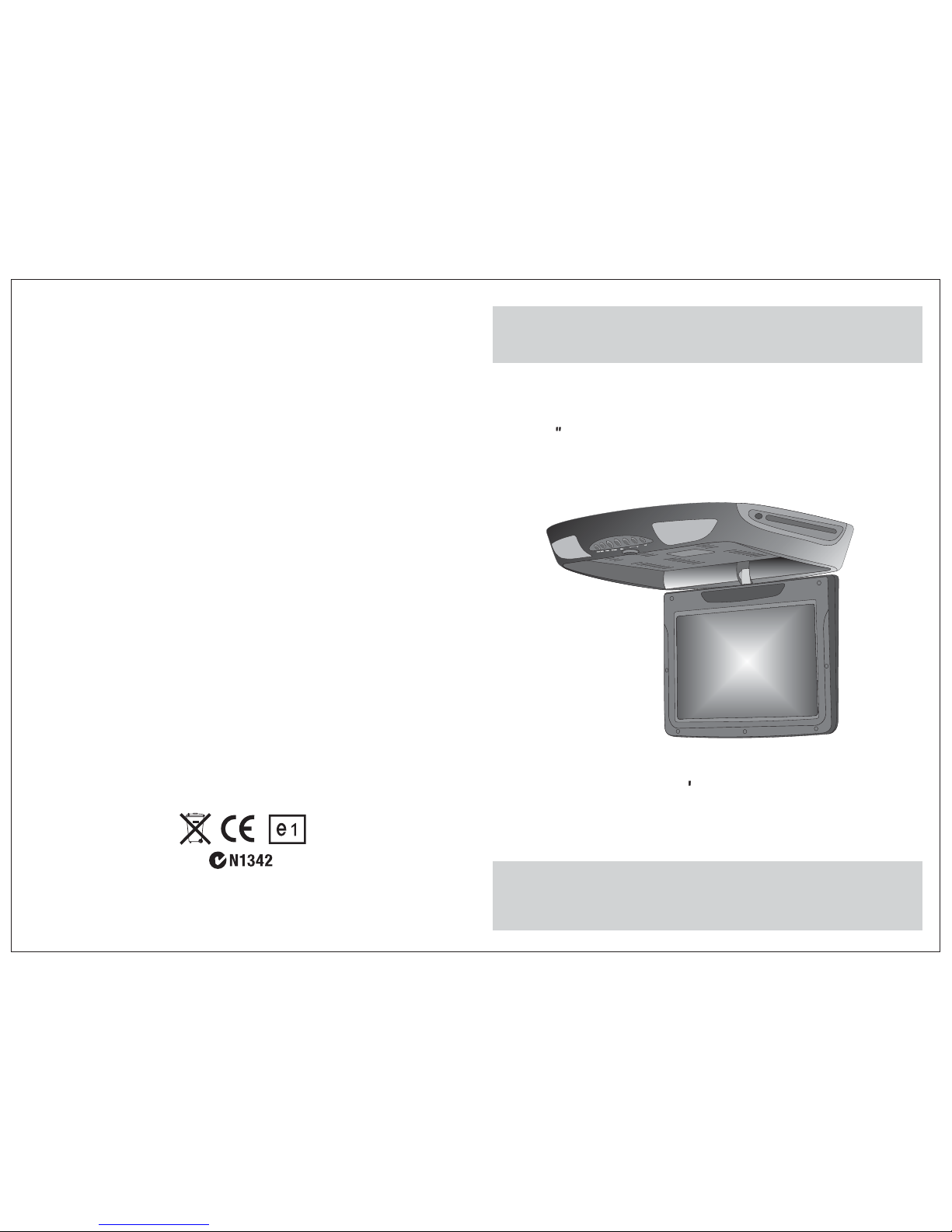

Sound Storm S9.2C Manuale utente

OWNER S MANUAL

9.2 TFT-LCD DVD COMBO MONITOR

Contents

Caution

Features and Controls

Power and Mode Selection

Releasing The Monitor

Mute Function

Picture Control

Contrast/Brightness/Color

DVD Setup

Setup Menu

General Setup

TV Aspect Ratio

Angle Viewing

OSD Language

Captions

Screen Saver

Last Position memory

Audio Setup

Dolby Digital Setup

Equalizer Settings

Video Setup

Quality

Preferences Setup

TV Type

PBC

Audio

Subtitle

Disc Menu

Parental

Country Region

Default

Password Setup

Password Mode

Password Change

DVD Functions

Eject

Vol+/Vol-

Mute

Play or Pause

Audio

Stop

Arrows

Setup

Display

Number Buttons

Subtitle

Title

Slow

Fast Reverse Searching

Fast Forward Searching

Repeat A-B

Repeat

NTSC/PAL

Angle

PBC

Zoom

Go To

Connection Diagram

Installation

Disc Information

Troubleshooting

Specifications

Turning on The Monitor

Selecting an AV mode

Remote Control

Monitor/DVD Player

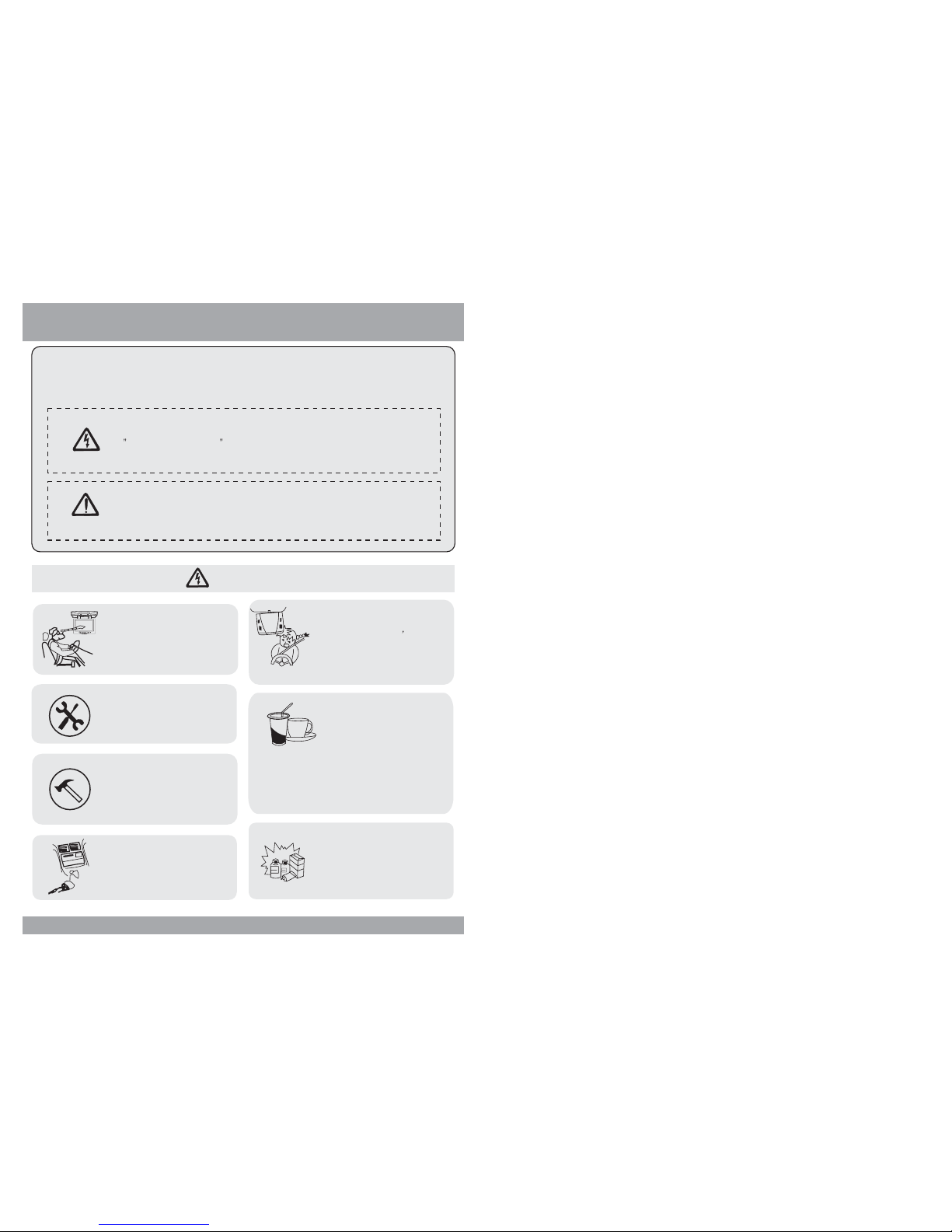

Caution

Please read and observe all warnings and instructions in this manual

and those marked on the unit. Retain this booklet for future reference.

There are two kinds of alarm symbols as follows:

WARNING

CAUTION

The lightning bolt with arrowhead inside in an equilateral

triangle is intended to alert the user to the presence of

dangerous voltage within the product s enclosure that may be

of sufficient magnitude to constitute a risk of electric shock to

people.

The exclamation point inside an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the product.

Installation of all TV monitors

must be out of the driver s

field of vision.

Do not try and service these

products yourself, a

qualified service center or

factory service center for all

repairs.

locale

Be careful not to drop or

apply under pressure to the

front panel of your video

monitor. If the screen cracks

due to misuse, your warranty

will be void!

Do not mount the product where

it will obstruct the deployment of

the airbag or in an area where it

would affect the driver s ability

to control the vehicle. Also be

careful to avoid mounting the

product where it can become

hazardous during sudden stops

or in the event of an accident.

Be careful not to overload your

cigarette lighter plug by adding

more than one device at a time.

Use extra caution with any liquids

in your car. If you or your child

spills any liquid on these products,

pull your vehicle to the roadside

and turn the key off to disconnect

or wipe the products with a towel. Do not

operate the equipment until all liquids have

either evaporated or you have had the monitor

inspected at a service center by a qualified

technician. Severe harm or danger can result.

Use only a damp cloth to clean

the screen and use only purified

water on the cloth. wring out all

excess water prior to wiping the

screen. Do not use any cleaners

or chemicals to clean the screen.

In most cases a dry cloth will do!

OWER

MEN

Quality installations are best

performed by qualified and

certified installers.

Don t touch the unit if there is

a flash of lightning. You may

receive an electric shock.

Do not cover or stop up heater

ducts or vents. It may cause a

fire or receive an electric shock.

Watching the monitor for an

extended period of time

without the engine running

may deplete the vehicle s

battery charge.

This product is designed for

operation with a 12 Volt DC,

negative ground vehicle. It

is not suitable for operation

under other conditions or

voltages.

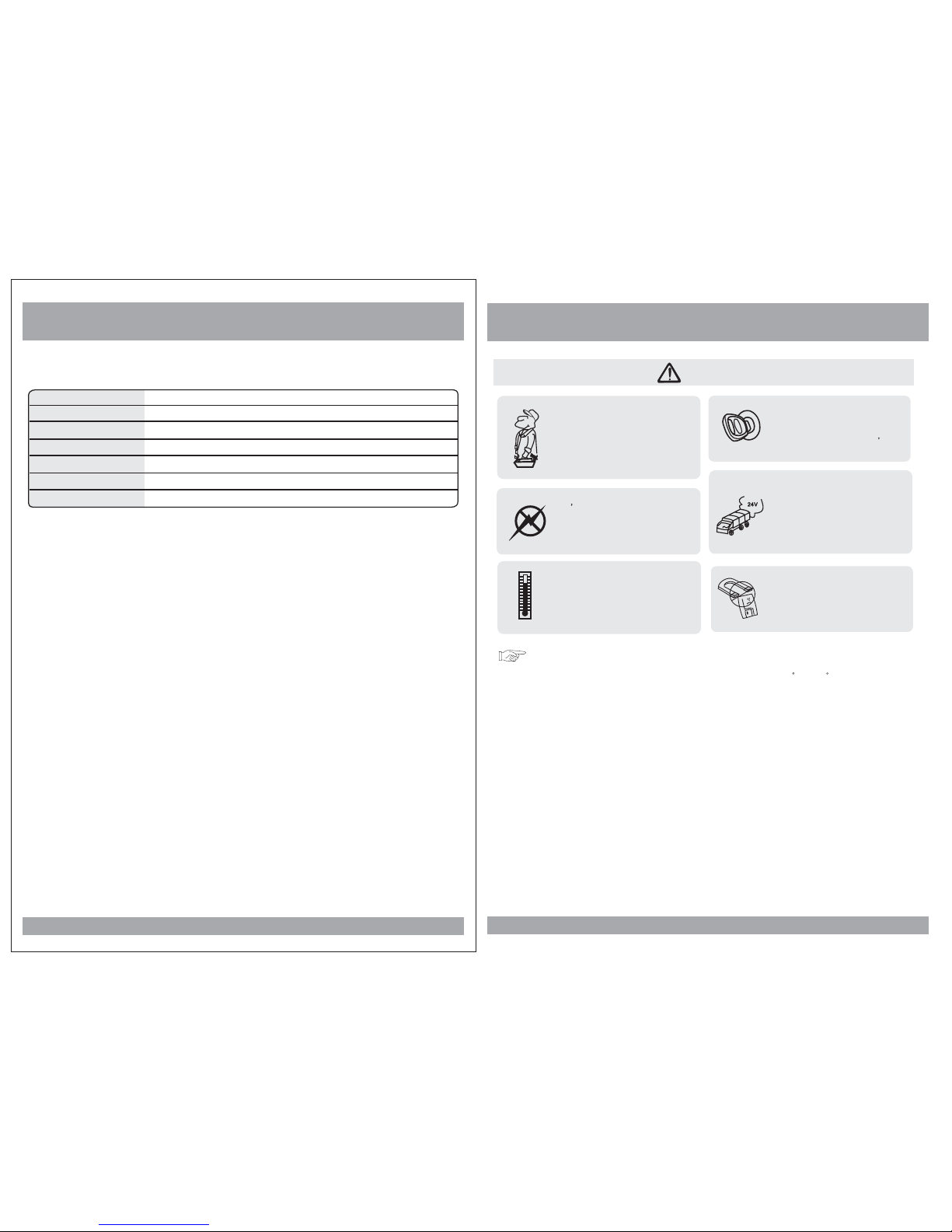

CAUTION

Operating Notes

Do not bring magnetic devices

such as credit card or magnetic

card near the magnets.

1. The operating temperature of this product is limited to 14 ~+140 F.

2. If your vehicle is extremely hot or cold you must allow time for your air

conditioner or heater to cool or heat the vehicle until operating temperatures

have returned to normal operating ranges.

3. Optimal picture quality is achieved when viewed from directly front of the

monitor (+/-30degrees).

4. Do not open the housing and yourself. Refer

servicing to qualified personnel.

5. DVD Players use an invisible laser beam which can cause hazardous radiation

exposure. Be sure to operate the unit correctly as instructed.

6. Do not cut the car power supply off while a disc is playing. It can cause

damage to the DVD Player.

attempt to make any repairs

Caution

Power

Screen Format

Resolution Pixel

Color System

A/V Input

A/V Output

Dimension

Note: This equipment has been tested and has been found to comply

with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference. In some cases, the user will

be required to correct the interference at his own expense.

SPECIFICATIONS

DC 12V

16:9

1152x234

NTSC/PAL Auto Select

DVD-AV1-AV2

1EA

12.1(L)X10.8(W)X2.3(H)inch

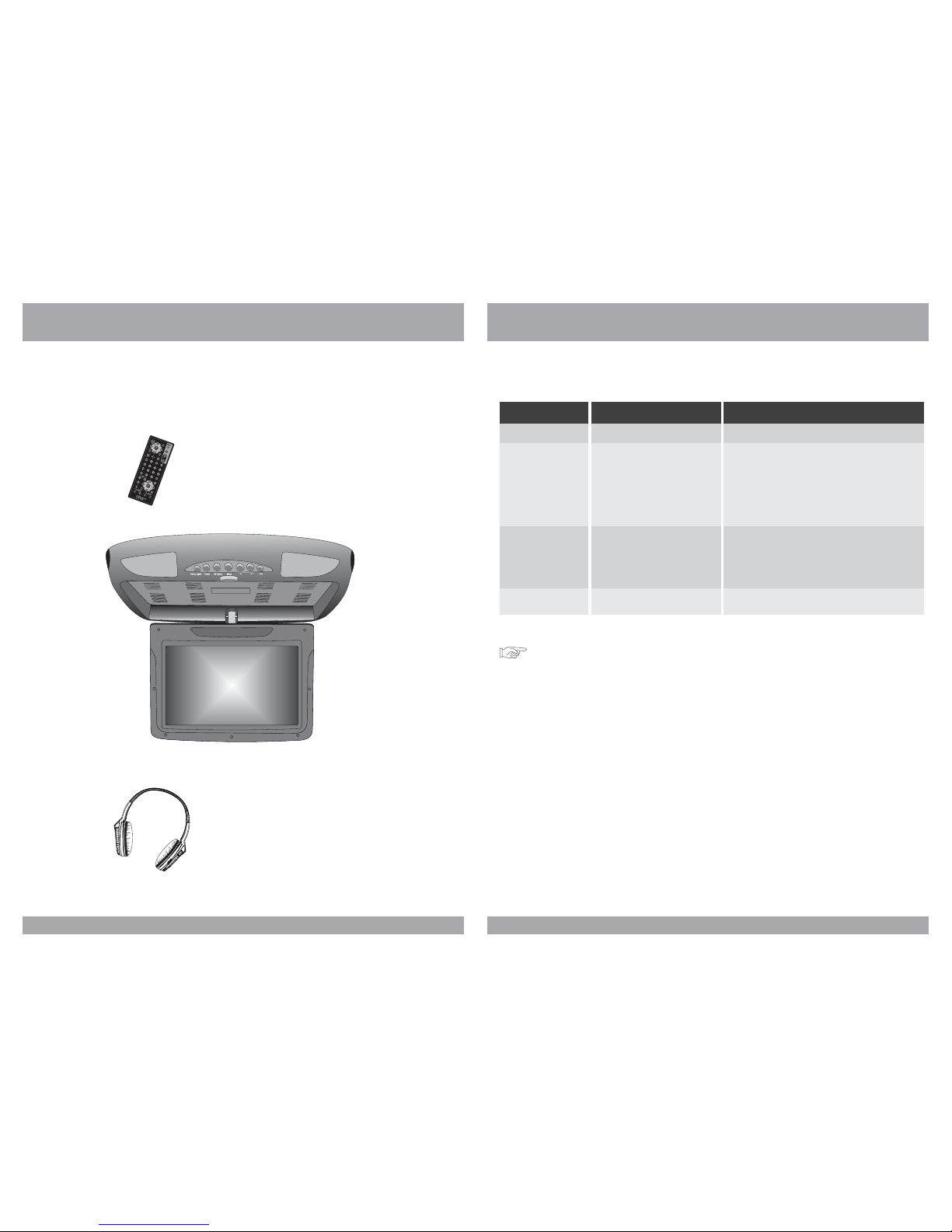

Monitor / Player System Components

Remote Control

Wireless Headphones

Troubleshooting

Symptom Items to Check Actions to be Taken

Remote control does

not work properly.

Unable to receive TV

broadcast.

Is the power turned on?

Is the audio which is connected with

the audio cable set to receive

the DVD signal output?

Is audio cable is connected securely?

Is the monitor which is connected

with the audio cable turned on?

Is the digital audio output set

in the correct position?

Is the remote control facing

the remote sensor?

Is the distance too far?

Is there any obstacle in the middle?

Is the battery weak?

Is the antenna connected properly?

Check the car battery capacity.

Select the correct input mode for the audio receiver.

Connect the audio cable into the jacks securely.

Turn on the monitor connected with the audio cable.

Set the Digital Audio Output to the correct position,

and then turn on the DVD player again by pressing

the POWER button.

Point the remote control toward the remote sensor of

the product.

Use the remote control within 15 feet.

Remove the obstacle.

Replace with new battery.

Check antenna connection.

Buttons do not work.

No sound

When a disc is brought from a cold environment to a warm one, there may be moisture

on the the disc, or condensation on the pickup lens. It will affect disc playback.

1. Remove the disc from the DVD player.

2. Turn on the power and leave it on for an hour to vaporize the condensation.

Monitor/DVD Player

Moisture or condensation on lens

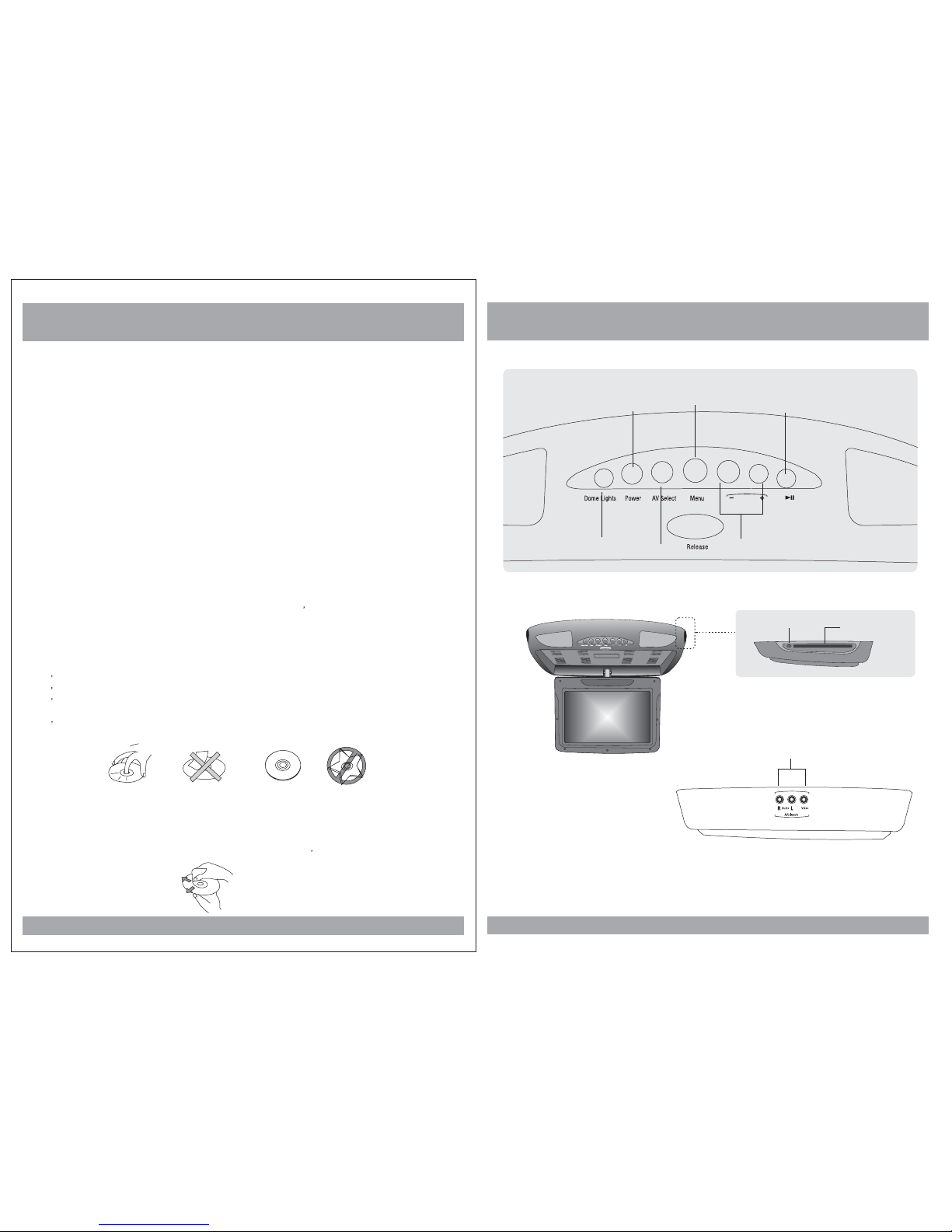

Features And Controls

EJECT Button Disc loading slot

AUX Input Jack

Caution

Do not bring magnetic devices

such as credit cards or magnetic

cards near the monitor.

Dome Light Button

POWER Button

AV Select Button

MENU Button

+/- Buttons

PLAY/PAUSE Button

Disc Information

DVD features

DVD discs provide high-resolution images with high-quality sound and surround

sound effects. This DVD player can play not only DVD discs of various versions, but

also S-VCD, VCD, audio CD and MP3 discs.

Discs that cannot be played

DVD-RW, DVD-REM, CD-ROM, CD-EXTRA discs cannot be played on this unit. In

addition, a CD or a CD-RW which was recorded on special software cannot be played.

Region code

Your DVD player is designed and manufactured to region management information

that is recorded on a DVD disc. Please check the region code.

1: North America 2: Japan 3: Korea and Southeast Asia

4: Australia, Mid & South America 5: Russia 6: China

This product incorporates copyright protection technology that is protected by

methods claims of certain U.S. Patents and other intellectual property rights owned

by the Macrovision Corporation and other rights. Owner s use of this copyright

protection technology must be authorized by the Macrovision Corporation, and is

intended for home and other limited viewing uses only unless otherwise authorized

by the Macrovision Corporation.

How to handle the disc

Don t touch the shiny side of the disc (the side with the embedded information).

Don t stick a label or a glue-based note on either side of the disc.

Don t use discs that have glue or a damaged label with exposed adhesive reside.

It might result in damage to your DVD player.

Don t put discs in the sunshine.

Park your car in the shade.

How to handle the discs

Only use round discs. Discs with other shapes like a star, a heat, etc. may cause

damage to the player.If a disc is dirty, wipe softly with a wet cloth and then with a dry

one. Before playback, wipe the disc outward from the center with a clean cloth. Do not

use any type of solvent such as thinner, benzene, commercially available cleaners or

antistatic spray. To avoid damaging your DVD player, don t use a scratched disc.

Features and Controls

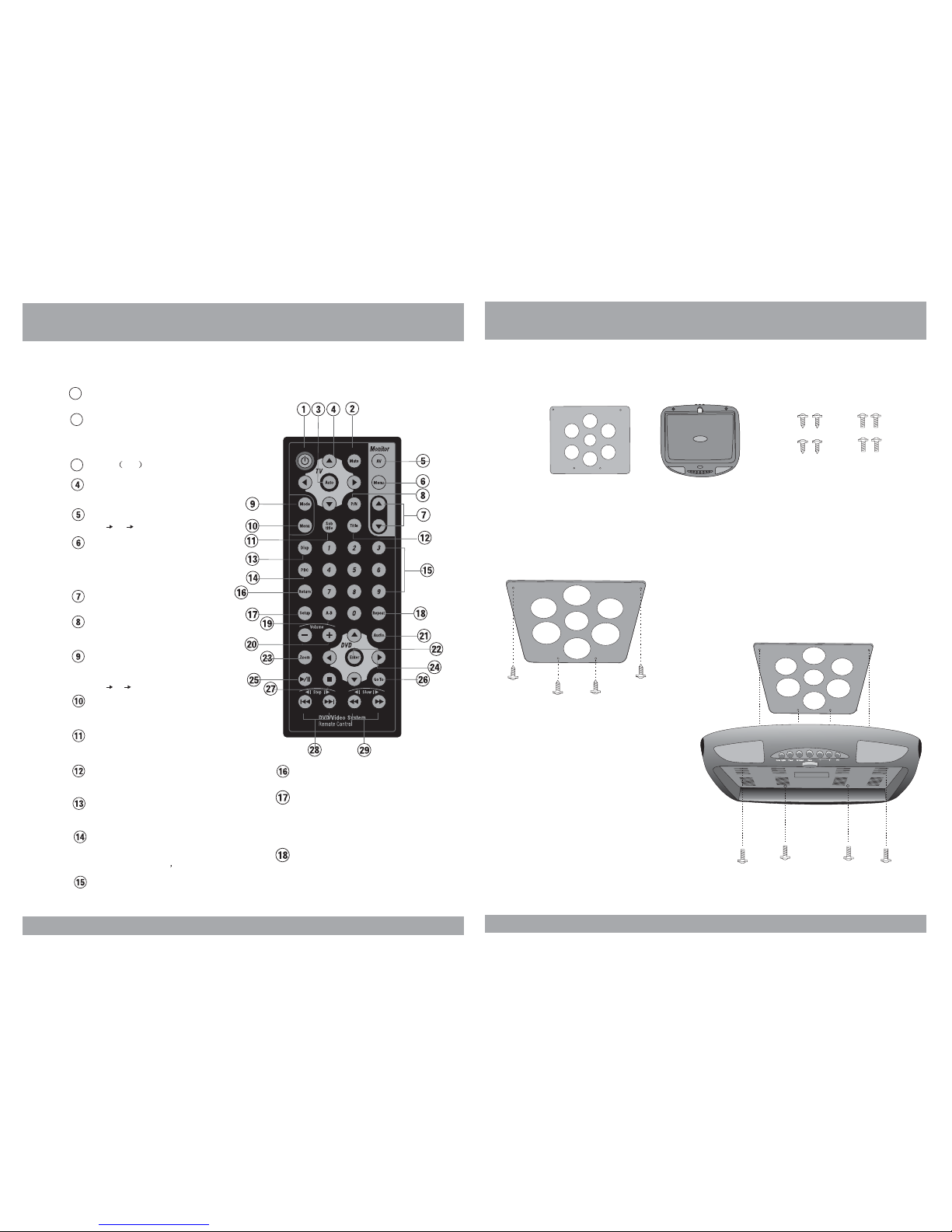

Remote Control

Installation

1. Open the package and check that these items are presents.

INSTALLATION PLATE UNIT SCREW A SCREW B

2. Connect the external compoments to the RCA cable or AV output.

(Refer to the connection diagram on page 32)

3.Match the position of installation bracket and

installation plate with screw A.

4. Tighten the unit with the supplied

screw B.

Turns the DVD Player/Monitor on or off.

Auto TV (not function in this unit)

DVD AV1 AV2

A/V SELECT

P/N

This button permits you to choose

among Multi, PAL and NTSC.

Use to move to the desired menu.

DISPLAY

Press to show elapsed or remaining

time of a chapter or a title.

NUMERIC button

Use when making a selection on the

menu screen.

MODE

RETURN

(not function in this unit)

DVDSDUSB

POWER

MUTE

Press this button to switch off the

audio during playback. Press again

to restore the audio.

UP/DOWN/RIGHT/LEFT ARROWS

MENU (OSD on monitor)

Press this button to open the on-

screen menu system to setup and

control various parameters of the

monitor and DVD player.

UP/DOWN

MENU (DVD menu)

This button permits you to view the

menu on the DVD.

SUBTITLE

Use this button to select the menu

for choosing a subtitle language.

TITLE (Title menu)

When a DVD is playing, press this

button to view the Title Menu.

PBC (Video CD only)

Press this button to access the special

Playback Control functions for VCD

2.0 format Video CD S.

SETUP

Press this button to display the Setup

menu. The Setup menu enables you

to enter the settings required for the

unit to work properly.

REPEAT

Press this button to change the playback

mode to repeat, and to select the repeat

mode.

Press this button to return root menu.

Use this button to switch between

three modes

Name And Function Of Each Part

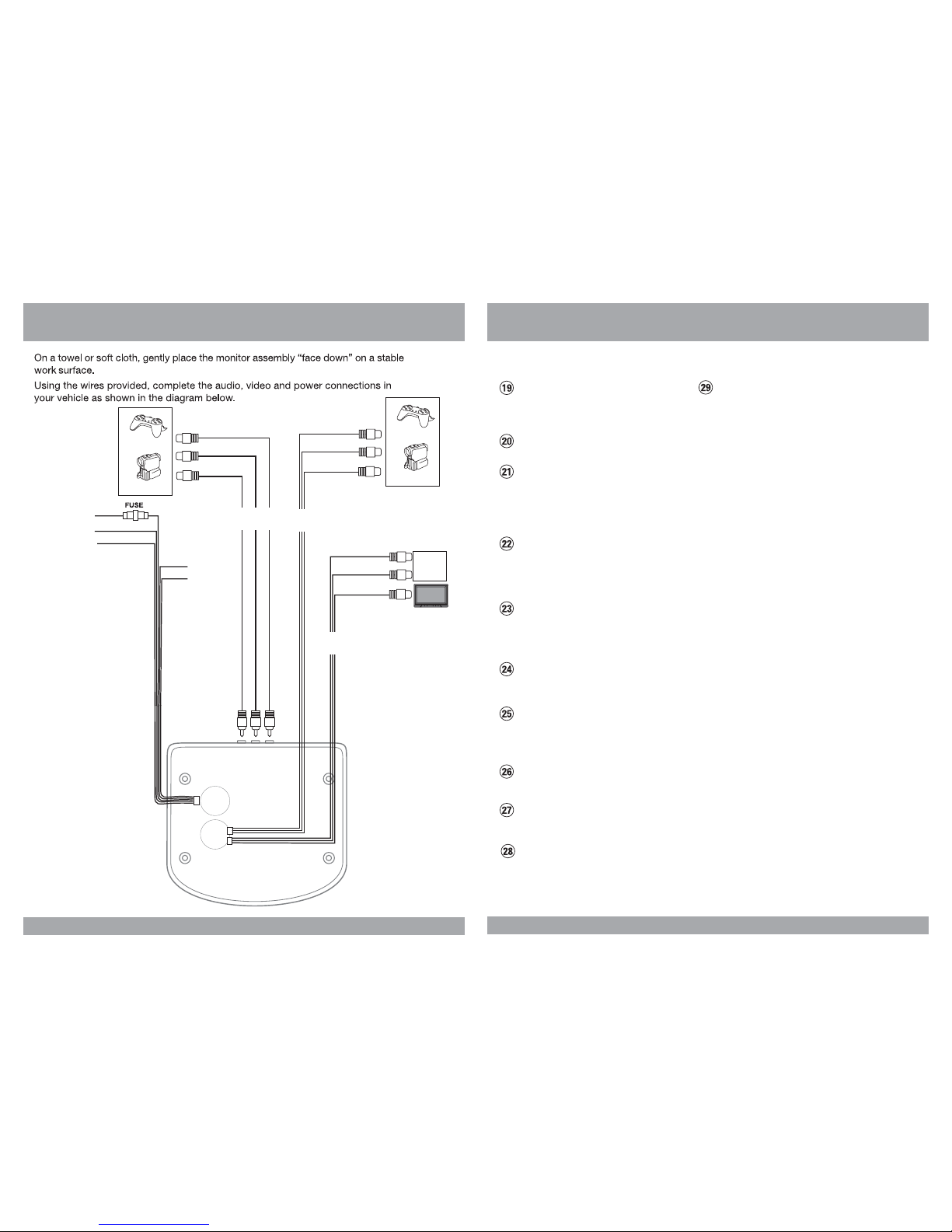

Connection Diagram

CAMCORDER

GAME

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO CAMCORDER

GAME

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO

AV Input

(AV 2) (AV 1)

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO

Output

AMP

POWER VOL- VOL+

MONITOR

AV Input

YELLOW

ACC

A-B (repeat from A to B)

VOL-/+ button

AUDIO

ENTER

ZOOM

UP/DOWN/RIGHT/LEFT ARROWS

PLAY/PAUSE

GO TO

STOP

SKIP FORWARD/BACK

FAST FORWARD/REVERSE PLAY

Use these buttons to select either fast

forward or fast reverse playback.

Use this button to select the beginning

and end of a track which you wish to have

repeat in playback.

Use to incease or decrease volume level.

Use this button to select one of the

audio soundtracks programmed on a

DVD disc. It is alse used to select the

audio output mode for the DVD

playback.

Press this button to confirm the item

you have found and highlighted using

the arrow buttons. Usually this is done

to confirm a selection or item to be

played on the DVD.

If your DVD disc supports zooming in

to see the program differently, pressing

this button will enable you to change

the amount of zoom.

Use thes buttons to navigate the

various menus and screens for the

monitor and DVD systems.

To start playback of a disc, press this

button. Press again to pause the

playback. If playback is paused, press

this button to resume playback.

Use to search for a title or a chapter on

your DVD disc.

Press this button to stop the playback

of the current disc.

Use these buttons to skip to the next

or last track, chapter or file on the

disc in the player.

BLACK

RED

+ 12 V DC Battery

Chassis Ground

Car dome lamp (-)

Car dome lamp (+)

WHITE

GREEN

Power And Mode Selection

Mute Function

1. Press the button on the remote control to mute the audio.MUTE

2. Press the button again on the remote control to return to theMUTE

previous volume level.

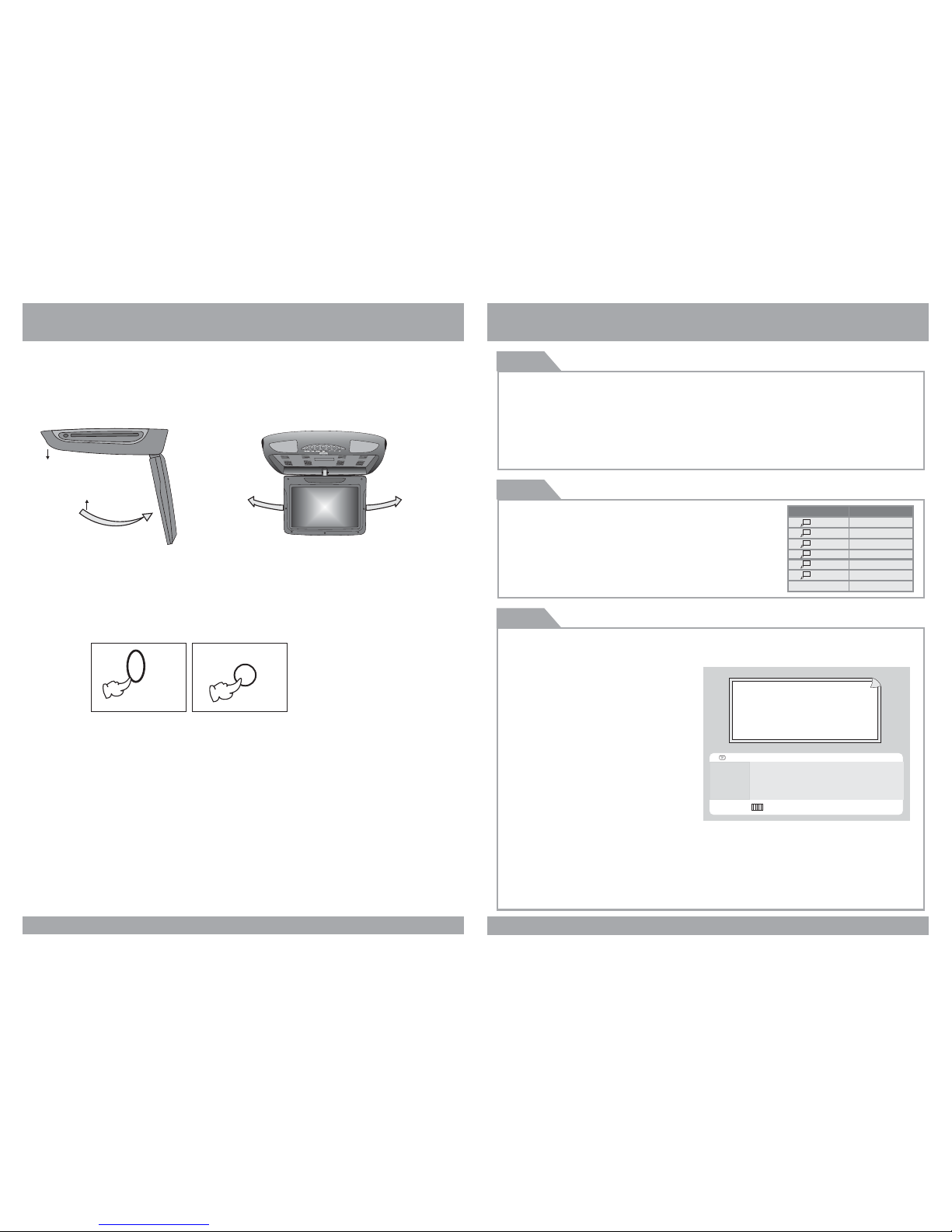

Releasing The Monitor

Push the release button (located on the front edge of the screen housing) and

lower the monitor. You can also adjust the swivel angle.

Turning on The Monitor

POWER

UNIT

REMOTE CONTROLLER

Make this arrow in DOWN

direction only.

1. Connect the monitor to external devices.

2. Press the POWER button on either the remote control or the unit once to turn

the power on.

Press the same POWER button to turn the power off.

3.Power on the external devices and play.

DVD Functions

PBC

[DVD]/[AUDIO]/[MP3]

[VCD]

You can turn the PBC (Play Back Control) function on or off by pressing this button.

When PBC is loaded, the PBC function is enabled automatically. This function is

similar to selection of DVD title. Please note that this function does not work with

MP3 dics.

Zoom

[DVD]

Some DVDs are programmed to allow you to zoom into

the image, magnifying it. Pressing the ZOOM button

does this in steps, according to the chart to the right.

[VCD]/[AUDIO]/[MP3]

GO TO

The GO TO function allows you to begin playback at a specific location on the disc. To

do this, press GO TO and navigate the screen which follows to select this playback

location.

Title

Move to the desired title.

Chapter

Move to the desired chapter.

Audio

Selects the desired audio output.

Subtitle

Select the desired subtitle.

Angle

Watch the different view angle.

TT Time

Total time.

CH Time

Chapter time.

Repeat

Sets the repeat play.

Time Display

Watch play time.

OSD

1/2

1/3

1/4

ZOOM X 2

CONDITION

ZOOM X 3

ZOOM X 4

ZOOM X 1 / 2

ZOOM X 1 / 3

ZOOM X 1 / 4

Off

Title

Chapter

Audio

Subtitle

01/02

01 /02

06/6106 /61

5.1CH Chinese5.1CH Chinese

OFF

Bitrate 31

Bitrate 31 Title Elapsed 0:20:02Title Elapsed 0:20:02

This button does not function in PBC mode.

This button does not function in this mode.

RELEASE BUTTON

Indice

Altri manuali Sound Storm Sistema video per auto

Sound Storm

Sound Storm SDVD350MT Manuale utente

Sound Storm

Sound Storm DD405 Manuale utente

Sound Storm

Sound Storm S10.4FI Manuale utente

Sound Storm

Sound Storm SDVD-250 Manuale utente

Sound Storm

Sound Storm SSV-8F Manuale utente

Sound Storm

Sound Storm SD707M Manuale

Sound Storm

Sound Storm SDVD350MT Manuale utente

Sound Storm

Sound Storm S9.2FI Manuale utente

Sound Storm

Sound Storm SHR73M Manuale utente

Sound Storm

Sound Storm SSV11.3F Manuale utente

Sound Storm

Sound Storm S11.2C Manuale utente

Sound Storm

Sound Storm SD632 Manuale utente

Sound Storm

Sound Storm SB10.4FI Manuale utente

Sound Storm

Sound Storm S10.4CB Manuale utente

Sound Storm

Sound Storm SSV-6HR Manuale utente

Sound Storm

Sound Storm SH7CM Manuale utente

Sound Storm

Sound Storm SDVD150T Manuale utente

Sound Storm

Sound Storm SD960TS Manuale utente

Sound Storm

Sound Storm HR8-PAKG Manuale utente

Sound Storm

Sound Storm SD354 Manuale utente

Sound Storm

Sound Storm SDVD100 Manuale utente

Sound Storm

Sound Storm SDVD950 Manuale utente

Sound Storm

Sound Storm S12.1C Manuale utente

Sound Storm

Sound Storm SSV10.4F Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
