Soundchoice PROAudio CA4360 Manuale utente

CA4120

CA4240

MODEL:

Warning:Before attempting to connect,operate or adjust this Ampliﬁer,

please read these instructions completely and carefully and save this Manual

Commercial

4 Channel Power Ampliﬁer

CA4360

CA4480

www.scpaudio.com

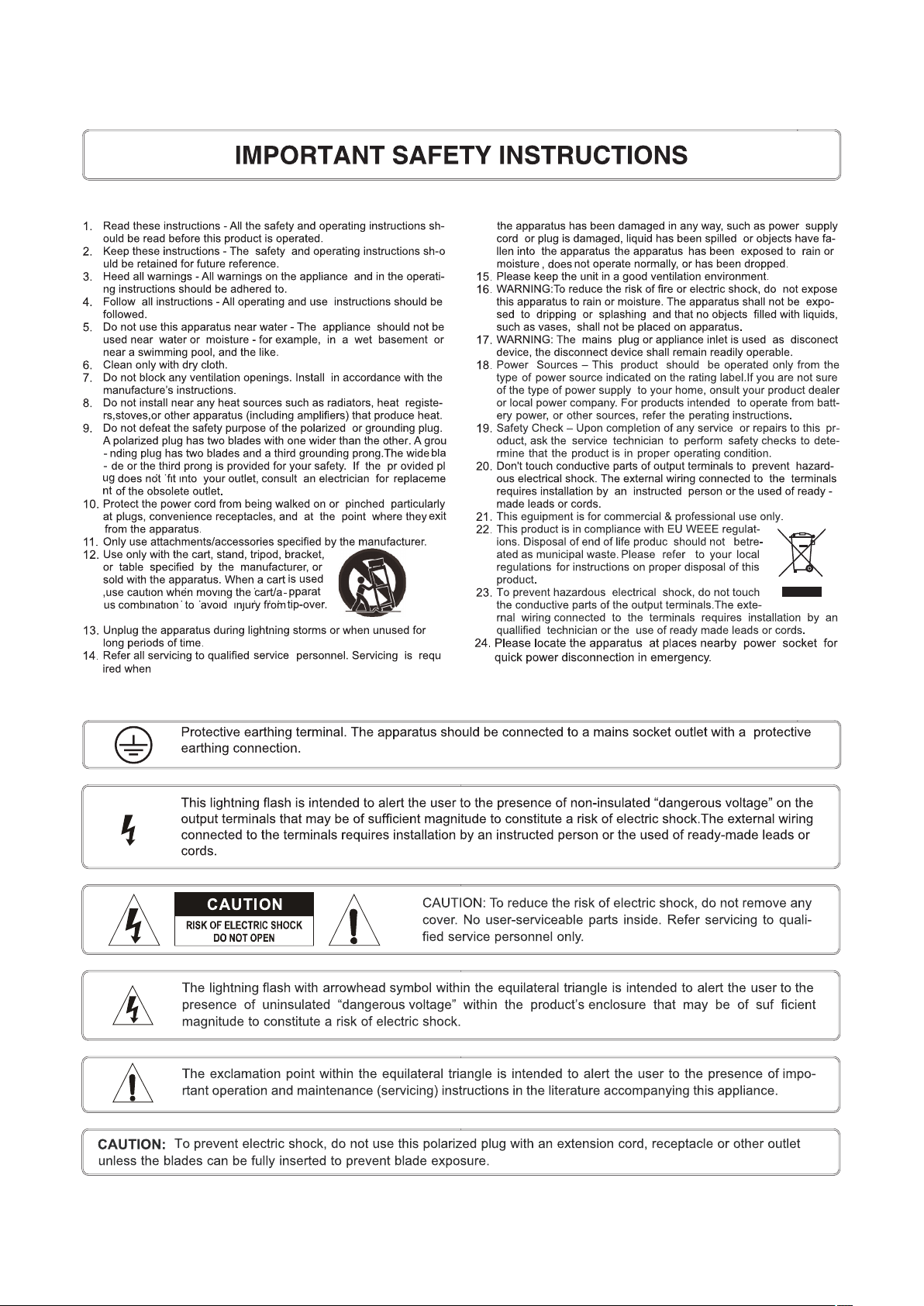

Table of Contents

Introduction ----------------------------------------- 2

Features -----------------------------------------------2

Front panel controls ------------------------------- 3

Rear panel controls ---------------------------------4

Block diagram ----------------------------------------5

Specifications ----------------------------------------6

Table of Contents

Welcome

Congratulation and thank you for the purchasing CA4 series 4 channel constant voltage

power ampliﬁer.

Unpacking and Installation

Introduction

Introduction/Features

Although it is neither complicated to install nor difﬁcult to operate, a few minutes of your time

is required to read this manual for a properly wired installation and to become familiar with

its many features and how to use them. Please take a great care in unpacking your ampliﬁer

and do not discard the carton and other packing materials. They may be needed when

moving or required if it becomes necessary to return for service. Never place the unit near

radiators, in front of heating vents, excessive humid or dusty locations to avoid damage, to

get years of quality use.

Connect your unit with the system components according to the description on the following

pages.

- Front : Power on/off switch.

Features

•Controls

- Rear : 4 output level controls.

4 HPF(180 Hz) on/off switches.

•Connectors

- 4 CH balanced input with euro block.

- 4 CH constant voltage output with euro block .

- Power and SIG,-10dB, CLIP protect for each output channel.

•Indicators:

FRONT PANEL

Front Panel Controls

1.OUTPUT LEVEL METER

2.CLIP INDICATORS

These indicators show current output level.

These indicators warn against overload short on the each of the output channels. We

recommend for users to adjust the VOLUME control when CLIP indicators are ﬂickering for

best performance.

3.PROTECT INDICATORS

4.POWER INDICATOR

These indicators show ampliﬁers protected due to over current or over heat.

This indicator lights when power switch is turned on.

5.POWER SWITCH

This button is the power on/off switch.

Front Panel Controls

Rear Panel Controls

1.AC POWER INPUT CONNECTOR

A correct capacity fuse and power cable should be applied. Please make sure the value of fuse before

replacing.

2.AMPLIFIER OUTPUTS

3.VOLUME CONTROLS

4.SIGNAL INPUTS

5.HPF SWITCH

These ampliﬁer output blocks provide 100V constant voltage output for commercial and industrial use.

These controls adjusts output levels.

This ampliﬁer provides euro block terminals for signal inputs.The channels consist of balanced line and

link output.These link output allow to cascade each channel.

These switches toggle between ﬂat and 180 Hz high pass ﬁlter for each input signal.The ﬁlters can be

used depending on the kind of speakers or environment of installation.

Block Diagram

Specifications

Model Name

Output / Impedance

Frequency Response

T.H.D

Crosstalk

Rated Output Power

CA4120 CA4480

120W X 4CH

Dimensions (W x H x D)

Weight (Net)

Power Source

S/N Ratio

Input sensitivity

/Impedance

50Hz - 15kHz

< 0.1%

>70 dB

>90 dB

AC 230 V, 50/60Hz

6.9 kg

483x88x380mm

100V (83 Ω)

Input

link

Specifications

*Speciﬁcations and design subject to change without notice for improvements.

CA4240 CA4360

240W X 4CH

100V (42 Ω)

360W X 4CH

100V (27 Ω)

480W X 4CH

100V (21 Ω)

6.7 kg6.5 kg6.3 kg

0dB/20KΩ Balanced
