Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully

before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

TABLE OF CONTENTS ......................................................................................................................................................2

IMPORTANT SAFEGUARDS ............................................................................................................................................3

ACCESSORIES....................................................................................................................................................................4

INSTALLATION/CONNECTION......................................................................................................................................5

CONTROL ELEMENTS.......................................................................................................................................................9

GENERAL OPERATIONS ..................................................................................................................................................10

RADIO OPERATIONS........................................................................................................................................................12

USB/SD OPERATIONS .....................................................................................................................................................13

TROUBLESHOOTING GUIDE..........................................................................................................................................15

SPECIFICATION .................................................................................................................................................................16

Important safeguards

Read carefully through this manual to familiarize yourself with this high-quality sound system.

The beginning of operation is the moment of the unit installation. Before use the device in winter it is

recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

Use the unit with the temperature that goes beyond the operation temperature greatly decreases the

operation resource of the screen and other components of device and can result an outage.

Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher

amperage rating may cause serious damage to the unit.

Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or

create safety hazards such as electrical shock.

Do not use the unit in places where it can be exposed to water, moisture and dust.

Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.

Make sure you disconnect the power supply and aerial if you will not be using the system for a long period

or during a thunderstorm.

Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an

unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a

qualified technician check the system.

The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please

confirm it before installation.

Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may

overload or burn out the power amplifier.

Accessories

1. Receiver 1 pc

2. Mounting parts:

Hexagon nut 1 pc

Mounting sleeve 1 pc

Release keys 2 pcs

Metal bar 1 pc

Plain washer 1 pc

Spring washer 1 pc

Self-tapping screw 1 pc

Screw 4 pc

3. ISO-connector 2 pc

4. Consumer information 1 pc

5. Warranty card 1 pc

6. Instruction manual 1 pc

Installation/Connection

General notes

Choose the mounting location where the unit will not interfere with the normal driving function of the

driver.

Before finally installing the unit, connect the wiring and make sure that the unit works properly.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

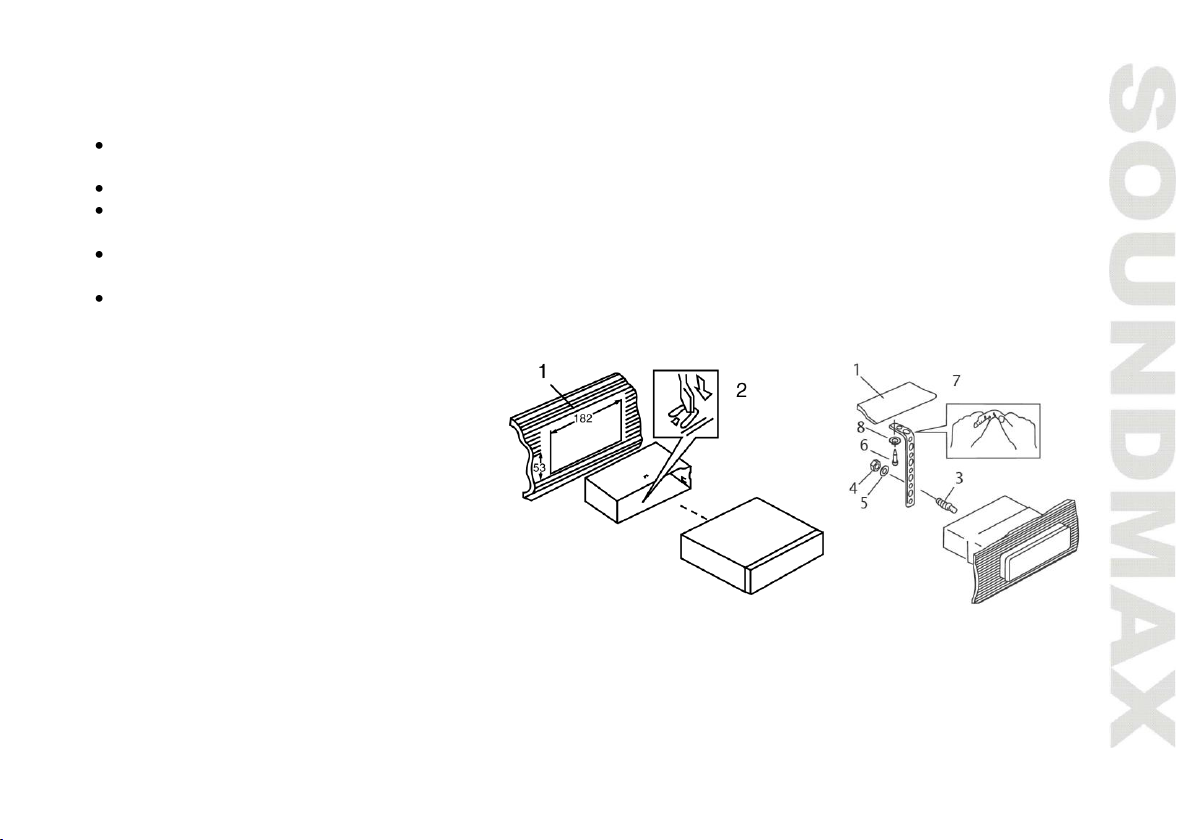

DIN FRONT-MOUNT

1. Car dashboard

2. Sleeve

3. Bolt

4. Nut

5. Spring washer

6. Screw

7. Metal strap

8. Flat washer

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no

obstacles (wires, dashboard elements, etc) for the unit installation.

2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the

sleeve in place.

3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as

shown in the picture. You can bend the strap to the needed angle with your hands.

4. Make the necessary wire connections. Ensure the connections are correct.

5. Install the unit into the sleeve until the side locks are fixed.

Dismantling the unit

1. Make sure the ignition is turned off, then disconnect the cable from the

vehicle battery’s negative (-) terminal.

2. Remove the metal strap attached the back of the unit (if attached).

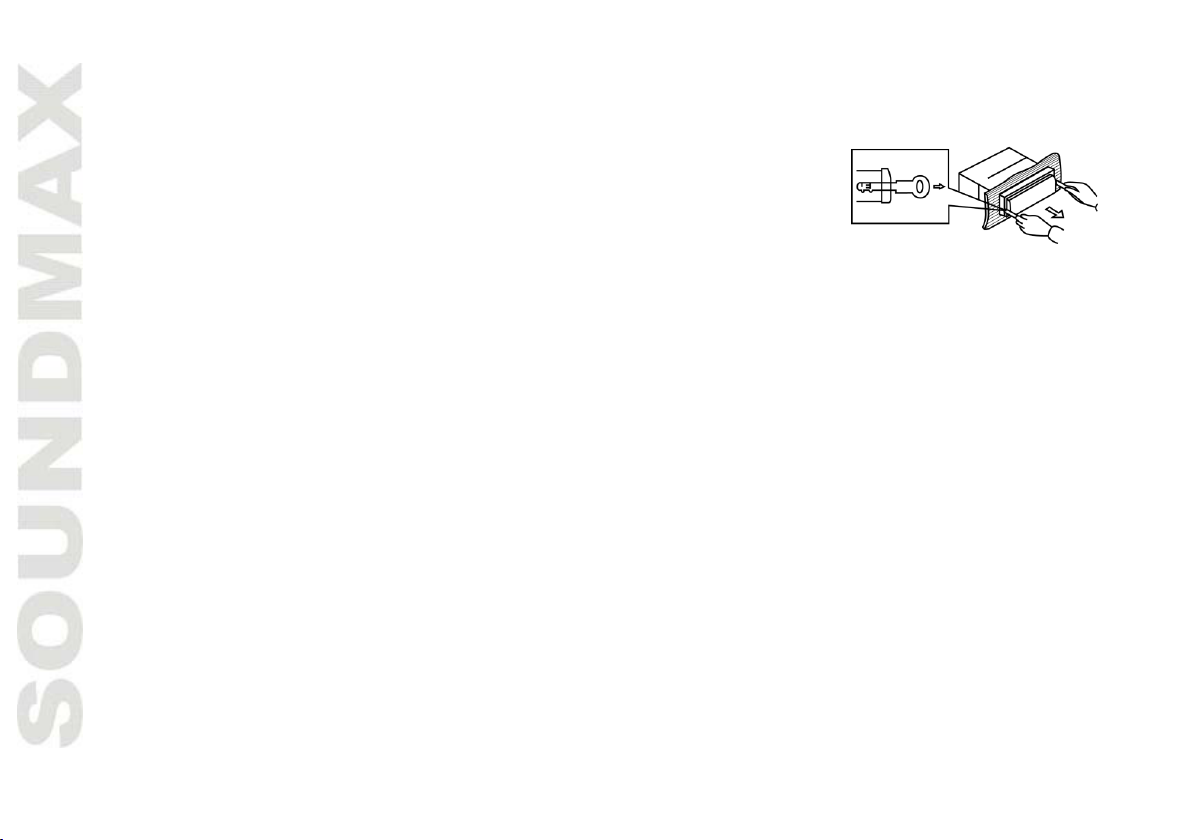

3. Insert both of the supplied keys into the slots at the middle left and right

sides of the unit, then pull the unit out of the dashboard.

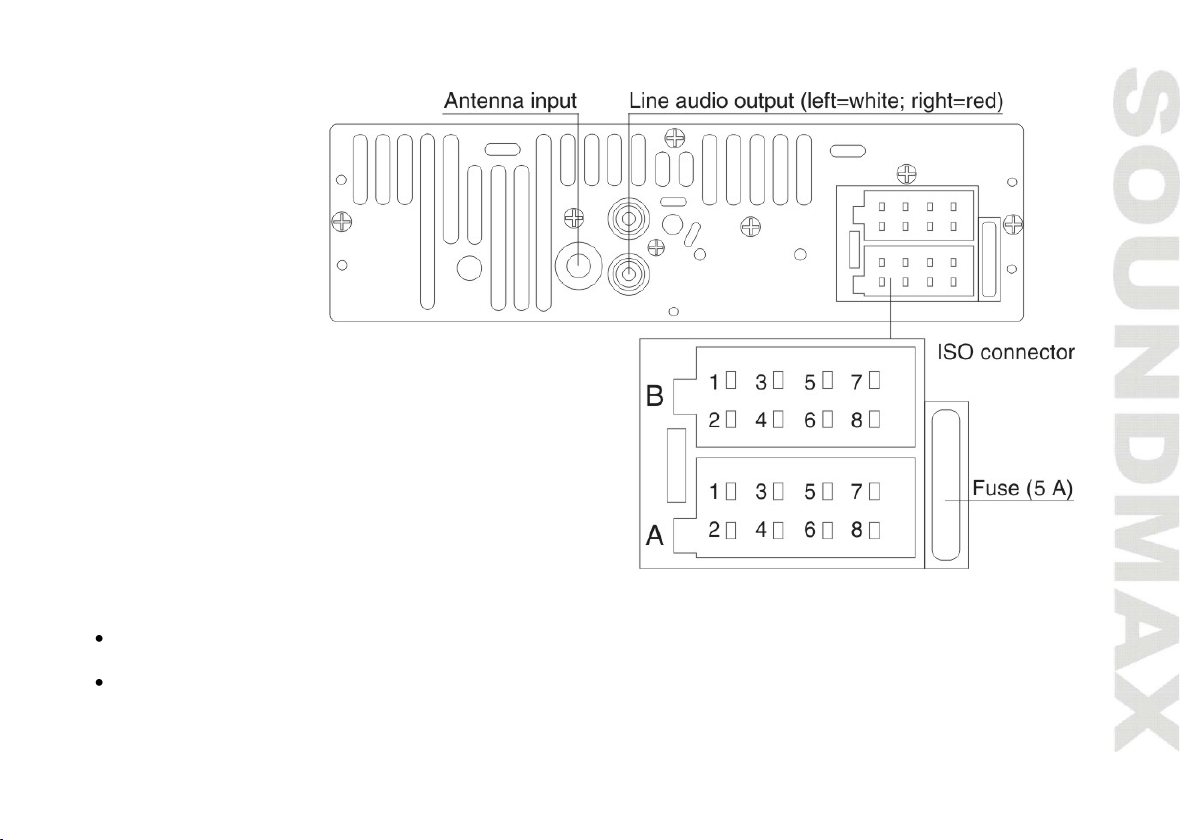

Connection diagram

Notes:

In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the

distortion during high volume level.

It is prohibited making the conductors of auto antenna and ground touch with each other.

Using the ISO Connector

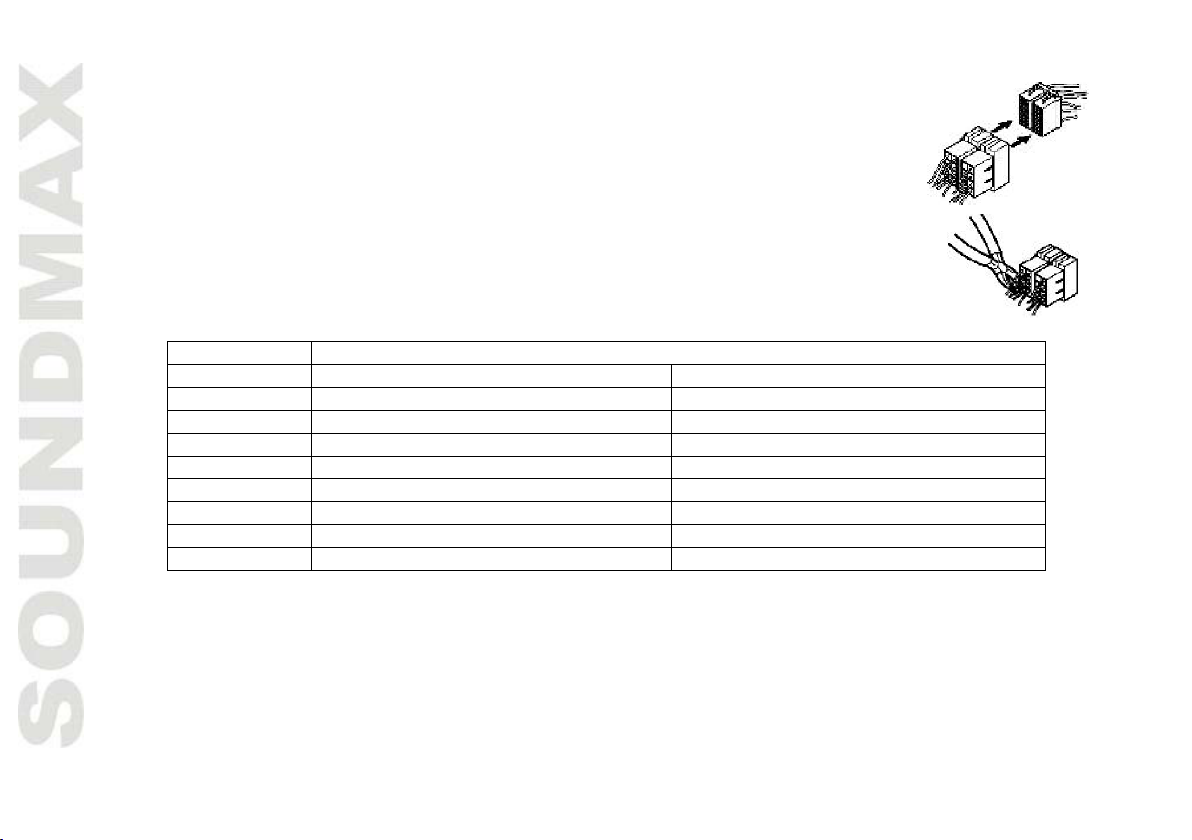

1. If your car is equipped with the ISO connector, then connect the ISO connectors as

illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully

before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as

shown in the table below for speaker and power cable connections.

Location

Function

Connector A

Connector B

Rear Right (+)

Rear Right (-)

Front Right (+)

Battery 12V (+)

Front Right (-)

Auto Antenna

Front Left (+)

Front Left (-)

Ignition

Rear Left (+)

Ground

Rear Left (-)

Power antenna wire is intended for power supply of the antenna and for remote control of an additional

amplifier.

Control elements

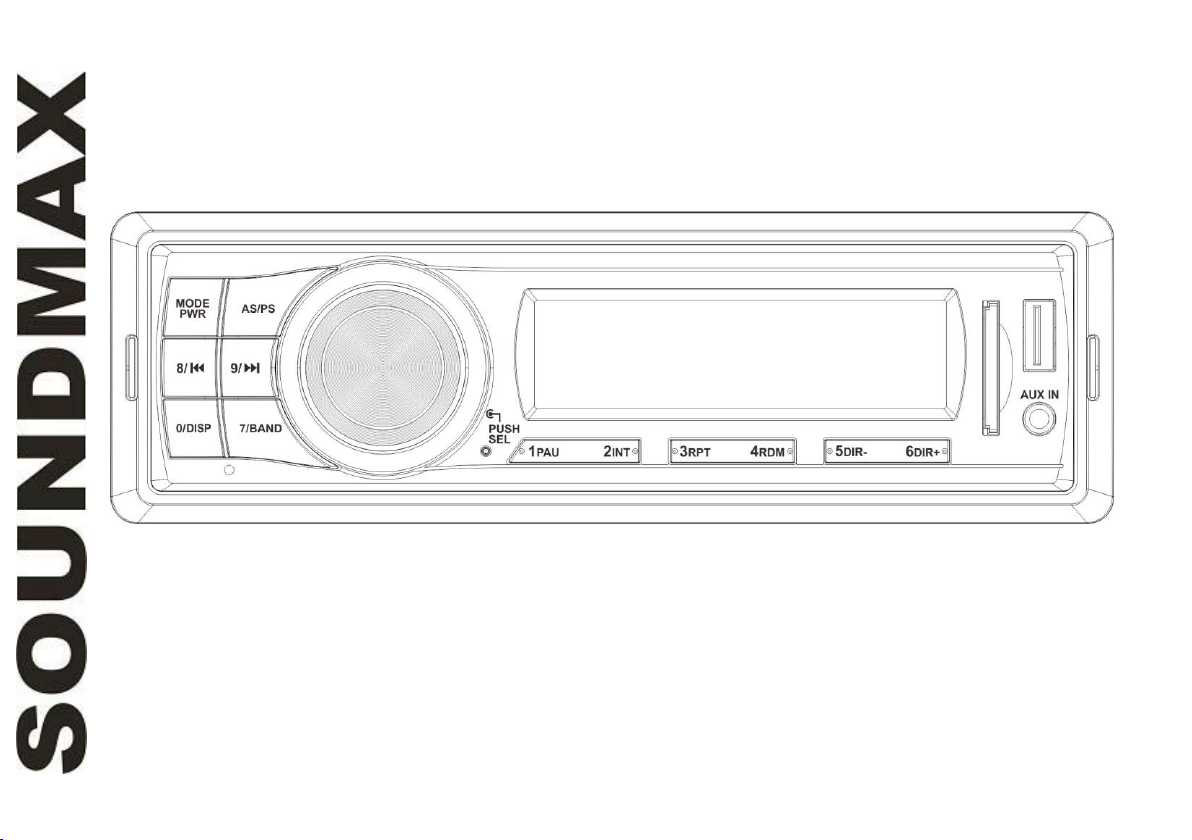

Front panel

1. MODE/PWR button

2. 8/ button

3. 9/ button

4. AS/PS button

5. SEL button/VOL regulator

6. Display

7. SD slot

8. USB port

9. AUX IN jack

10. 0/DISP button

11. 6 DIR+ button

12. 5 DIR- button

13. 4 RDM button

14. 3 RPT button

15. 2 INT button

16. 1 PAU button

17. 7/BAND button

18. RESET button (hole)

LCD layout

1, 3. Audio format indicators

2. CLASSIC equalizer mode

4. Loudness indicator

5. POP equalizer mode

6. Local station indicator

7. ROCK equalizer mode

8. Intro playback indicator

9. Random playback indicator

10. USB connection indicator

11. Repeat playback indicator

12. SD card indicator

13. Stereo reception indicator

14. Digits display

General operations

Power button

Press MODE/PWR button on the panel to switch the unit on. Press and hold this button to switch the unit off.

Volume control

Rotate VOLUME regulator to adjust volume level.

Audio settings adjustment

Press SELECT button shortly and repeatedly to select an option: BAS (bass) => TRE (treble) => BAL

(balance) => FAD (fader) => LOUD (loudness) => EQ (equalizer) => DX (distance) => STEREO/MONO =>

LOC (local) => VOL (volume). Rotate VOLUME regulator to adjust bass, treble, balance or fader.

Note: When equalizer is on, bass and treble adjustment is not available.

Caution: In each mode, the waiting time is several seconds, and when the waiting time is over, it returns to

the last display mode of radio or playback mode.
