SoundMax SM-CDM1033 Manuale utente
SM-CDM1033
CD/MP3 RECEIVER CD/MP3-РЕСИВЕР
Instruction manual Руководство по эксплуатации
2
Dear customer!
Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully
before connecting, operating and/or adjusting the product and keep the manual for reference in the future.
Table of contents
Table of contents ...............................................................................................................................2
Important safeguards ........................................................................................................................3
Installation/ Connections ....................................................................................................................4
Panel controls ...................................................................................................................................7
General operations .......................................................................................................................... 10
Radio operations ............................................................................................................................. 11
CD/MP3 operations .......................................................................................................................... 13
MP3 overview ................................................................................................................................. 15
Anti-theft system ............................................................................................................................ 16
Handling compact discs .................................................................................................................... 17
Cleaning......................................................................................................................................... 17
Troubleshooting guide ...................................................................................................................... 18
Specification ................................................................................................................................... 19
3
Important safeguards
- Read carefully through this manual to familiarize yourself with this high-quality sound system.
- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher
amperage rating may cause serious damage to the unit.
- DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
- Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or
create safety hazards such as electrical shock or laser beam exposure.
- If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car
becomes normal before operating the unit.
- DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
- Make sure you disconnect the power supply and aerial if you will not be using the system for a long
period or during a thunderstorm.
- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an
unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a
qualified technician check the system.
- The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please
confirm it before installation.
- Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may
overload or burn out the power amplifier.
- Do not install the detachable panel before connecting the wire.
4
Installation/ Connections
Attention: First complete the electrical connections, and then check them for correctness.

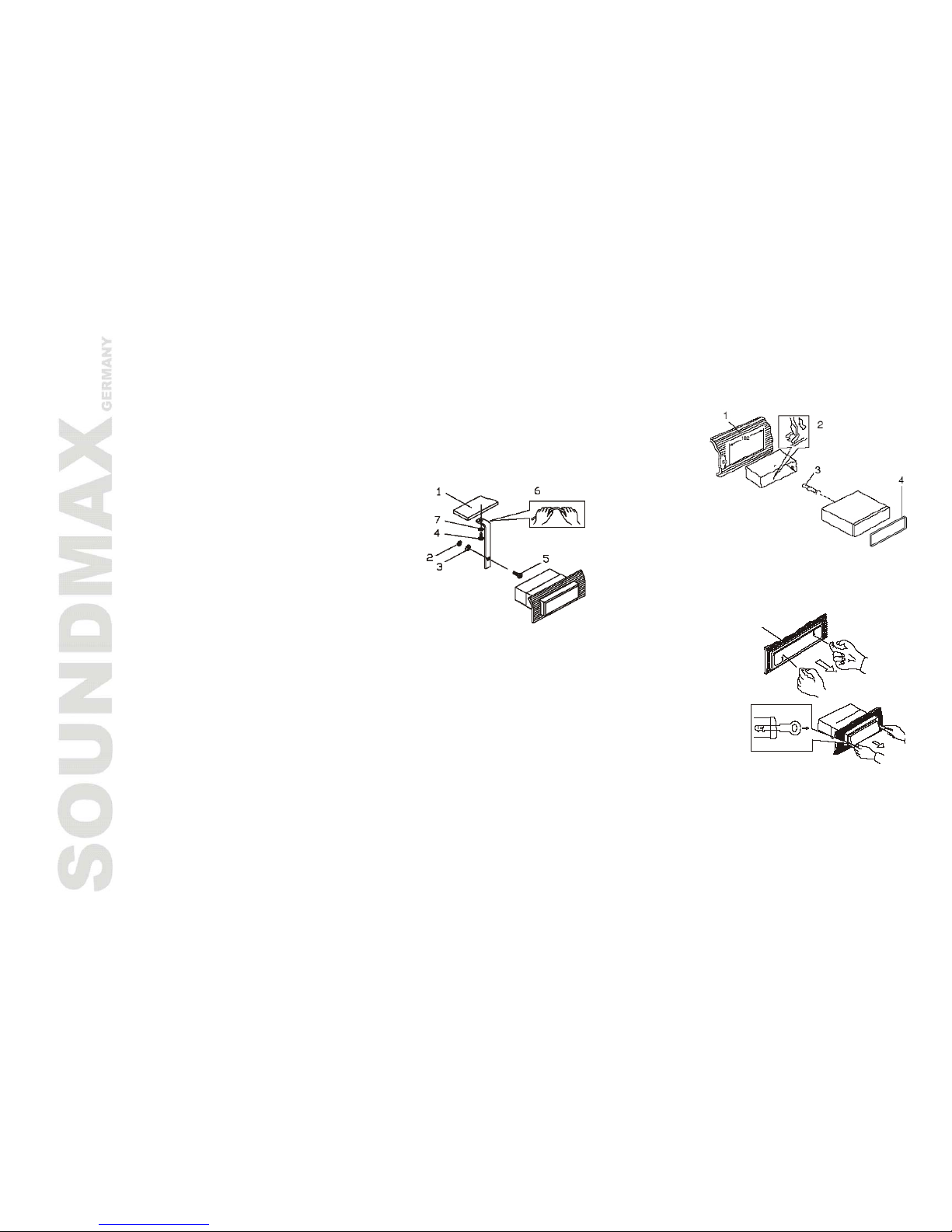

Installation opening
1. Insert the unit holder into the dashboard.
2. Select the appropriate tabs and bend them inwards to secure the holder in
place.
3. Secure the rear of the unit. Fix the rear of the unit to the car body by
rubber cushion.
1. Dashboard
2. Nut (5 mm)
3. Spring washer
4. Screw (5 x 25 mm)
5. Screw
6. Strap
7. Plain washer
4. Insert frame.
Removing the unit
Insert fingers into the groove in the front of frame and pull out to remove the
frame.
(When reattaching the frame, point the side with a groove down wards and attach
it.)
Insert the levers supplied with the unit into the grooves at both sides of the unit
as shown in figure until they click. Pulling the levers makes it possible to remove
the unit from the dashboard.
frame
lever
5

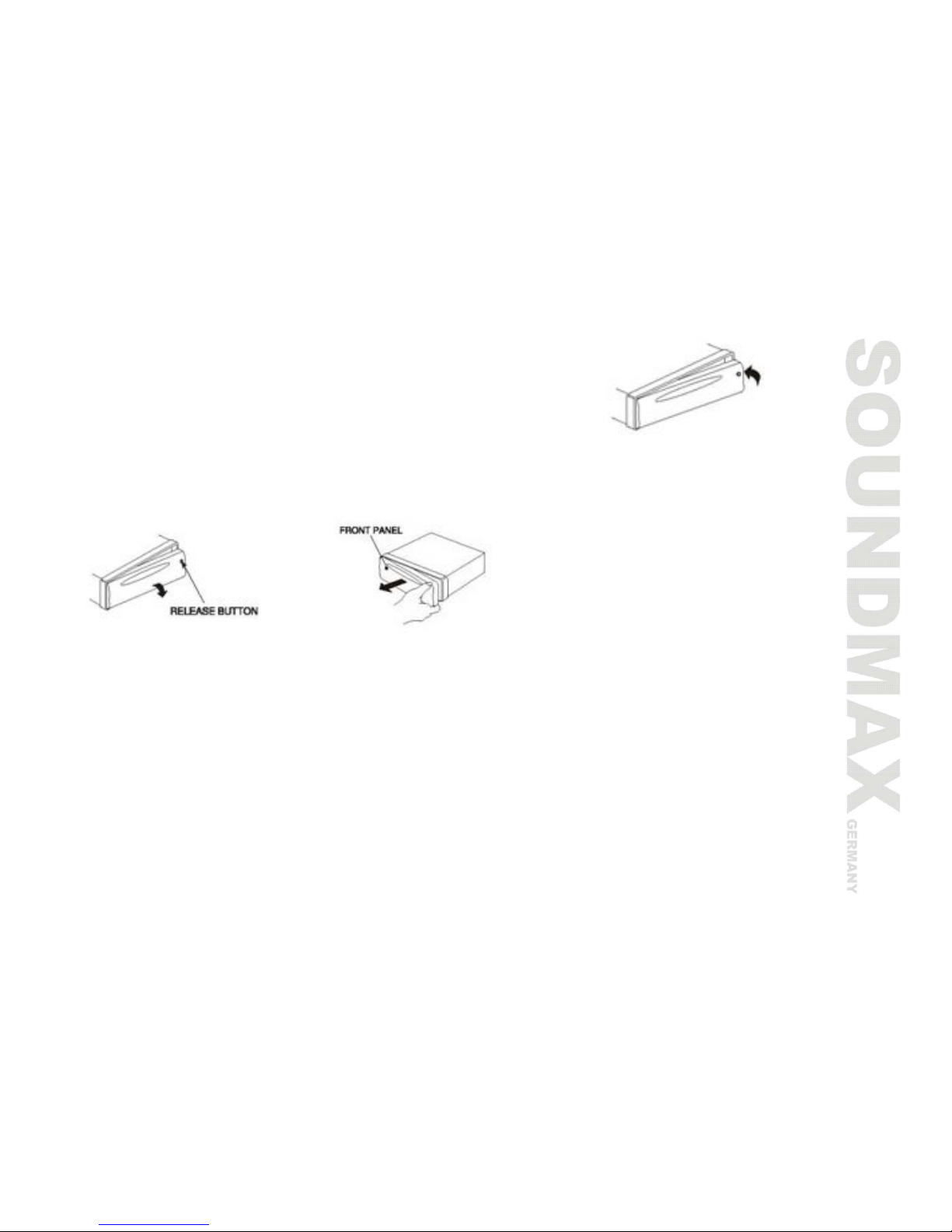

Attaching the control panel
1. Insert the left side of the control panel into the shaft of the main unit.
Note: the control panel must be attached into the T-Joint.
2. Press the right side of the panel until a “click” sound is heard.
Detaching the front panel
1. Press the REL button on the front panel.
2. Push the panel to the right and pull off the panel.
Caution:
The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be
careful not to drop it or subject it to strong shocks.
The rear connector that connects the main unit and the control panel is an extremely important part. Be
careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Note:
If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in
isopropyl alcohol to clean the socket on the back of the control panel.
6

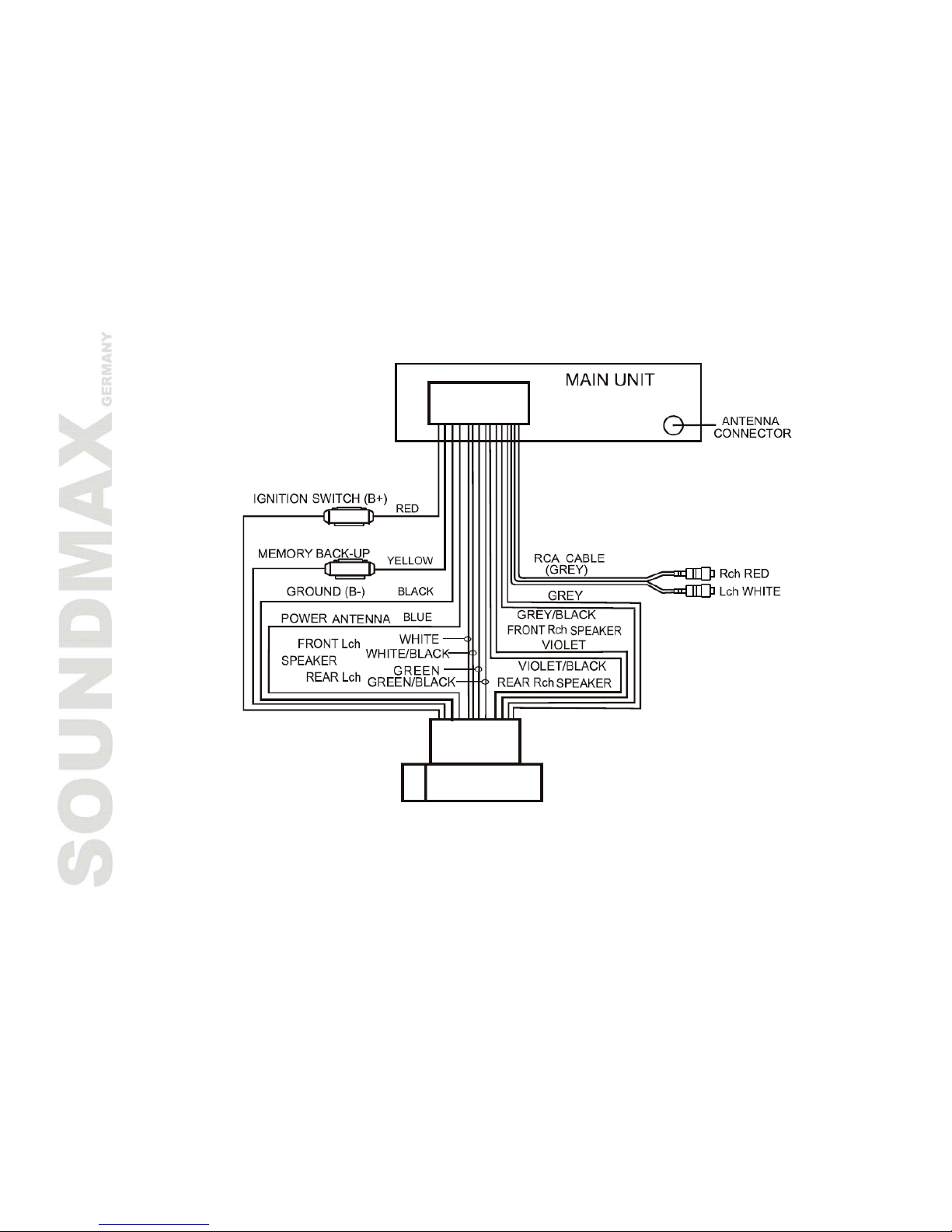

Connection scheme
Notes:
- In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the
distortion during high volume level.
- Prohibit to make the conductors of auto antenna and ground touch with each other.
7
Panel controls

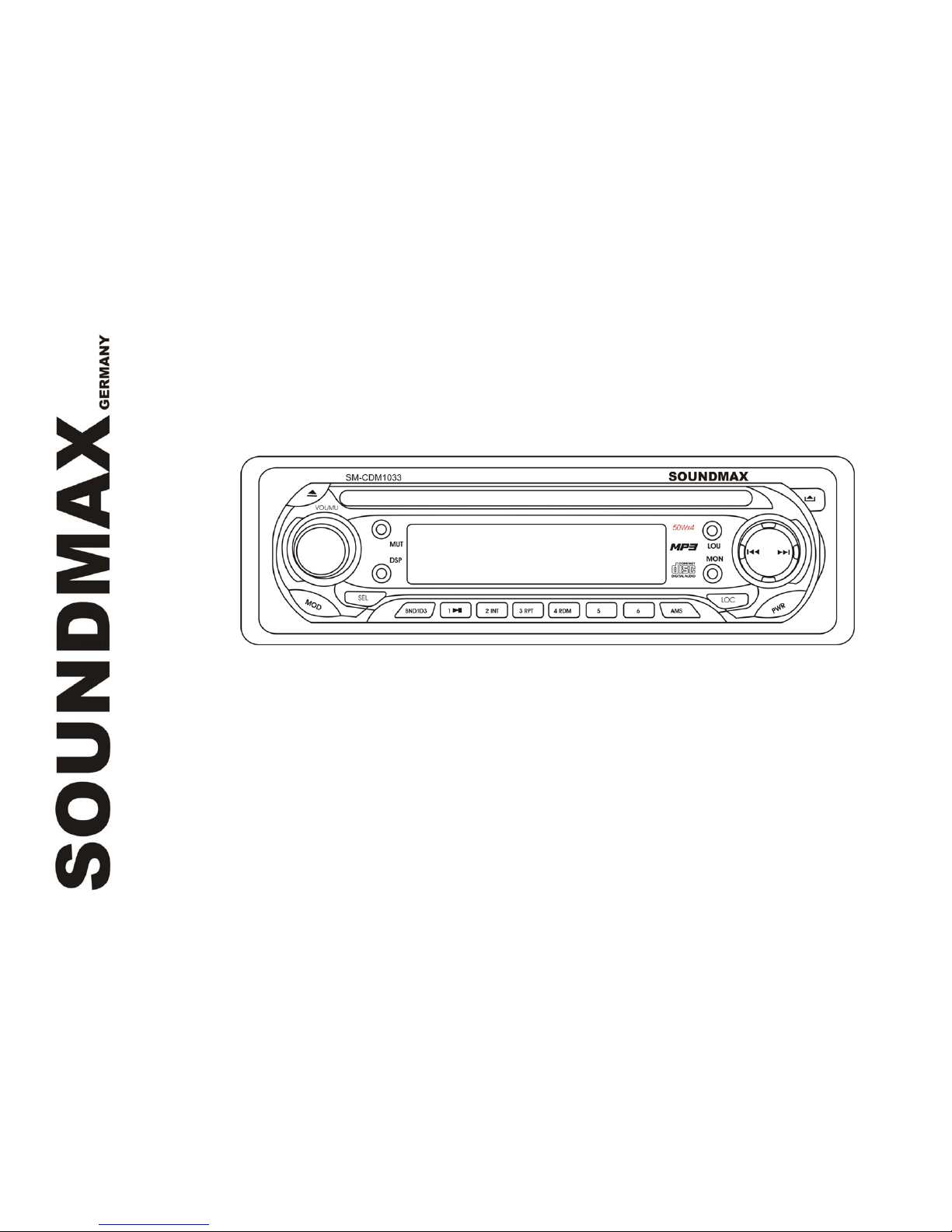

Front panel
1. EJECT BUTTON
Press it to stop CD playback and eject the disk from the slot.
2. VOLUME KNOB
Rotate VOLUME knob clockwise to increase the volume level; rotate anticlockwise to
decrease the volume level.
3. MUT BUTTON
Press the button to mute down the sound, press it again to release the volume level.
4. DSP BUTTON
Press it to put current playing time on the display
5. DISK SLOT
6. LCD (LIQUID CRYSTAL DISPLAY)
8
7. MON BUTTON
Press the button to choose MONO or STEREO
8. LOU button
Press it to increase bass output
9. REL BUTTON
Press it to release the faceplate
10 MOD BUTTON
Press it to select the mode: RADIO => CD/MP3.
11 SEL BUTTON
Press SEL button repeatedly to select the audio setting: VOL => BAS => TRE => BAL => FAD.
Press and hold for 2 seconds to select the setting: EQ => ESP => CLOCK => REG.
Rotate the VOLUME knob to adjust each mode.
In CD mode use it during Search mode.
12 BND/ID3 BUTTON
In Radio Mode press it to select a band
13 PRESET BUTTONS (1-6)
14 PLAY/ PAUSE BUTTON
15 INT BUTTON
Press it to play the first ten seconds of each track
16 RPT BUTTON
Press it to select the repeat mode.
17 RDM BUTTON
Press it to play the tracks in random order.
18 NUMBERED PRESET BUTTON 5
During MP3 playback press it to move 10 songs back
19 NUMBERED PRESET BUTTON 6
During MP3 playback press it to move 10 songs forward
20 AMS BUTTON
In RADIO mode press it to start preset stations scanning.
Press it and hold for 2 seconds, the automatic stations searching and saving will start.
In CD mode press it and hold for 2 seconds to open the TRACK search window. Press twice to select the
FILE search, press for three times to select the CHARACTER .
9
21 LOC BUTTON
Press it to change between Local and Distant (DX) tuning mode. Local mode improves reception in some
areas where the signal is too strong.
22 /BUTTONS
During playback press the /buttons to go to previous/ next track. Press and hold for 2 seconds to
start fast backward/ forward playback.
In RADIO mode press the /buttons to search the station manually. Press and hold for 2 seconds to
start automatic station searching.
23 PWR BUTTON
Press it to turn the power on. Press and hold for 2 seconds to turn the power off.

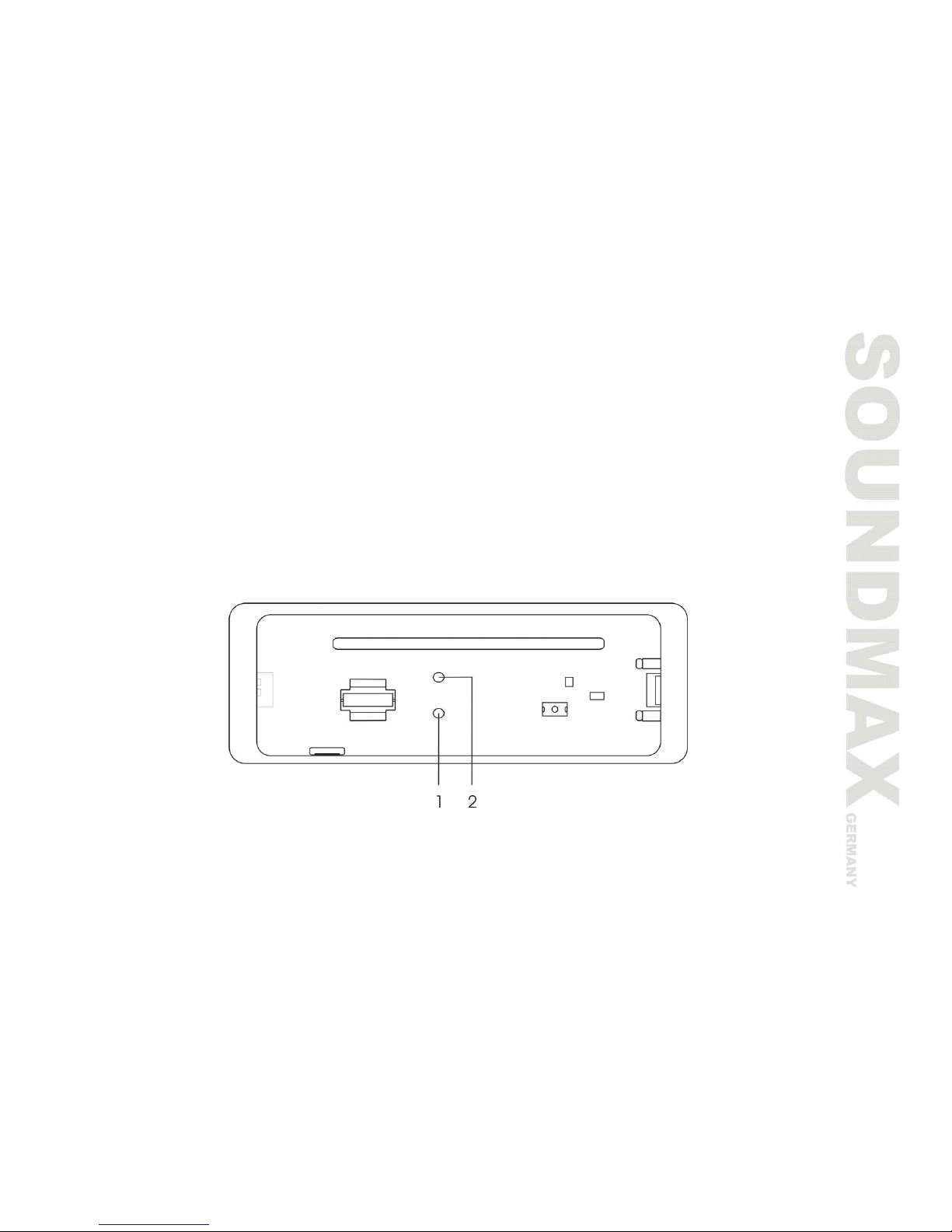

Inner panel
Press the REL button on the front panel to flip it down.
1. LED INDICATOR
2. RESET BUTTON
10
General operations
Reset the unit
Operating the unit for the first time or after replacing the car battery, you must reset the unit.
Press REL button, then press the RESET button to restore the unit to the original factory settings.
Power button
Press the PWR button to switch the unit on. Press it and hold for 2 seconds to switch the unit off.
Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the
unit on it will resume the stored status you set.
Volume control
Rotate VOLUME knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume
level.
Audio settings adjustment
Press SEL button shortly and repeatedly to select the mode: VOL => BAS => TRE => BAL => FAD. Rotate
the VOL knob to adjust each mode.
NOTE: Adjustments to Bass and Treble will override any preset EQ (Preset Equalizer Curves).
In each mode, the waiting time is about 5 seconds, and the waiting time is over, it returns to the last display
mode of radio or disc playback mode.
Mode selection
Press the MOD button to select the mode: RADIO => CD.
Mute function
Press the MUTE button to cancel the sound. Press again to resume.
Clock display
Press the DISP button to show the clock on the display.
