SoundPals DA-14 Manuale utente
SoundPals™
DA-14 User Guide
AES Distribution Amplifier
Graham-Patten is a division of
Printing History
SoundPals™DA-14 AES Distribution Amplifier
Rev. N/C
March 2007
Printed in U.S.A.
Part Number 08-2051-00
The information contained in this guide is subject to change without notice or obligation.
Copyrights and Trademarks
© 2005 GRAHAM-PATTEN SYSTEMS, INC.
Contents of this publication may not be reproduced in any form without the written permission of Graham-Patten.
Reproduction or reverse engineering of copyrighted software is prohibited.
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at your own expense.
Warranty Statement
Graham-Patten warrants that the equipment it manufactures is free from defects in workmanship and materials and
meets applicable published specifications. Equipment that has been operated within published ratings and has not
been subjected to abuse or modification, and which fails because of such defects, will be replaced or repaired at the
Company’s discretion if it is returned, freight prepaid, to Graham-Patten within seven years of receipt.
This warranty supersedes all other Warranties, express or implied. Graham-Patten is not liable for any
consequential damages.
Company Address
GRAHAM-PATTEN SYSTEMS, INC.
119 East McKnight Way, Unit A
Grass Valley, California 95949
Telephone: (888) 622-4747, (530) 477-2984
Fax: (530) 477-2986
World Wide Web: www.gpsys.com
Table of Contents
ii • Table of Contents DA-14 User Guide
Table of Contents ii
Introduction 1
What are SoundPals?.............................................................................................................. 1
Documentation Conventions.................................................................................................... 1
Signals and Values .................................................................................................................. 1
Warnings.................................................................................................................................. 1
Unpacking and Inspection ....................................................................................................... 2
Power Supply Note .................................................................................................................. 2
DA-14 3
About the DA-14 ...................................................................................................................... 3
DA-14 Installation .................................................................................................................... 5
Connecting Power ............................................................................................................. 5
Connecting Inputs ............................................................................................................. 5
Connecting Outputs........................................................................................................... 5
DA-14 Operation and Application ............................................................................................ 6
DA-14 Interconnection ............................................................................................................. 7
Basic Digital Distribution ................................................................................................... 7
Multiple Outputs ................................................................................................................8
DA-14 Internal Jumpers........................................................................................................... 9
DA-14 Troubleshooting............................................................................................................ 9
DA-14 Specifications ............................................................................................................. 10
Audio Specifications ........................................................................................................ 10
Environmental Specifications and Dimensions ............................................................... 11
Inside the Module ........................................................................................... 11
In This Section ....................................................................................................................... 11
Before You Begin................................................................................................................... 11
Opening the Module ..............................................................................................................11
Closing the Module ................................................................................................................ 12
External Power ................................................................................................ 12
About Power Supplies ...........................................................................................................12
CE Compliance...................................................................................................................... 12
Portable Power Sources ........................................................................................................ 12
Power Supply Specifications ................................................................................................. 12
Power Supply Sources .......................................................................................................... 13
Introduction
DA-14 User Guide Page 1
What are SoundPals?
Each Graham-Patten SoundPals module is essentially a digital audio building block that can be
used independently, or interconnected to perform more advanced mixing and audio processing
functions.
SoundPals can be used in both standalone and system configurations:
•In a “standalone” configuration, each SoundPals module is designed to perform a specific
audio processing function such as ADAT-to-Analog conversion. In this way, each module
functions as a perfect low-cost adjunct to larger mixing consoles (such as the Graham-
Patten D/ESAM series) — for single-purpose processing tasks.
•In a “system” configuration, SoundPals can be linked to form more comprehensive digital
audio tools. For field recording, studio applications, and workstation applications,
SoundPals can be used to seamlessly perform functions that would otherwise require
extensive peripheral gear. Best of all, SoundPals “systems” can be re-configured quickly
and easily — to suit your changing audio production requirements.
All SoundPals modules are extremely compact, rugged, and identical in size for ease of
installation, interconnection, and use. In addition, SoundPals support AES3id. This allows
longer, more robust AES signal distribution using standard coaxial cable. Error free distances of
1000 feet can be attained using inexpensive coaxial cables.
Documentation Conventions
The following documentation conventions are used in this guide:
•Buttons, knobs, connectors, and switches are indicated in bold-faced capital letters. For
example:
Adjust the left GAIN TRIM to …
•Primary sections are listed in bold text, with a line above:
Primary Section
•Secondary sections are listed in bold text, with no line:
Secondary Section
Signals and Values
Note the following important information regarding audio signal level:
•AES3 = Balanced output with 2 channels of digital audio (left and right)
•AES3id = Unbalanced output with 2 channels of digital audio (left and right)
Warnings
Please observe the following important warnings:
•Heed all warnings on the unit and in the instructions.
•Do not use this product in or near water.
•Route power cords and other cables so that they are not likely to be damaged.
Disconnect power before cleaning. Do not use liquid or aerosol cleaners; use only a
damp cloth.
DA-14 User Guide
Page 2
Unpacking and Inspection
When you receive your SoundPals modules, inspect the cartons for signs of damage. Contact
your dealer and the shipper immediately if you suspect any damage has occurred during
shipping. Check the contents of each box to be sure that all parts are included. If any items are
missing, contact your dealer immediately.
Power Supply Note
SoundPals are delivered with a power connector only. A separate power supply must be
obtained. Graham-Patten offers several power solutions for both domestic and international
customers. Refer to “External Power” for detailed power specifications for users who wish to
configure their own power source, rather than purchase one from Graham-Patten.
DA-14
DA-14 User Guide Page 3
About the DA-14
The SoundPals DA-14 is a one-input, four-output “data regenerator” for distributing AES digital
audio signals. Two versions of the DA-14 are available:
•Model A
The DA-14 Model A provides four balanced AES3 outputs on XLR connectors.
•Model B
The DA-14 Model B provides four unbalanced AES3id outputs on BNC connectors.
NOTE The printed legend on the rear panel indicates the DA-14 model.
Both models include one AES3 input (on an XLR connector) and one AES3ID input (on a BNC
connector). Note that only one input can be used at a time.
The DA-14 offers the following features:
•Choice of balanced AES outputs (XLR) or unbalanced AES3id outputs (BNC).
•Terminating or bridging inputs
•Accepts (and regenerates) any AES or AES3id digital input signal between 30 KHz and
50 KHz sampling frequency.
•Power and Status LEDs
•Optional rack mounting tray (1 RU)
•Compact size, rugged construction
The figure below illustrates the DA-14’s front panel:
DA-14
DA-14
2 4
AES IN
PWR
I/P ERR
31
1) AES Balanced Input — the AES IN XLR connector accepts a balanced AES input
signal.
2) AES Unbalanced Input — the AES IN BNC connector accepts an unbalanced AES
input signal.
NOTE Do not connect both AES inputs at the same time.
3) I/P ERR — this LED lights when no signal is applied to the input, or when the signal is not
valid. A non-valid signal exhibits errors such as format violations, bit errors, low level, or
incorrect frequency. When I/P ERR is lit, output is muted.
4) Power LED — the green LED lights when power is applied.
DA-14 User Guide
Page 4

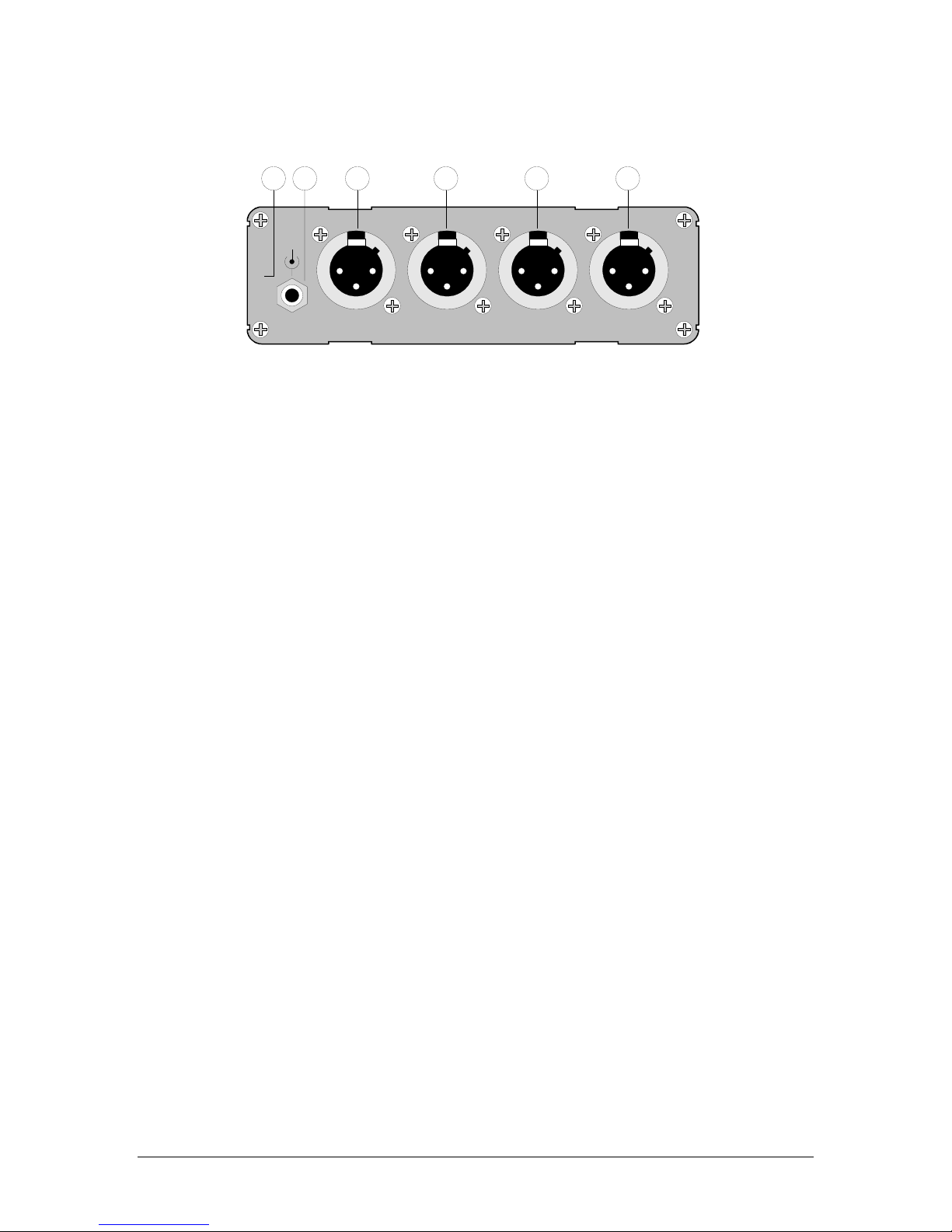

The figure below illustrates the DA-14’s rear panel.
AES OUT 1 AES OUT 2 AES OUT 3 AES OUT 4
MODEL A
MADE IN THE USA
3 4 5 61
200mA
+6V
2
1) DA-14 Model — the printed legend indicates the model:
A (AES, balanced) or
B (AES3ID, unbalanced)
NOTE The Model A (with balanced XLRs) is shown above. The Model B provides
unbalanced BNC connectors.
2) Power Connector — accepts the power jack from the 6VDC power supply. Refer to
“External Power” for more information regarding external power.
3) AES Output #1
4) AES Output #2
5) AES Output #3
6) AES Output #4
