INTRODUCTION
INTRODUCTION
2
Amplifier's provide high-performance sound reinforcement for you mobile audio
equipment. The Multi-Mode bridging capabilities allow flexibility in hosting several
different speaker configurations.
To achieve optimum performance, it is highly recommended that you read this Owners
Manual before beginning installation.

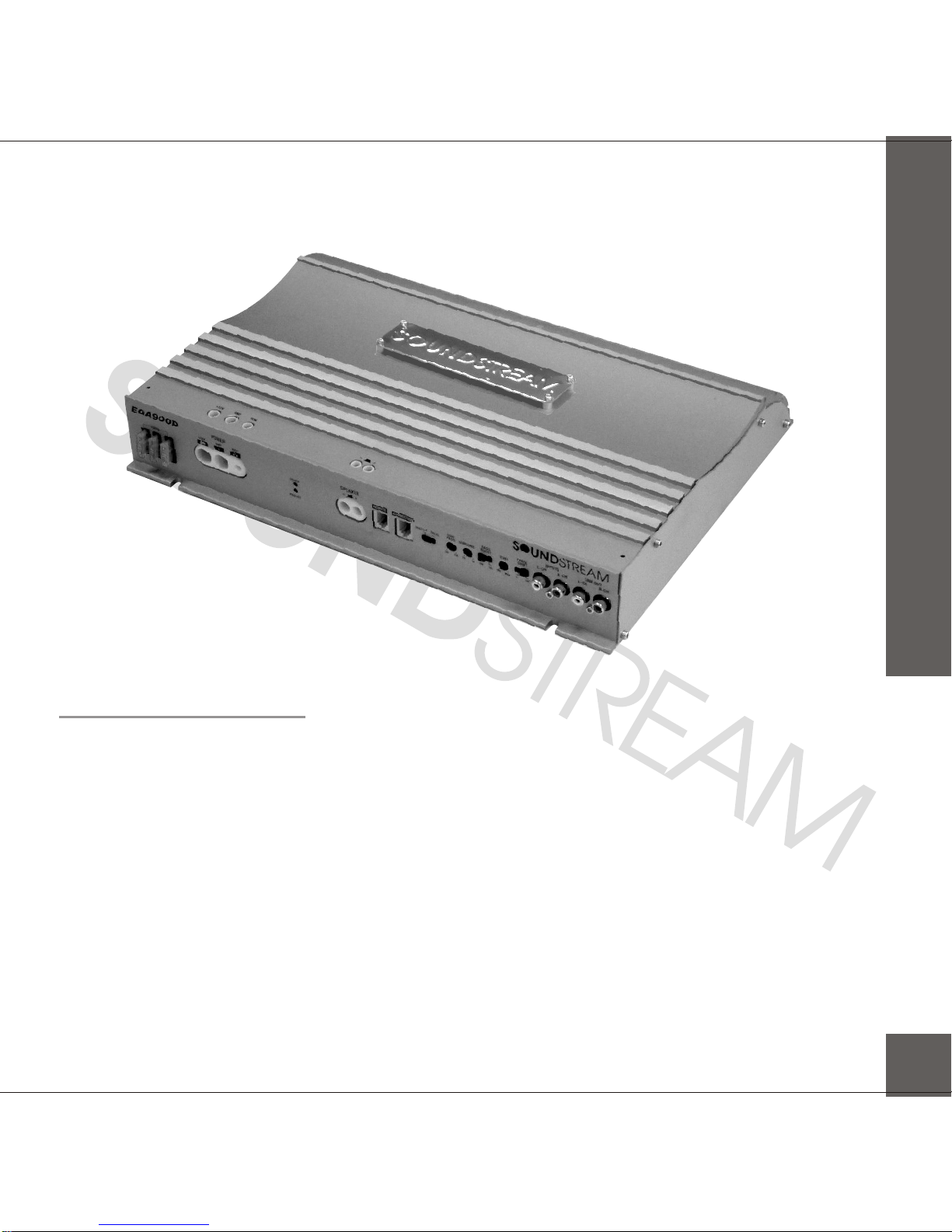

FEATURES
FEATURES & SPECIFICATIONS
3
TST ( Twin Stack Technology) 2 amplifier's to drive one voice coil
effectively doubling the power.
Class D circuitry
High quality FR-4 circuit board
Continuously variable low-pass filter (50Hz to 150Hz)
Continuously variable subsonic filter (15Hz to 40Hz)
Subwoofer equalizer control switch
Phase inversion switch (0 -180 )
Platinum RCA input and output
OEM floating ground input
Platinum 4-gauge power connectors
1-ohm stable
>80dB S/N ratio
0.30% THD
Includes EGA-RM remote bass control
Specifications
MODEL CHANNEL RMS @ 4 OHM @ 2 OHM @ 1 OHM FUSES DIMENSIONS
EGA900D
EGA1400D
EGA1700D
1
1
1
225 x 1
350 x 1
425 x 1
450 x 1
700 x 1
850 x 1
900 x 1
1400 x 1
1700 x 1
30A x 3
30A x 4
30A x 5
11" x 2.4" x 14.6"
11" x 2.4 x 16.9"
11" x 2.4 x 20"

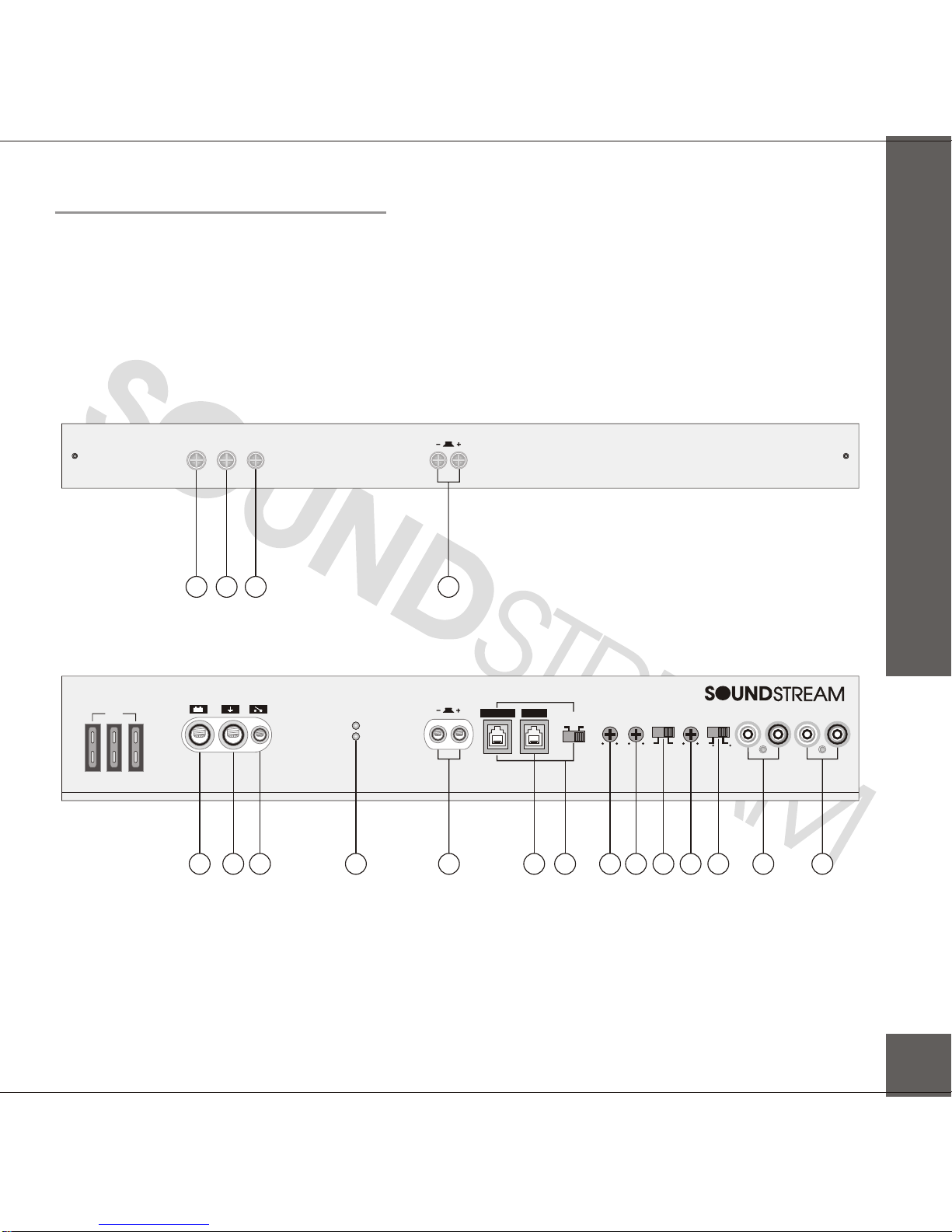

Controls & Functions
CONTROLS & FUNCTIONS
4
EGA900D / 1400D / 1700D
1 2 3
4
5 12
1013978
1
978
GND REM+12V
611
14
SPEAKER
LINE OUT
L-CHL-CH R-CHR-CH
INPUTS
PROTECT MAX
OFF
EGA900D
GND
POWER
REM+12V
FUSES
MIN
ON
CONNECTION BRIDGED
REMOTE
POWER BASS
BOOST
50 150
LOW
PASS
0 180
PHASE
SHIFT
15 40
SUB
SONIC
MASTER SLAVE LEVEL
MIN MAX
LEVEL
EGA900D / EGA1400D / EGA1700D

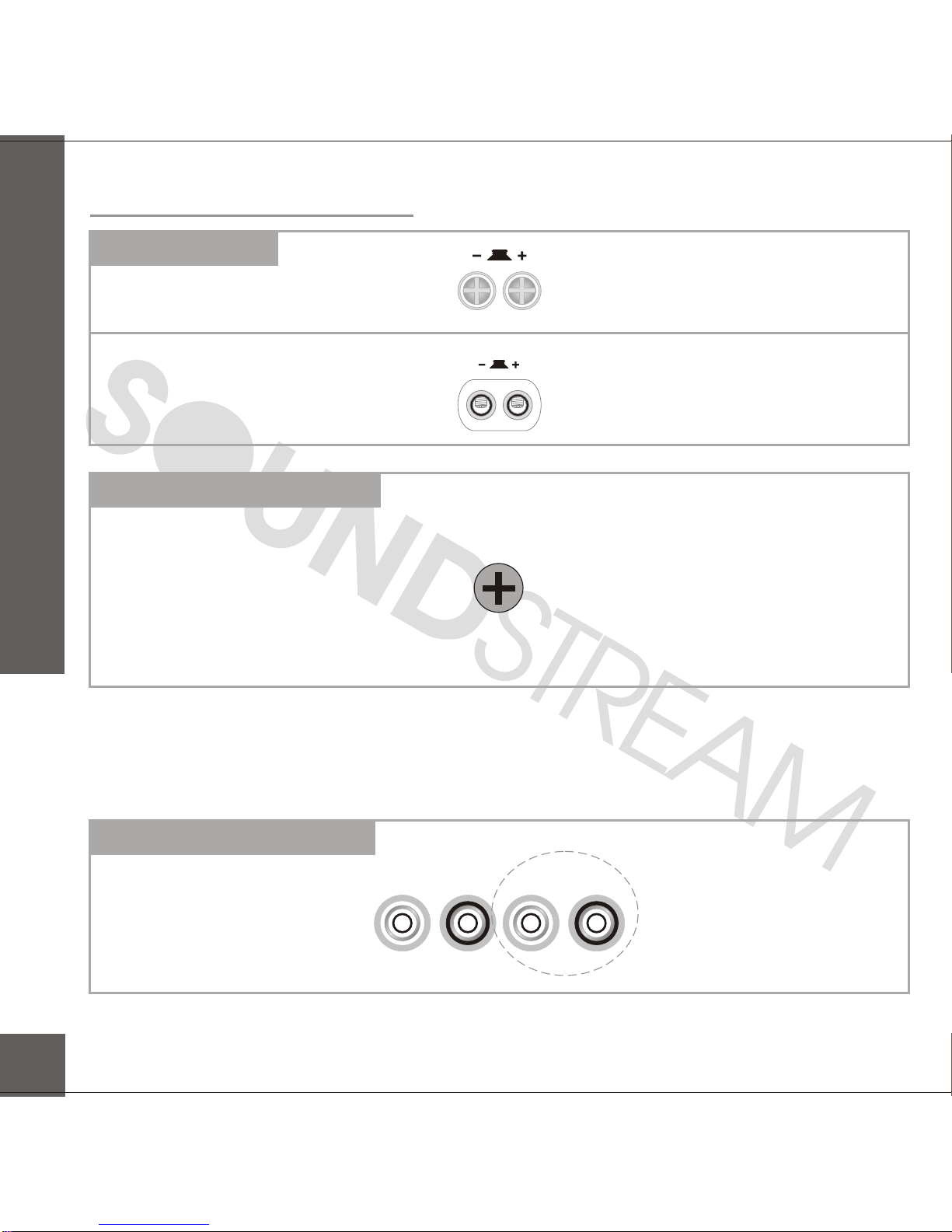

1.Speaker terminals
2. Input Sensitivity Adjustment
Controls & Functions

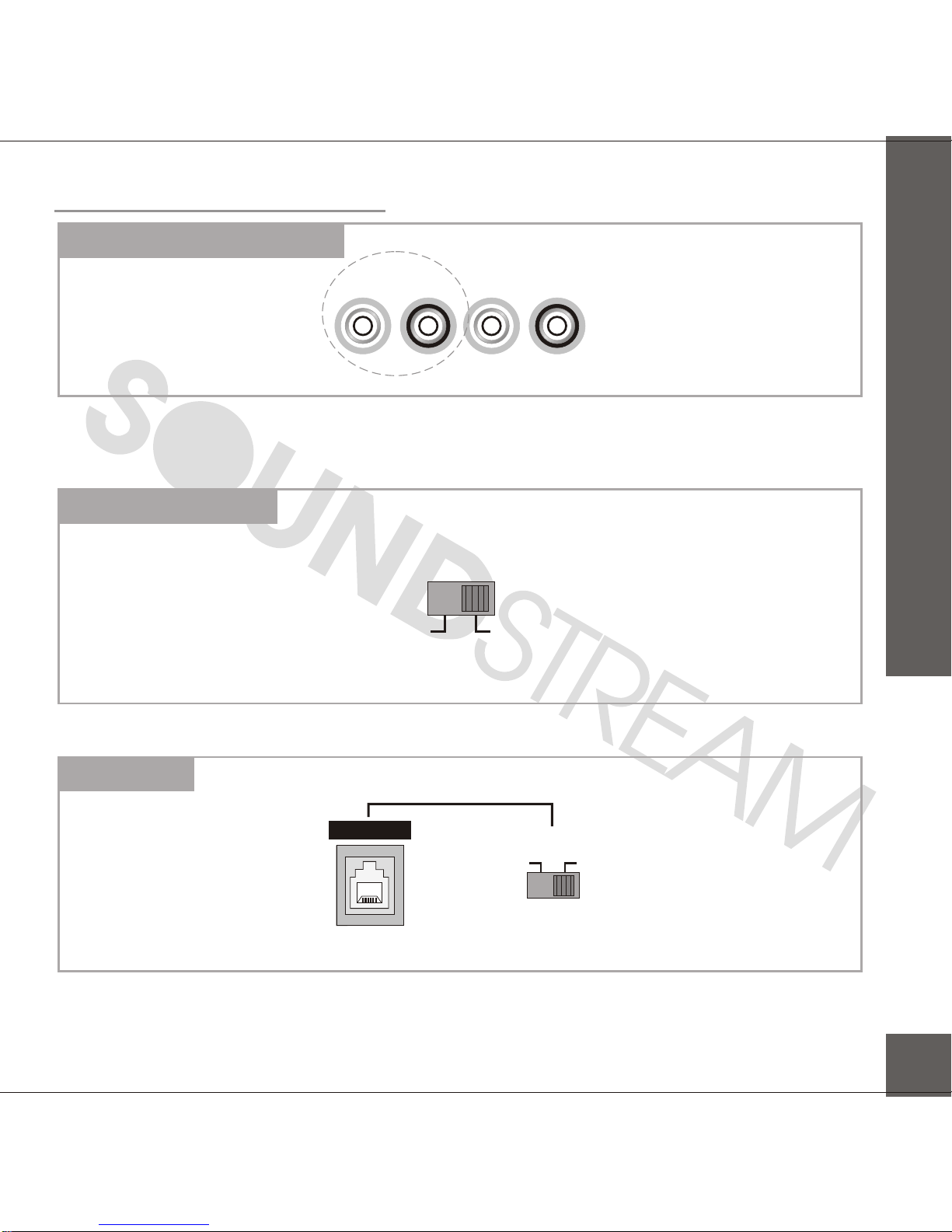

3. Low Level Input RCA jacks
SPEAKER
TOP
FRONT
LINE OUT
L-CHL-CH R-CHR-CH
INPUTS
EGA900D / EGA1400D / EGA1700D
EGA900D / EGA1400D / EGA1700D
CONTROLS & FUNCTIONS
5
This control adjusts the amplifier's input sensitivity. Input sensitivity is variable from 200 Millivolts to
8 volts. Clockwise increases sensitivity. Counterclockwise decreases sensitivity. The amplifier can
be driven to full power with a wide range of signal levels. A lower signal level will require
increased sensitivity for full power. A higher signal level will require decreased sensitivity.
Avoid setting sensitivity lower than necessary as this would introduce unwanted distortion.
These inputs are for signal cables from the source. Always use high quality shielded RCA cables.
CONTROLS & FUNCTIONS
6
5. Bass Boost Switch
6. BRIDGED
4. Low Level OUT RCA jacks
LINE OUT
L-CHL-CH R-CHR-CH
INPUTS
EGA900D / EGA1400D / EGA1700D
OFF ON
BASS
BOOST
EGA900D / EGA1400D / EGA1700D
CONNECTION BRIDGED
MASTER SLAVE
EGA900D / EGA1400D / EGA1700D
The LINE OUT allows you to build multiple amplifier systems without having to use splitter cords
to distribute the signal. Now it is simply a matter of bringing one set of RCAS into the first amplifier,
then using the line out RCA jacks as the feed to the next amplifier.
By using the bass boost function, bass notes at 35Hz - 80Hz are emphasized as much as 10dB.
Controls & Functions
GND
POWER
REM+12V
GND
POWER
REM+12V
GND
POWER
REM+12V

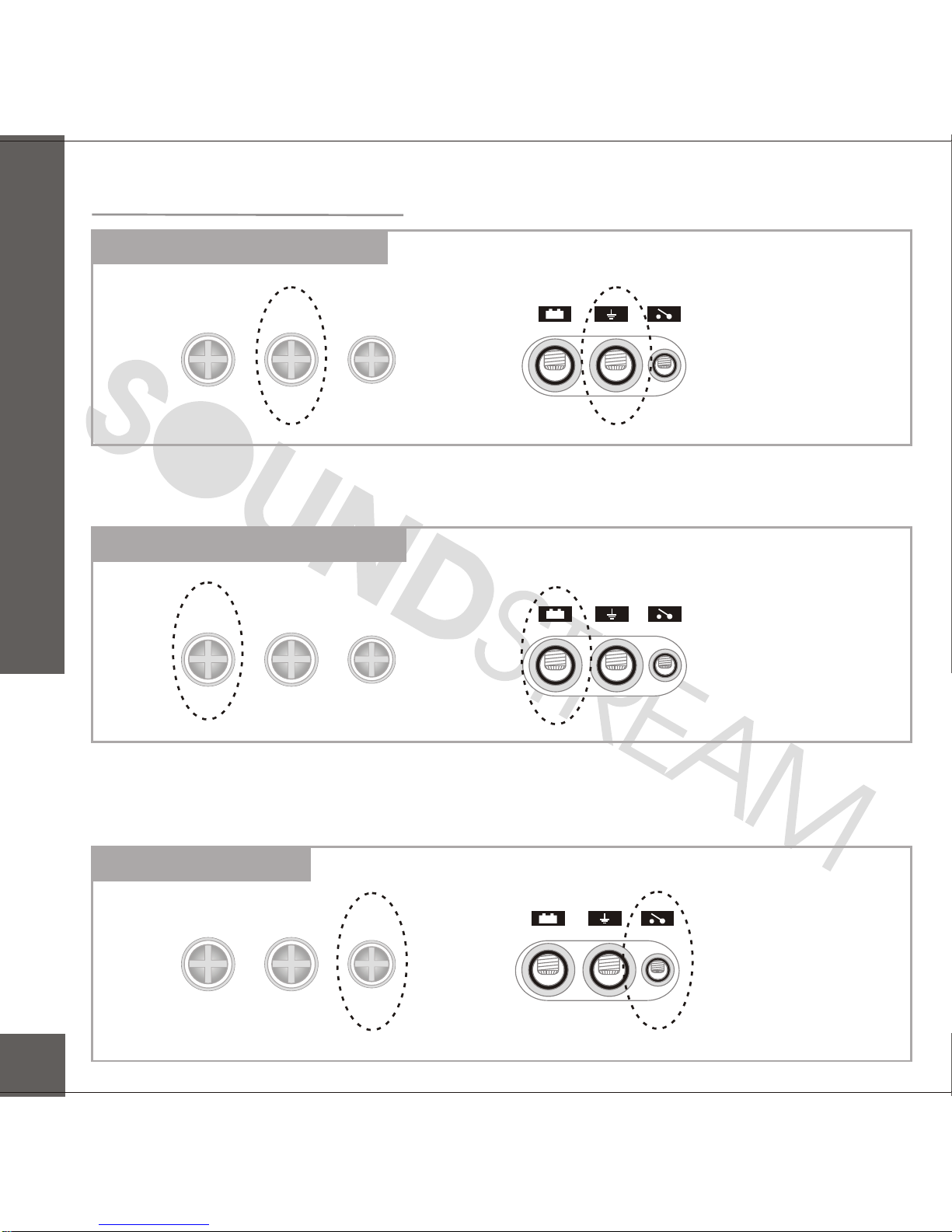

7. B-Terminal (Chassis ground)
8. B+ Terminal (Battery positive)
9. Remote Power On
Controls & Functions
GND REM+12V
TOP FRONT
FRONT
GND REM+12V
TOP
FRONT
GND REM+12V
TOP
EGA900D / EGA1400D / EGA1700D
EGA900D / EGA1400D / EGA1700D
EGA900D / EGA1400D / EGA1700D
CONTROLS & FUNCTIONS
7
To avoid unwanted ignition noise caused by ground loops, it is essential that the Amplifier be
grounded to a clean, bare, metal surface of the vehicles chassis.
Note : GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT (1 METER).
Due to the power requirements of the Amplifier, this connection should be made directly to the
positive(+) terminal of battery. For safety measure, install an in-line fuse Holder (not included)
as close to the battery positive(+) terminal as possible with an ampere rating not to exceed
total value of fuses in Amp.
CONTROLS & FUNCTIONS
10. Low Pass Filter Control
50 150
LOW
PASS
EGA900D / EGA1400D / EGA1700D
15 40
SUB
SONIC
EGA900D / EGA1400D / EGA1700D
11. Subsonic Filter Control
Variable Subsonic Filter (15Hz - 40Hz) :
The Subsonic filter will roll off all of the unwanted frequencies below 15Hz - 40Hz.
This will allow the amplifier to use that wasted power on the audible bandwidth.
12. Phase Shift Switch
0 180
PHASE
SHIFT
EGA900D / EGA1400D / EGA1700D
CONTROLS & FUNCTIONS
8
To remote wire car stereo.
This amplifier is turned "ON" remotely when vehicle's stereo is turned "ON"
Note : IF YOUR RADIO DOES NOT HAVE +12 VOLT OUTPUT LEAD WHEN TURNED ON, THE "REMOTE"
TERMINAL ON THE AMPLIFIER CAN BE CONNECTED TO VEHICLES ACCESSORY CIRCUIT WHICH
PROVIDES +12V WHEN THE CAR IS ON.
Variable Low Pass Filter (50Hz - 150Hz) :
For use as a dedicated subwoofer channel, set filter switch to "LPF". Adjust variable crossover
frequency with control as desired. The amplifier input circuit filters out everything above 50Hz ...
...150Hz (dependent on the adjustment of the frequency control), so only the deepest bass
notes are amplified.
PHASE SHIFT SWITCH (0 TO 180 DEGREES) :
Allows you to change the phase of your subwoofer from 0 to 180 degrees to help compen-
sate for timing differences between drivers.
Controls & Functions
REMOTE

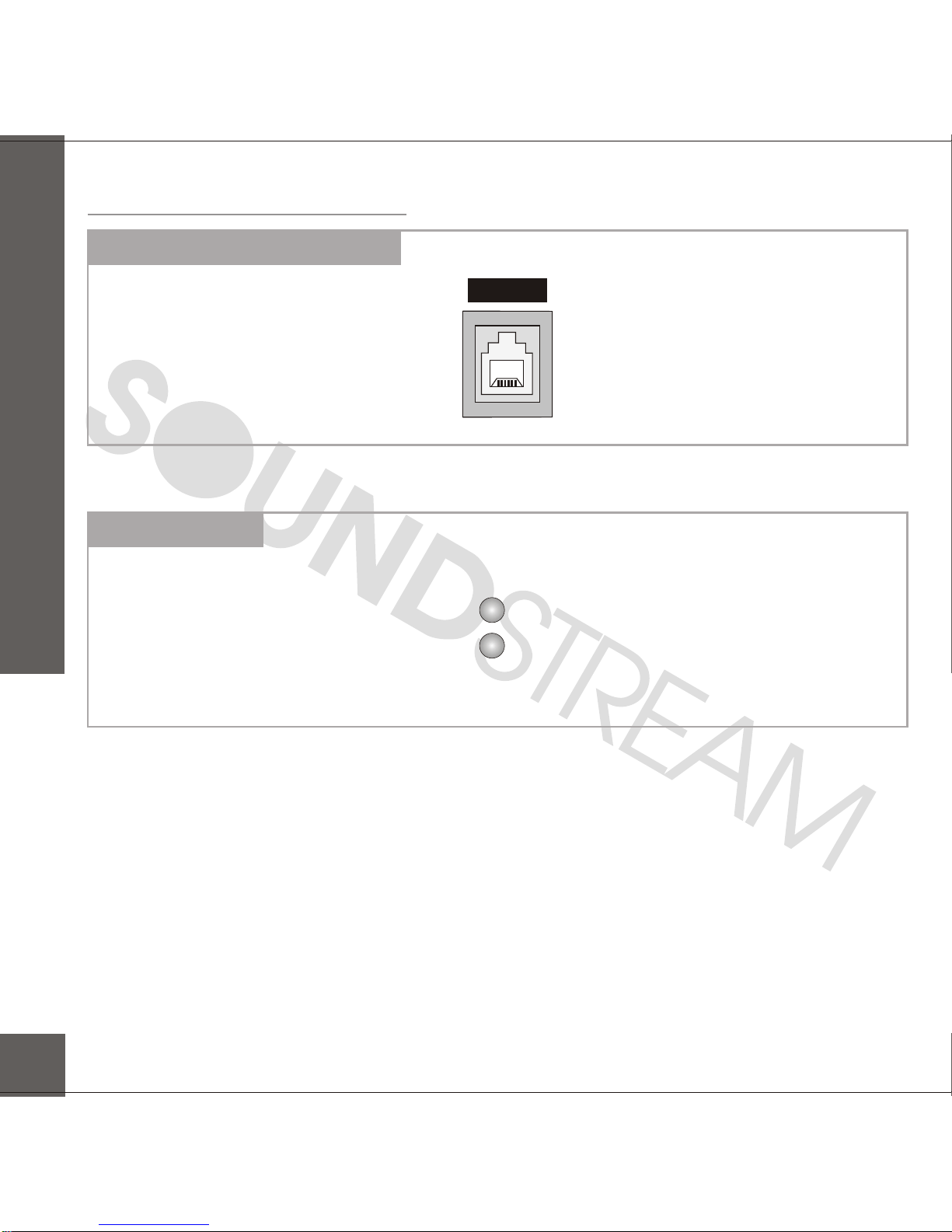

13. Remote Control Input - Fig 1.
EGA900D / EGA1400D / EGA1700D
PROTECT
POWER
14. LED indicator
Controls & Functions
CONTROLS & FUNCTIONS
9
EGA900D / EGA1400D / EGA1700D
POWER : This GREEN LED will illuminate when the amplifier is turned "ON". If it fails to
illuminate, check the power connections to the Amplifier and fuses.
PROTECT: The amplifier protection circuitry will disable the amplifier if input overload, short circuit
or extremely high temperature conditions are detected. When the protection mode is in operation,
the LED indicator on the side panel will be illuminated, indicating the amplifier has gone into a self-
preservation mode.
If you observe that the Protection LED is lit, please check the system carefully to determine what
has caused the protection circuit to engage. The amplifier can be reset by turning the remote power
off and then on again. If the amplifier shut down due to a thermal overload condition, please allow
it to cool down before restarting. If the amplifier shut down because of an input overload or short
circuit, be sure to repair these conditions before attempting to power up the amplifier again.
Remote Boost Control : EGA-RM
