Sovereign SBV 3200 Manuale utente
Operating Instructions
Petrol Blower Vac
SBV 3200
34.360.03
Art.-No.: 519920 I.-Nr.: 01016
Anleitung SBV 3200:_ 22.11.2006 11:13 Uhr Seite 1
2
Please read these instructions carefully
before installing and operating the
petrol blower vac!
Petrol Engine Quick Start Guide
Ensure correct fuel/oil mixture 40:1
STARTING
1. In “Vac” position, the collecting bag must be
attached to unit firmly. In “Blower” position,
the Vacuum/Blower slide has to be pulled to
the end position.
2. Pull the throttle trigger until auto locked.
3. Pump the “Primer Bulb” 10 times.
4. Move the choke lever to “ START”
position.
Note - the amount of Choke will vary slightly
depending on the weather conditions, a
small amount of experimentation is advised.
5. Grip handle firmly.
6. Pull starter rope briskly 4 times or until
engine tries to start.
7. Warm engine for 10 seconds.
8. After warm-up move choke lever to “ RUN”
position.
Note - this quick start guide is intended for
experienced users who have already
assembled the tool, please refer to the
manual for details.
If machine does not start after minimum 6 pulls
on starter cord refer to petrol Engine Q & A on
page 16.
Anleitung SBV 3200:_ 22.11.2006 11:13 Uhr Seite 2
3
1
2
3
4
5
6
7
8
9
10
13
15
11 12
16
14
17
18
1
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 3
4
A
B
C
D
C
1A 1B
B
A
23
C
A
D
D
B
4A
4D 4E
4B 4C
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 4
5
5 6
C
B
AB
.025 in.
(0,6 mm)
7A 7B 8 9
12 3 4 5
678910
10
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 5
6
GB
Table of contents Page
1. General safety regulations 7
2. Machine layout and items supplied 8
3. Technical data 8
4. Intended use 8
5. Environmental protection 9
6. Assembly 9
7. Before starting the machine 9
8. Operation 9
9. Maintenance 11
10. Storage 11
11. Disposal 12
12. Ordering replacement parts 12
13. Troubleshooting 12
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 6
7
GB
When using equipment, a few safety precautions
must be observed to avoid injuries and damage.
Read the operating instructions carefully and
comply with them. It is important to consult these
instructions in order to acquaint yourself with the
unit, its proper use and safety regulations.
Keep this manual in a safe place, so that the
information is available at all times.
If you give the equipment to any other person,
hand over these operating instructions as well.
We accept no liability for damage or accidents
which arise if these instructions have not been
adhered to.
1. GENERAL SAFETY REGULATIONS

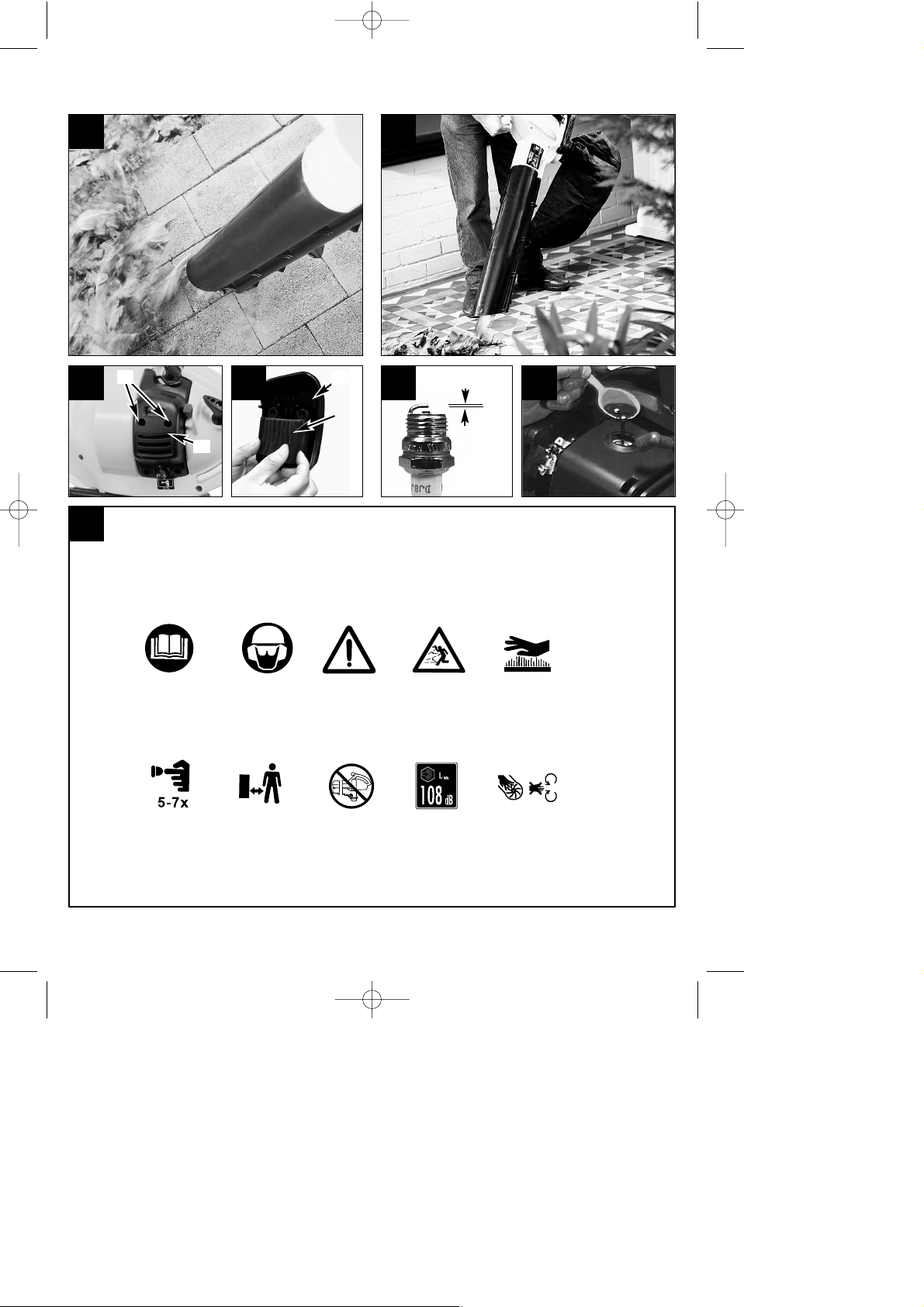

Explanation of the information signs on the
machine (Fig. 10)
1. Read the operating instructions before you use
the blower vac.
2. Wear helmet, ear muffs and goggles!
3. Warning! Hazard!
4. Keep other people away.
5. Warning! Hot surface.
6. Fuel pump.
7. Never work if people – especially children - or
animals are in the danger area.
8. Never allow the blower to run without the blower
tube.
9. Sound power level with EC Directive
2000/14/EC!
10. After the unit is switched off, the motor continues
to run for a short while.
Note
1. WEAR CLOSE FITTING, TOUGH WORK
CLOTHING that will provide protection/without
restricting your movements, such as long slacks
or trousers, safety work shoes, heavy duty work
gloves, hard hat, a safety face shield, or safety
glasses for eye protection and a good grade of
ear plugs or other sound barriers for hearing
protection.
2. REFUEL IN A SAFE PLACE. Open fuel cap
slowly to release any pressure which may have
formed in fuel tank. Always wipe unit of fuel or oil
spills before starting. To prevent a fire hazard,
move at least 10 feet (3 meters) from fueling area
before starting.
3. TURN UNIT OFF before setting it down, and also
before installing or removing attachments.
4. KEEP ALL SCREWS AND FASTENERS TIGHT
and the unit in good operating condition. Never
operate this equipment if it is improperly adjusted
or not completely and securely assembled.
5. KEEP HANDLES DRY, clean and free of fuel
mixture.
6. STORE EQUIPMENT AWAY FROM POSSIBLE
IGNITION SOURCES, such as gas-powered
water heaters, clothes dryers, or oil-fired
furnaces, portable heaters, etc.
7. ALWAYS KEEP the engine free of debris build-
up.
8. OPERATION OF EQUIPMENT should always be
restricted to mature and properly instructed
individuals.
9. ALL PERSONS WITH RESPIRATORY
PROBLEMS and persons operating blower in
very dusty environments, should wear a dust
particle mask at all times. Paper dust masks are
available at most paint and hardware stores.
10. Use the blower vac only at reasonable times of
the day. Do not use early in the morning or late in
the evening when people could feel disturbed.
Pay attention to your local noise control
regulations.
11. Allow the machine to run at the lowest possible
motor speed required to carry out the work.
12. Before you start work, use a brush and scraper to
remove all dirt from the blower vac.
13. In case of dusty conditions, moisten the surface a
little.
14. Use the full-length blower nozzle extension so
that the air current can work near to the ground.
15. Watch out for children, pets, open windows etc.
and blow the dirt safely away from them.
앬WHAT NOT TO DO
WARNING: DO NOT USE ANY OTHER FUEL than
that recommended in your manual. Always follow
instructions in the Fuel and Lubrication section of this
manual. Never use fuel unless it is properly mixed
with 2-stroke engine lubricant. Permanent damage to
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 7
8
GB
engine will result, voiding manufacturerʼs warranty.
1. DO NOT SMOKE while refueling or operating
equipment.
2. DO NOT OPERATE UNIT WITHOUT A
MUFFLER and properly installed muffler shield.
3. DO NOT TOUCH or let your hands or body come
in contact with a hot muffler or spark plug wire.
4. DUE TO THE DANGER of exhaust fumes, never
operate blower in a confined or poorly ventilated
area.
5. NEVER POINT BLOWER in the direction of
people, animals, buildings, automobiles, or
windows, etc.
6. DO NOT operate unit without inlet cover installed
to prevent contact with impeller.
7. DO NOT set a hot engine down where flammable
material is present.
8. DO NOT OPERATE UNIT FOR PROLONGED
PERIODS. Rest periodically.
9. DO NOT OPERATE UNIT WHILE UNDER THE
INFLUENCE OF ALCOHOL OR DRUGS.
WARNING: DO NOT ADD, REMOVE OR ALTER
ANY COMPONENTS OF THIS PRODUCT. Doing so
could cause personal injury and/or damage the unit
voiding the manufacturerʼs warranty.
10. DO NOT operate your unit near or around
flammable liquids or gases whether in or out of
doors. An explosion and/or fire may result.
11. DO NOT WEAR loose clothing, scarfs, neck
chains, unconfined long hair, and the like. Doing
so could cause injury associated with objects
being drawn into the rotating parts. Tie up long
hair and fasten it, for example with a head scarf,
cap, helmet, etc.
12. DO NOT refuel a running engine or an engine
that is hot
13. Never allow children to use the blower vac.

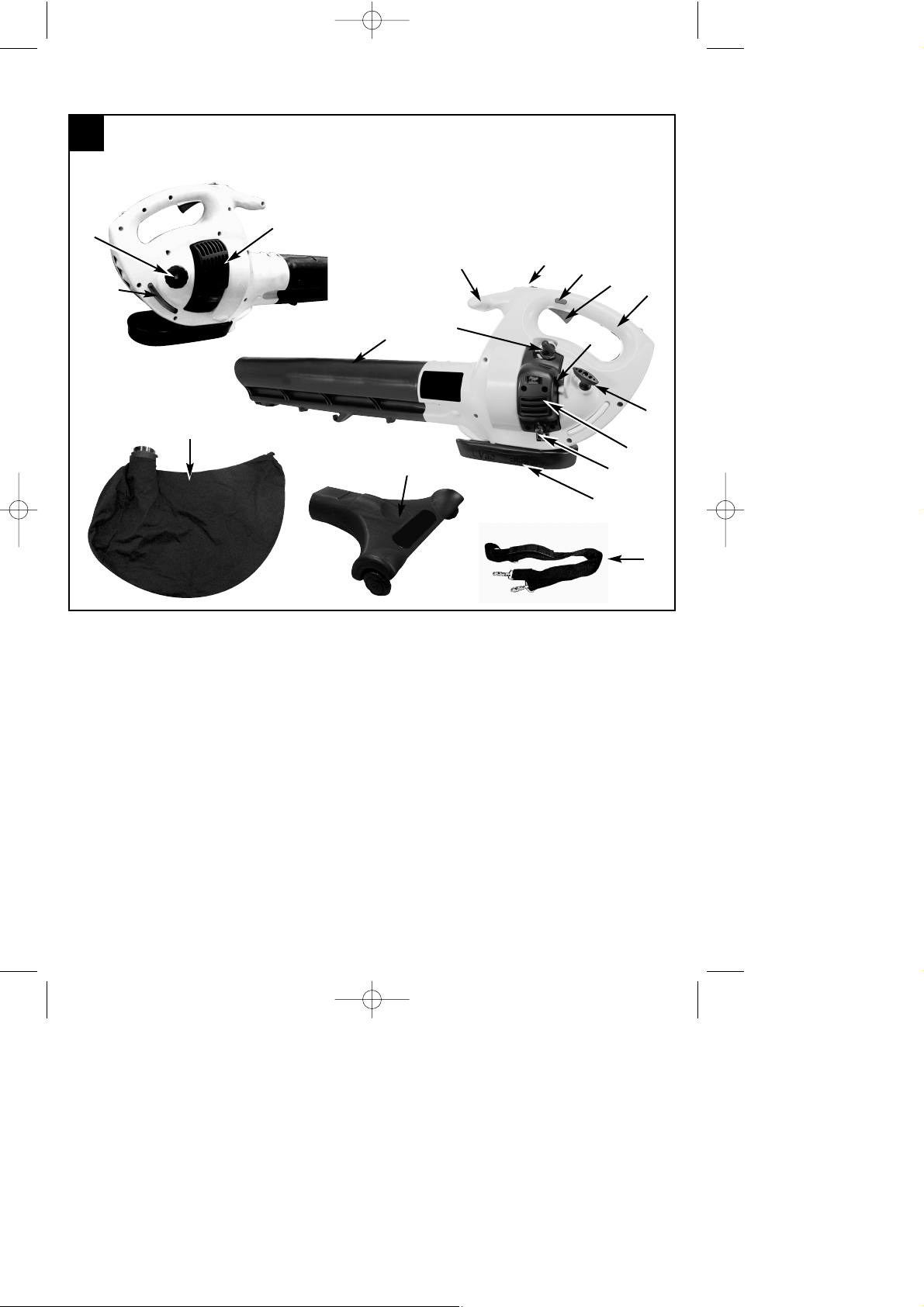

2. Machine layout and items supplied
(Fig. 1)
1. Rear Handle
2. Throttle Trigger
3. Throttle Lock
4. On/Off Switch
5. Front Handle
6. Muffler Cover (Exhaust)
7. Fuel Tank Window
8. Fuel Cap
9. Starter Handle
10. Air Filter Cover
11. Vacuum/Blower Tube
12. Choke Lever
13. Spark Plug Wire / Spark Plug
14. Vacuum/Blower Slide
15. Primer Bulb
16. Harness
17. Vacuum Bag
18. Speed Cleaner Head
3. Technical data
Engine 24 cm3
Max. Air Velocity ca. 145 km/h
Max. Air Volume 236 m3/h
Max. Engine Speed 7.800 ± 500 min-1
Collection Bag 55 Litre
Mulching Ratio 10:1
Fuel Capacity 650 ml
Weight 6.4 kg
Maximum Enquine Performance 0.8 kW
Sound power level 108 dB(A)
Sound pressure level at ear 95 dB(A)
Vibration 13.69 m/s2
4. Intended use
This unit is designed to vacuum up debris such as
leaves, small bits of paper, small twigs, weeds, grass
clippings, etc. Do not use this unit for any other
purpose.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 8
9
GB
5. Environmental protection
Dispose of soiled maintenance material and
operating materials at the appropriate collection
point.
Recycle packaging material, metal and plastics.
6. Assembly

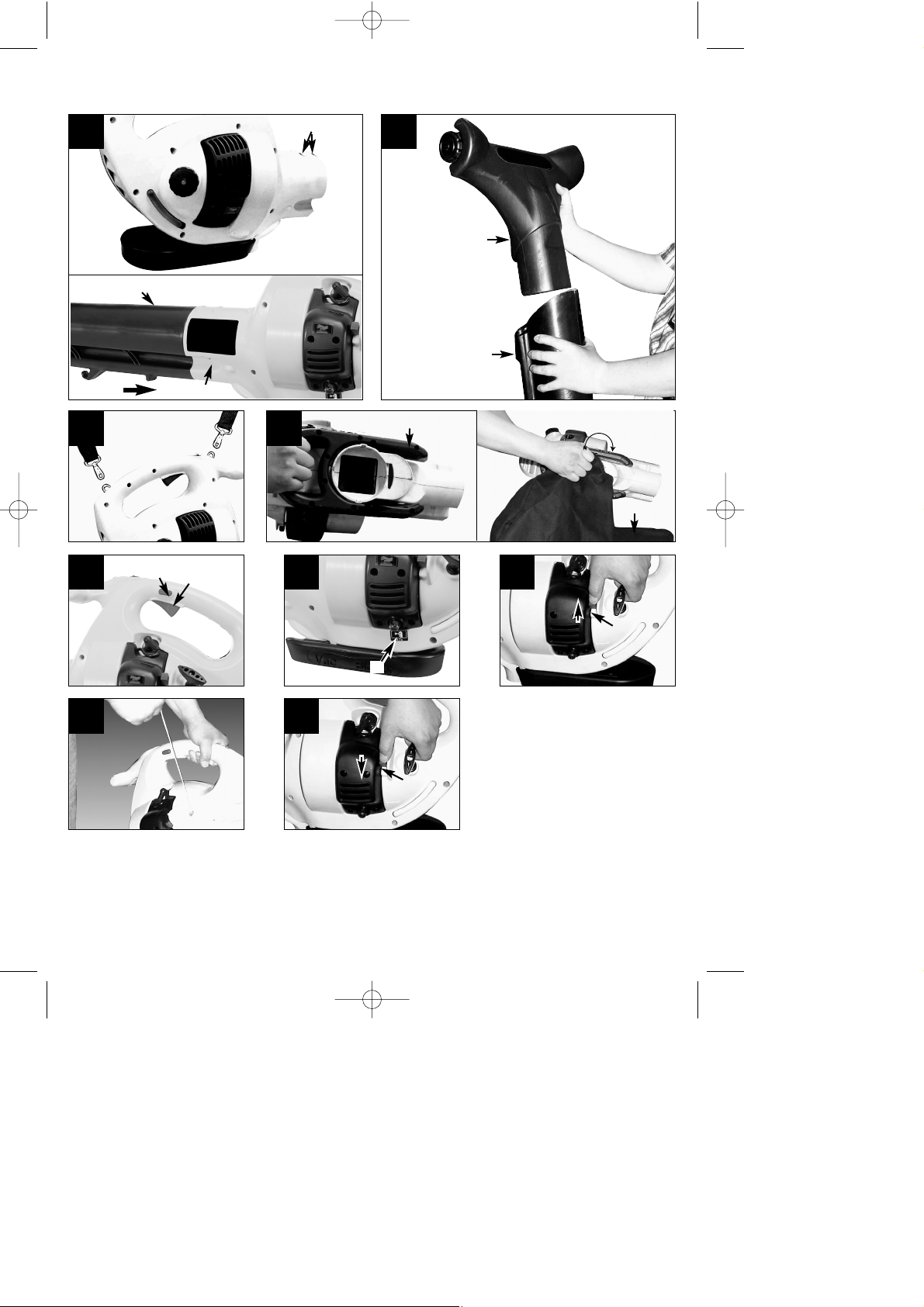

1. Release the screws (A) and remove the screw
(B). Insert blower tube (C) into the blower
housing and replace screw (B). Tighten screws
(A). (Fig. 1A)
2. Insert speed cleaner head (D) to the tube (C).
(Fig. 1B)
앬HARNESS INSTALLATION
Attach the 2 harness clips to the 2 links in the
blower handle. (Fig. 2)
앬VACUUM ATTACHMENT ASSEMBLY
INSTRUCTIONS
To install vacuum bag:
Pull the slide (A) forward and fit bag (B) into the
vacuum housing. (See Fig. 3)
NOTICE: Vacuum bag installation
The vacuum bag connection tube MUST be scurely
and correctly fitted to the vacuum housing (see fig. 3
of the instructions) prior to the operation. To ensure
the tube is in place correctly, first line up with the
indentations either side of the opening. Push the
connector into place and turn to the right until a click
is heard and the unit locks securely.
This is a safety feature and if the connector is not in
place the blower vac will not start.
The vacuum bag can now be fitted over the open end
of the connection tube and secured with the velcro
strap.
7. Before starting the machine
7.1 Fuel and oil
앬FUEL
Use regular grade unleaded fuel mixed with 40:1
custom 2-stroke engine oil for best results.
WARNING:
Never use straight gasoline in your unit.
This will cause permanent engine damage and void
the manufacturerʼs warranty for that product. Never
use a fuel mixture that has been stored for over 90
days.
WARNING: Use only Class I 2-stroke oil suitable for
air-cooled engines.
앬MIXING FUEL
Mix the fuel with 2-stroke oil in a suitable
container. Shake the container to ensure that it is
properly mixed.
앬FUEL AND LUBRICATION
앬RECOMMENDED FUELS
Some conventional fuel are being blended with
oxygenates such as alcohol or an ether
compound to meet clean air standards. Your
engine is designed to operate satisfactorily on
any fuel intended for automotive use including
oxygenated fuel.
8. OPERATION
8.1 STARTING A COLD ENGINE
Fill fuel tank with proper gas and oil mixture. See
Fuel and Lubrication.
Set unit on ground so that it rests on housing feet.
1. Pull the throttle trigger (A). (It will auto lock) Fig.
4A.
2. Prime the carburettor. Pump the primer bulb (C)
10 times (Fig. 4B).
3. Your unit is designed with a 2 position choke (D):
START “ ” and RUN “ ”. Move choke lever to
START “ ” position (Fig. 4C).
4. Grip handle firmly .
5. Pull starter rope out a short way until resistance
is felt (approximately 100mm). Pull starter rope
quickly and evenly until engine starts or attempts
to run.Once engine starts, warm up at full throttle
for 10 seconds and release throttle.
6. Push down the throttle lock (B), the throttle
trigger (A) will back to the nomal position. (Fig.
4A)
7. Move the choke to RUN “ ” position (Fig. 4E).
Fuel and Oil
Mix 40:1
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 9
10
GB
NOTE: If engine fails to start after repeated attempts,
refer to Troubleshooting section.
NOTE: Always pull starter rope straight out. Pulling
starter at an angle will cause rope to rub against the
eyelet. This friction will cause the rope to fray and
wear more quickly. Always hold starter handle when
rope retracts. Never allow rope to snap back from
extended position. This could cause rope to snag or
fray and also damage the starter assembly.
8.2 STOPPING THE ENGINE
Emergency Stopping Procedure. When it is
necessary to stop blower engine immediately,
DEPRESS the switch to stop.
Normal Stopping Method. For normal stopping,
push down the throttle lock, the throttle trigger will
back to the nomal position and allow engine to return
to idle speed. Then DEPRESS and HOLD the “OFF”
switch until the engine stops completely.
8.3 STARTING A WARM ENGINE (Engine has
been stopped for no more than 15-20
minutes)
1. Pull starter cord again. Engine should start with
ONE or TWO pulls. If engine fails to start after 6
pulls, repeat steps 2 through 6 (see Starting a
cold engine).
2. If engine does not start, or starts and then stops
after 5 cord pulls, follow procedure “STARTING A
COLD ENGINE”.
8.4 BLOWER OPERATIONS (Fig. 5)
Your blower is designed to easily remove debris from
patios, walkways, lawns, bushes, etc., and many
hard to reach areas where debris may accumulate.
WARNING: Because of flying debris, always wear
approved shielded safety glasses or face shield when
operating blower.
Before using your blower, review Safety Precautions
in your User Manual, and all regulations for operation
of the unit. These precautions and regulations are for
your protection.
CAUTION: Hold the blower so that hot exhaust does
not damage clothing and is not inhaled by operator.
DO NOT operate the blower with other people or
animals in the immediate vicinity. Allow a minimum of
30 feet (9 meters) between operator and other
people or animals.
We recommend that a face mask be worn when
operating blower in dusty areas.
Stand away from the debris, at a distance that will
easily allow you to control the direction of blown
debris. Never blow debris in direction of bystanders.
To control velocity of airstream, blower can be
operated at any speed between idle and full throttle.
Experience with the unit will help you determine the
amount of airflow necessary for each application.
8.5 VACUUM OPERATIONS
WARNING: NEVER OPERATE VACUUM WITHOUT
VACUUM BAG PROPERLY ATTACHED, AS
FLYING DEBRIS COULD CAUSE INJURY TO
OPERATOR AND BYSTANDERS. ALWAYS MAKE
SURE VACUUM BAG ZIPPER IS CLOSED BEFORE
OPERATING UNIT.
Do not vacuum hot or burning materials (e.g. hot ash,
glowing cigarettes) from outdoor fireplaces or
barbecue pits. always wait for these materials to be
cool enough. Do not vacuum lighted smoking
material such as discarded cigars or cigarettes. Do
not operate unit near open flame.
CAUTION: This unit is designed to vacuum up debris
such as leaves, small bits of paper, small twigs,
weeds, grass clippings, etc. Do not use this unit for
any other purpose.
Do not attempt to vacuum rocks, broken glass,
bottles, tin cans or other such objects. Damage to
impeller and unit as well as operator injury could
result.
If vacuum tube is level with power unit horizontal,
rocks or large objects may be drawn into tube,
damaging the impeller.
To Operate Vacuum:
1. Follow correct starting procedures as explained
in this manual.
2. Allow engine to return to idle. Put the shoulder
harness on so the strap is over your right
shoulder. Put the vacuum bag strap on so it is
over your left shoulder.
CAUTION: Do not allow shoulder harness to cover,
block, or come in contact with exhaust outlet during
operation. The muffler generates heat and could
burn, melt, or damage harness strap.
3. Place your left hand on the top handle and right
hand on side handle as shown (Fig. 6).
4. Swing unit side to side to vacuum debris.
Anleitung SBV 3200:_ 22.11.2006 11:14 Uhr Seite 10
Altri manuali per SBV 3200
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Sovereign Soffiatore
