SOYO AVRO3002 Ethernet Router Manual

Table of Contents

01. Introduction………………………………………....…..147H4

1H1.1. Product Overview ......................................................................... 148H4

2H1.2. Package Contents .............................................................................. 149H5

3H1.3. Installation Requirements .................................................................. 150H5

4H2. Installation Guide…………………………………...….151H6

5H2.1. Hardware Setup............................................................................ 152H6

6H2.1.1 Front Panel ................................................................................... 153H6

7H2.1.2 Rear Panel.................................................................................... 154H7

8H3. Default Values…………………………………………..155H8

9H3.1. Password....................................................................................... 156H8

10H3.2. Default Network Settings............................................................. 157H8

11H3.3. Other Default Settings.................................................................. 158H8

12H4. Configuring Your AVRO 3002 – Login………..……159H9

13H5. Configuring Your AVRO 3002 – General Setup….160H10

14H5.1. System......................................................................................... 161H10

15H5.1.1. Time Zone.......................................................................... 162H10

16H5.1.2. Password Settings ............................................................ 163H10

17H5.1.3. Remote Management ....................................................... 164H11

18H5.2. WAN Settings.............................................................................. 165H12

19H5.2.1. Dynamic IP......................................................................... 166H12

20H5.2.2. PPPoE................................................................................ 167H13

21H5.2.3. Static IP.............................................................................. 168H14

22H5.2.4. DNS .................................................................................... 169H14

23H5.3. LAN Settings............................................................................... 170H15

24H5.4. NAT Settings............................................................................... 171H16

25H5.4.1. Address Mapping .............................................................. 172H16

26H5.4.2. Virtual Server..................................................................... 173H16

27H5.4.3. Special Applications.......................................................... 174H17

28H5.5. Firewall ........................................................................................ 175H18

29H5.5.1. Access Control .................................................................. 176H19

30H5.5.2. URL Blocking..................................................................... 177H21

31H5.5.3. Schedule Rule ................................................................... 178H22

SOYO AVRO3002 Ethernet Router Manual

32H5.5.4. Intrusion Detection............................................................ 179H23

33H5.5.5. DMZ.................................................................................... 180H25

34H6. UPnP…………………………..………….……….........181H26

35H7. DDNS…………………………..………………….….....182H27

36H8. Tools…………………………..…………………….…..183H28

37H8.1. Configuration Tools .................................................................... 184H28

38H8.2. Firmware Upgrade...................................................................... 185H28

39H8.3. Reset............................................................................................ 186H29

40H9. Status…………………………..…………….…..….….187H30

41H9.1. Internet Connection.................................................................... 188H30

42H9.2. Device Status.............................................................................. 189H31

43H9.3. Security Log ................................................................................ 190H31

44H9.4. DHCP Client Log ........................................................................ 191H32

45H9.5. VoIP Status ................................................................................. 192H32

46H9.6. VoIP Call Log.............................................................................. 193H33

47HGlossary…………………………..……………………….....…..194H34

48H

Compliances

…………………………..…………...….……..….195H41

SOYO AVRO3002 Ethernet Router Manual

1. Introduction

1.1. Product Overview

The AVRO 3002 is an advanced embedded telephony gateway and IP

sharing device providing powerful integration of the traditional voice

traffic and the Internet data traffic. It is used for connecting traditional

telephone sets to the data network. Its goal is to provide standard

Internet telephony service and access service to the SOHO and

enterprise users to save long-distance telephony bill. The AVRO 3002

is equipped with digital signal processors (DSPs) that convert analog

and digital voice into IP packets for transport through the IP network

using standard coders/decoders (codecs), including G.711, G.723.1

and G.729.A.

The AVRO 3002 comes with 2 FXS ports, which can provide 2

telephone devices the ability to transmit voice communication over the

Internet. It’s an ideal solution for businesses and corporations that can

immediately reduce their long-distance telecommunications costs.

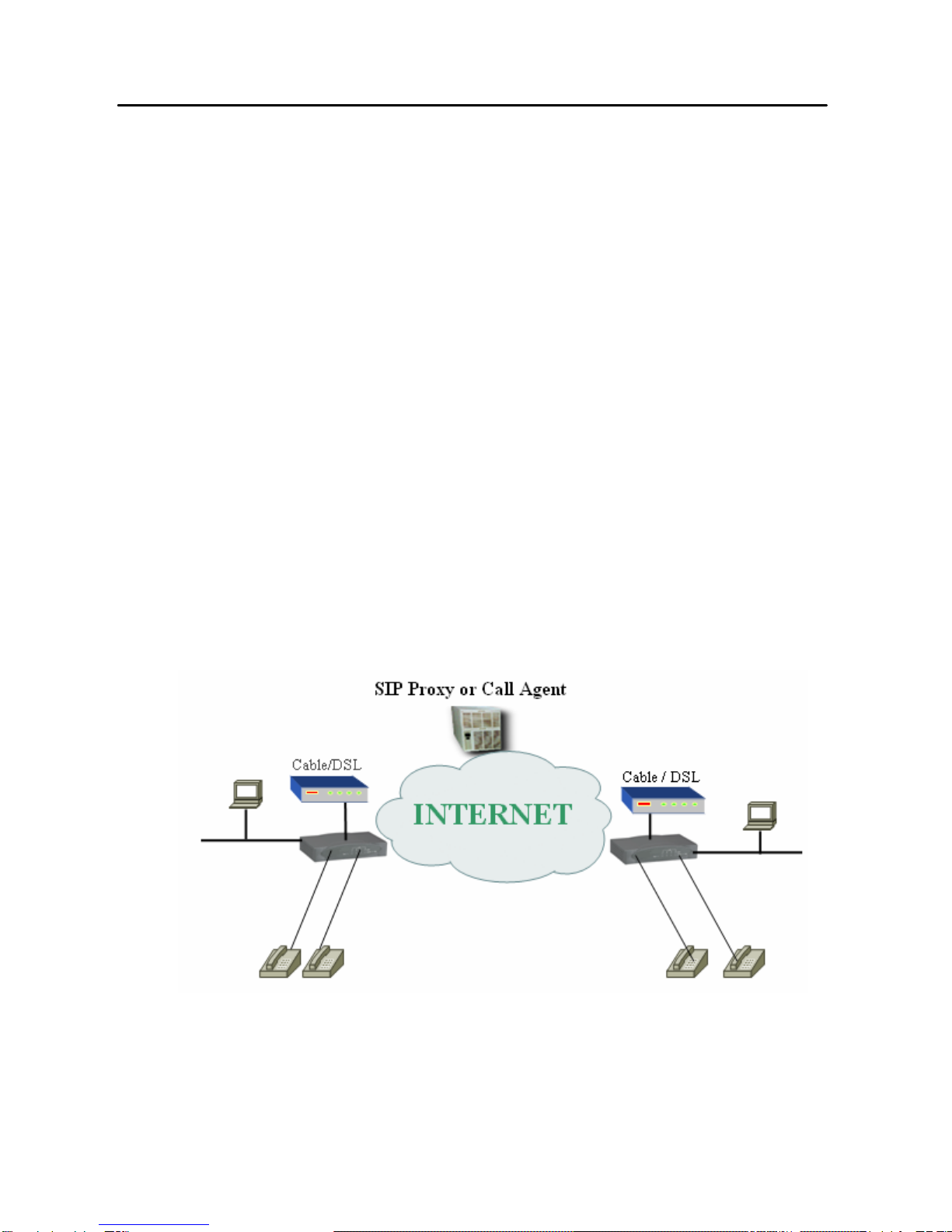

The network architecture of AVRO 3002 is described below:

SOYO AVRO3002 Ethernet Router Manual

1.2. Package Contents

•One AVRO 3002

•One Power Adapter

•This Quick Installation Guide

•One User Manual

•One RJ-45 Ethernet Cable

•One RJ-11 Cable

1.3. Installation Requirements

Before proceeding with the installation of your AVRO 3002, please be sure

you have the following:

•A computer with an Ethernet network card installed.

•A CD copy of Microsoft Windows, if your computer is running

Windows 95, 98, ME, or 2000.

•A Broadband Internet connection such as cable or ADSL modem

•An additional Ethernet network cable.

•A Web browser such as Internet Explorer or Netscape.

SOYO AVRO3002 Ethernet Router Manual

2. Installation Guide

2.1. Hardware Setup

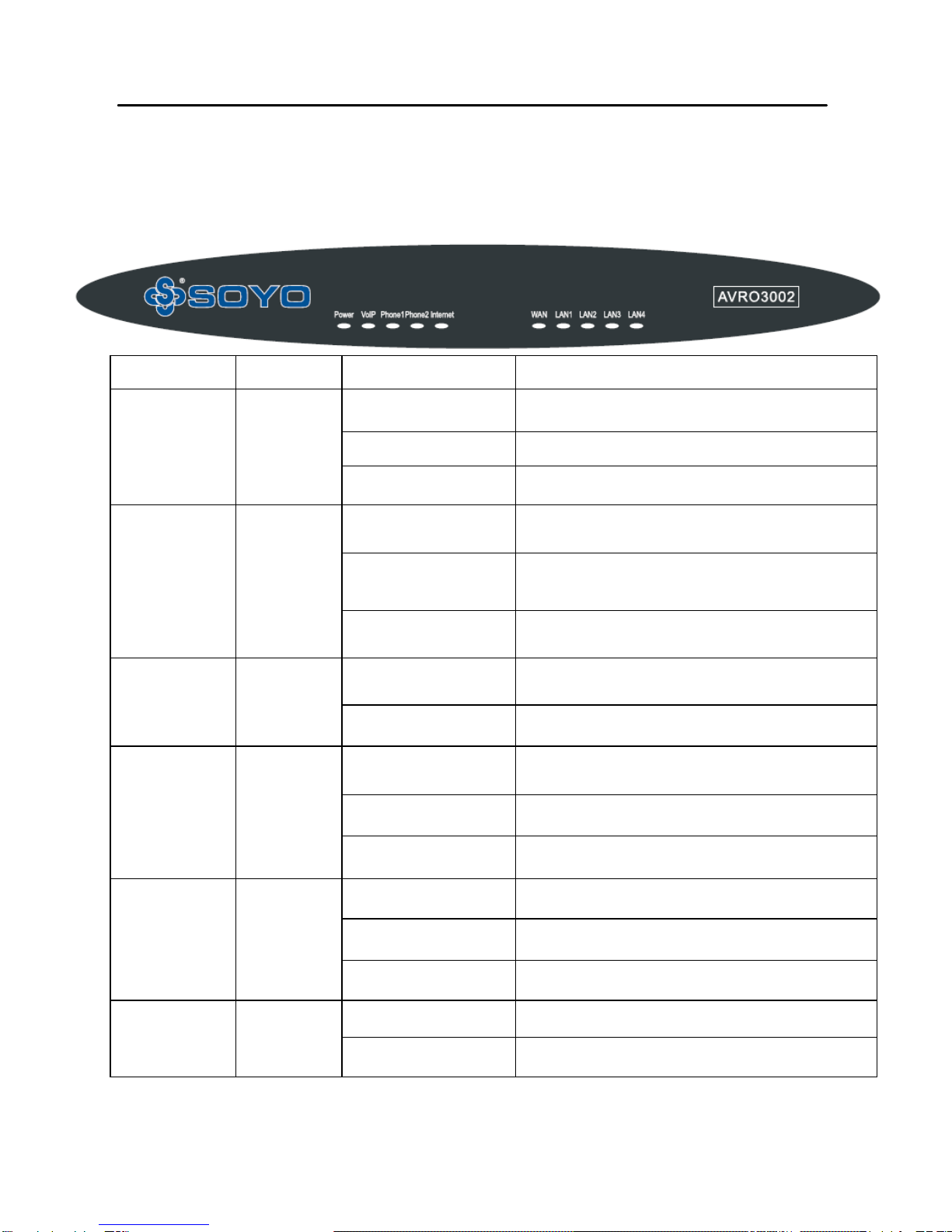

2.1.1 Front Panel

Mode Label Display Color Meaning

On (Green) Power on, normal operation

Blink Firmware loading

Power PWR

Off Power off or failure

On (Green) Green Link /Active : WAN Connection is OK

Blink (Green) Link /Active : data transmitting or receiving

WAN WAN

Off Link /Active : connection is not established

On (Orange) SIP Proxy registration is OK

VoIP Alert VoIP

Off SIP Proxy registration has failed

On (Green) Link /Active : Connection is OK

Blink Link /Active : data transmitting or receiving

LAN 1 – 4

Off Link /Active : connection is not established

On (Orange) Off hook

Blink Ring for Incoming call

Voice Phone1-2

Off On hook

On (Green) Internet connected Successfully

Internet Internet

Off Internet connected Failed

SOYO AVRO3002 Ethernet Router Manual

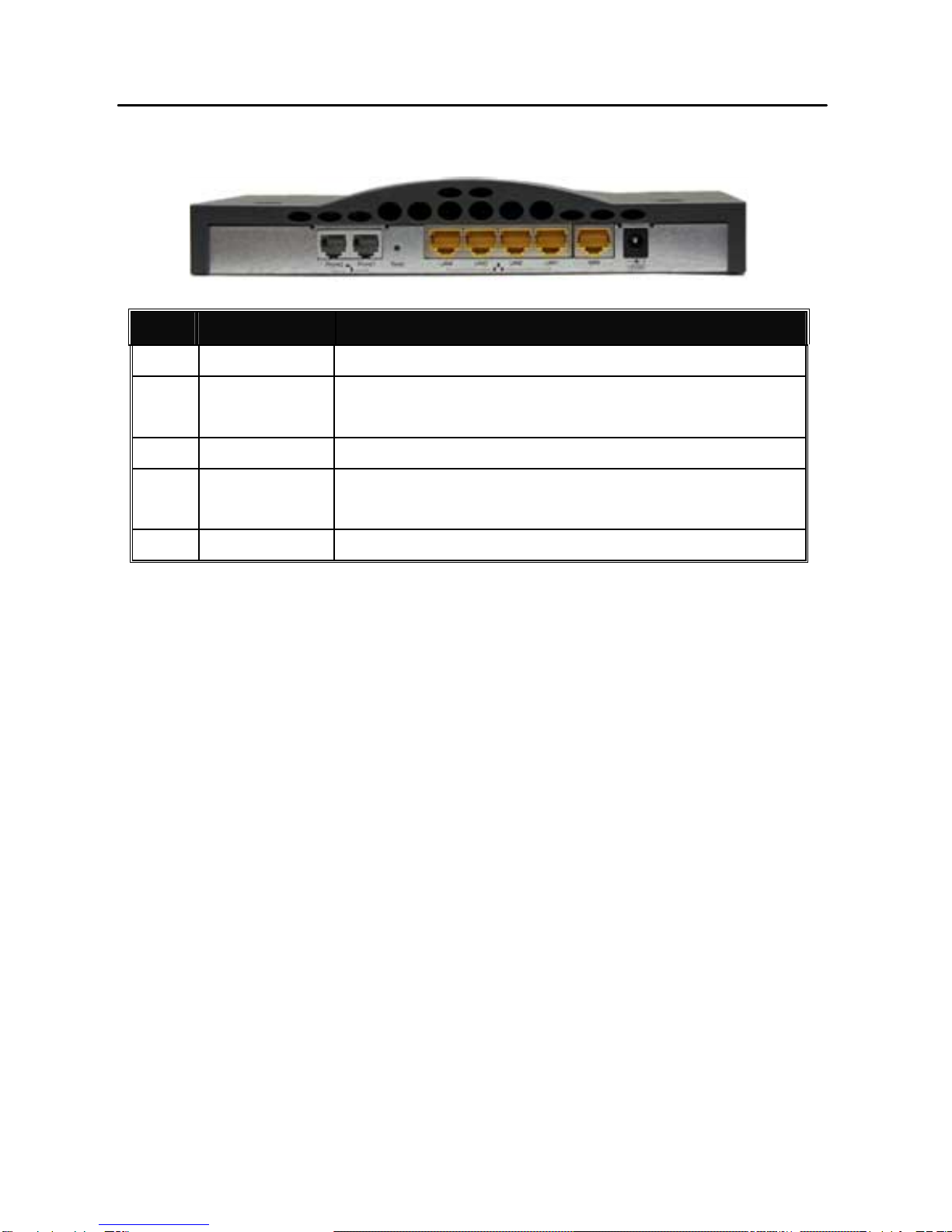

2.1.2 Rear Panel

Item Connector Function

1 12V DC Power connector.

2 RESET

(Reboot) Reset button. Press for one second to reset the device or

press for 5 seconds to reset to the factory default.

3 WAN Connect to Cable or ADSL Modem

4 Local

(1-4)

4 port (10/100Mbps) RJ-45 connector, connect to PC

or local switch/hub.

5 Phone Connect to Phone set (or Connect to PBX CO Line)

2.1.3. Installation Instruction

1. Connecting a Phone set: Connect phone set directly to one of

the two Phone ports on the AVRO 3002

2. Connecting a Computer: Connect computers directly to the

AVRO 3002 on ports 1-4 of the LAN ports. If you have more than

4 computers to plug in, connect a hub or a switch (using its

uplink port) and connect additional computers to that device.

3. Connecting a Cable Modem or DSL Modem: Connect your

Cable or DSL modem to the WAN port on the rear panel.

4. Power: Plug the power cord into the power jack.

5. The device will boot up at this moment. Make sure the LED in

front panel light up correctly.

SOYO AVRO3002 Ethernet Router Manual

3. Default Values

3.1. Password

The default password is empty. For security reasons, we highly

recommend you to set up a password after logging into to the

system. If you forget the user password, you can press and

hold the reset button on the back of the router for 5 seconds.

When all the LEDs flash, your AVRO 3002 will be reset to the

factory default.

3.2. Default Network Settings

LAN Setup WAN Setup

IP Address 192.168.7.1

Subnet

Mask

255.255.255.0

DHCP

server

Enable

DHCP Client enabled

DHCP IP

range

100 IP addressed from 192.168.7.100 to

192.168.7.199

3.3. Other Default Settings

Time Zone Taipei

Firewall Off

WAN DHCP

UPnP Off

DDNS Off

SOYO AVRO3002 Ethernet Router Manual

4. Configuring Your AVRO 3002 – Login

Now that you have successfully configured your computer and retrieved

your new network settings from your AVRO 3002, you are ready to

configure the AVRO 3002’s settings for your LAN.

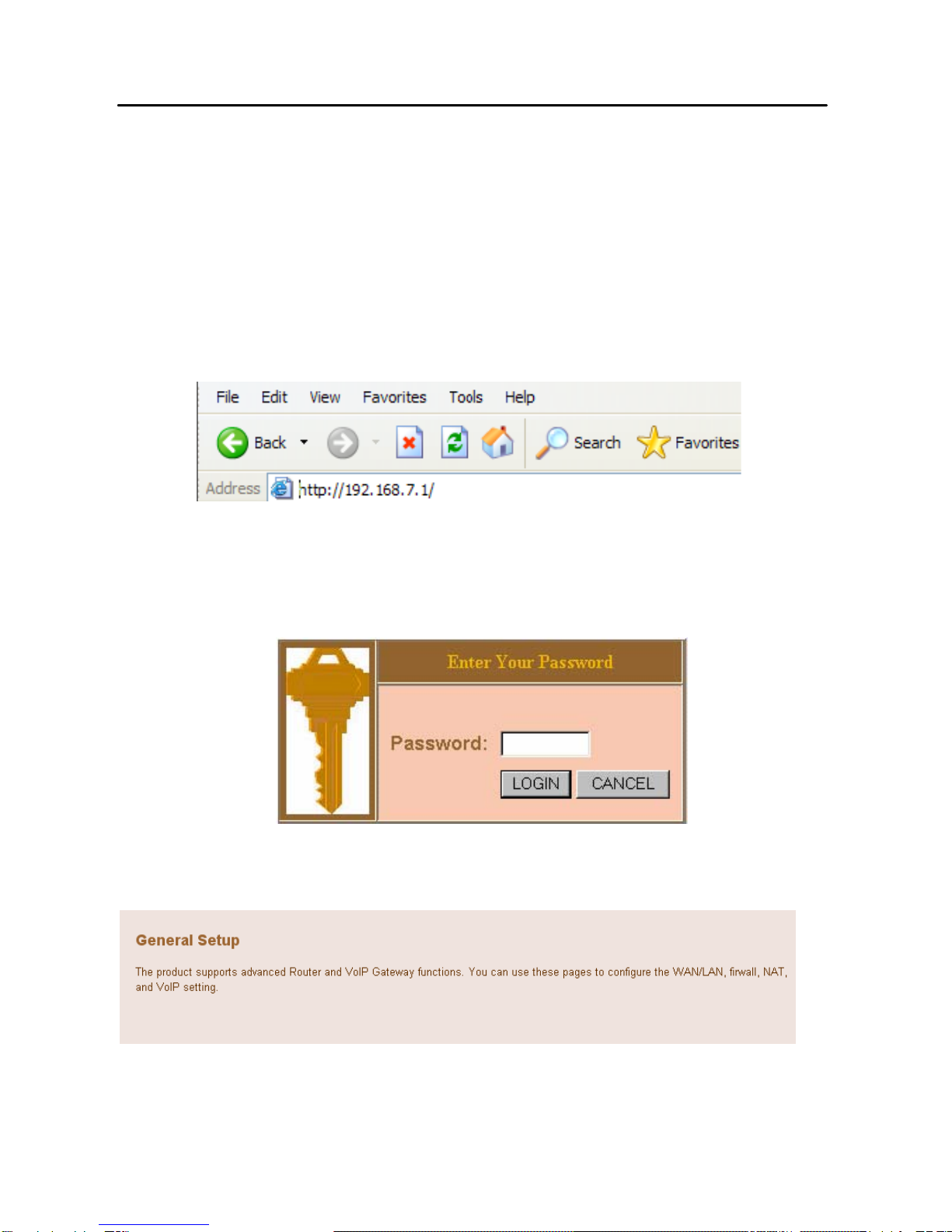

1. Open your Web browser (i.e., Internet Explorer or Netscape Navigator)

and click the stop button.

2. In the “Address” field type “http://192.168.7.1” and press <ENTER>.

3. The AVRO 3002 login screen will appear. The default Password

setting is empty. For security reasons, you should assign a password

as soon as possible. Note that the password login in case sensitive.

4. Once the user login successfully, the first page will appear as below:

SOYO AVRO3002 Ethernet Router Manual

5. Configuring Your AVRO 3002 – General Setup

5.1. System

5.1.1. Time Zone

Set the proper time zone and the configure time server for the AVRO 3002.

When you enable Automatic Time Server Maintenance option you will

need to configure time servers, use the options below to set the primary

and secondary NTP servers in your area

5.1.2. Password Settings

Set the password of the user. The Idle Time Out value is used for AVRO

3002 to log out automatically when no access to the web after this timeout

value.
