SP ES-4 Manuale utente
ES- 4 Manual
V. 00
1
PRODUCT CONTENT
TECHNICAL DATA
ES-4 INSTALLATION
GENERAL INFORMATION
FORWORD
2
3
4
5
10
INDEX
-TECHNOLOGY GIVES YOU A SAFER AND MORE COMFORTABLE RIDE-
2
FORWORD
With the help of pedelecs, cyclists can ride faster and further. Higher speed reduces reaction times when
facing rapidly changing road conditions and unexpected road events. The average speed of pedelecs
is much faster than ordinary bicycles meaning increased lighting is required to maintain safety.
Sufficient lighting allows cyclists to see further and more clearly. To maintain safety, pedelec head-
lights play a more important role in comparison to ordinary bicycles.
Among the leaders in high-end bicycle products, SP strives to use advanced technology to provide
quality products that are safer, more comfortable and more convenient for cyclists.
3
PRODUCT CONTENT
Brightness
(Add Mode 7/ high beam)
The ES-4 box has a length, width and height of
9x9x8.5cm.

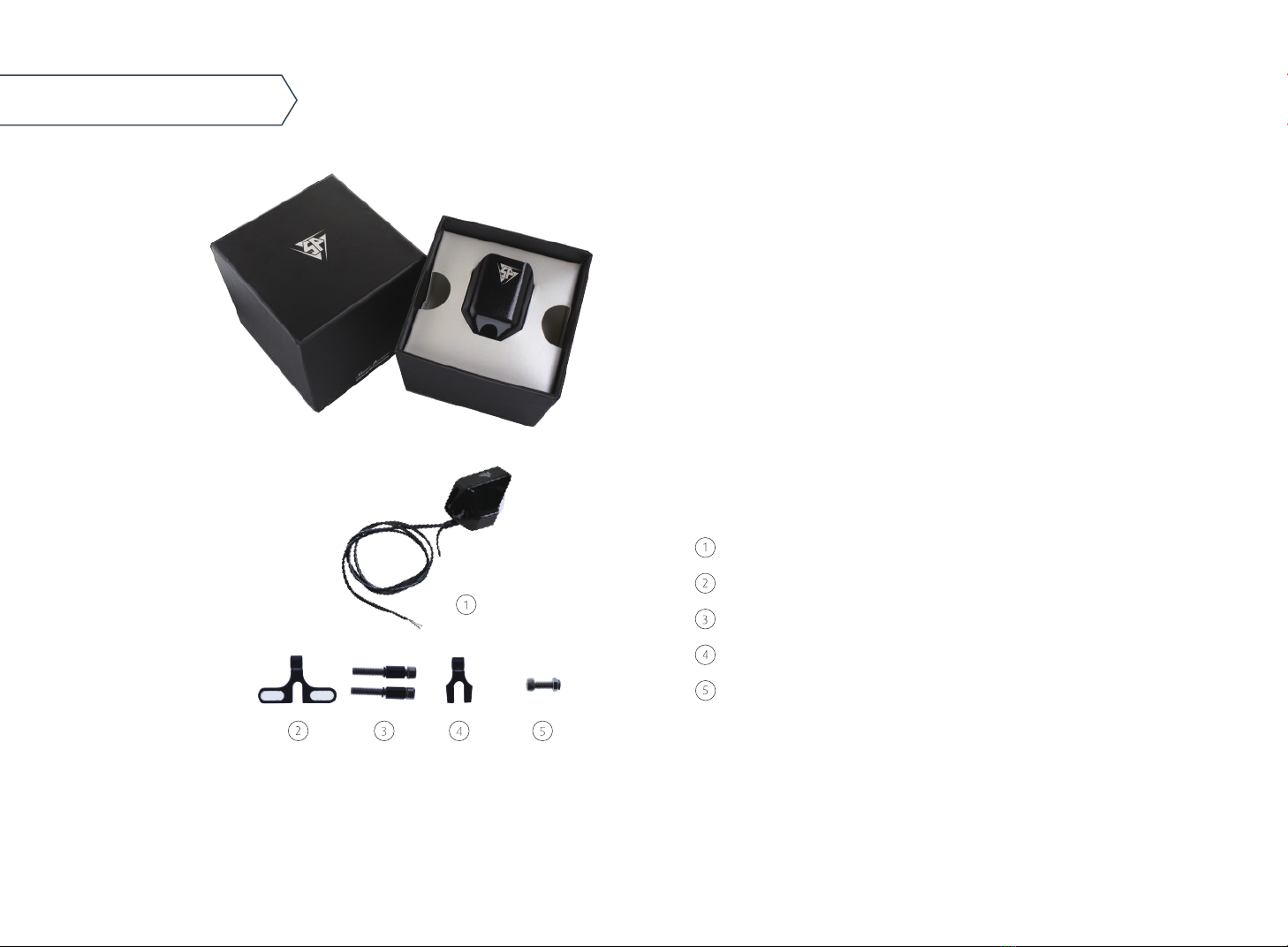

When you receive your ES-4, you will also
receive the following accessories.
1 x front headlight
1 x bracket for handlebar
2 x screws for the Handlebar Bracket
1 x Bracket for Folk
1 x Nut and Bolt Set for Folk Bracket
Brightness
LOW BEAM
WATTAGE OF LOW BEAM
MODE
INPUT VOLTAGE
L x W x H
WEIGHT
COLOR
HOUSING MATERIAL
510lm*
4 W
1
5-12 V DC
50 x 45 x 42 mm
100±5% g
Black
Aluminum
SPECIFICATION DETAILS:
4
TECHNICAL DATA
5
INSTALLATION
step1
step2
step3
Please follow the step 1 to 4 to install your ES-4.
Please read the pages 6 to10 for installation details.
6

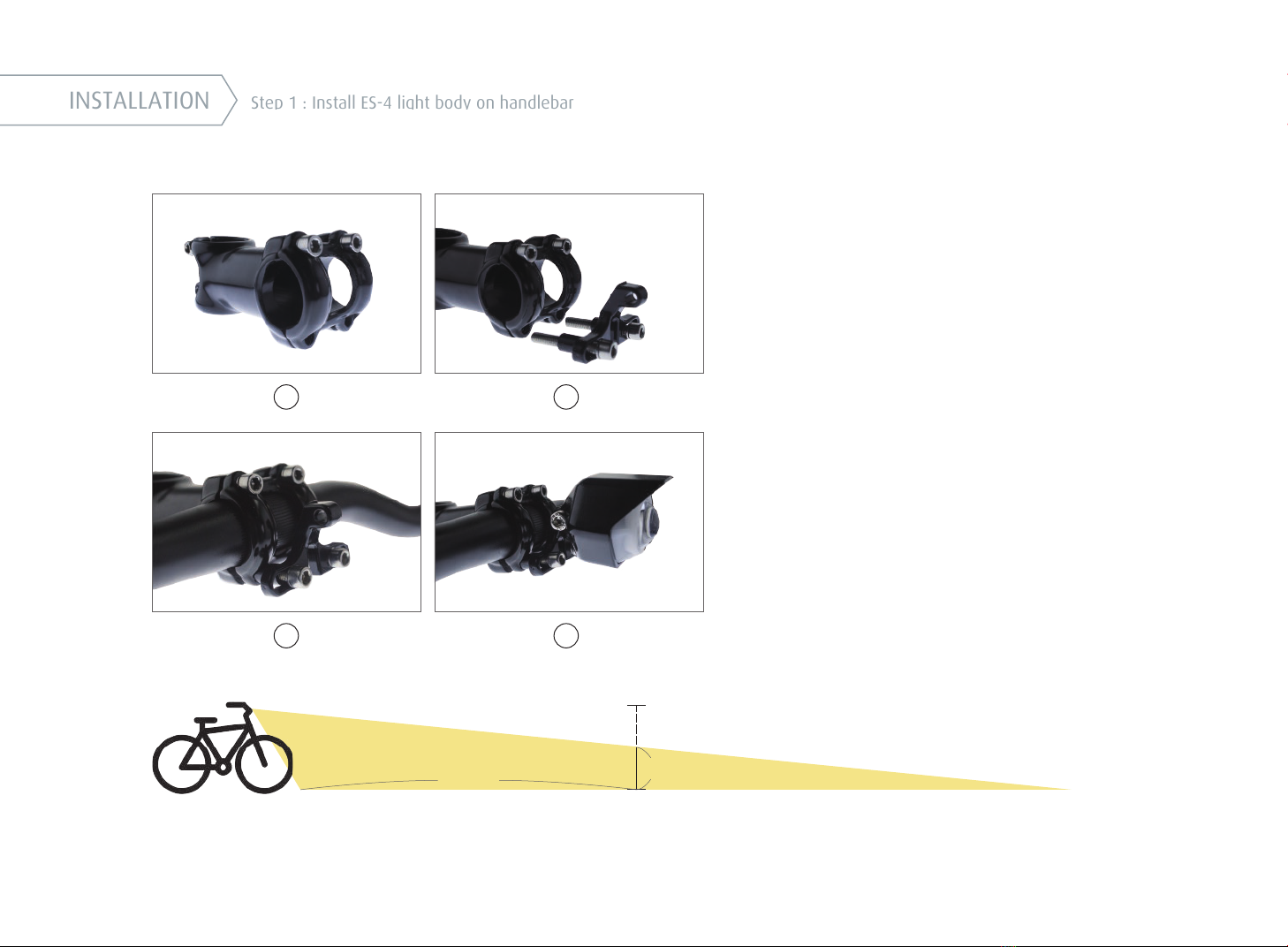

INSTALLATION Step 1 : Install ES-4 light body on handlebar
5 m
1/2
Pictures of the included components appear on the left.
Your stem should appear as in picture 1.
1. Remove the bolts from the stem.
2. Install on the headlight bracket. (Picture 2)
3. Fasten all stem bolts to 6 Nm. (Picture 3)
4. Install the headlight and fasten the nuts and bolts.
(Picture 4)
Please install the ES-4 and adjust the beam to project
toward a wall on a level surface at a distance of 5 meters.
Then adjust/aim the cut-off line at a level that is half way
between height at which the headlamp is mounted and
ground level.
1 2
3 4
7
INSTALLATION

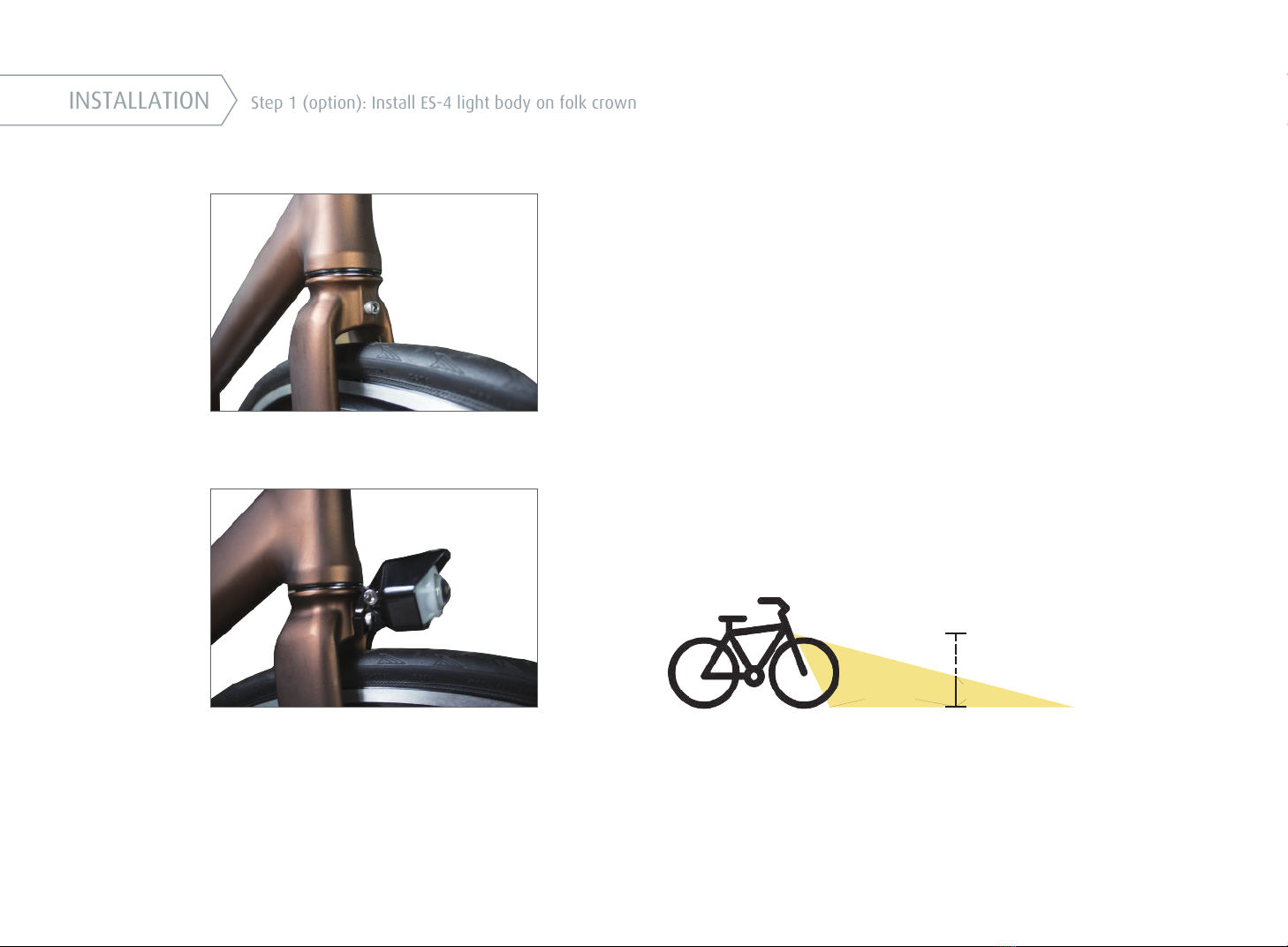

Step 1 (option): Install ES-4 light body on folk crown
Before you install the ES-4, assess whether your fork
appears like the one in Picture 1. Since not the same
on all bikes accept the same fork crown bolt, the
components you receive in the box does not include
an extra one. However, such bolts should be readily
available from any quality hardware store.
1. Mount the bracket on your fork crown.
2. Install the headlight. (Picture 2)
3. Fasten all bolts to 6 Nm.
Please aim the headlamp as per the instructions
above for best results.
5 m 1/2
1
2

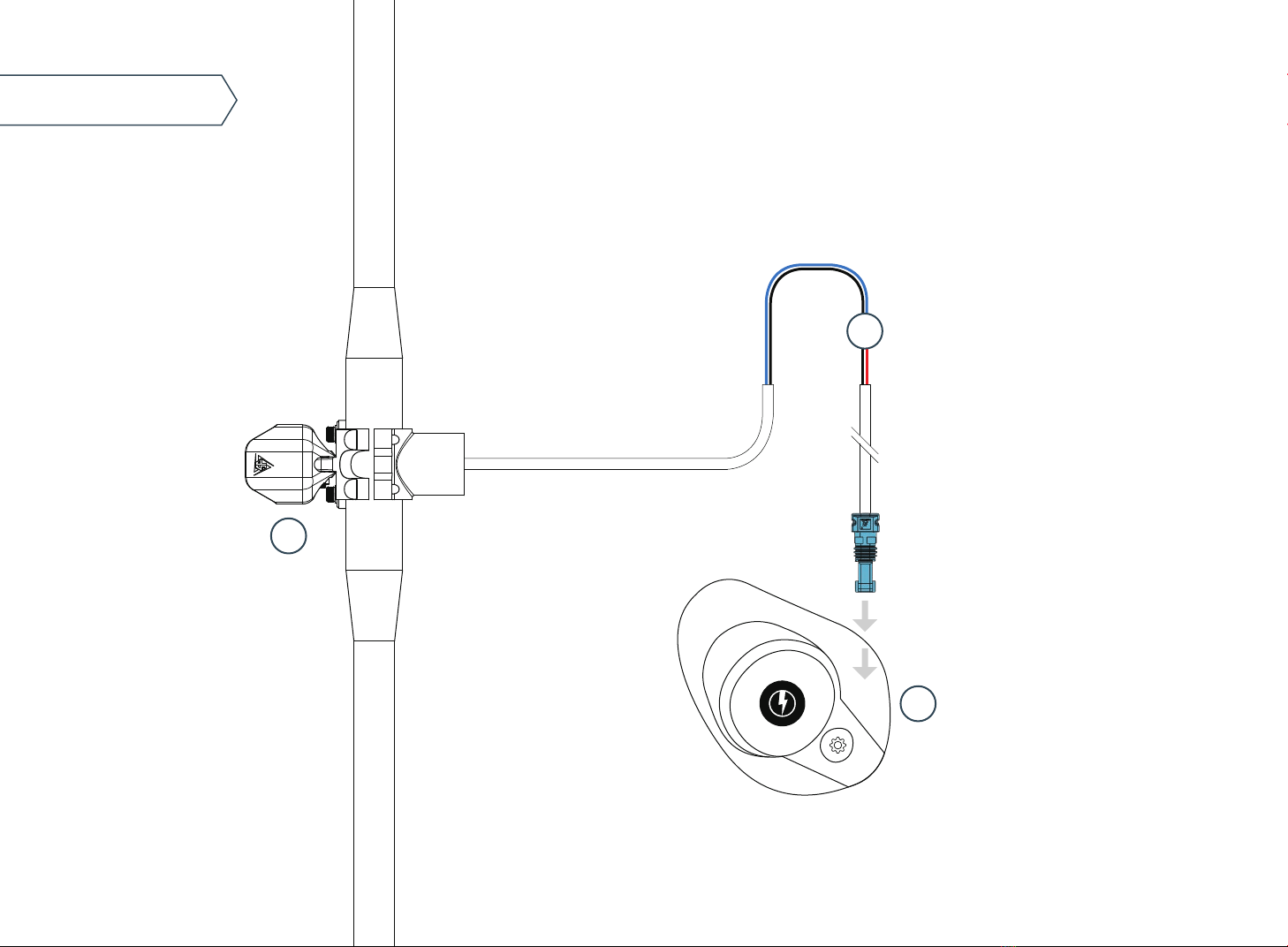

Step 2: Link Bosch front light connection cable with ES-4 power cable
Step 3: Insert Bosch blue connector into front light port
8

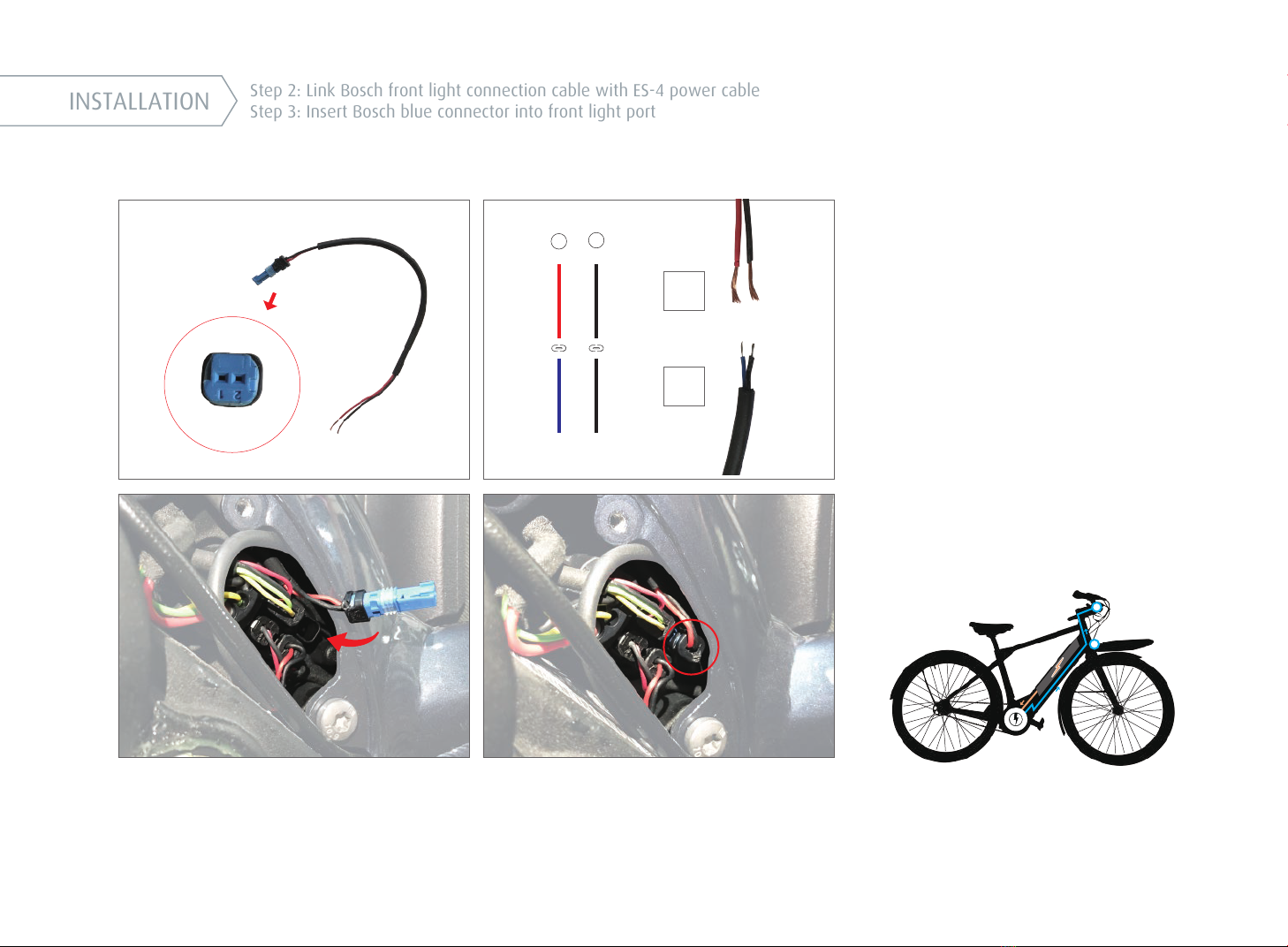

INSTALLATION
Bosch front light connection cable
Step 2: Link Bosch front light connection
cable with ES-4 power cable
Step 3: Insert Bosch blue connector into
front light port
ES-4
cable
Bosch
cable
-
+
Check the cable color carefully. Link the
black cable from Bosch connection
cable and black cable from ES-4. They
are both negative electrode.
Link the red cable from Bosch connection
cable and blue cable from ES-4. They
are both positive electrode.
INSTALLATION
INSTALLATION
9

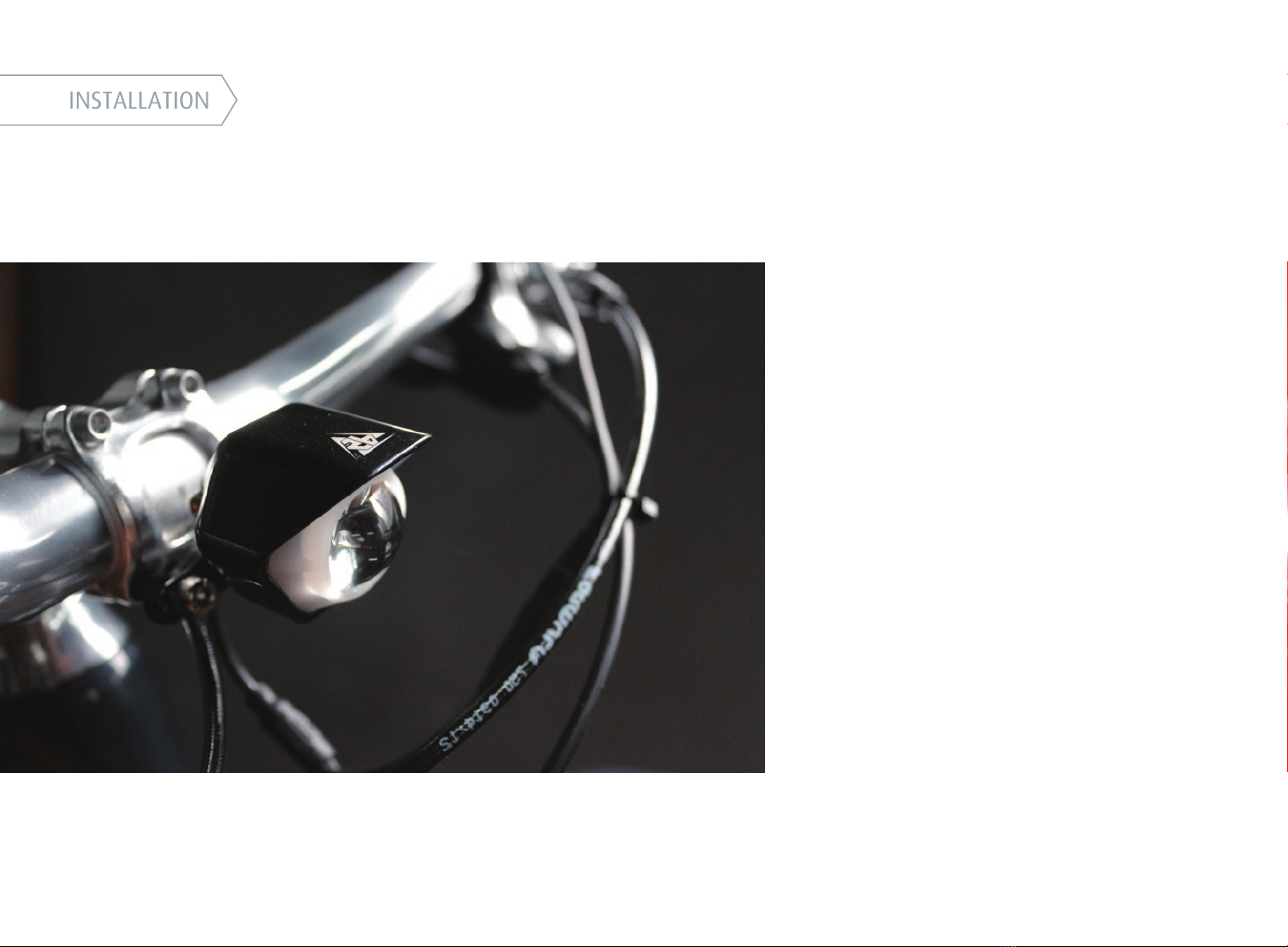

Please install the headlight in accordance with
the instructions and photos provided.
A correct ES-4 installation appears in the provided
pictures.
SP offers different kinds of products to join you on
the road. The ES-4 is small, but powerful
headlight to be with you on your entire journey!
Enjoy your rides with Shutter Precision!
