Subwoofer Enclosure Installation Guide

As we incorporate design improvements, specications may change without notice.

INSTALLATION INSTRUCTIONS

1. Attach the metal wings to studs using the supplied 1-1⁄4” drywall screws (seven screws per side).

2. Securely connect the wires from the subwoofer amplifier to the terminals recessed into the top of the enclosure,

observing proper polarity.

Figure 1

Install springs in the

inner cavities for up

to 1” drywall.

Install springs

in the outer

cavities for

3⁄4” or thinner

drywall.

Speaker wire

Studs

Metal wing

3. Carefully measure and cut the drywall to closely fit around the plastic cover that comes stapled inside the enclosure’s

opening. Install the drywall, firmly attaching it with the supplied 2 3⁄8” self-tapping screws drilled straight into the

enclosure’s metal wings (use six screws per wing). The ten remaining screws should be used to secure the drywall to the

wood body of the enclosure at multiple points. A sturdy installation is very important to prevent unwanted vibrations.

Your enclosure is ready for the Seamless Subwoofer to be installed.

NOTE: For concrete or masonry installations, take extra care with measurements and planning for mounting the enclosure in

the wall. Either plan for wood framing so this enclosure installs easily, as described above, or arrange for the enclosure to be

supported at the proper position and depth while the wall construction is completed around it. In case of a concrete pour,

special considerations will have to be made for the speaker connections at the terminal cup. Be sure the mounting depth is

correct to allow proper application of material/board/paneling over the surface of the wall and enclosure.

LIT67000

940 Columbia Avenue, Riverside CA, 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.com

LIT60201 rev1

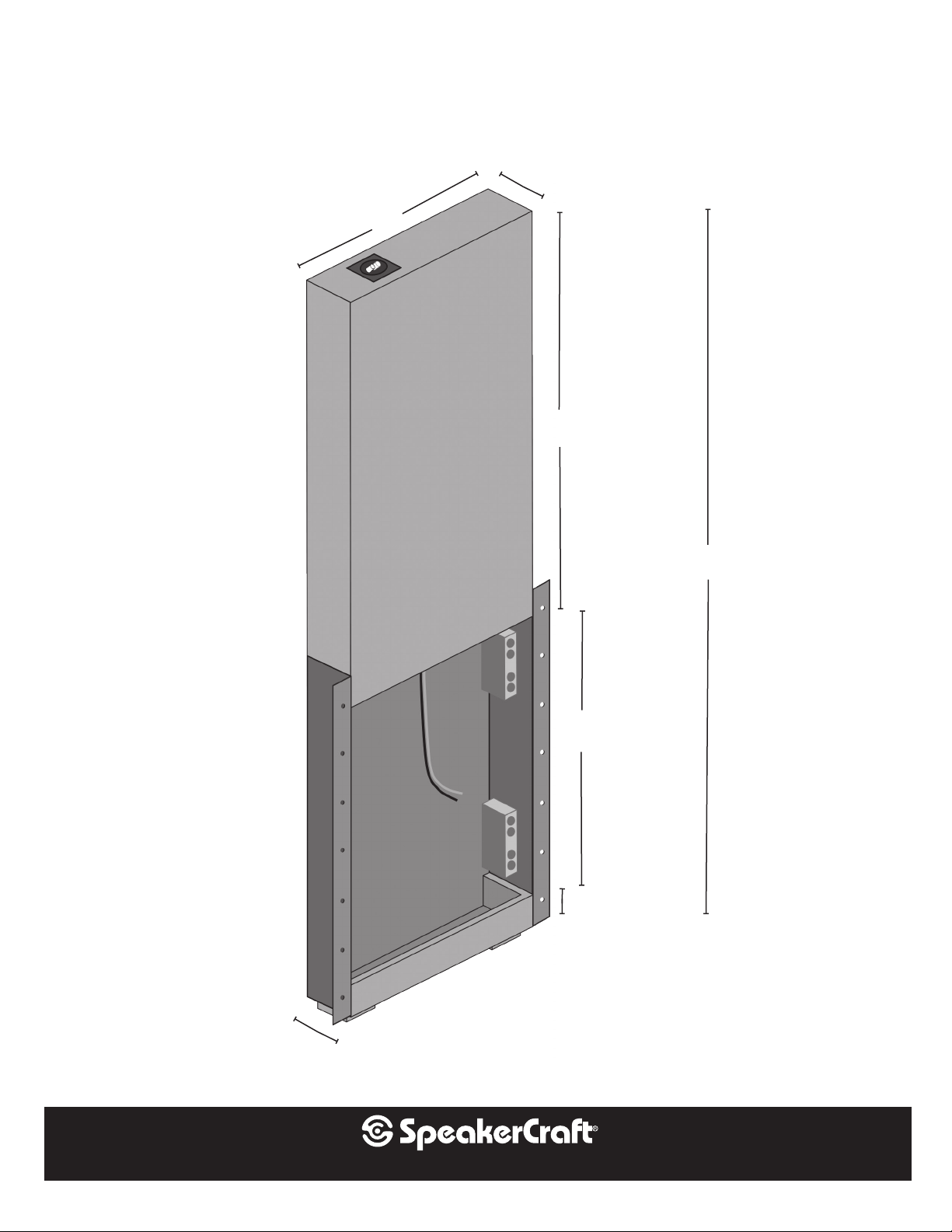

Enclosure Dimension:

14 1⁄8” (359 mm)

25 5⁄8” (651 mm)

3 7⁄16” (87 mm)

45” (1,143 mm)

3 7⁄16” (87 mm)

17 3⁄8” (441 mm)

2” (51 mm)
