An informative and important video explaining how to properly assemble the Jett is available.

It also demonstrates how to do a safety check once assembled. This assembly/setup guide is

intended to be used together with the video. Visit www.specialized.com/setupmyjett or scan

the QR code with your smartphone camera.

1.1 INTENDED USE

The Jett bicycle is intended and tested for use by children only (Condition 6).

CONDITION 6 Bicycles designed to be ridden by children.

Parental supervision is required at all

times. Avoid areas involving automobiles,

and obstacles or hazards including

inclines, curbs, stairs, sewer grates or

areas near drop-offs or pools.

1. INTRODUCTION

This assembly/setup guide is speciﬁc to your Specialized Jett bicycle. It contains important

information about assembly and safety, which you should read before the rider's ﬁrst ride

and keep for reference. You should also read the entire Specialized Bicycle Owner’s Manual

(“Owner’s Manual”) because it has additional important general information and instructions

which you should follow. If you do not have a copy of the Owner’s Manual, you can download

it at no cost at www.specialized.com, or obtain it from your nearest Authorized Specialized

Retailer or Specialized Rider Care.

Assembly of this bicycle requires experience in the use of basic tools as well as general

knowledge regarding bike maintenance. If you do not have such experience, it should be

assembled by an Authorized Specialized Retailer.

When reading this user manual, you will note various important symbols and warnings, which

are explained below:

WARNING! The combination of this symbol and word indicates a potentially

hazardous situation which, if not avoided, could result in serious injury or

death. Many of the Warnings say “you may lose control and fall.” Because

any fall can result in serious injury or even death, we do not always repeat the

warning of possible injury or death.

This symbol alerts the reader to information which is particularly important.

SET UP

MY JETT

specialized.com

/setupmyjett

FOR

CHILDREN

ONLY

2. WHAT IS IN THE BOX

2 7713 910

12 8

1.2 WARRANTY

Please refer to the written warranty provisions provided with your bicycle, or visit

www.specialized.com. A copy is also available at your Authorized Specialized Retailer.

1.3 STRUCTURAL WEIGHT LIMITS

MODEL MAX CARGO

(lb / kg)

MAX STRUCTURAL INCL

CARGO (lb / kg)

16/20 30/14 100 / 45

24 30/14 220/ 100

STRUCTURAL WEIGHT LIMIT: The maximum total weight (rider and cargo) a bicycle is

designed and tested to support structurally.

CARGO WEIGHT LIMIT: The maximum cargo weight a bicycle has been designed and tested

to support structurally.

For more information on the intended use and structural weight limits for the

frame and components, please refer to the Owner's Manual.

ENFRDEESCNSFREEFREE PT

#DESCRIPTION TORQUE

TOOL SIZE Nm in-lbf

1FRAME

2FORK

3SEATPOST/SADDLE

4HANDLEBAR

SEAT COLLAR

5 mm hex 7 62

6STEM 4 mm hex 5 45

7FRONT/REAR WHEEL 15 mm wrench 3/8 turn

8PEDALS 15 mm wrench 1/16 turn

9REFLECTORS Phillips screwdriver

(not provided)

10 TORQUE WRENCH

11 HEX BITS 4, 5, 6* mm hex bits

12 FLAT WRENCH 15 mm wrench

13 MANUALS

*Included with certain models.

3. ASSEMBLE THE BICYCLE

UNPACK THE BOX

WARNING! CHOKING HAZARD - packaging may contain small parts. Not for

children under 3 years old. The Jett bicycle must be assembled by an adult.

Follow the steps below and perform a safety check before riding.

3.1

Fig. 3.1

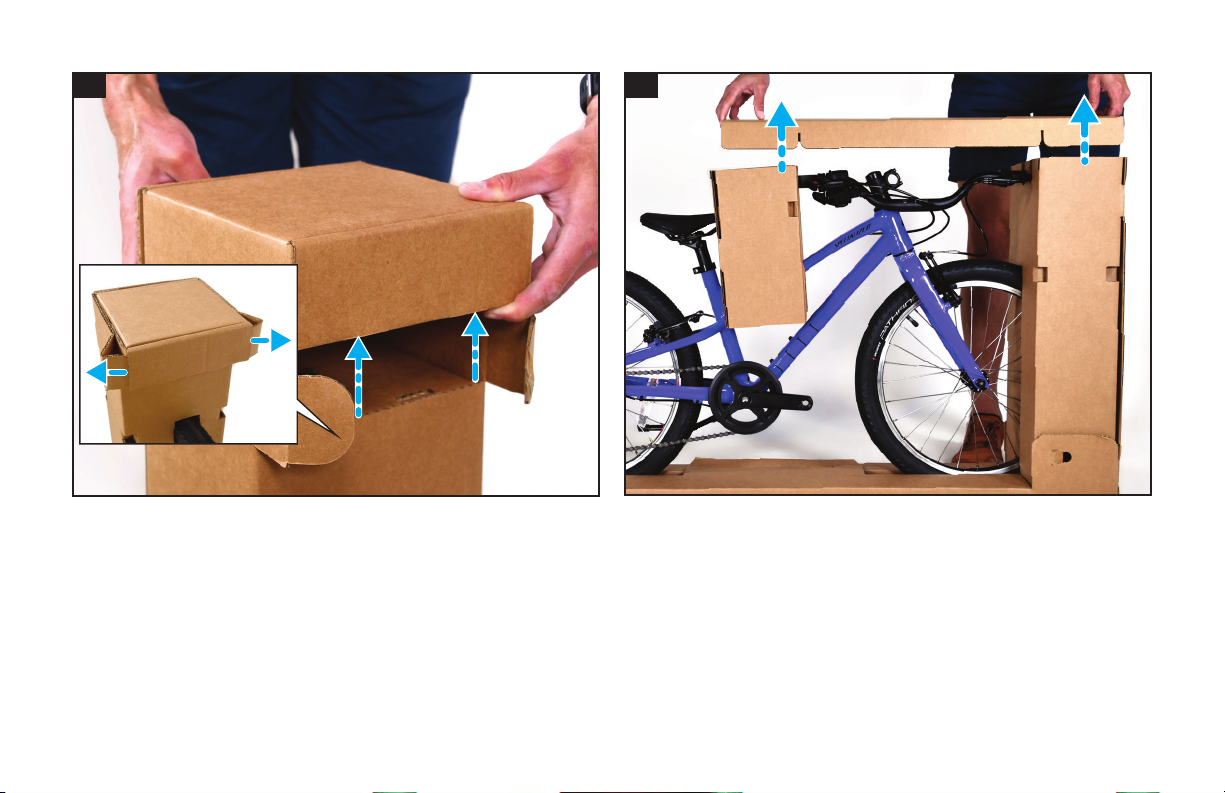

Remove any security tape, then pull out each of the four tabs (A).

Lift the top of the box up and off the base packaging.

The Jett 16 box opens at the top. Remove any security tape, then pull out the

tabs and open the top of the box. Lift the bike and its internal packaging out of

the box and continue with the assembly steps.

3.2

Fig. 3.2

In the rear packaging tower, pull out the tabs holding the small parts box in place, then

remove the small parts box.

Open the small parts box and remove the manuals, pedals, reﬂectors, and all the tools

required for assembly.

3.3

Fig. 3.3

Lift and remove the packaging brace.

ENFRDEESCNSFREEFREE PT

3.4

Fig. 3.4

In the front packaging tower, lift both the handlebar and interior packaging (1), then slide

the packaging off of the handlebar (2).

Pull the handle bar forward and out of the center packaging tower (3), then lift the center

packaging tower off of the bicycle (4).

3.5

Fig. 3.5

Pull out the tabs on the bottom of the front packaging tower (three total, one on each side).

Lift and remove the front packaging tower.

USING THE TORQUE WRENCH & FLAT WRENCH

Your Jett bicycle is supplied with a custom torque wrench and ﬂat wrench which should be

used to tighten the bolts where indicated. It is important to properly use a torque wrench

during assembly to make sure all bolts are tightened to speciﬁcation. Keep both wrenches for

future adjustments and maintenance.

WARNING! Correct tightening force on fasteners (nuts, bolts, screws) on your

bicycle is important for your safety. If too little force is applied, the fastener may

not hold securely. If too much force is applied, the fastener can strip threads,

stretch, deform, or break.

An incorrect tightening force can result in component failure, which can cause

you to lose control and fall. Where indicated, ensure each bolt is torqued to

speciﬁcation. After your ﬁrst ride, and consistently thereafter, recheck the

tightness of each bolt to ensure secure attachment of the components.

Following are instructions on how to use the provided torque wrench and ﬂat

wrench. If after reading the instructions you are still unsure of how to use the

torque wrench or ﬂat wrench, please contact your Authorized Specialized

Retailer for assistance.

3.6

Fig. 3.6

While holding the rear packaging tower, roll the bicycle forward out of the base packaging.

Flip the kickstand down to hold the bicycle upright for assembly.

Do not remove Jett 16 models from the rear tower and base packaging until

the rest of the assembly steps are completed. The Jett 16 does not come with a

kickstand. The packaging will hold the bicycle upright during assembly.

RECYCLE: Please recycle all of the packaging.

ENFRDEESCNSFREEFREE PT

3.7

Fig. 3.7

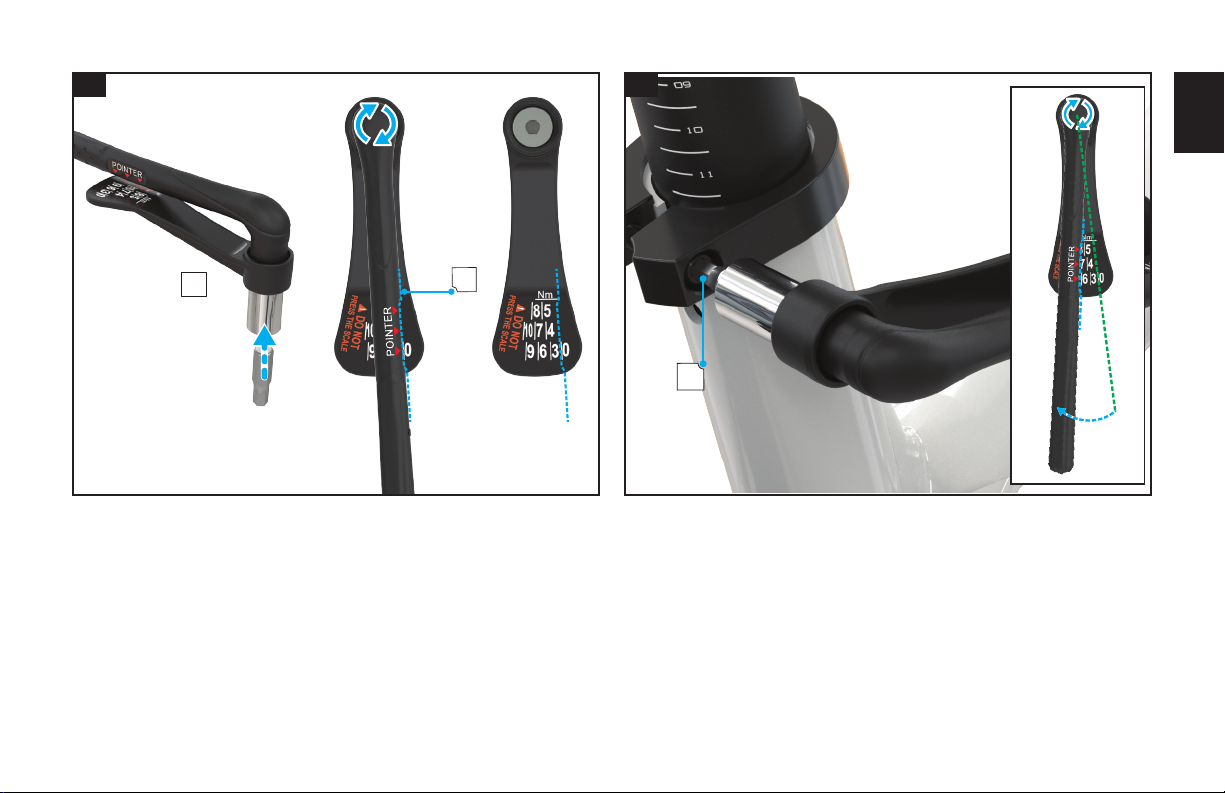

HOW TO USE THE TORQUE WRENCH

Two different hex bits are provided with the torque wrench for single-speed Jett models: 4 mm

and 5mm. If you have a multi-speed Jett model, the torque wrench is also provided with a 6

mm hex bit to adjust the crank length.

Determine which hex bit is needed and insert it into the socket of the torque wrench (A).

When there is no tension on the torque wrench lever arm, the right-side edge of the arm is

aligned with the small white line to the left of the “0” (B).

3.8

Fig. 3.8

Insert the torque wrench into the bolt head (A) and turn the lever arm clockwise until you

feel resistance and the lever arm starts to ﬂex.

Once the lever arm starts to ﬂex, apply the correct torque to the bolt by turning the lever

until the torque pointer is aligned with the applicable numbered line on the torque gauge,

then stop and remove the troque wrench from the bolt (e.g. if the speciﬁcation is 6 Nm,

turn until the torque pointer is aligned with the line to the left of "6"). Torque settings are

listed for each individual bolt and nut in Section 2.
