SC-T32-TS Touchscreen Thermostat
Installation Manual
TABLE OF CONTENTS
1
Introduction ............................................................................................................................................4
Getting Started .......................................................................................................................................5
Installing the Thermostat .....................................................................................................................6-8
Disassembly ..........................................................................................................................6
Thermostat Location ..............................................................................................................6
Mounting the Subbase ........................................................................................................6-7
Terminal Designations ............................................................................................................8
Setting the System Switches ..................................................................................................................9
System Switch Functions .....................................................................................................................10
Installing the Batteries ..........................................................................................................................11
Typical System Wiring Diagrams .....................................................................................................12-20
Heat only (Gas) ....................................................................................................................12
Heat only (Electric)................................................................................................................13
Cool only (Single or Multi-stage) ...........................................................................................14
1 Heat / 1 Cool (Gas) .............................................................................................................15
2 Heat / 2 Cool (Gas) .............................................................................................................16
2 Heat / 1 Cool (Heat Pump) ..................................................................................................17
3 Heat / 2 Cool (Heat Pump) ..................................................................................................18
TABLE OF CONTENTS
2
TABLE OF CONTENTS
2 Heat / 1 Cool (Dual Fuel) ....................................................................................................19
3 Heat / 2 Cool (Dual Fuel) ....................................................................................................20
Installer Setup Menu .......................................................................................................................21-43
Entering the Setup Menu ......................................................................................................21
Selecting the Programmable or Non-programmable Operation ............................................22
Selecting Number of Program Events ...................................................................................23
Selecting Mode ....................................................................................................................24
Selecting Programmable Fan ...............................................................................................25
Assigning Auxiliary Contacts ................................................................................................26
Selecting Touchscreen Lock Options ....................................................................................27
Selecting the Cooling Setpoint Limit .....................................................................................28
Selecting the Heating Setpoint Limit .....................................................................................29
Selecting Back Light Option ..................................................................................................30
Selecting Adaptive Recovery Option ....................................................................................31
Selecting First Stage Heating and Cooling Differential Option ...............................................32
Selecting Second Stage Heating and Cooling Differential Option ..........................................33
Selecting Third Stage Heating Differential Option .................................................................34
Selecting Demand Staging or Locked Staging Option ...........................................................35
Sensor Calibration ...............................................................................................................36
Selecting Low Balance Point Option .....................................................................................37
Selecting High Balance Point Option ....................................................................................38
Selecting Fahrenheit or Celsius ............................................................................................39
Selecting Audible ON/OFF ...................................................................................................40
TABLE OF CONTENTS
3
Timed Ventilation Duration ...................................................................................................41
Timed Ventilation Low Temp Limit .........................................................................................42
Timed Ventilation High Temp Limit ........................................................................................43
Daylight Saving Time ............................................................................................................44
Remote Sensor Installation .............................................................................................................45-47
Remote Sensor Types ..........................................................................................................45
SC-T-S1 Indoor Sensor Installation .................................................................................45-46
SC-T-OTS Outdoor Sensor Installation ................................................................................46
Temperature/Resistance Chart ............................................................................................47
Display Functions .................................................................................................................................48
Testing ............................................................................................................................................49-53
Fan Operation ......................................................................................................................49
Conventional Heating ...........................................................................................................49
Conventional Cooling .....................................................................................................49-50
Conventional Heat Pump .....................................................................................................50
Dual Fuel ..............................................................................................................................51
Low Balance Point ..........................................................................................................51-52
High Balance Point ...............................................................................................................52
Adaptive Recovery .........................................................................................................52-53
Programmable Fan ..............................................................................................................53
Auxiliary Contacts ................................................................................................................53
Timed Ventilation Setup ..................................................................................................................54-55
Basic Troubleshooting .....................................................................................................................56-57
Specifications .......................................................................................................................................58
INTRODUCTION
The SC-T32-TS is a feature-rich touchscreen thermostat that can be battery powered or hardwired to
the HVAC equipment. Using a common sense approach to the installation will ensure this product is
installed properly and to the customer’s satisfaction. Please take time to read and understand this
manual so that installation and testing is performed in an efficient manner.
This manual is to be used in conjunction with the supplied User Manual.
Although great care has been taken in the preparation of this manual, Specified Controls takes
no responsibility for errors or omissions contained herein. It is the responsibility of the
installer to ensure that this thermostat and the equipment connected to it operate in a safe and
efficient manner.
Due to ongoing product improvements, Specified Controls reserves the right to change the
specifications of the SC-T32-TS thermostat or its components without notice.
All rights reserved.
©Specified Controls 2019.
Intellectual rights apply.
4
GETTING STARTED
As with any HVAC project, careful installation is the key to a successful outcome.
Time taken during the installation process will be rewarded with fewer call-backs.
The steps required to install the SC-T32-TS thermostat are as follows.
1. Read and understand this Installation Manual and User Manual.
2. Mount and wire the subbase.
3. Install the batteries.
4. Set the 4 system switches to match the equipment application.
5. Wire optional remote temperature sensor(s).
6. Power the thermostat.
7. Set the Advanced Installer settings.
8. Test the thermostat.
5
INSTALLING THE THERMOSTAT
DISASSEMBLY

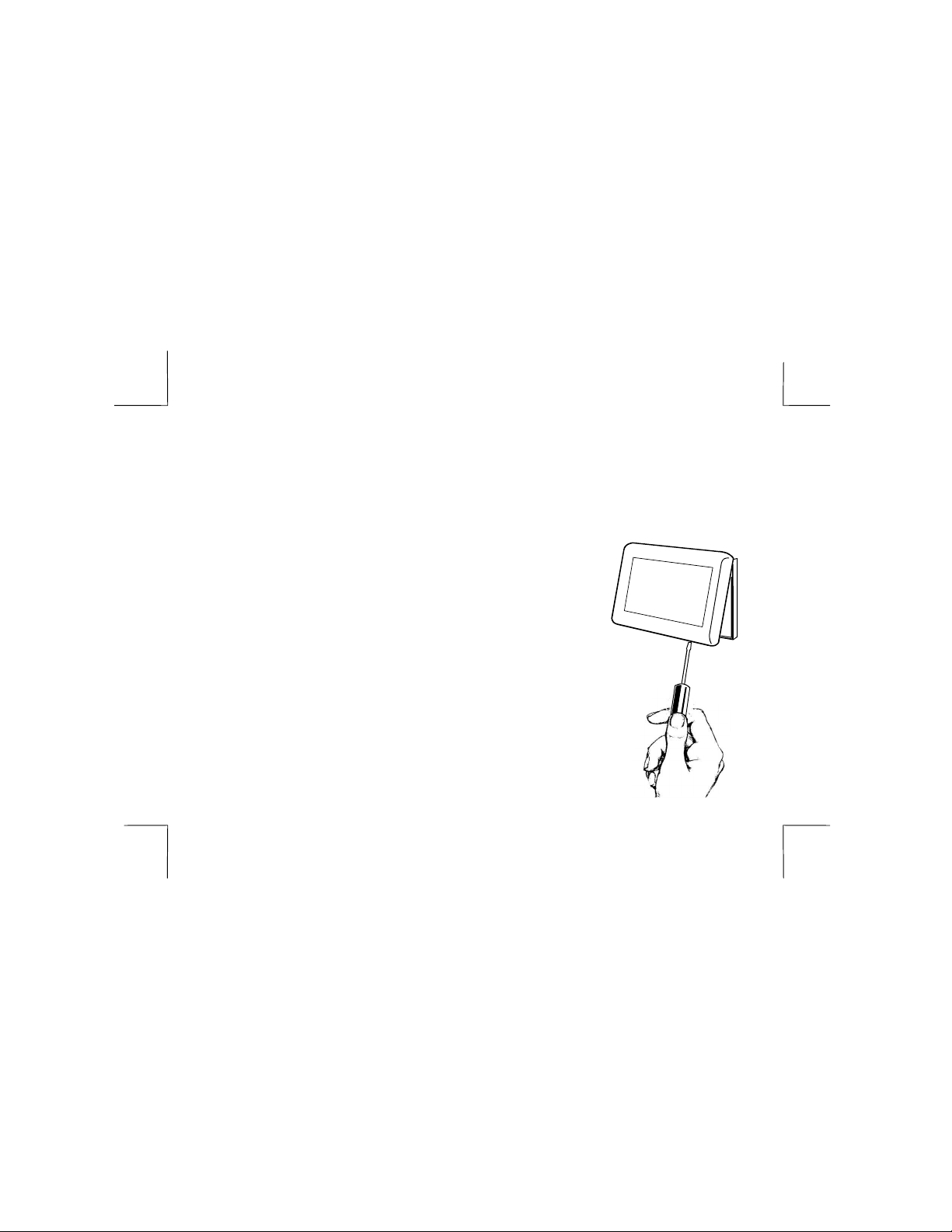

There are two release slots located on the bottom of the thermostat. Gently push
the flat blade of a small screwdriver into one slot at a time and pry upward until
the catch disengages. Carefully swing the thermostat upward and away from the
subbase. (Figure 1)
THERMOSTAT LOCATION
The thermostat should be installed in a location that
represents the ambient space temperature. Do not install
the thermostat in an area where drafts are present, near
the floor, behind doors or on an external wall. Avoid
placing the thermostat in areas where the air movement
is limited, affected by direct sunlight or other areas not
typical of the temperature in the space.
MOUNTING THE SUBBASE
When mounting the thermostat subbase, be aware that drafts
may travel down wall cavities and enter the back of the
thermostat through the control wire hole in the wall. It is
important to seal the hole to prevent any drafts that might affect
the internal temperature sensor.
FIGURE 1
6
INSTALLING THE THERMOSTAT
Pull the control wires through the large opening in the thermostat subbase. Next,
level and mount the subbase on the wall using the supplied anchors and screws.
(Figure 2)
Do not over tighten the mounting screws as the subbase may warp causing
the improper seating of the thermostat connecting pins to the terminal
blocks.
Use a properly sized
screwdriver and back each
screw terminal out (counter
clockwise) before landing each
wire to its dedicated terminal.
Do not over tighten the terminal
screws. Check to ensure that all
wires are landed correctly and
dressed properly to prevent any
shorts. Refer to Typical System
Wiring Diagrams in this manual
for proper wiring. FIGURE 2
7

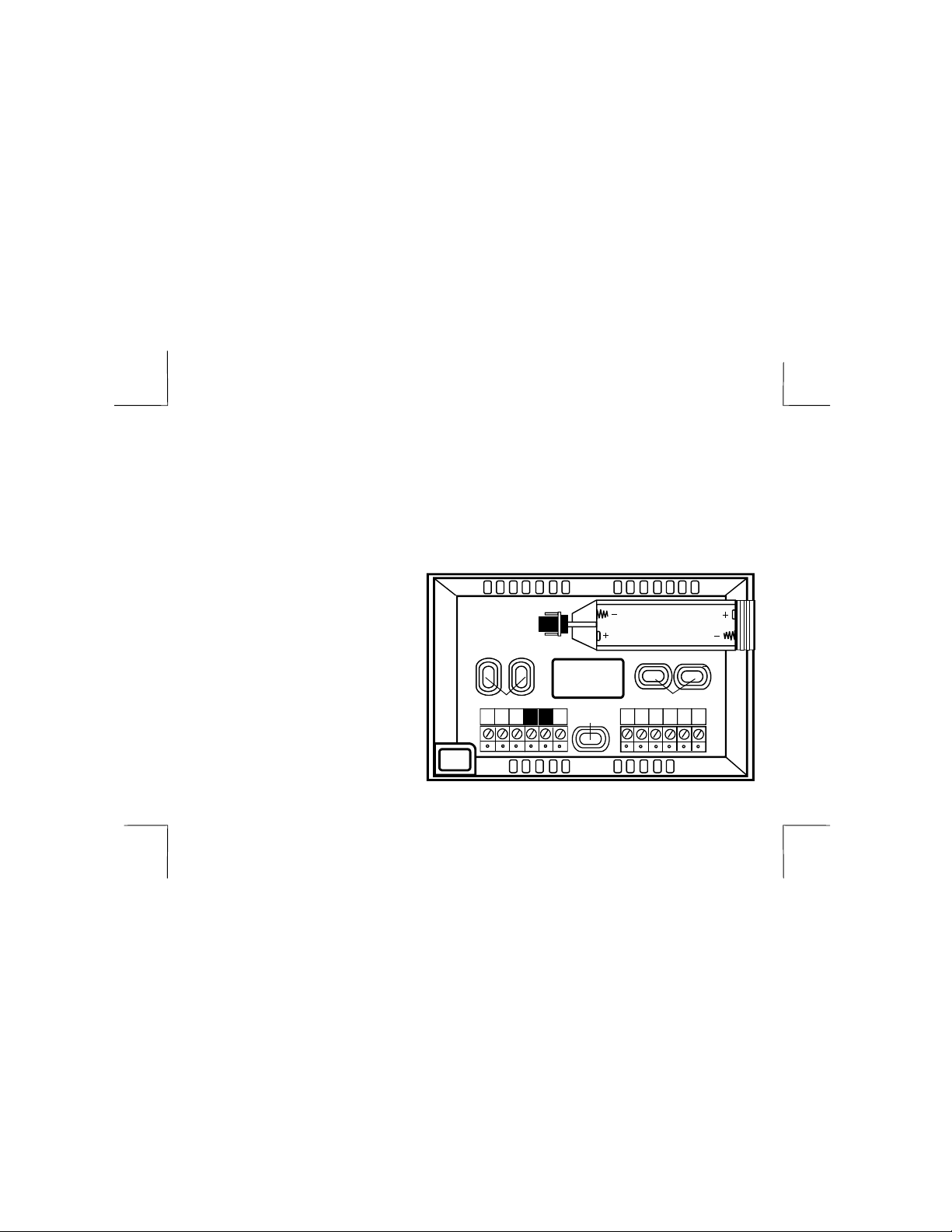

S2
SC S1 O/B
AUX AUX
Y1 Y2 W1
G R C
WIRE
ACCESS
HOLE
BATTERY
COMPARTMENT
MOUNTING HOLES
MOUNTING HOLES
W2 MOUNTING
HOLE
INSTALLING THE THERMOSTAT
TERMINAL DESIGNATIONS
TERMINAL DESIGNATION
S2 Outdoor Sensor
SC Sensor Common
S1 Indoor Sensor
AUX Auxiliary Contacts
W2/OB Second Stage Heat or Reversing Valve
Y1 First Stage Cool or First Stage Compressor
Y2 Second Stage Cool or Second Stage Compressor
W1 First Stage Heat/Auxiliary/Emergency Heat
G Fan
R 24 VAC Hot
C 24 VAC Common
8
