Quick Start Guide

O4D7M

1Warning and Caution

■ If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble

the camera yourself. Any unauthorized changes or modifications

could void the warranty.

■ Do not allow water or liquid intrusion into the camera.

■ All installation and operation here should conform to local

electrical safety codes. Make sure the device is firmly installed

on the wall or ceiling.

■ Do not use camera beyond specified voltage range.

■ Do not drop the camera or subject it to physical shock.

■ Avoid touching the camera lens.

■ If cleaning is necessary, please use cleaning cloth to wipe it

gently.

■ Do not aim the camera at the sun or extremely bright light

sources.

■ Do not place the camera in extremely hot or cold environments

and dusty and damp locations . Do not expose it to highly

electromagnetic radiation.

■ Do not block any ventilations.

Package

2

Overview

3 Overview

3

Camera Quick start guide

CD Plastic plug ×4

Drill template

Screwdriver Junction box

4 tapping screws PA 4×25

9

10 11

7

RESET

TF

LINK DC

IN

CVBS

2

1

3

4

5

6

CVBS&DC

IN cables

ALARM

4 3 2 1

8

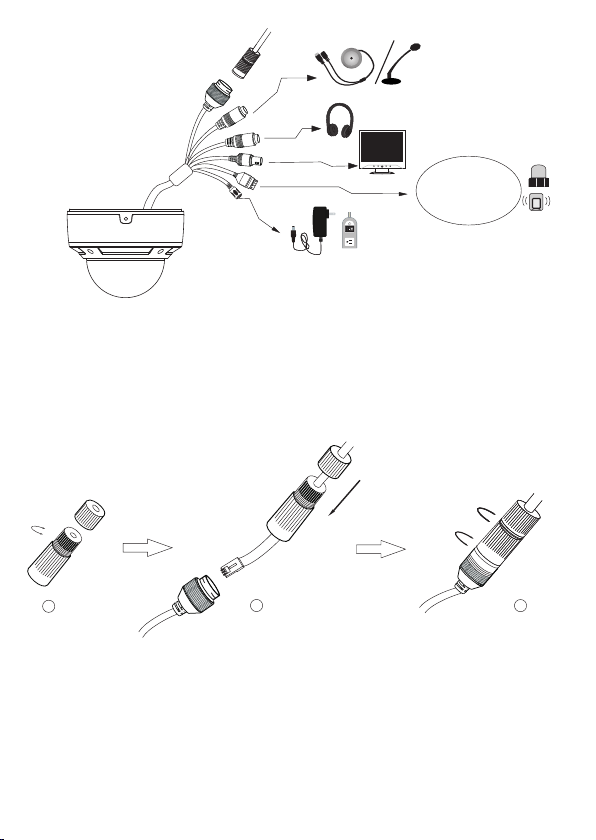

1 Ethernet connector

2 MIC input (3.5mm)

3 Line out (3.5mm)

4 Analog output (BNC)

5 Alarm input/output

6 DC power connector

7 Lock screw

8 Microphone

9 Micro SD card slot

10 Reset hole

11 CVBS/DC IN port for testing

* 1 It is recommended to install the security cap for outdoor installations.

* 2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

► Connecting Network Cable

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the hermetic connector. Then tighten the nut

and the main cover.

2

13

1--ALM-COM

2--ALM-OPEN

3--ALM-INA

4--ALM-GND

DC12V

ALARM

4 3 2 1

Installation

4

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

① Then install junction

box onto the wall by using the screws provided.

Open the upper cover of the junction box.

Upper Cover

Route the cables through the cable hole (take side conduit cabling

for example). Then reinstall the upper cover to the junction box.

②

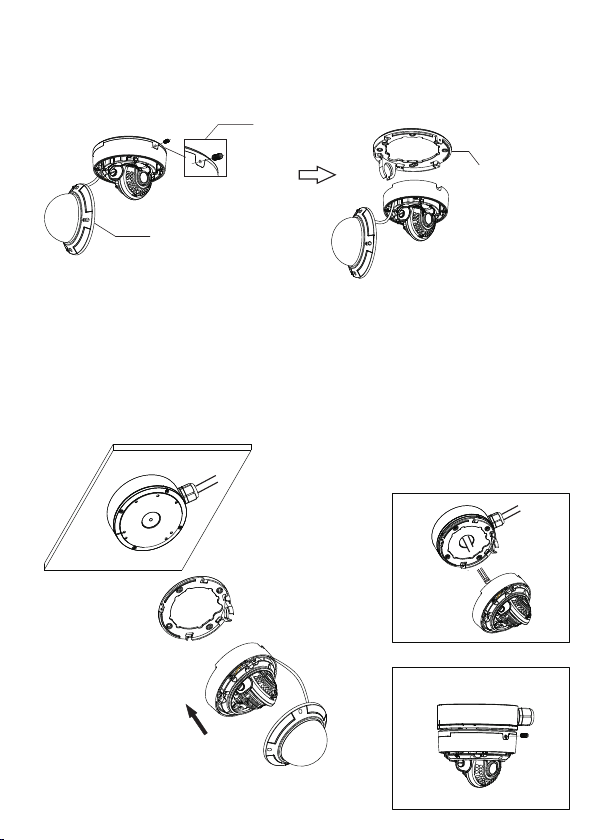

③ Loosen the screws to open the lower dome and then loosen the

lock screw to remove the mounting base.

Lock Screw

Lower Dome

Mounting Base

④

cables and fix the dome to the mounting base with the lock screw.

Install the mounting base onto the junction box. Then connect the

⑥ Install the lower dome back to the camera and fix it with the screws.

Web Operation and Login

5

● Operation

IP Scanner can search for the device on the local network.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

Rotation 0°~360°

Pan 0°~360°

Tilt 0°~77°

⑤Three-axis Adjustment-Before adjustment, preview the image of the

camera on a monitor and then adjust the camera according to the figure

below to get an optimum angle.

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins.

O4 D7 M
