90910884RevisionE

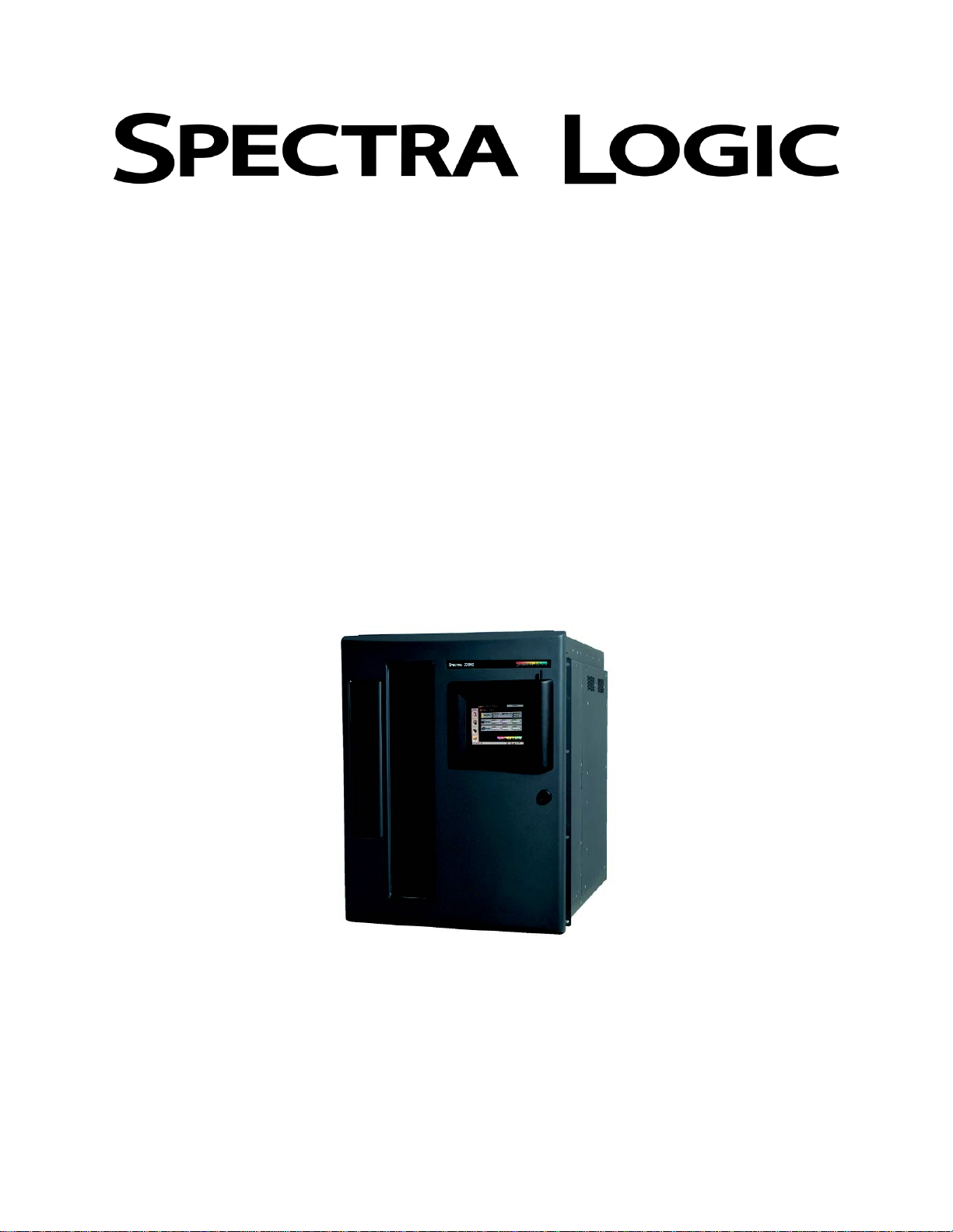

Spectra®12KLibrary

UnpackingandInstallationGuide

Spectra®12KLibraryUnpackingandInstallationGuide

Notices

Spectra Logic Corporation provides the unit “as is” without warranty of any kind, either

expressed or implied, including but not limited to the implied warranties of merchantability or

fitness for a particular purpose. In no event shall Spectra Logic be liable for any loss of profits,

loss of business, loss of use or data, interruption of business, or for indirect, special, incidental,

or consequential damages of any kind, even if Spectra Logic has been advised of the possibility of

such damages arising from any defect or error.

Information furnished in this manual is believed to be accurate and reliable. However, no responsibility

is assumed by Spectra Logic for its use. Due to continuing research and development, Spectra Logic may

revise this publication from time to time without notice, and reserves the right to change any product

specification at any time without notice.

Spectra 12K Library Unpacking and Installation Guide

SpectraLogicContactInformation

UnitedStatesOffice EuropeanOffice

Mailing

Address SpectraLogicCorporation

1700N55thStreet

BoulderCO80301

USA

Mailing

Address SpectraLogicEuropeLimited

HampdenHouse

MonumentBusinessPark

WarpsgroveLane

ChalgroveOxon

UK-OX447RW

Phone

Fax

(800)833-1132or(303)449-6400

(303)939-8844

Phone

Fax

+44(0)8701122150

+44(0)8701122175

WebSite http://www.spectralogic.com

Spectra®12KLibraryUnpackingandInstallationGuide

Contents

Introduction................................................................................................4

Prepare the Unpacking Location................................................................5

Unpack the Library.....................................................................................6

Remove the Internal Packaging .................................................................9

Check the Transport Tray and Picker Motion..........................................14

Replace the Robotic Rack Assembly........................................................16

Install Components...................................................................................18

Install QIPs ...............................................................................................19

Install Drives.............................................................................................20

Power On..................................................................................................21

Initialization..............................................................................................22

Verify Drive Installation............................................................................23

System Setup.............................................................................................26

Partitioning the Library ............................................................................30

Install New Picker.....................................................................................31

Load Media................................................................................................32

Finish.........................................................................................................33

Spectra®12KLibraryUnpackingandInstallationGuide

Introduction

AboutThisGuide

This document describes the steps needed to unpack and install the Spectra 12K

library. If you have questions about any of the procedures you can access more

detailed documentation on the Spectra Logic Web site at: www.spectralogic.com.

EstimatedTimeRequired

Unpacking the Spectra 12K library will take less than half an hour.

Installing the library will take about two hours.

The rack mounting process will take less than an hour, if you choose to rack mount the

library.

MaterialsandToolsRequired

You will need:

• A small flat head screwdriver

• A large flat head screwdriver

• A #2 Phillips screwdriver

• A pair of scissors

Spectra®12KLibraryUnpackingandInstallationGuide

PreparetheUnpackingLocation

You will need 10 feet of access at the front and back of the crate to safely unpack the

library. Once the library is out of the crate, you will need to move the library to a work

space where you have access to all four sides. Make sure that you have this area

prepared before you remove the library from the crate.

Spectra®12KLibraryUnpackingandInstallationGuide

UnpacktheLibrary

1. Use the scissors to cut away the plastic wrap surrounding the library and its crate.

2. Check Tip n Tell and Shockwatch®to ensure that the crate has not been improperly

handled, before proceeding (Figure 1).

The Tip n Tell is located on the side of the library; the Shockwatch is located on the

side of the library near the bottom.

Caution: Do not unpack the library if Tip N Tell or Shockwatch has been

tripped. Contact both the shipping company and Spectra Logic.

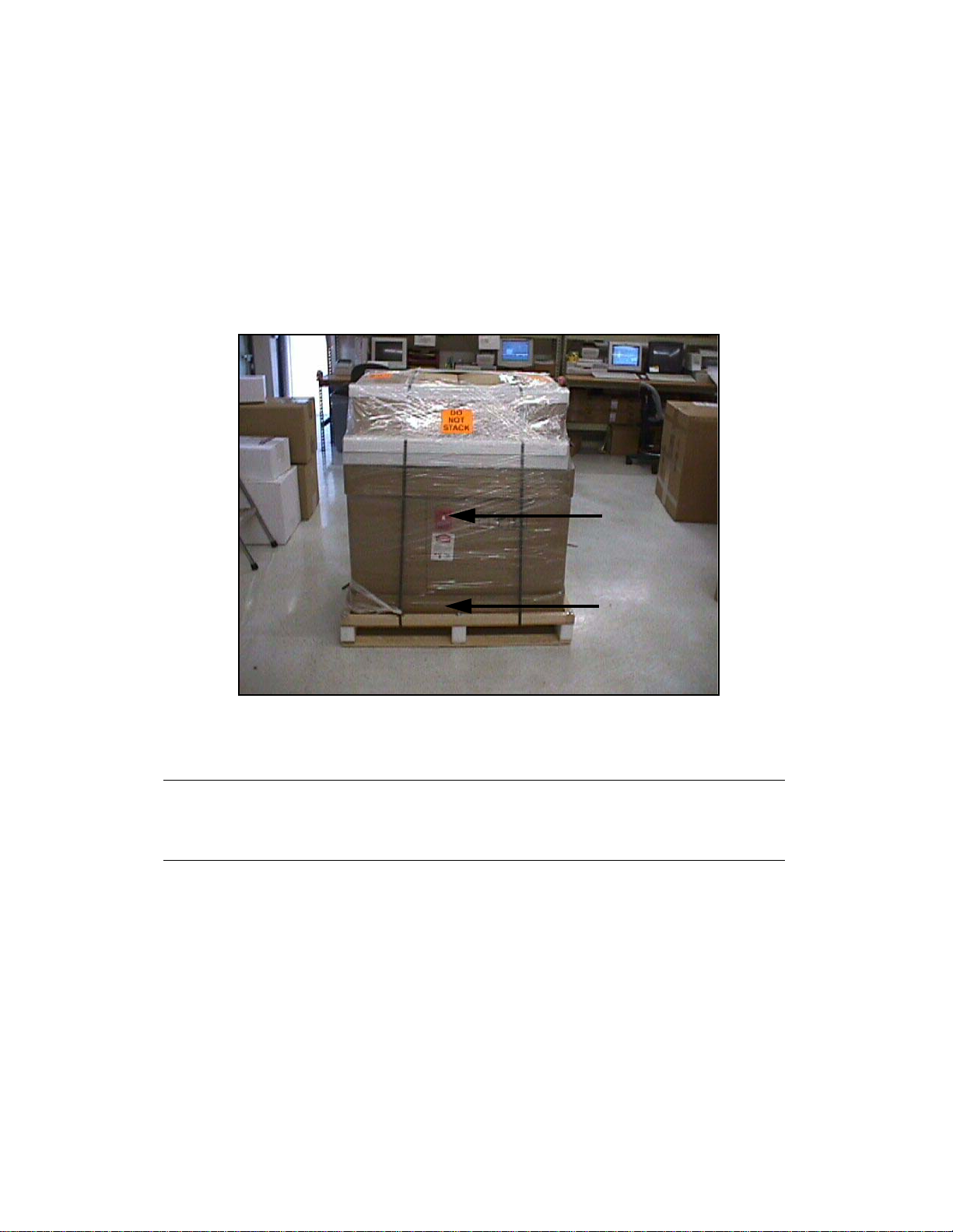

Figure1 CheckTipnTellandShockwatch.

TipnTell

Shockwatch

Spectra®12KLibraryUnpackingandInstallationGuide

3. Use the scissors to cut the plastic bands holding the library and its boxes to the

crate (Figure 2).

4. Remove the protective cardboard corners, and set aside the drive box(es) and rail

kit (Figure 3).

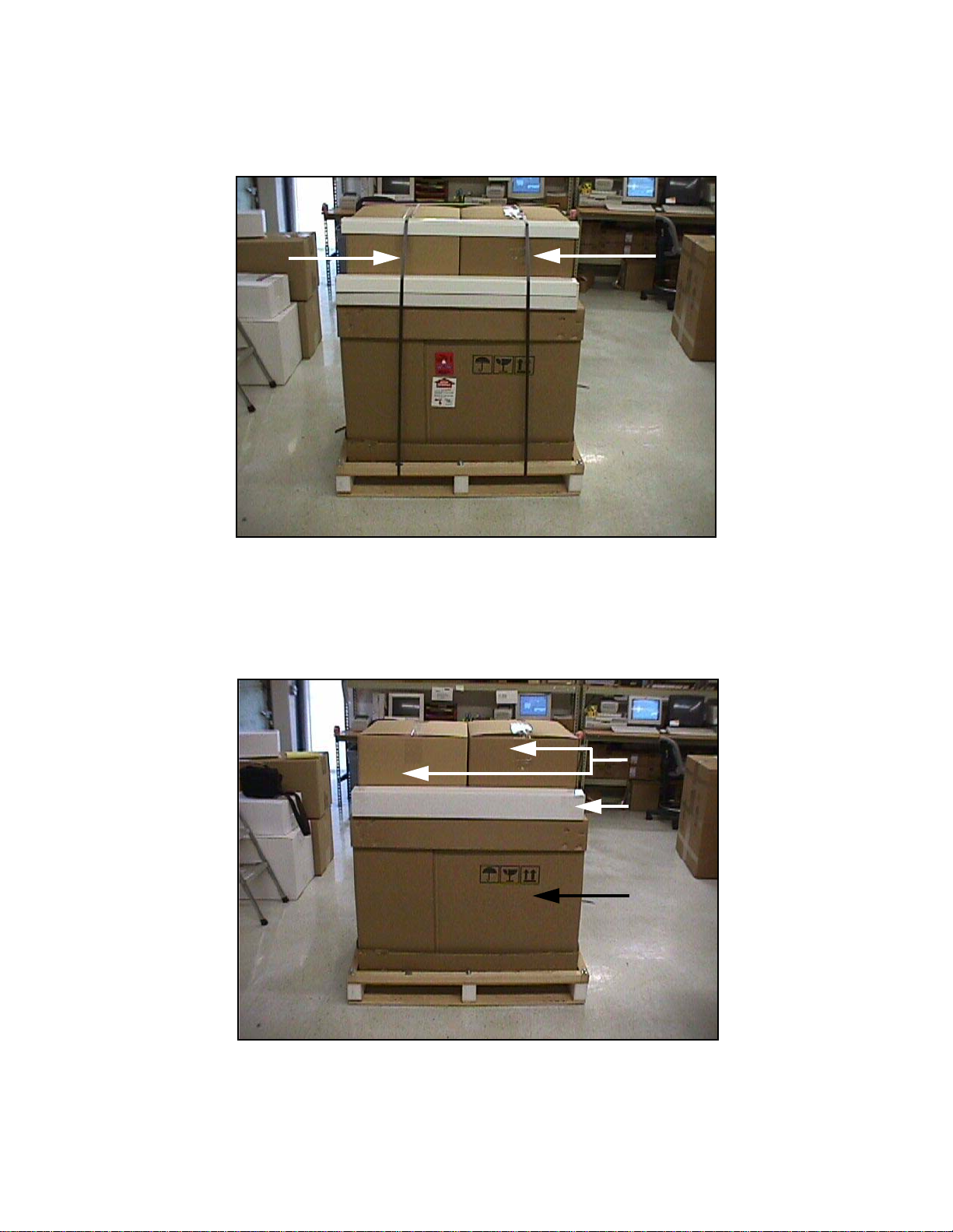

Figure2 Cuttheplasticbands.

Figure3 Thelibrarywiththedriveboxesandrailkitidentified.

DriveBoxes

RailKit

Library

Spectra®12KLibraryUnpackingandInstallationGuide

5. Remove the top and sides of the box used to enclose the library.

6. Remove the protective foam corners.

7. Lift the plastic cover off of the library (Figure 4).

8. Lift the library out of the crate and move the library to a work space where there is

access to all sides of the library.

Warning: The library is heavy, about 267 lbs (121 kg). Use three or four

people to help move the library.

Figure4 Removetheplasticcover.

Spectra®12KLibraryUnpackingandInstallationGuide

RemovetheInternalPackaging

1. Locate the library key. (It will be in a condiment bag attached to the top of the

library.)

2. Use the key to unlock and open the front door of the library.

3. With the door opened, locate the robotic rack assembly and the 25-wire black

connector at the bottom front of the library (Figure 5).

4. Unplug the 25-wire black connector at the bottom front of the robotic rack

assembly, if necessary (Figure 5).

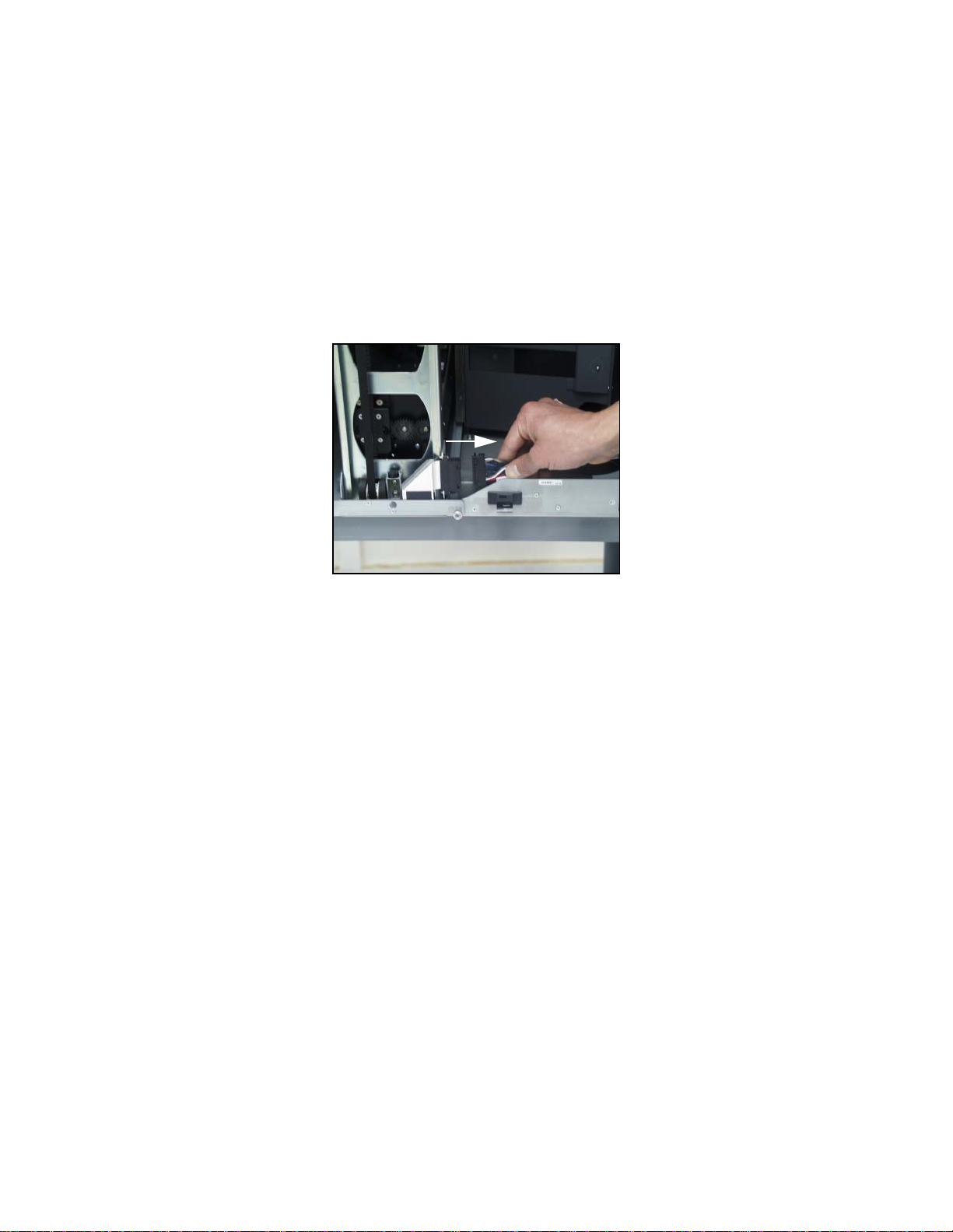

Figure5 Theroboticrackandtheconnectoratthe

bottomfrontofthelibrary.

Spectra®12KLibraryUnpackingandInstallationGuide

5. Remove the five screws holding the robotic rack assembly in the chassis (Figure 6).

Note: Two of the top three screws are located at both ends of the top

bracket that attaches to the library, and one screw is located just to

the right of the robotic rack in the middle of the bracket. The

bottom two screws are located at both ends of the bottom bracket.

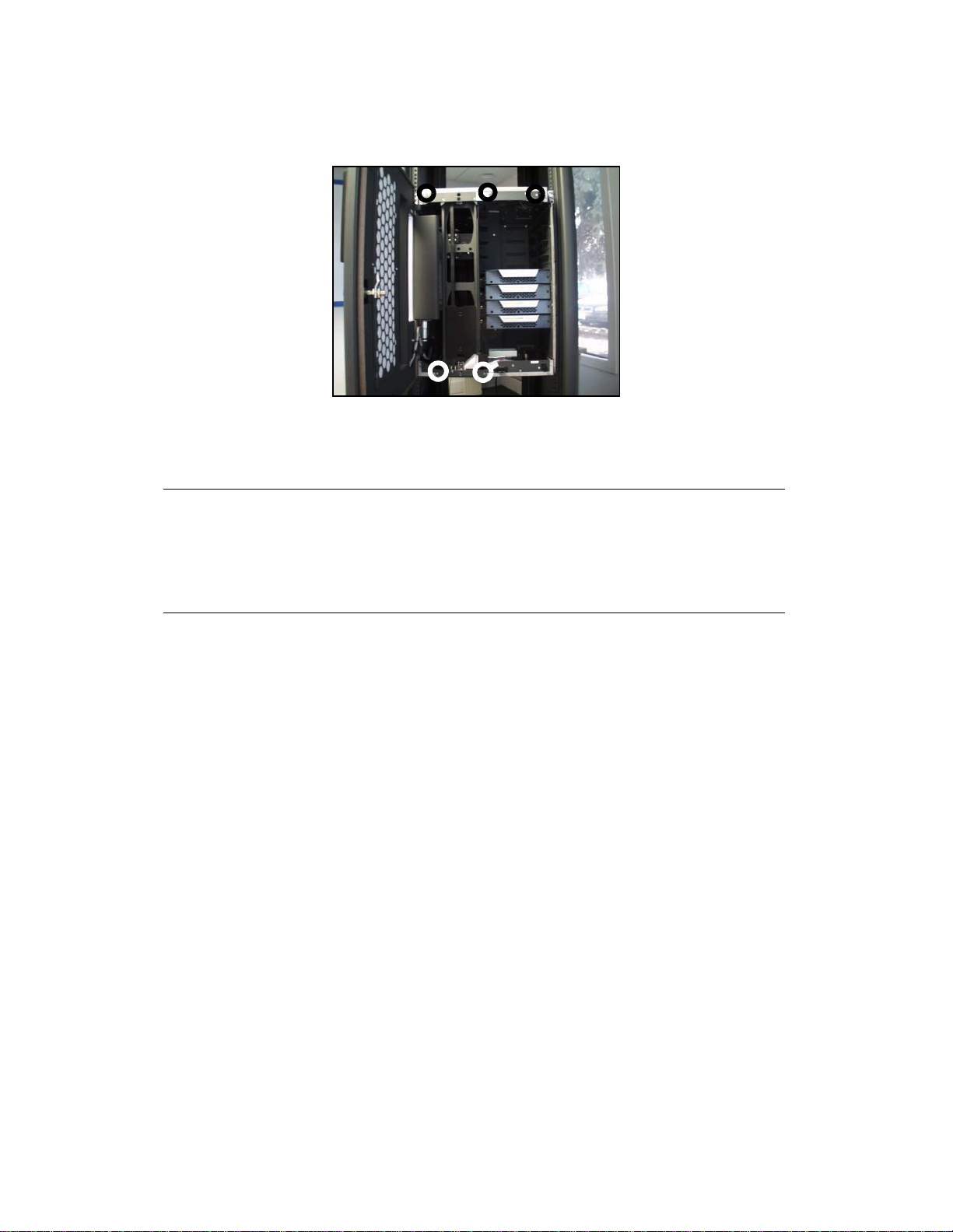

Figure6 Locationofthefivescrewsinthechassis.
