Safety Warning ............................................................ 1

Control Panel .............................................................. 4

Connection and Setting .................................................12

Simple Troubleshooting ................................................ 15

Maintenance ............................................................. 19

Speechi 2022

Safety Warning

Before operating, please read this manual thoroughly, and keep

it for future reference.

Image shown in this manual is indicative only. There may be

differences between the pictures and the actual product, please

prevail in kind.

Placement

- DO NOT put heavy objects on top of the unit.

- DO NOT put the unit near appliances that generate magnetic

fields.

- DO NOT expose the unit to direct sunlight and other sources of

heat.

- DO NOT place the unit on an unstable cart, stand, tripod,

bracket, table, or shelf.

- DO NOT put any liquid near or on the unit, make sure do not

spill any liquid inside the unit.

Power Supply

- Please keep power cable from physical or mechanical

damage.

- Please check and ensure AC source is connected with

the ground.

- This power cable comes with the device exclusively for

this device only.

- Please unplug power supply when the weather is

thunder-storm or lightning.

- Check that the unit's operating voltage is identical with

your local power supply.

Speechi 2022

- Please use the original power cable from the accessory bag,

don't modify or lengthen it.

- Please unplug power supply, when there is nobody home or

the unit will be in idle for a long time.

LED Screen

- Unplug the power cable before cleaning.

- Clean the screen with a soft, dustless and dry cloth.

- For deep clean, please contact an authorized service center.

Never use water or the spray type detergent to clean the unit.

- Never use any other hard or sharp object to replace the touch

pen.

- Better for the panel lifetime and the display performance, do

not display high brightness image for long time.

- Suitable operating time: under 16hours a day.

- Cycling display between 5 minutes information (static) display

and 10 seconds' moving image.

- Periodical display contents should be changed from static

image to moving picture.

Temperature

Normal operating temperature is 0 ~ 40℃.

- Do not place the unit near or over a radiator or a heater.

- If your unit is suddenly moved from a cold to a warm place,

please unplug the power cable and do not turn it on at least 2

hours, making sure the moisture inside the unit is all

evaporated.

Humidity

- Do not expose the unit in rain, or place in high humidity area.

- Please make sure indoor environment is dry and cool.

- Normal operating humidity is 10%~90%RH.

2Speechi 2022

Ventilation

- Please put the unit in a well-ventilated place, so the heating

can be released easily.

- Ensure that the unit has enough space for ventilation. Space

requirement: left, right and back >10cm, top> 20cm.

Earphone

- Before using earphone, please turn down the volume in

advance.

- Using the earphone to listen loud sound for a long time

might affect the hearing.

Standby

It will enter standby mode but not turn off the unit after press the

standby key.

Battery

- Please make sure the battery gets proper disposal or

recycle after using.

- Please keep the battery away from kids and don't throw

the battery into fire.

- Caution risk of fire or explosion if the battery is replaced

by an incorrect type.

Notes for Cleaning

There are vents on back cover, please do not use any liquid or

spray directly during cleaning.

Power Switch Status Signs

“I” means power on, “O” means power off.

Notes for Maintenance

This machine can only be maintained by certified engineer.

3Speechi 2022

Control Panel

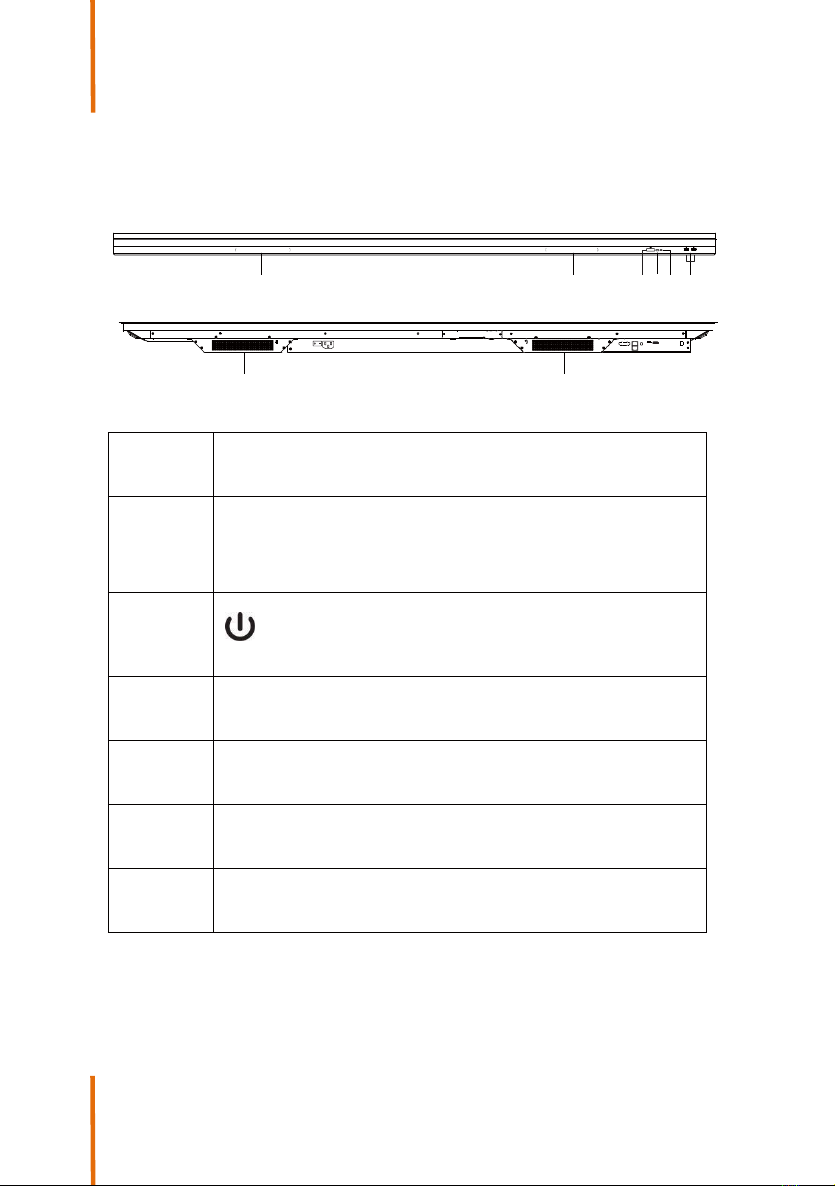

(1) Prepare to Install

Number

Items

Magnetic zone

：Area for placing the absorptive

magnetic pen

2：Tap to enter energy-saving,press at least

2 seconds to enter standby mode

Remote control signal receiver

Light sensor

3.0

Loudspeaker

12 3 4 5

4Speechi 2022

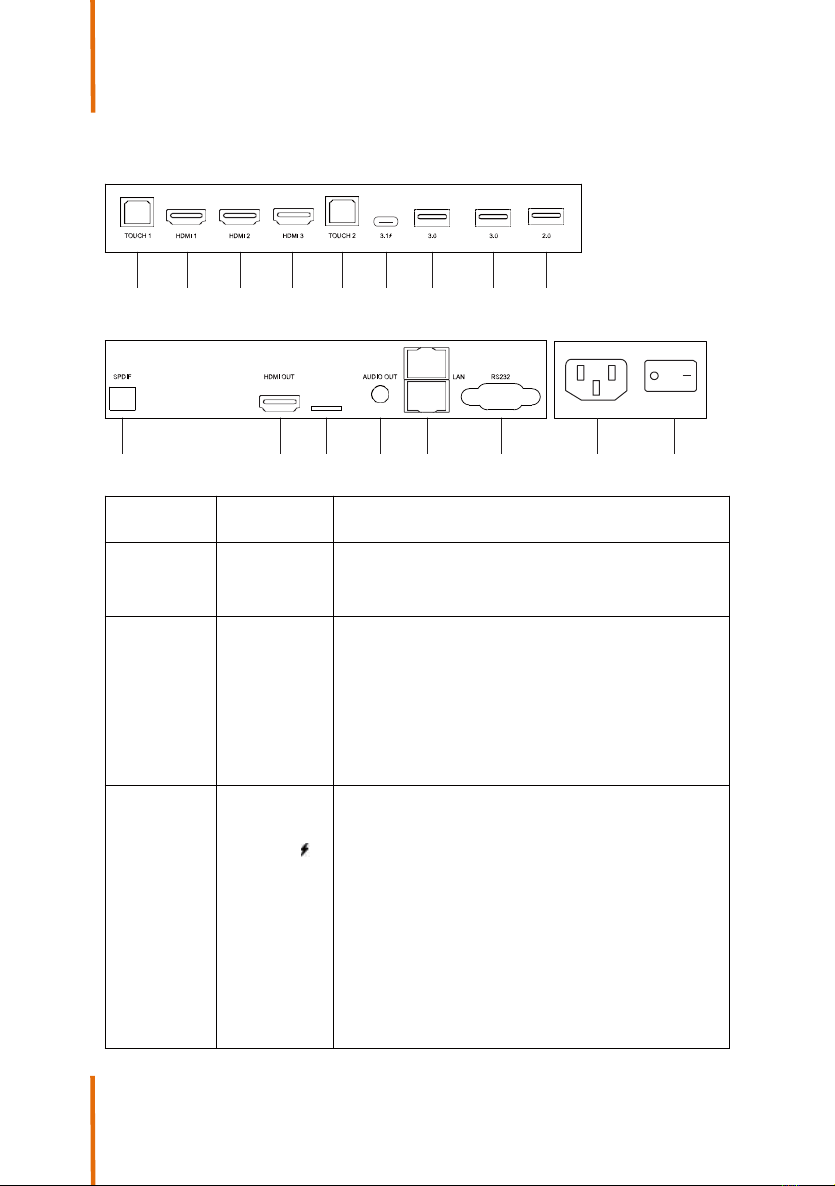

(2) Terminal Interface

Number Items

Function description

1TOUCH

Touch signal output to the

external

computer.

2 HDMI

High

-definition multimedia interface

signal input, connect to devices with

HDMI output interface (personal

computer with HDMI output,

set-top

box,

or another video device).

3 3.1

Support charging, data

transmission, extension for audio

and video output interface, etc.

Note: The maximum rated power of the

USB Type

-C port of this product is

65W. When using this port to charge

electronic devices, the charging power

of the electronic device cannot exceed

the rated power of this port.

1 2 2 2 1 3 4 4 5

6 7 8 9 10 11 12 13

5Speechi 2022

If the charging power of the electronic

device exceeds the rated charging

power of this port, please do not directly

use this port for charging.

4 3.0

Connect USB devices such as

mobile hard disk, U disk, USB

keyboard and mouse, USB drives,

tc.

5 2.0

Connect USB devices such as

mobile hard disk, U disk, USB

keyboard and mouse, USB drives,

etc.

6 SPDIF

Carry multichannel sound via

optical

signals.

7HDMI

OUT

Connect to the devices with

HDMI

input function.

8 TF Card

Maximum support is 128G

9AUDIO

OUT

Audio output to the external speaker.

10 LAN

Connect

RJ45 terminals.

11 RS232

Serial interface, used for mutual

transfer of data between devices.

12 AC IN

AC power input, connect AC power

supply.

13 AC

SWITCH

To open or shut down AC power supply.

“I” means power on, “O” means power

off.

6Speechi 2022

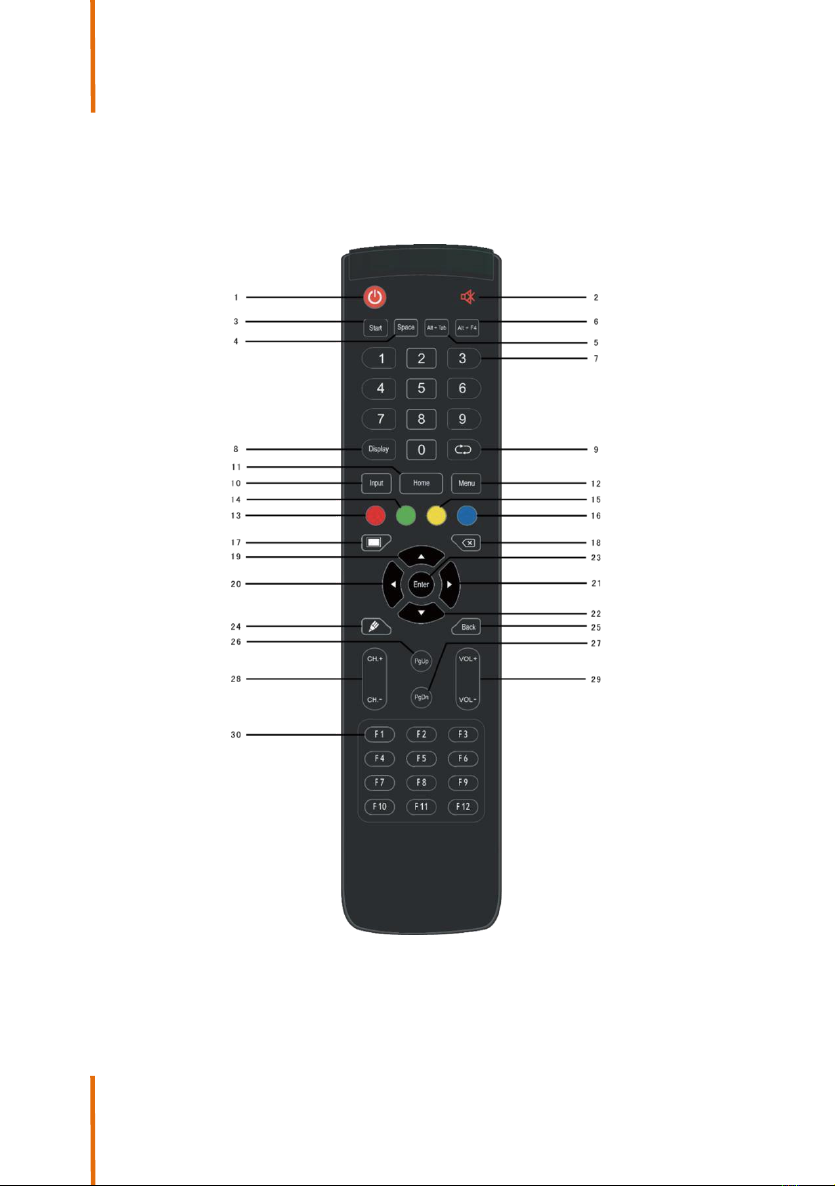

(3) Remote Control

1) Remote Control Button Instruction

7Speechi 2022

2) Detailed Function Description

Number

Items

Function description

Power on/off

Enter or exit mute mode

Start

PC's Windows key

Space

PC's Space key

Alt+Tab

PC's Alt+Tab key

Alt+F4

PC's Alt+F4 key

Numeric keys

Numeric input

Display

Display channel information

Input

Pop up settings menu

Home

Return to Android system

main

screen

8Speechi 2022
