Speed Queen AWN311 Manuale utente

Top Load

Washers

AWN311

AWN412

AWN432

AWN542

www.speedqueen.com

Laundry — it’s all we do.

Model AWN311 AWN412 AWN432 AWN542

Appearance

Color: White ✔✔✔✔

3.3 cu.ft. Stainless ✔✔✔✔

Steel Washtub

Galvanized Metal ✔✔✔✔

Washer Cabinet

Flex Vane Agitator ✔✔✔✔

Technical Information

Tub Volume - cu. ft. 3.3 3.3 3.3 3.3

Overall Dimensions - 43" x 25 5/8" x 28" 43" x 25 5/8" x 28" 43" x 25 5/8" x 28" 43" x 25 5/8" x 28"

H x W x D

Work Surface Height - in 36" 36" 36" 36"

Approximate Shipping 195 195 195 195

Weight - lb

Electrical Requirements 120V/60 HzAC 120V/60 HzAC 120V/60 HzAC 120V/60 HzAC

Breaker Size 15 Amp 15 Amp 15 Amp 15 Amp

Motor HP 1/2 1/2 1/2 1/2

Performance/Features

Water Temperature 3 3 3 3

Selections

Spin Speeds - RPM 710 710/473 710/473 710/473

Motor Speeds 1 2 2 2

Fill Hoses Included ✔✔✔✔

Automatic Balancing ✔✔✔✔

System

Rear Self-Leveling Legs ✔✔✔✔

Porcelain Steel Outer ✔✔✔✔

Draintub

Tuff Guard Coated Top ✔✔✔✔

Variable Water Level ✔✔✔✔

Selector

Hush Pak ✔✔✔

Extra Rinse Option ✔✔

Bleach Dispenser ✔✔✔✔

Fabric Softener ✔✔✔✔

Dispenser

Wash Cycles

Cycles 7 8 17 20

Average Water 31.4 31.4 31.4 31.4

Consumption - Gallons

Agency Approvals UL UL UL UL

Top Load Washer

Specifications

For the most accurate information, the installation guide should be used for all design and construction purposes. Due to continuous

product improvements, design and specifications are subject to change without notice.The quality management system of Alliance

Laundry Systems’ Ripon facility has been registered to ISO 9001:2000.

Printed in the USA.

Speed Queen Warranty

Speed Queen brings to you the industry’s best warranty on all of our washers and dryers.

3 years on parts and labor. 5 years on the motor.*

5 years on the cabinet.* 10 years on transmission.

Lifetime on all stainless steel washtubs and outer draintubs.*

* Limited. See Speed Queen warranty bond for details.

AR09-200

28"

53"

26"

3/8"

29"

43"

36"

25 5/8"

AWN311

1-Speed Motor, 7 Cycles, 3 Water Temperatures

AWN412

2-Speed Motor, 8 Cycles, 3 Water Temperatures

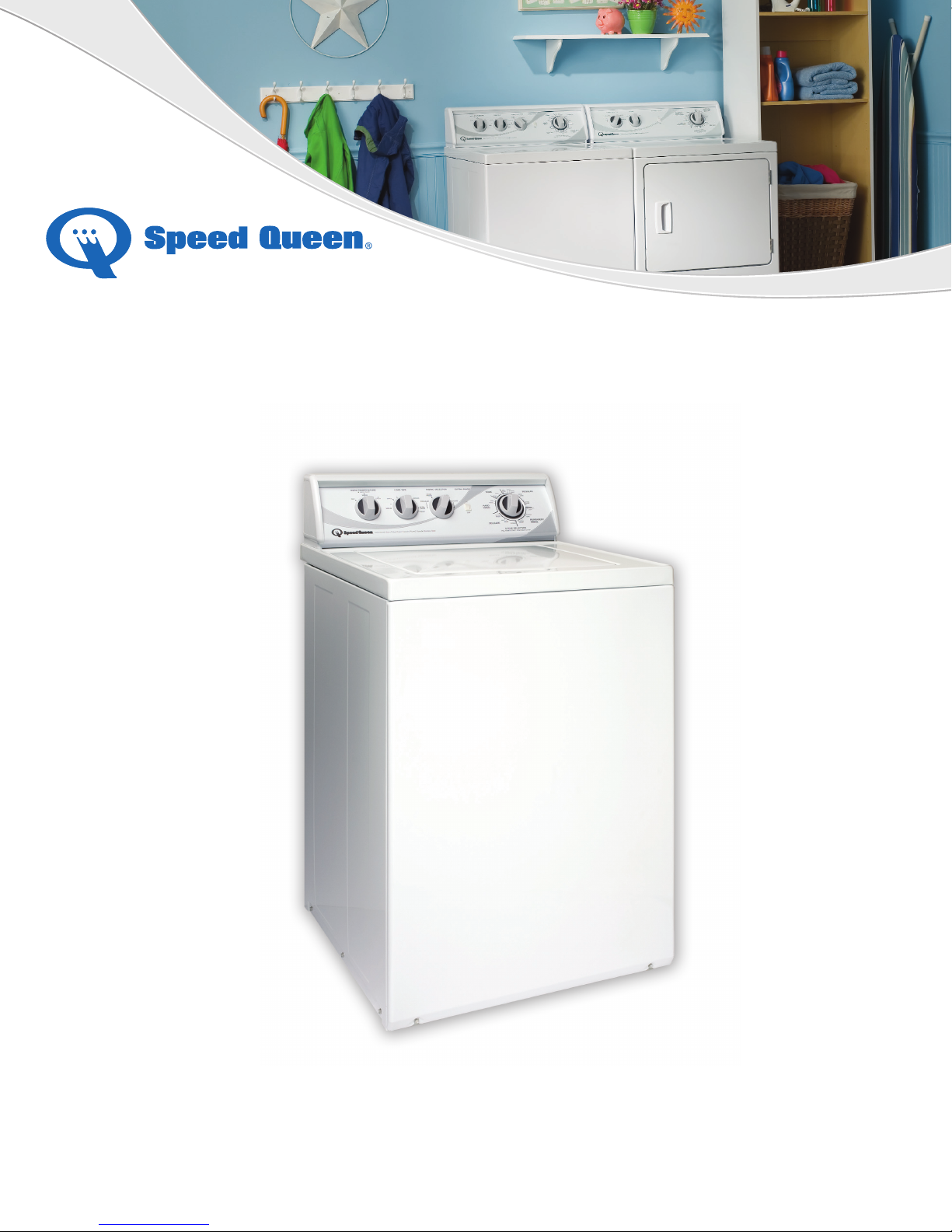

AWN542 (Shown on front)

2-Speed Motor, 20 Cycles, 3 Water Temperatures, Extra Rinse Option,

Fabric Selector Switch

AWN432

2-Speed Motor, 17 Cycles, 3 Water Temperatures, Extra Rinse Option
