Sportneer P110M Manuale utente
Pleasereadallprecautionsandinstructionsinthemanualcarefully before using this
equipment and save it forfuture reference.
Sportneer MotorizedTreadmill
User Manual
Contents
1
SafetyCautions
2-5
AssemblyInstructions
6-10
OperationGuide
11-24
Howto FoldandMove
25
SuggestedStretching
26-27
Maintenance
28-29
ExplodedDrawing
30
Parts List
31
Troubleshooting
32
1
CONTENTS
IMPORTANTSAFETYINSTRUCTIONS
Warning –To ensure users can get the best performance from the treadmill, please read the user manual
carefullybeforeassembly and use, andkeepit forfuturereference.
* Userswithheart orother healthproblemsmaycatchseriousphysicalinjurieswhenusingthedevice.Pleaseconsult
a doctor before using the treadmill. If you feel dizziness or breathing difficulties, please stopexercisingimmediately.
* Please read, understand and carefully follow all warnings, instructions, and procedures on the treadmill and in
thisusermanualbeforeuse. Otherwise,damages or injuriesmayoccur.
* The treadmill is not suitable for people with physical, sensory or mental disabilities (including children) and thosewho lack of
experience and knowledge, unless he/she use use it under safe conditions and the supervision/guidanceofa special personnel.
* Place the treadmill on a flat and solid ground. Do unplug the power cord when the device is in no use.Before turning off the
treadmill, switch all controls to OFF position and then unplug the power cord from the connected outlet.
* Keep the power cord away from hot surfaces or hot ground.
*Keep the top surface of its moving partsclean and dry,especially keep the power cord away
frommovingparts,e.g.theinclinebracketandfrontwheels.
*Donotplacethepowercordunderoraroundthetreadmill.Donot use the device if its power cord is damaged or not long enough or
soaked by water. Please contact our customer service team orthe distributor toreplace thecord.
* Placethesafetykeyinasafeplaceawayfromchildren.
* Donotuseparts thatarenotrecommendedbythemanufacturer.
* Donotusethisdeviceinconfinedspaces.Ensurethattheventis unblockedbycottonfibersor hair.
*Do not drop anything in the cracks and openings of the treadmill. If it occurs, please turn off the device andunplug the power
cord. Remove the matters carefully to make sure there are no foreign objects any more.If you’re unable to remove it,
pleasecontacttheafter-salesteam.
*Treadmill is intended for use in cool,dry conditions only. Please avoid to store the device in extremely cold,hot or damp areas
asthismayleadtocorrosionandotherrelatedproblems. Its allowedworking temperatureis5 ~ 40 Celsius degrees.
* Donotusethetreadmillinpaintordrugsprayingenvironmentstoavoidexplosion.
* Donotplaceanyliquidneartheequipmentunlessitisplacedonbottlerackwith airtightlid.
* Donotexceedthemaximumbearing weight.Onlyonepersonis allowedtooperatetheequipment atatime.
* Thistreadmillisonlyintendedforconsumeruseonly.Donotplaceanimals onornearthemachine.
* Thismachineisonlyintendedforhouseholduse.
* Wear appropriate sports wear when using the treadmill. Do not wear loose clothes that may get caught in thetreadmill. Do not
operate the equipment with bare feet or socks. Athletic clothes are
recommended.Alwayswearathleticshoes&neverrunonthetreadmillwithbarefeet,onlystockingsorinslippersorsandals.
* Keeplooseclothing,shoelaces,towels, andotheritemsaway fromthemovingparts.
* Hold the hand rails when getting on and off the treadmill or exercising on the treadmill for your safety.In case of an
emergency such as tripping, grab the handrails and stand on the plastic side rail on eitherside of the running board.The handrail
with pulse sensor plate is used to test your heart rate onceresting your handonit,ortostabilizeyourbodywhen you turn
offthetreadmill.
* Puttheclampofthesafetykeyonyourclothes andmakesurethatthesafetykeyisconnectedtotheconsole.
* Startthetreadmillby standingontheplasticsiderailinsteadofrunningbelt.
* Startexercisingaftermakingsurerunningbeltislocatedinthe
middle.Iftherunningbeltistiltedtooneside,itshouldbeadjustedaccordingtotheequipmentmaintenancesectionbeforeexercise.
SAFETYCAUTIONS
2
* Don’t walk, jog, or run in opposite direction when the treadmill is turned on, and please pay high attention when placing it
on inclined conditions.
* Donotaccelerateordeceleratewithoutconnecting to poweranddonotstopthemachineabnormally.
* Keepyourhandsawayfromthebottomorsidesofthemachinewhileitisrunning.
* Don'tletpeopleinterferewiththeuserordevicewhileexercising.
* Waituntiltherunningbeltstopscompletelybeforesteppingoffthetreadmill.
* Unplugthepower cordafteruseandbeforecleaning.
* Toturnoffthetreadmill,first turnoffthepowerswitchandthenpulloutthepower pluggently.Donotpullthepowercordtoremove the
power plugrudely.
* Onlyprofessionalmaintenancepersonnelisallowedtomaintainthedevice.
* Movethetreadmillfromitsbacksidebyholdingthetwohandrails,rather thanfromthefrontofconsole.
* Note:Noiseunderloadishigherthanwithoutload.
Danger-Toavoidelectricshock,turnoffthedevicebeforecleaningandrepairing.
Note-Toavoidfunctionalproblems,thetreadmillshouldbepluggedintoadedicated15Acircuitsystemwithappropriate
groundingmeasures and a3-pin ACpower socket.For more details,pleaseread the grounding instructionssection.
Warning -Inspect the treadmill for incorrect,worn,or loose components before use, and tighten them prior to use.Ifthere is any
worn or damaged component, contact the after-sales staff forreplacements. Worn or
damagedcomponentsshallbereplacedimmediatelyandonlymanufacturersuppliedorapprovedcomponentsshallbeusedtomaintainorre
pairthetreadmill.
Warning - To avoid fire and electric shock, do not expose the device to rain and humidity, and do not assemble thetreadmill
outdoors or near a pool, sauna, or high humidity area.Only use the equipment in a room temperature at 15°C ~ 35°C and
humidity at30%RH ~ 70%RH.Beyond this scope, the functions oftheequipmentmaybe affected.
If you have any question like renting, using, or maintaining the treadmill, please contact customer service staff for help.
Warning-Toreducetheriskoffire,electricshock,andphysicalinjuries:
Keep a space at the back of the treadmill: at least 2M/78” away from the front, and at least 1M/39” on either side ofthe
treadmill.Do not place the treadmill in a box or against a wall, furniture, or other objects. Ensure that
bystanderscantouchthetreadmill directlyandcaneasily turnoffthepowerofthismachine.
3
SAFETYCAUTIONS
GROUNDINGINSTRUCTIONS
The grounding operations must be accurate.In the event of failure or damage, grounding protection will reducethe risk of electric
shock.This product is equipped with a grounding conductor and a grounding plug.The plug must beinserted into a suitable power
socket, andits user should install grounding in accordance with local laws and regulations.
Danger - Improperly connected grounding conductor may cause electric shock.If you have any question about
thegrounding,pleasecontactaqualifiedelectricianorafter-salespersonnel. Donotusea plugthatdoesn’tmatchtheproduct.If the plug
does notmatchthepower socket,pleaseask anelectriciantoinstall asuitable socket.
The120Vdeviceisdesignedforusers in the NorthAmerican area.
RADIOFREQUENCYINTERFERENCE(RFI)
Under the FCC Regulation 15, fitness devices must be tested to meet the limitations of class B digital devices.Theserequirements
are used to provide reasonable protection from radiated energy generated during residential use or installation of the equipment.
If the equipment is not installed in according to the usermanual, it may cause harmful interference to
electricalfrequencycommunications.
If the treadmill affects the radio or TV reception or they cause turning off/on of the treadmill, you can solve the issue by:
Redirecting or laying the TV, radio, VCR,DVR,etc.
Isolatingthetreadmillfromthereceiver(TV,radio,VCR,DVR,etc).
Plugging the treadmill to a different dedicated power socket away from the receivers.Consultanexperienced
radio/Televisiontechnician.
Warning--AnymodificationtotheproductwithoutapprovalbyFCCregulationsmaymake you unable to use it again.
4
SAFETYCAUTIONS
CanadianDepartmentofCommunications
This digital device cannot exceed the type B radio noise set by the Communications Commission of Canada for radiointerference.
STATICELECTRICITY
As a large energy machine that may generates static electricity, the treadmillmay cause some users to suffer from
staticshock.Excessive static electricity can damage electronic components too.The following steps are to prevent static
electricity.Ifyou stillcan'tsolve theproblem,please turnthetreadmillovertoaprofessional.
Environmentalreasons
Static electricity may relate to some environmental factors. It is very common for a treadmill to generate staticelectricity when it
repeats some actions and comes into frictionwhen it is directly placed on a rough carpet.Dry anddusty environment can increase
the intensity of static electricity.Cleaning your treadmill regularly can decrease theriskorintensityofstaticelectricitygenerated.
Mechanicalreason
The treadmill motor clogged with dust and other debris will increase the risk of static electricity. Excessive frictionon the motor
belt will generate static electricity.Check whether the power cord and plug is damaged. Failure to
plugthetreadmillintoagroundingsocketequipped withavoltageprotectormaycausestaticelectricity.
Severalsimplewaysto reducestaticelectricity
In dry environment, place a humidifier in the running room to help reduce static electricity.The recommendedhumidification
level is 45%.Place a rubber pad under the treadmill or use a fiber softener and electrostatic sprayon the carpet where the
treadmill is located.Wear clothes made from natural materials such as cotton.
Syntheticfibers,polyesters,andnylonmaterialclothstendtoadheretostaticelectricity.Chooseshoesmadeofnon-
conductivematerialsandcleanthembefore usingthetreadmill.
Treadmillmaintenancesuggestions
Keep your treadmill clean and lubricate it to reduce the risk of static electricity.For more maintenance information,read the
treadmill maintenance section of the user manual.If all above limiting static electricity ways
don’treducetheincidenceofstaticelectricity,stopusingthetreadmillandsubmitittoaprofessionalforrepair.
USINGTHEEMERGENCYSTOPSYSTEM
This product is equipped with an emergency stop system that is consisted of a safety clip and a safety switch.The clip
isconnected to the switch through a wire, and you can pull the wire to open the switch and stop the running treadmill in
emergency.
Before starting an exercise program, follow the steps below to test if the system works properly.
Insertthesafetykeyintothepositiononthe console andclipthesafetyclip toyourclothing.
Note:Ifthesafetyswitchisnotinsertedintothecorrectposition,all displaywindowswill display "---".
Tostartthetreadmill,putyourfeetonthetreadmillsiderailsandpresstheStartbutton.Therunningbeltstartsrunningslowlyata speedof0.6MPH
(1.0km/h).
Note:Donotincreasespeedwhiletesting.
Step on the running belt to start running, and make sure you're running in the middle of the running area.Stoprunning and let the
running belt take you to the rear part of the running area. As you approaching the rear of therunning belt, the safety switch wire
will be pulled backward and the safety switch will be pulled off from the consoleandtreadmillwillbe stopped.
If you feel the distance is too far before the safety switch is pulled off, you can reduce the length of the safety clipwire.
Note:Foryour safety,NEVERlengthenthesafetyclipwire.
Always use a safety clip when running on a treadmill.If the safety switch is pulled out, the running belt will
stopsuddenlyandthetreadmillwillgointopausemode.YouneedtoproperlyinsertthesafetyswitchagainandpresstheStartbutton
torestartthetreadmill.
5
SAFETYCAUTIONS

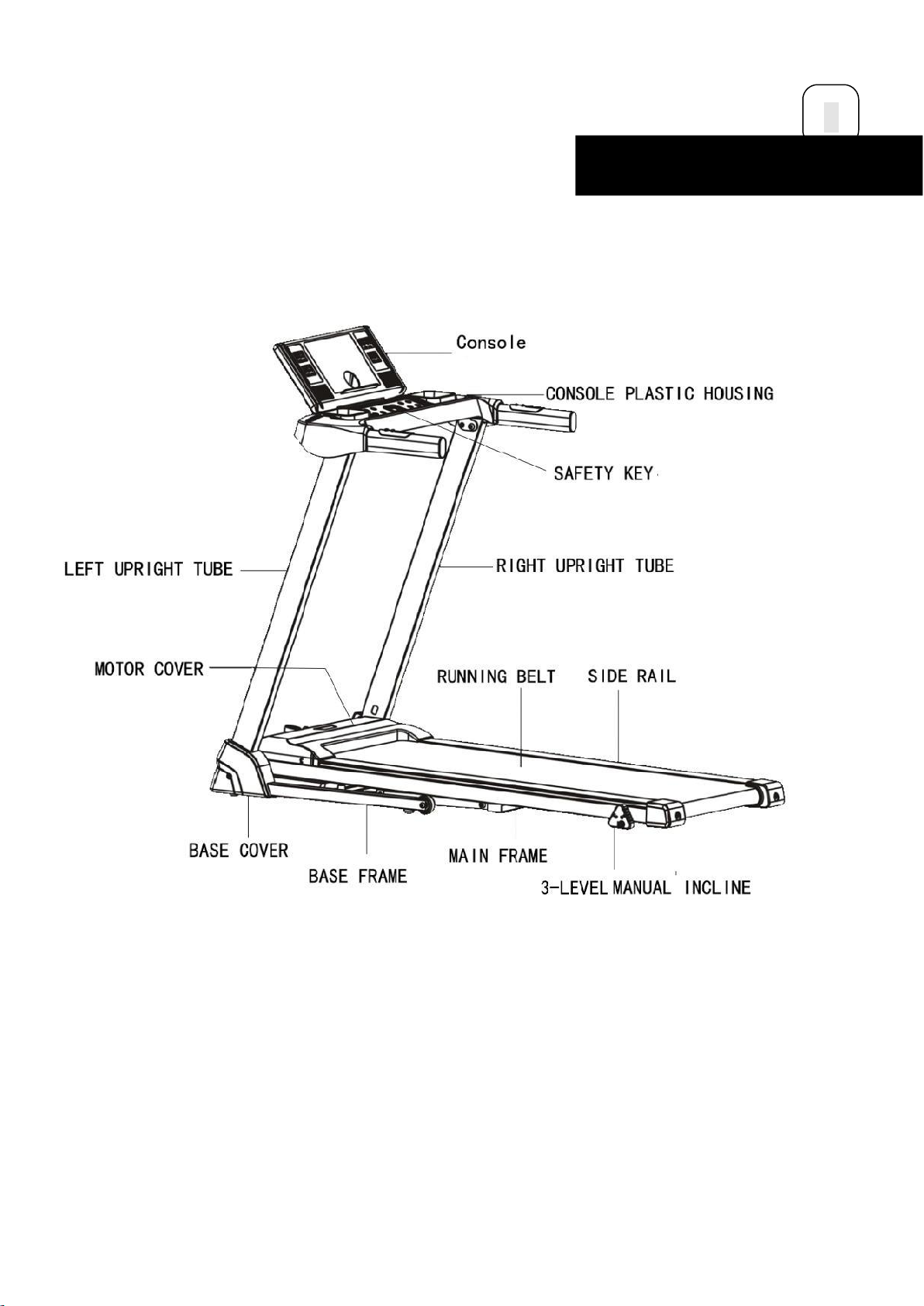

Product Illustration
6
ASSEMBLYINSTRUCTIONS

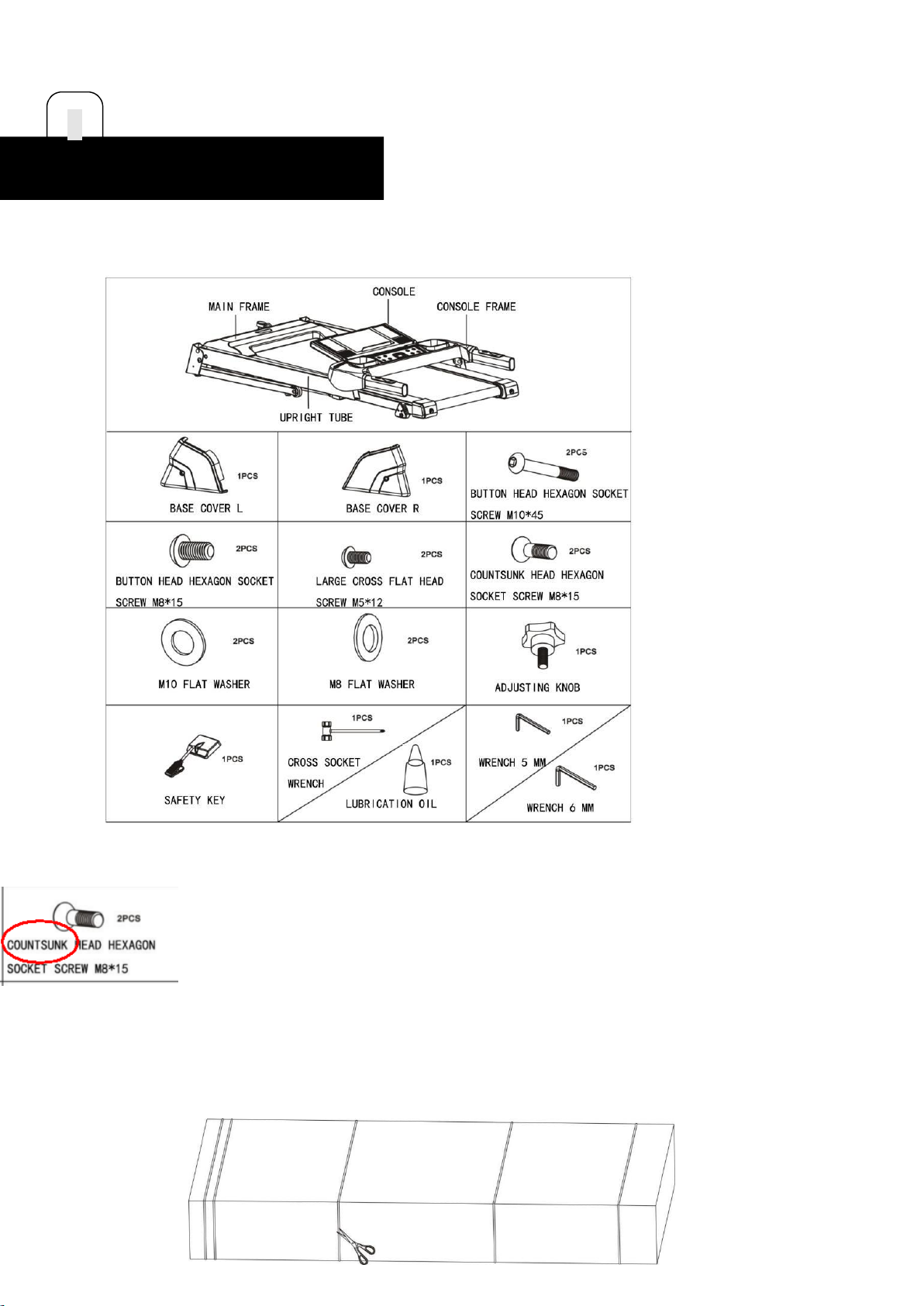

OPENTHEBOX ANDYOUCANFINDALLPARTSBELOW.
上图中所有的1PCS 去掉末尾的S
改成 COUNTERSUNK
STEP 1
Laythemastercartononaflatfloorandcutoffallstrapsasshowninthe picture below:
7
ASSEMBLYINSTRUCTIONS

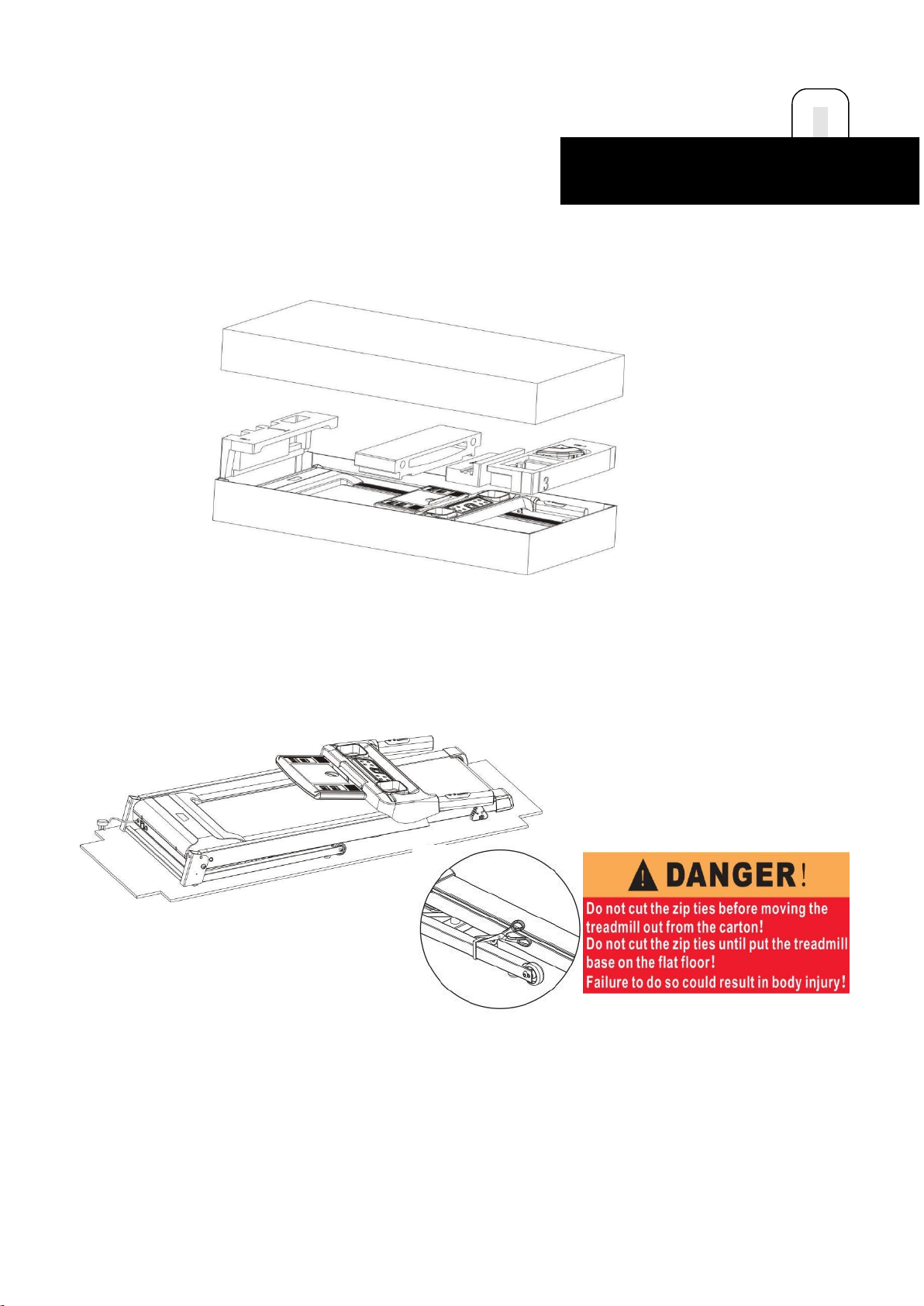

STEP 2
Lift the master carton cover as shown in the pictureand remove all
theprotectivefoams inside.
STEP 3
Take outthetreadmillfromthebox, andlayitonaflatfloor.
WARNING! : Do not cut the straps before taking the product out of
box.NOTICE:Beawareoftheriskofhandspinchingwhentakingoutthetreadmill.
Danger (右上角小标）
Do not cut the zip ties before removing the treadmill out of the carton!
Do not cut the zip ties after you put the treadmill base on the flat floor!
Failure to do so could result in body injuries!

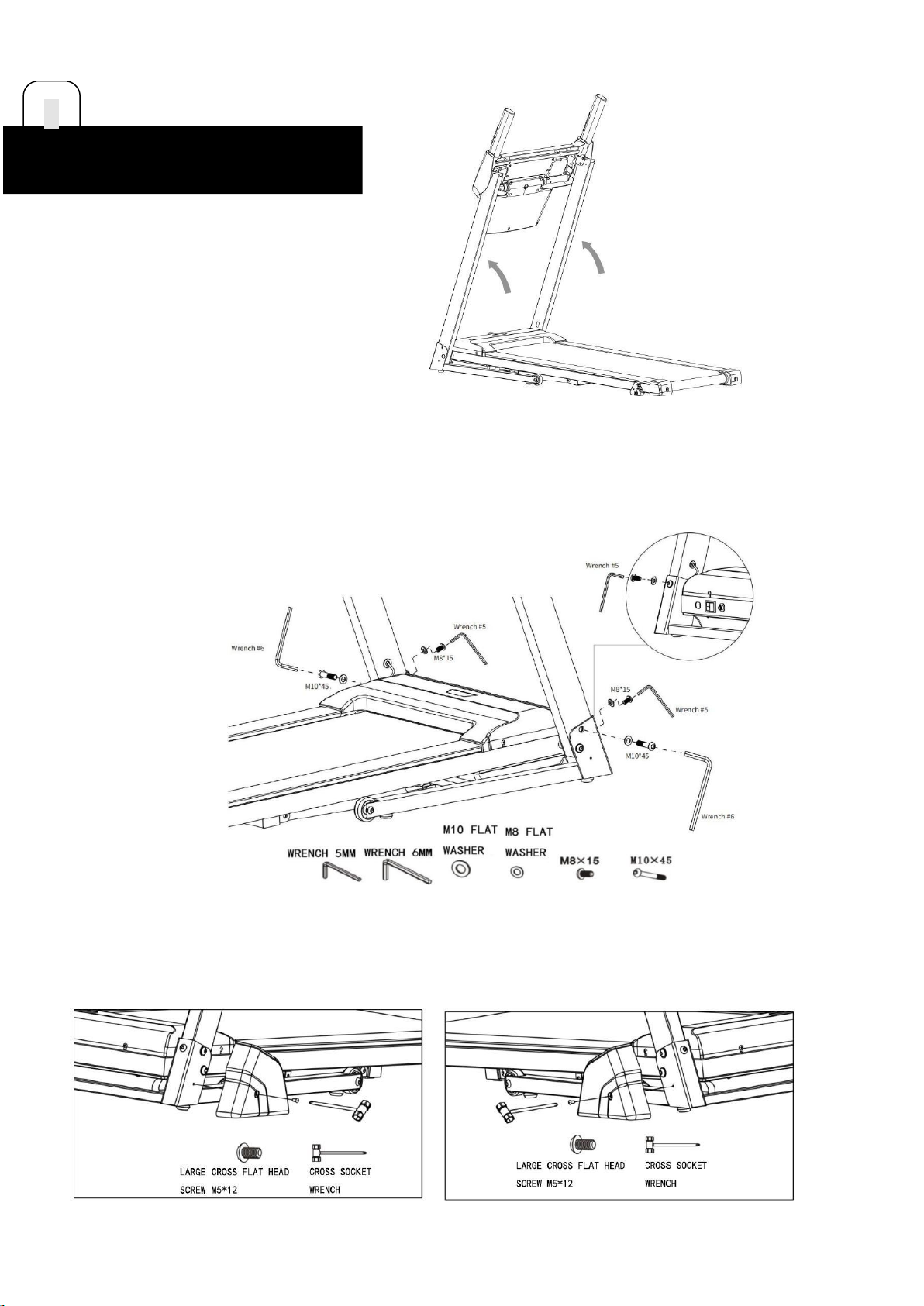

STEP 4.1
Lift the left and right upright tubes upward with both hands. Note: Do
notplaceyourhandsinthebottomrotationpositiontoavoidbeingclamped.
8
ASSEMBLYINSTRUCTIONS
STEP4.2
Use the 6mm wrench to fasten the L and R upright tubes onto both sidesofthe
baseframewith2M10*45boltsand2M10flatwashers.
Use the 5mm wrench to fasten the L and R upright tubes onto both sidesofthe
baseframewith 2M8*15boltsand2 M8flatwashers.
STEP5
Use the cross socket wrench to fasten the base cover-L and base cover-Rwith 2
M5*12 large cross flat head screws ontoboth sides of thebaseframe.
9
ASSEMBLYINSTRUCTIONS
