SPORTS AFIELD SA-HD5-BIO-DP Manuale utente
IMPORTANT:
Please read this information and follow all safety rules carefully before
operating your security vault. Failure to do so will void your warranty.
080322
DROP ACTION BIOMETRIC SECURITY VAULT
INSTRUCTION MANUAL FOR SA-HD5-BIO
TABLE OF CONTENTS
IMPORTANT INFORMATION ............................................................................................... 2
1. REGISTRATION ................................................................................................................ 3
2. UNDERSTANDING YOUR VAULT ...................................................................................... 4
3. INITIAL ENTRY .................................................................................................................. 5
4. BATTERY INSTALLATION ................................................................................................ 6
5. PLACEMENT AND MOUNTING YOUR VAULT ................................................................... 6
6. PROGRAMMING YOUR FINGERPRINT ..........................................................................9
7. OPENING VAULT WITH PROGRAMMED FINGERPRINT .................................................. 10
8. PROGRAMMING ADDITIONAL FINGERPRINTS ............................................................. 10
9. TROUBLE SHOOTING ...................................................................................................... 11
10. LOCKOUT MODE/TAMPER PROTECTION...................................................................... 12
11. CLEARING ALL RECORDED FINGERPRINTS ................................................................... 13
12. SILENT ENTRY MODE .................................................................................................. 13
13. LOADING YOUR VAULT ............................................................................................... 13
14. MAINTAINING HINGES AND INTERNAL MECHANISMS ............................................... 13
WARRANTY ...................................................................................................................... 14
www.saproducts.com 1
2
DISCLAIMER - READ BEFORE VAULT SETUP
WEAPON STORAGE
SAFETY
Thank you for choosing a Sports Afield vault to protect your valuables. We are
commied to securing, organizing and protecng your most important documents,
valuables and keepsakes.
If you experience problems or challenges with your vault, please contact us.
Many issues can be quickly resolved without the product being returned.
Be sure to keep backup keys stored in a safe place away from unauthorized users
Do not put anything in your vault that will put pressure against the door when
it is closed.
If you choose to ulize this vault to store a weapon always follow proper weapon and
local laws when storing a weapon.
SA Consumer Products strongly recommends that you do not store loaded guns.
Always follow the firearm safety rules set out by the firearm’s manufacturer.
Store ammunion separately from valuables.
A Sports Afield vault or any other firearm storage device cannot take the place
of other safety procedures including advising children of the dangers of firearms.
SA Consumer Products and its distributors of the Sports Afield vaults do not
recommend, suggest, advise, promote, or otherwise condone the ownership or use of
firearms. We believe the decision to own or use a firearm is a serious decision that
should only be made by an adult who has carefully considered
the risks and benefits of such a decision.
PLEASE READ THIS INFORMATION CAREFULLY BEFORE OPERATING YOUR
SPORTS AFIELD VAULT.
DO NOT LOCK THIS MANUAL OR THE OVERRIDE ACCESS KEYS IN YOUR VAULT.
3
Register your vault at www.saproducts.com
PURCHASE DATE:
PURCHASE PRICE (BEFORE TAX):
MODEL NUMBER:
SERIAL NUMBER:
KEY NUMBER (IF APPLICABLE):
1. REGISTRATION
RETAILER NAME:
By registering your Sports Afield vault we will be able to expedite and address
any problems or challenges you may havewhich would otherwiserequirea
notary leer and proof of payment.
Theinformaon you record onto this page will be required in the event you
cannot access thecontents of your Sports Afield vault. Pleasefill out all the
required informaon below and retain for your records and safe keeping.
PLEASE HAVE THIS INFORMATION READY PRIOR TO CALLING FOR TECHNICAL
ASSISTANCE AT:
REGISTRATION INFORMATION

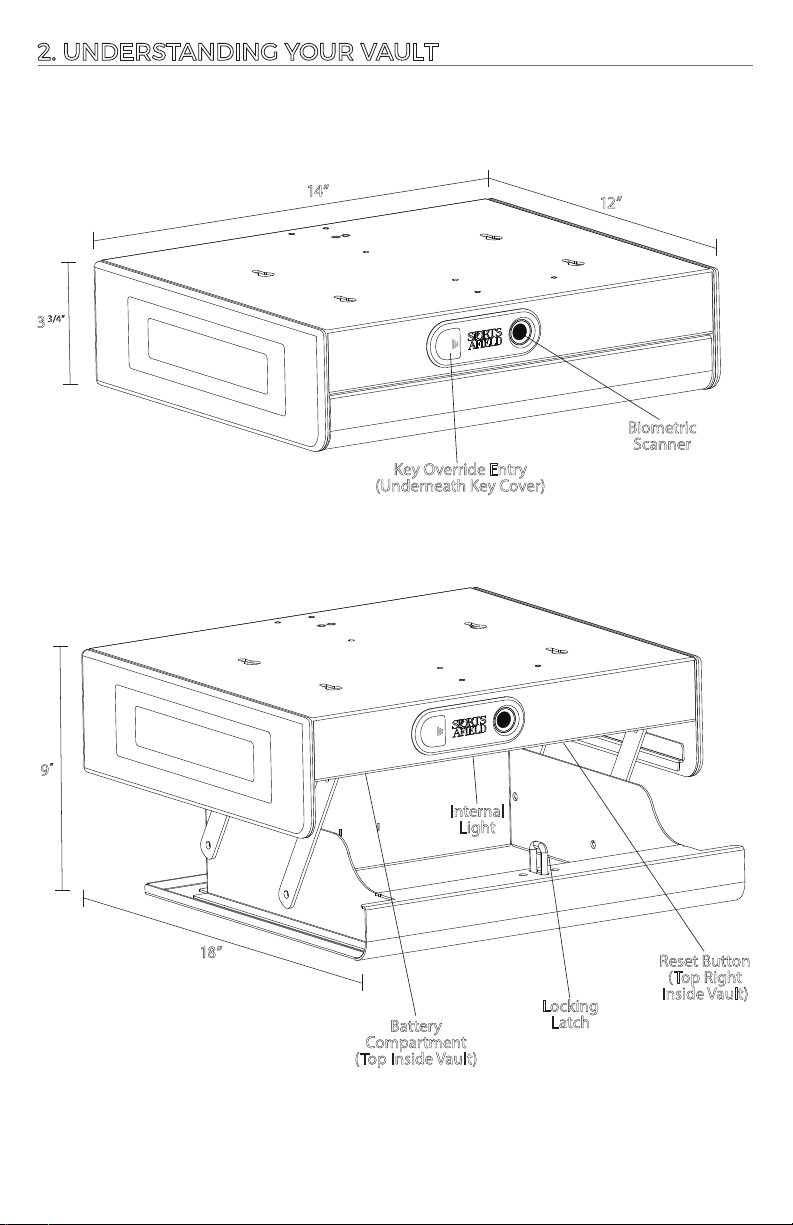

2. UNDERSTANDING YOUR VAULT
Key Override Entry
(Underneath Key Cover)
Internal
Light
Locking
Latch
Biometric
Scanner
Battery
Compartment
(Top Inside Vault)
Reset Button
(Top Right
Inside Vault)
4
33/4”
9”
14” 12”
18”

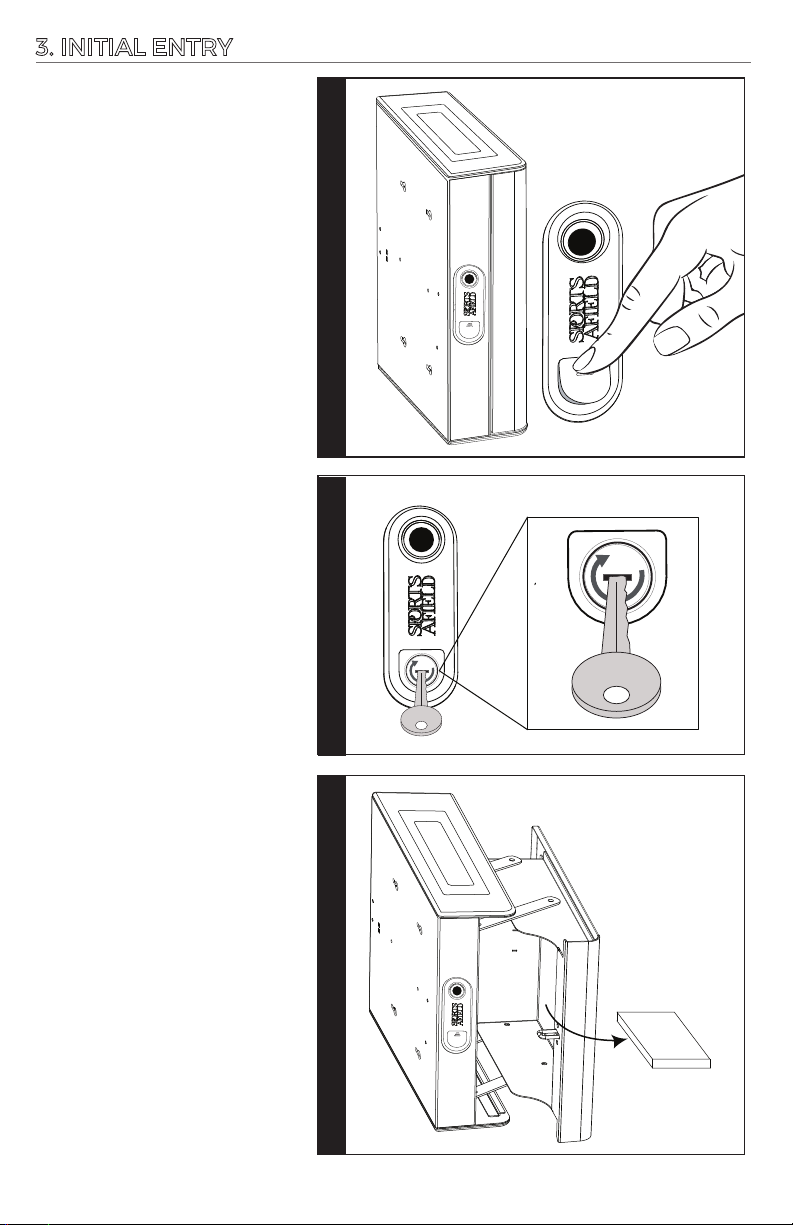

3. INITIAL ENTRY
5
3.
2. Insert the backup key. Turn
the key clockwise and your
vault door will unlock.
Step 1Step 3 Step 2
1. When unboxing, you will see
the manual, mounng plate
and key on top of the vault.
Remove these items and set
aside.
Lay down a towel or protecve
barrier and place the vault on
it’s side. Locate the key cover
and remove it by pressing the
three lines. The cover will pop
up on one side so that it can
be removed.
Gently pull it open while
keeping it on it’s side.
Remove the box of hardware
from the vault and set aside.

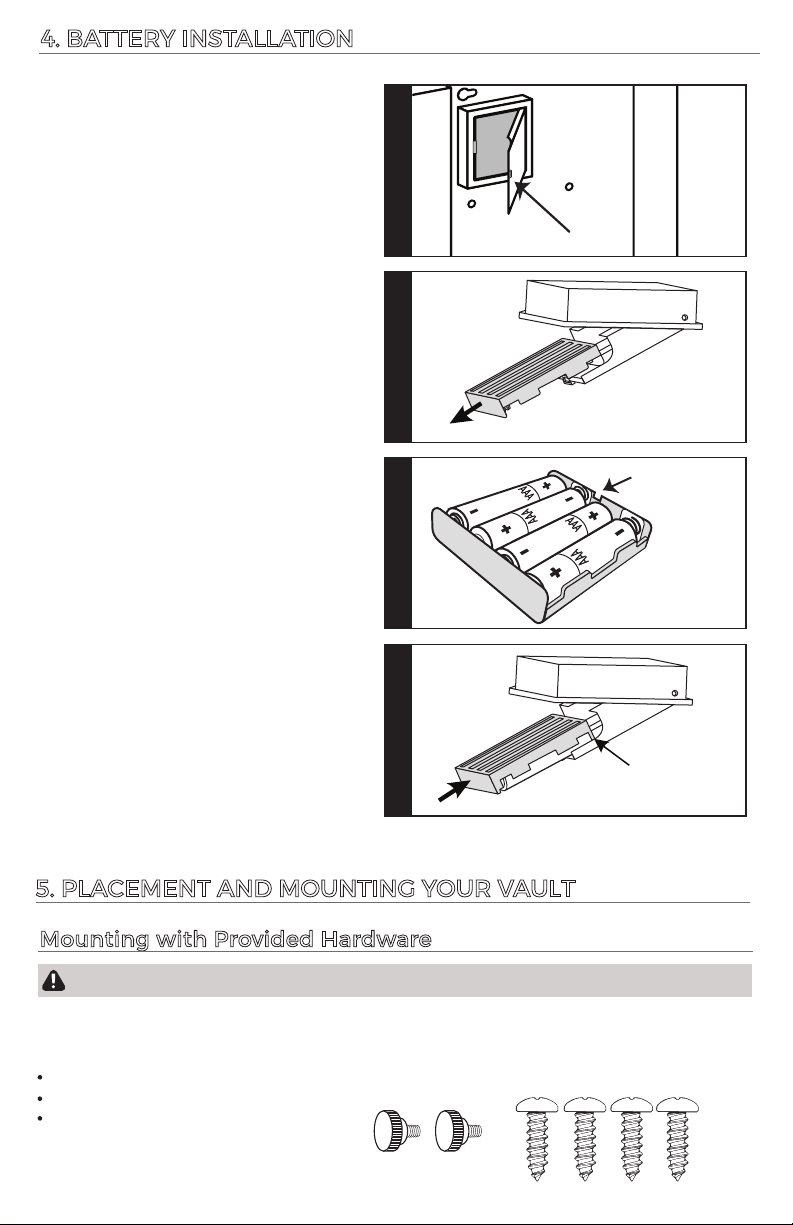

4. BATTERY INSTALLATION
6
5. PLACEMENT AND MOUNTING YOUR VAULT
TOOLS NEEDED: HARDWARE INCLUDED:
DRILL / HAMMER DRILL
3/32” DRILL BIT
PHILLIPS SCREWDRIVER
2X THUMBSCREWS
4X MOUNTING
PLATE SCREWS
Mounting with Provided Hardware
Step 1Step 2Step 3Step 4
1.
2.
3.
4.
WARNING: Thebaeries must be inserted with
the correct polarity. Exhausted baeries must be
removed from theproduct and discarded safely.
Do not mix old and new baeries. Do not mix
alkalineor standard (carbon – zinc) baeries. Do
not use rechargeable (nickel – cadmium) baeries.
While vault is sll on it’s side, find the
baery compartment
located inside on
the top of the vault. Press the tab to
release the baery tray.
Remove the empty baery tray from
the compartment.
Turn over the tray and insert the
(4) AAA
baeries (included) into the
tray in the correct orientaon.
Turn the baery pack over to align
the notch cut out on the baery tray
to the ridge inside of the baery
compartment.
Slide the tray back into the baery
compartment. The keypad will beep
once when baeries are successfully
installed.
RELEASE TAB
NOTCH SHOULD
BE IN THE BACK.
NOTCH MUST BE IN BACK
WHEN INSERTED INTO THE
COMPARTMENT.
IMPORTANT: Consult your local hardware retailer for proper hardware for your desired mounng surface.
7

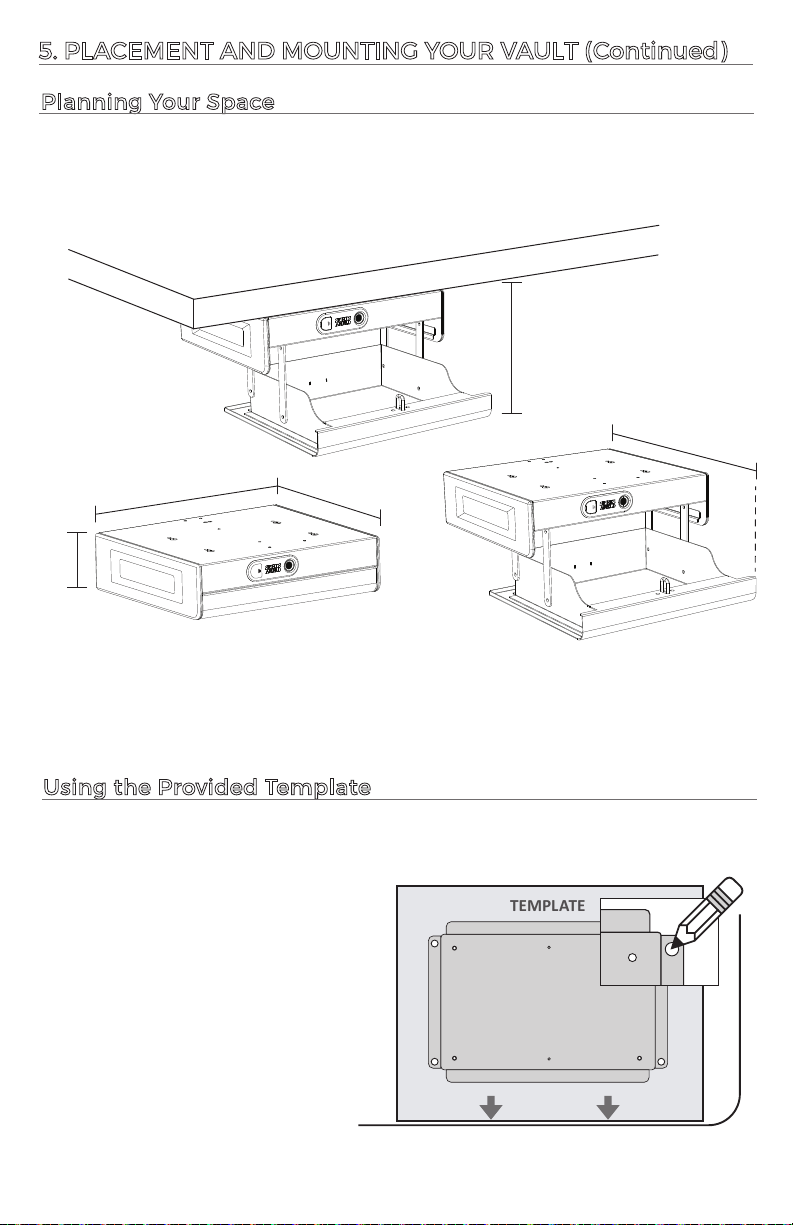

Planning Your Space
5. PLACEMENT AND MOUNTING YOUR VAULT (Continued)
The provided screws are designed for mounng to surfaces of 1/2 inch or thicker.
If your surface is less than 1/2 inch thick, different mounng hardware is needed.
This vault is intended to be mounted under a surface of your choice. Some possibilies
include under your desk, under a bench, under a cabinet or any other locaon that is
convenient for you. Before beginning the process, take a moment to review the size of
your vault and evaluate that you will have enough space for the drawer to drop open.
NOTE: THIS VAULT REQUIRES
9” OF CLEARANCE.
WARNING: TO AVOID DANGER
OF THE DEVICE CLOSING ON
YOUR FINGER, USE CARE WHEN
HANDLING THE VAULT SIDES.
In order to mount the vault flush to the edge of your desk or desired surface, use
the provided template and complete the following steps for mounng. Keep in
mind, when the vault drawer is fully open it will extend 6” beyond the edge of your
desk so that you may easily and quickly access the contents.
Align the template with the front edge
of your or chosen surface. Use a pencil
to mark the locaon of the (4) holes.
Drill pilot holes on marked locaons.
Line up the mounng plate with
pilot holes and hold in posion.
While connuing to hold, using a
screwdriver or power drill, fasten
the plate to the surface using
provided screws.
1.
2.
3.
4.
Using the Provided Template
FRONT EDGE OF DESK OR CHOSEN SURFACE
TEMPLATE
14” 12”
33/4”
18”
9”
8

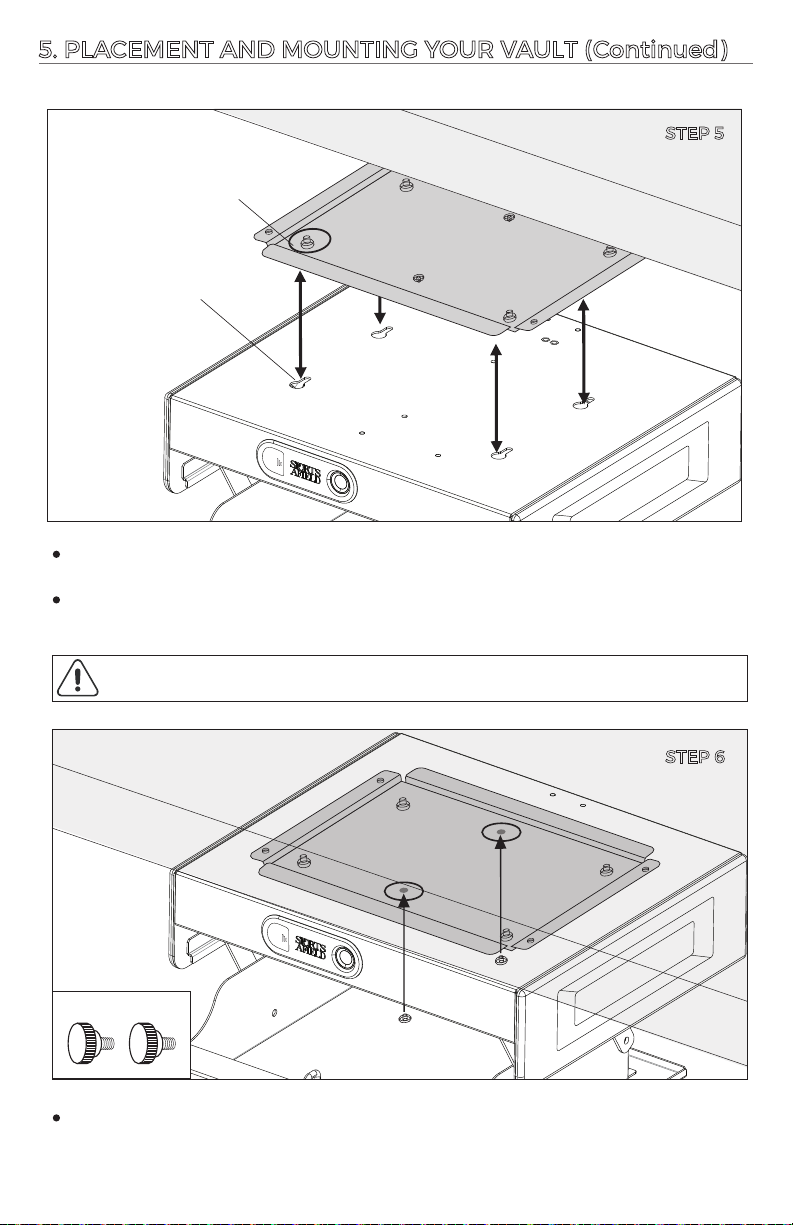

Locate the (4) mounng studs and the (4) keyhole slots on top of unit.
With the unit opened, align all 4 mounng plate studs with the key hole slots, push
head of mounng studs through key hole slots and slide the unit forward to engage.
Locate the (2) thumb screw holes on the top, inside of the vault. Hold the unit in
posion and use (2) thumbscrews to fasten the unit to the mounng plate.
MOUNTING
STUDS
KEYHOLE
SLOTS
MOUNTING PLATE AND
VAULT ARE NOW FASTENED
TO THE SURFACE.
THUMBSCREWS
5. PLACEMENT AND MOUNTING YOUR VAULT (Continued)
UNIT IS NOT YET FULLY SECURE. DO NOT OPERATE UNIT COMPLETING STEP 6.
STEP 5
STEP 6

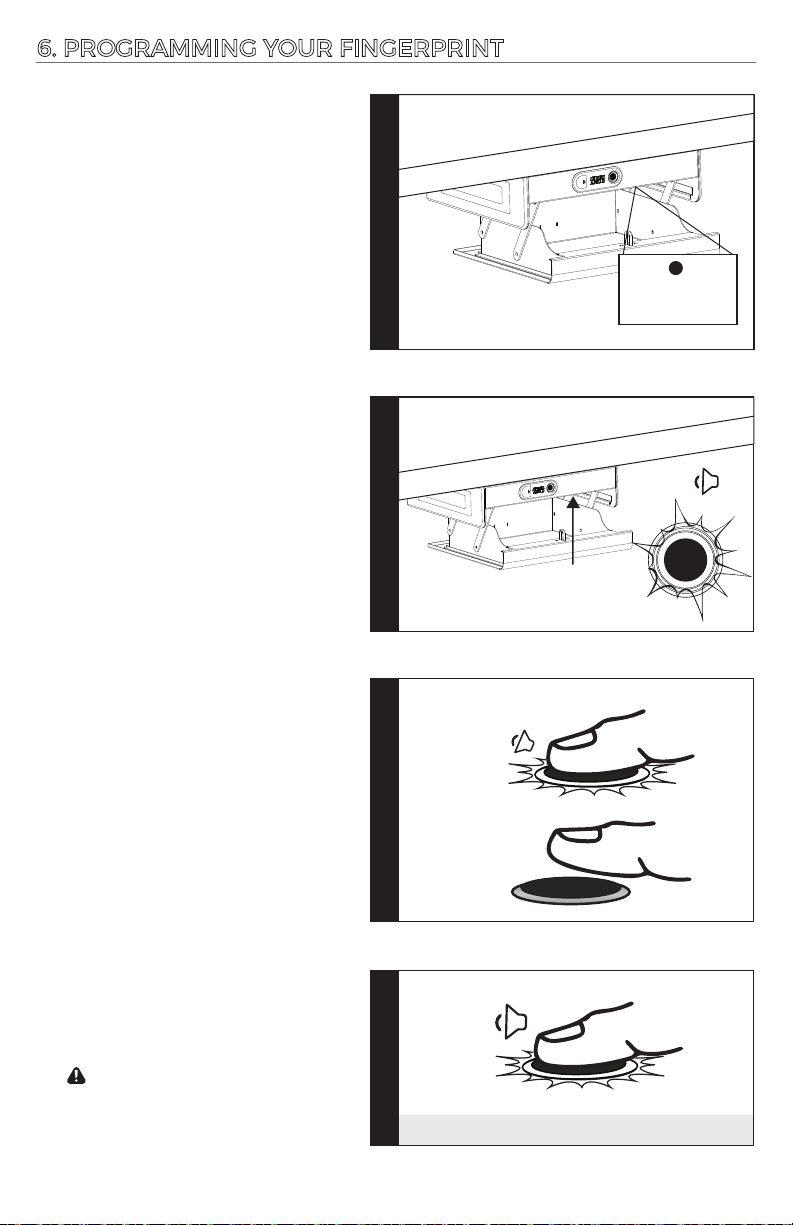

6. PROGRAMMING YOUR FINGERPRINT
9
Step 1
1. Behind the front panel, inside the
right hand side of the vault, you
will find a reset buon.
2.
Press the reset buon to start the
programming process. You will
hear one beep and the indicator
ring will illuminate on the front of
the door
.
NOTE: Recording mode will me out
aer 10 seconds of inacvity. If this
occurs press reset buon and begin
again.
3. Place and hold the pad of your
finger on the scanner unl it flashes
green and beeps one me.
4. Repeat at least 3 more mes unl
there are 2 consecuve beeps and
2 green flashes.
IMPORTANT: Be sure to
use the same finger for each
recording sequence.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
Step 2Step 3Step 4
BEEP
2 BEEPS + 2 GREEN FLASHES = SUCCESS!
RESET BUTTON IS
LOCATED BEHIND
THE FRONT PANEL
PRESS THE
RESET BUTTON
