GROUNDING INSTRUCTIONS
Thisproductmustbegrounded.Intheeventofanelectrical
shortcircuit,groundingreducesthe riskofelectricshockby
providing an escape wire for the electric current. This
product is equipped with a cord having a grounding wire
with an appropriate grounding plug. The plug must be
pluggedintoanoutletthatisproperlyinstalledandgrounded
in accordance with all local codes and ordinances.
Ifrepairorreplacementofthecordorplug isnecessary,do
not connect the green grounding wire to either flat blade
terminal. The wire with insulation having an outer surface
that is green with or without yellow stripes is the grounding
wire and must be connected to grounding pin.
Check with a qualified electrician or serviceman if the
groundinginstructions arenot completelyunderstood, orif
indoubtastowhethertheproduct isproperlygrounded.Do
not modify the plug provided; if it will not fit the outlet, have
the proper outlet installed by a qualified electrician.

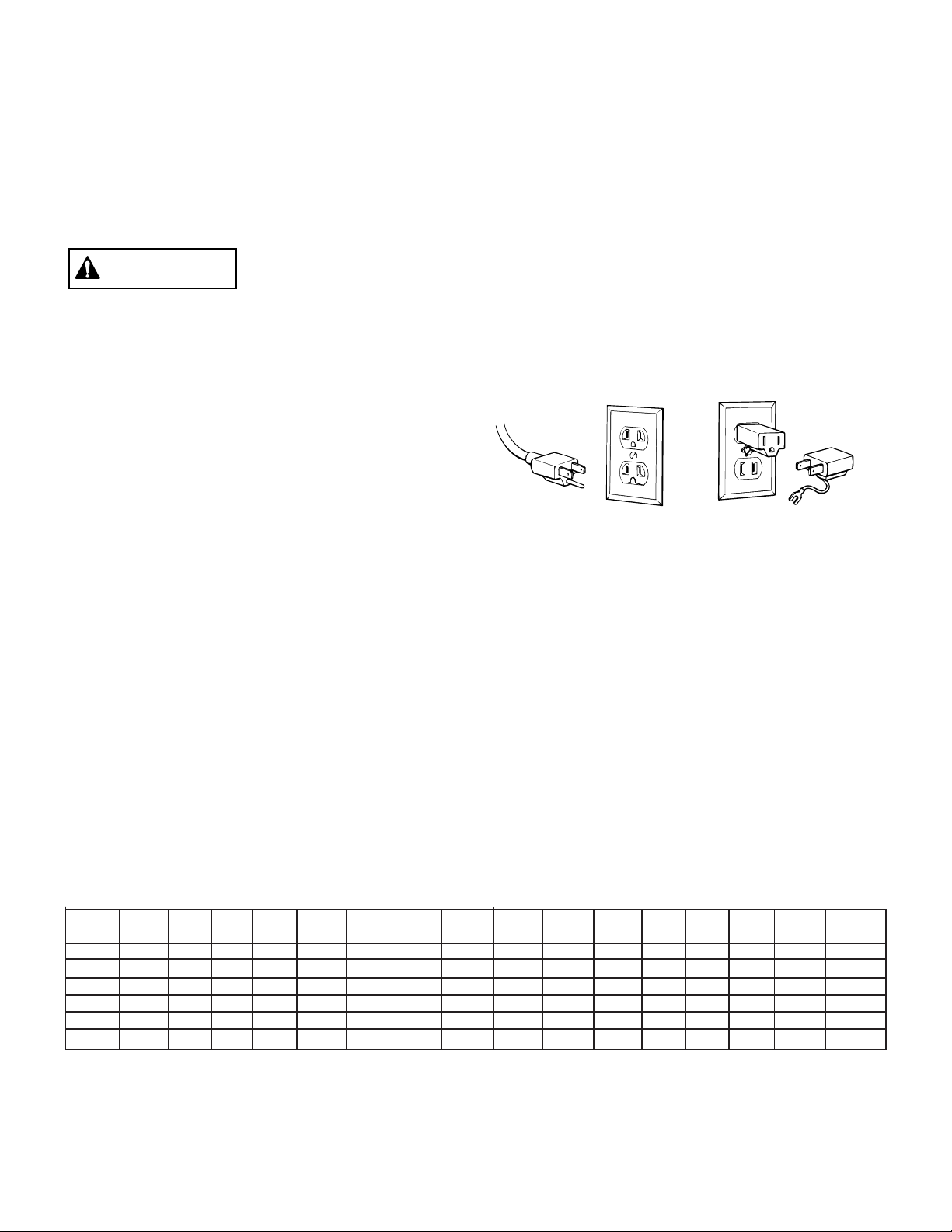

Thisproductisforuseonanominal120voltcircuit,andhas
agrounding plugthat lookslike plugillustrated in sketch A.
Atemporaryadapterwhichlooksliketheadapterillustrated
in sketch B and C, may be used to connect this plug to a 2
polereceptacleasshowninsketchBifaproperlygrounded
outlet is not available. The temporary adapter should be
usedonlyuntilaproperlygroundedoutlet(sketchA)canbe
installed by a qualified electrician. The green colored rigid
ear lug, or the like extending from the adapter must be
connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used,
it must be held in place by a metal, screw.
(A)
(B)
(C)
WARNING
Improper installation of the
grounding plug can result in a
risk of electrical shock.
IMPORTANT
EXTENSION CORD SELECTION
If an extension cord is used, make sure it is of the three-conductor type with NEMA connectors so a continuous grounding circuit is
providedfrom toolto powercircuit receptacle.Also, besurethat theconductor sizeis largeenough toprevent excessivevoltagedrop
which will cause loss of power. A table of recommended extension cord sizes will be found below.
For nameplate ampere ratings which are between those given, use the extension cord recommended for the NEXT higher ampere
rating.
If an extension cord is to be used outdoors it must be marked with the suffixi W-A following the cord type designation. For example
— SJTW-A to indicate it is acceptable for outdoor use.
RECOMMENDED EXTENSION CORD SIZES FROM SERVICE ENTRANCE TO PUMP MOTOR.
NAMEPLATE AMPERE RATING
Cord
Lgth. 0 to 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
25Ft. 18 18 18 18 18 18 16 16 16 14 14 14 14 14 12 12
50Ft. 18 18 18 18 18 18 16 16 16 14 14 14 14 14 12 12I
25Ft. 18 18 18 18 18 18 16 16 16 14 14 14 14 14 12 12
100Ft. 18 18 18 16 16 16 16 16 14 14 14 14 14 14 12 12
125Ft. 18 18 16 16 16 14 14 14 14 14 14 12 12 12 12 12
150Ft. 18 16 16 16 14 14 14 14 14 12 12 12 12 12 12 12
