SpyCameraCCTV VX4SL Manuale utente

SpyCameraCCTV.com

Thank you for purchasing our 4CH duplex DVR. Please read this User Manual carefully to ensure that you

can use the device correctly and safely.

Please take actual machine model number as quasi to validate DVR specification.

The contents of this Manual are subject to change without notice.

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

TABLE OF CONTENTS

1. INTRODUCTION ............................................................... 3

2. DVR FEATURES ............................................................... 3

3. PHYSICAL UNIT .............................................................. 3

3.1 Front Panels (Please take actual machine model as quasi)............... 3

3.2 Rear Panel (Please take actual machine model number as quasi).......... 4

3.3 Remote Control (optional).............................................. 5

4. GETTING STARTED ............................................................ 7

5. HARDWARE SETUP ............................................................. 8

5.1 Hard Disk Drive Installation........................................... 8

5.2 Monitor Connection..................................................... 8

5.3 Camera Connection...................................................... 8

5.4 Mouse Connection (Only for some models)................................ 9

5.5 DVR Power Connection................................................... 9

6. SETUP ..................................................................... 10

6.1 Camera ............................................................... 12

6.2 Record ............................................................... 12

6.3 Alarm (optional)...................................................... 14

6.4 Screen ............................................................... 15

6.5 Audio (Only for some models).......................................... 16

6.6 System ............................................................... 16

6.6.1 Hard Disk Setup................................................. 17

6.6.2 Account Setup................................................... 18

6.6.3 Password Setup.................................................. 18

6.6.4 Clear Account Info.............................................. 19

6.6.5 Logout.......................................................... 19

6.6.6 Keypad Tone..................................................... 19

6.6.7 Time Set........................................................ 19

6.6.8 Event List...................................................... 20

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

6.6.9 F/W Upgrade ............................................................................................... 20

6.7 Language............................................................................................................... 21

6.8 Logout.................................................................................................................... 21

6.9 Exit......................................................................................................................... 21

7. VGA SET (optional) ........................................................................................................ 22

8. PLAYBACK WITH TIME SEARCH FUNCTION.............................................................. 22

9. BACKUP via USB memory stick..................................................................................... 22

10. RECORDING LENGTH ................................................................................................ 24

11. PLAYBACK WITH BACK-UP VIDEO DATA ON PC..................................................... 24

11.1 Install ................................................................................................................... 24

11.2 Program Interface................................................................................................ 24

11.3 Button Function ................................................................................................... 25

12. APPENDIX ................................................................................................................... 29

12.1 Fitting Come Along With DVR (Please take actual machine model number as

quasi)........................................................................................................................... 29

12.2 Model VOC 4CH DVR series used the compatible USB Stick............................. 30

12.3 Specification..........................................................................................................31

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

1. INTRODUCTION

THE VX4SL system provides total video security solution for 4-channel digital surveillance

system supporting duplex (simultaneous playback and record) functionality.

Either front panel buttons or remote control unit or mouse can operate all DVR menu setting.

The functionality of each button both on remote control or front panel is exactly same.

Note: Front panel and rear panel are different due to machine model.

2. DVR FEATURES

● True Duplex Functionality: Simultaneous Play/Record.

● PAL/NTSC Optional.

● High Quality Color Video at 50fps or 60 fps Recording/Playback.

● Display Resolution: PAL 704*576; NTSC 704*480.

● Recording Resolution: PAL 640*288(Half D1); NTSC 640*240(Half D1).

● Recording Speed: PAL max. 50 fps (Quad); NTSC max. 60 fps (Quad).

● Recording Mode: Continuous, Motion Detection, Time Schedule.

● 15 days continue recording at 25 fps with 500GB HDD.

● Recording and Compressing Video Signal Real Time.

● With USB port for media backup via HDD Avg. 200KB/Sec.

● With Motion Detection and Video Loss Alarm Function.

● OSD: Support Multi-language.

● With Power Recovery Auto-record Function.

3. PHYSICAL UNIT

3.1 Front Panels (Please take actual machine model as quasi)

Front panels are different in term of different machine model.

●IR Remote Receiver (optional)

●LED Light

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

(a) GREEN (PWR): The DVR unit is powered up and running.

(b) RED (HDD): System is in Recording Mode or in Playback Mode.

●USB PORT

Use this port to backup with USB disk.

Note: For some machine model USB port is on the rear panel.

●PS/2 MOUSE PORT (optional)

Use this port for PS/2 mouse connection. If you have USB port mouse, use USB - PS/2

adapter to connect with this port.

Note: For some machine model PS/2 Mouse port is on the rear panel.

●HDD BOX Press-button (optional)

●HDD Lock (optional)

Some DVR is provided with touch-tone front panels. A series of button on DVR front panel

make a system to operate its basic functions, such as recording, playback, fast-forward,

reverse, etc. For more details about the DVR menu, refer to “6. SETUP”.

The front key panel function is the same as remote control (refer to “3.3 Remote Control”).

3.2 Rear Panel (Please take actual machine model number as quasi)

●AUDIO OUTPUT (Only for some models)

Use “AUDIO OUT” port for speaker (mono) connecting. And this port is audio output for

playback.

●AUDIO INPUT (Only for some models)

Use “AUDIO IN” port for microphone connection. If signal audio input is from channel 1,

there will be audio output in channel 1 view and quad view. If signal audio input is from

channel 2、channel 3 or channel 4, there won’t be audio output until in channel 2 view、

channel 3 view or channel 4 view.

●VIDEO INPUT

Use this BNC port to connect cameras to DVR system. You might need BNC adapter for

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

each (CH1-CH4) camera connection.

●VIDEO OUTPUT

Use this port to connect DVR to the monitor.

●AC-DC POWER ADAPTER JACK

Connect the power adapter into DVR and plug the power cable into the wall.

Some DVR models do not have a power adapter so you may not see this. In case, just plug

power cable from the behind the DVR into the wall. Below is the information of input/output

voltage for the power adapter.

[Input: AC 100-240V, 50/60Hz, 1.5A / Output: DC +12V == 3A]

●Fan

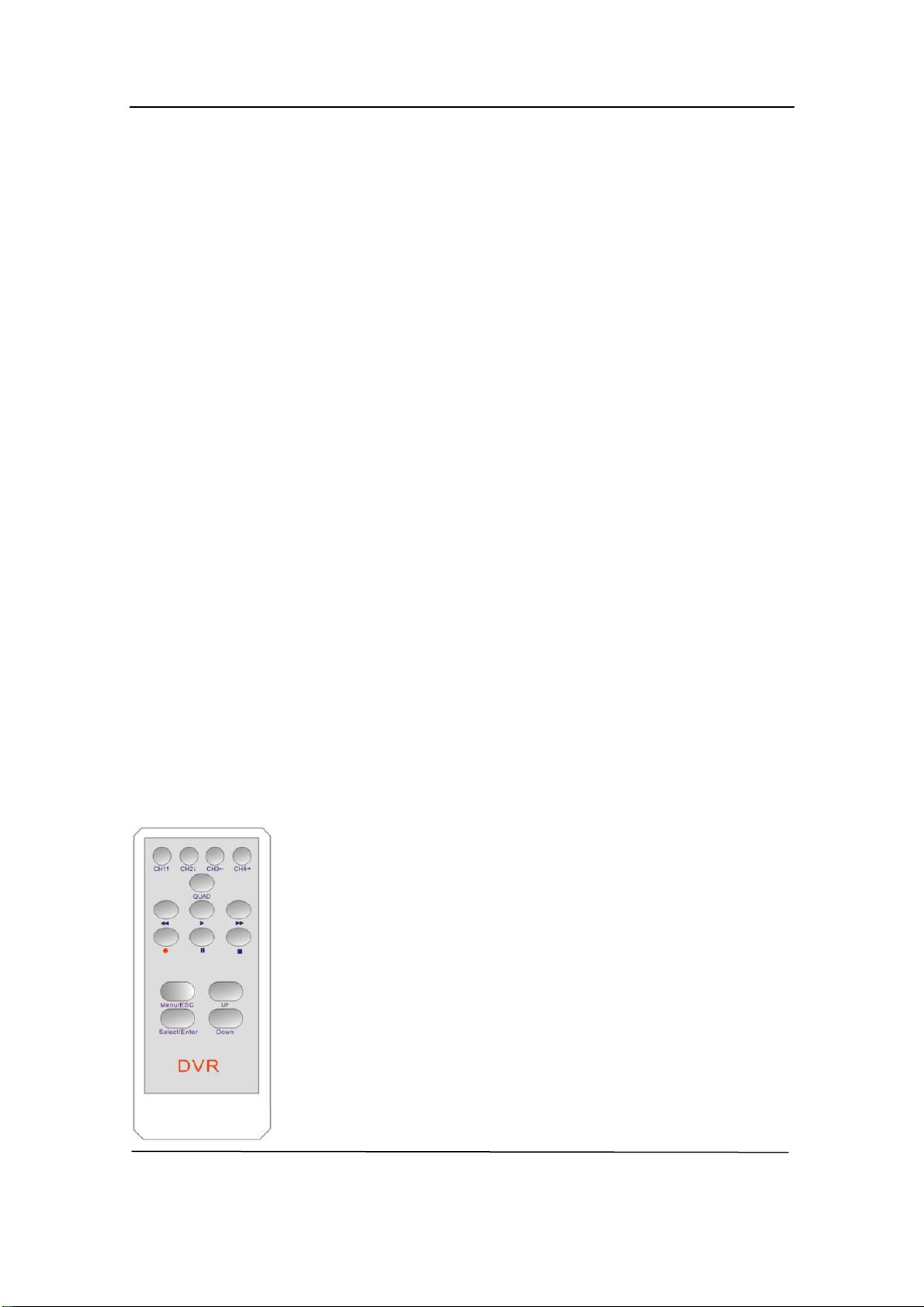

3.3 Remote Control (optional)

A series of button on DVR remote unit make a system to operate its basic functions, such as

recording, playback, fast-forward, reverse, etc. For more details about the DVR menu, refer

to “6. SETUP”.

⑴CH1↑

Use this button for full screen display for channel 1 on the monitor or move the cursor up.

⑵ CH2↓

Use this button for full screen display for channel 2 on the monitor or move the cursor down.

⑶ CH3←

Use this button for full screen display for channel 3 on the monitor or

move the cursor left.

Also user can press this button to reduce value when adjust

parameters.

⑷ CH4→

Use this button for full screen display for channel 4 on the monitor or

move the cursor right.

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

Also user can press this button to increase value when adjust parameters.

⑸ Quad

Use this button for full screen display for quad display on the monitor screen. If you push this

button, DVR will display all 4 channels (cameras) at the same time in quad screen.

⑹ ● (REC)

Press “REC” button to start manual recording. Then you will see this mark ‘●’ on the

selected channel of the screen, which means that the channel is now recording.

To stop manual recording, press “REC” again during recording mode.

⑺■(STOP)

To stop playback, press the “STOP” button.

⑻►(PLAY)

After recording, press “PLAY” button to start video playback.

Playback will start with the oldest unread video data and then continue playing.

⑼►►(FWD)

This is the fast forward button. To play the recorded stream faster, press the “FWD” button.

There are three levels of fast forward playback speed.

(a) FF 1 (►►) : Play two times faster (x2) than the normal play.

(b) FF 2 (►►►): Play three times faster (x3) than the normal play.

To change the fast forward play back speed level, press the “FWD” button again.

⑽◄◄(REW)

This is the rewind button. To play the recorded stream backward, press the “REW” button.

[NOTE]: The fast forward and reverse playback speeds will vary depending on the frame

rate and record quality settings, as well as the number of channels recorded.

⑾ ▍▍(PAUSE)

To pause the video playback, press the “PAUSE” button. Then the video displaying will be

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

stopped.

To continue playback, push the “PLAY” button.

⑿Menu / ESC

It displays menu option or will be to the previous.

⒀UP / DOWN

To change a menu field, use the “UP” or “DOWN” buttons.

⒁Select /Enter

Use this button to change values on main menu or sub menu setting. Also use can use this

button to increase value when adjusting parameters.

4. GETTING STARTED

Install a hard disk drive into your DVR.

Connect DVR to monitor.

Connect cameras (up to 4) to DVR.

Connect other peripheral devices (mouse, USB Drive) if necessary. And PS/2 Mouse must

be connected to DVR before startup system.

Connect the power adapter into DVR to turn on the DVR.

Start TV Monitoring and Recording.

Make sure that a hard disk drive and camera(s) are properly installed.

If a removable HDD rack is used in DVR, after installation of hard drive, the hard drive

drawer must be locked with key.

If a fixed HDD rack is used in DVR, after installation of hard disk drive, the hard disk drive

must be fixed tight enough with bolts.

If the power is turned off while recording (i.e. a power failure), the DVR will enter “Power

Recovery” modes at start up, detect that it has been shut down, and then reinitiate the

recording process.

SpyCameraCCTV.com

Operation Manual-4CH Duplex DVR

5. HARDWARE SETUP

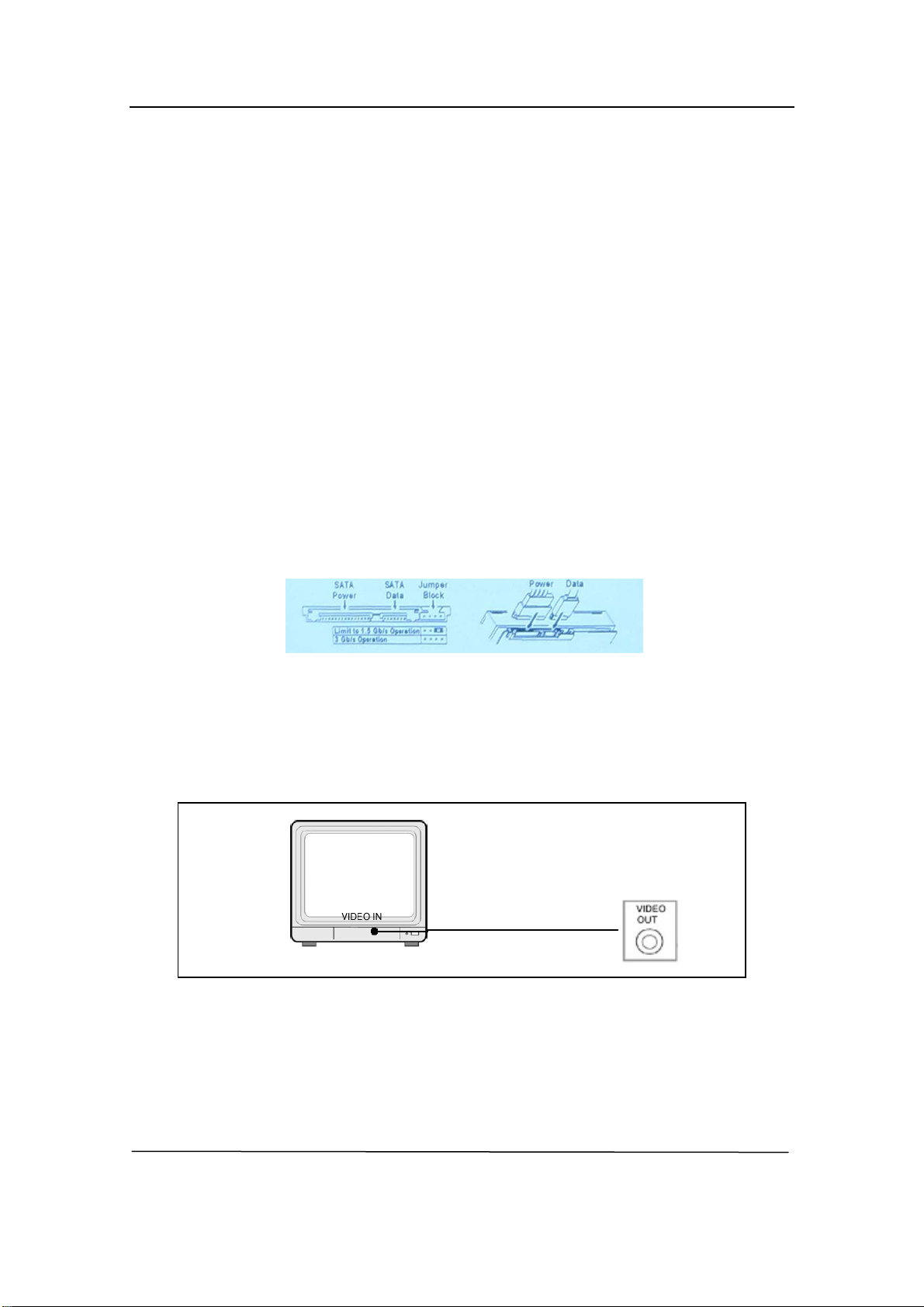

5.1 Hard Disk Drive Installation

The method of hard disk drive installation is different according to different DVR. Some DVR

is built in fixed HDD rack and some DVR is built in removable HDD rack.

If building in fixed HDD rack, user must draw out the cover of DVR first. Then install a HDD

into DVR, and for some type DVR the HDD is need to fix into the bottom.

If built in removable HDD rack, user must draw out the HDD rack first. Then install a HDD

into HDD rack.

Connect power cord and data cable to hard disk drive. (HDD is recommend to be provided

by user)

Connect the cables as follows.

5.2 Monitor Connection

To display video image from cameras on the monitor, the DVR’s video output signal should

be transferred to your TV set or monitor.

Connect a monitor with the

“VIDEO OUT” port on DVR

Connect “VIDEO IN” of the monitor to “VIDEO OUT” of the DVR system.

5.3 Camera Connection

Connect between “VIDEO IN” of your DVR and “VIDEO OUT” of camera with video cable

Indice

Altri manuali SpyCameraCCTV Registratore digitale

SpyCameraCCTV

SpyCameraCCTV SPYZ15 Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
