Spypoint TINY-HD Manuale utente
Digital Surveillance Camera
Système de surveillance photographique
Fotografisches Überwachungs system
TINY-HD/TINY-7 model
Modèle TINY-HD/TINY-7
Modell TINY-HD/TINY-7
User manual /Manuel d'utilisation /
Bedienungsanleitung
www.spypoint.com
PINTSPY INTPSPY
TINY-HD TINY-7
3
English
v.1.7
English
Thank you for choosing the SPYPOINT®
TINY-HD/TINY-7 monitoring system. This manual will help
you get the most out of your new device. For the latest version
of this user manual or for additional information, visit our
website at www.spypoint.com.
45
English
English
FEATURES
Photo recording:
Photo resolution 7 MP (TINY-7)
8 MP (TINY-HD)
File format JPG
Time Lapse Predefined intervals from
30sec to 1h
Multi-shot Up to 6 pictures per detection
Stamp Date, time, temperature
and moon phase printed
on pictures
Capture mode Color by day,
black and white by night
Video recording:
Video resolution 640 x 480 (TINY-7)
1280 x 720 (720p) (TINY-HD)
File format AVI
Sequence length Adjustable from 10 to 90sec
Capture mode Color by day, black
and white by night
Sound recording: Automatically recorded
in video mode
Memory storage: SD/SDHC card up to 32 GB
(No internal memory)
Configuration/Viewing:
Built-in LCD screen 2.4'' configuration screen
(TINY-7)
2.4'' viewing screen
(TINY-HD)
TV output Composite video (PAL/NTSC)
Computer output USB 2.0
Power supply:
(accessories sold separately, see "Options")
Alkaline or lithium
batteries
6x AA
Lithium battery pack Rechargeable battery pack
(LIT-09/LIT-C-8)
External (12V jack) 12-volt battery
(KIT-12V/BATT-12V)
12-volt adapter (AD-12V)
67
English
English
Solar panel (12V jack) Solar panel (SP-12V)
combined with rechargeable
battery pack (LIT-09/
LIT-C-8)
Detection system:
Motion sensor PIR
Detection angle of the
main sensor
30°
Detection angle of the
side sensors
70°
Detection range Adjustable from 5 to 50ft
Delay between each
detection
Adjustable from 1 to 30min
*Additional 10 sec. setting
(see DELAY)
Electricity mode
(Connected to a 12V DC
Main source only)
Instant trigger time
External trigger 1/8" jack for normally
open contact
Night time illumination system:
LEDs 38 LEDs
Type Invisible Black LEDs (TINY-7)
Infrared LEDs (TINY-HD)
Exposure Automatic infrared level
adjustment
OK
BUSY
1.
2.
3.
4.
5.
6.
Optical field of view: 40°
Recommendations:
Operating temperature (-20 °C to + 50 °C)
(-4 °F to +122 °F)
Storage temperature (-30 °C to + 75 °C)
(-22 °F to +167 °F)
KIT INCLUDES
• SPYPOINT®TINY-HD/TINY-7
• Installation strap
• USB Cable
• Audio/video Cable
• User manual
REAR VIEW
89
English
English
BOTTOM VIEW
1. Power button
2. LED recording indicator
3. UP button
4. BACK button
5. OK button
6. DOWN button
7. ALK / RECH (switch for battery)
8. SD card slot
9. USB port
10. 12-volt jack
11. External trigger jack
12. TV OUT
13. Removable battery case
7.
10.9. 11.
13.
8.
12.
ConnectorConnector
Top
POWER
The battery level is shown in the REPORT mode.
(4/4 = full, 1/4= low) When the battery level shows 2/4,
the camera will continue to take pictures but we strongly
recommend changing the batteries before they are empty.
AA batteries
This camera requires the use of 6 AA batteries (1.5V). The
use of alkaline or lithium batteries is strongly recommended.
During the installation of the AA batteries, slide the switch
inside the battery case to ALK. Insert the batteries in the
battery case as indicated and insert it inside the camera (see
figure below). Exact polarity must be followed. We also
recommend the use of new batteries to ensure maximum
performance of your camera.
10 11
English
English
Lithium battery pack
This camera SPYPOINT®can be powered by a rechargeable
lithium battery pack LIT-09/LIT-C-8 (sold separately, refer to
the section OPTIONS). This type of battery is less affected
by cold temperatures and lasts up to 3 times longer than an
alkaline battery. During the installation of the lithium battery
pack, slide the switch inside the battery case to RECH. Insert
the battery in the case as indicated and insert it inside the
camera (see figure below)
PINTSPY
TM
INTPSPY
ConnectorConnector
Top
PINTSPY
TM
INTPSPY
ConnectorConnector

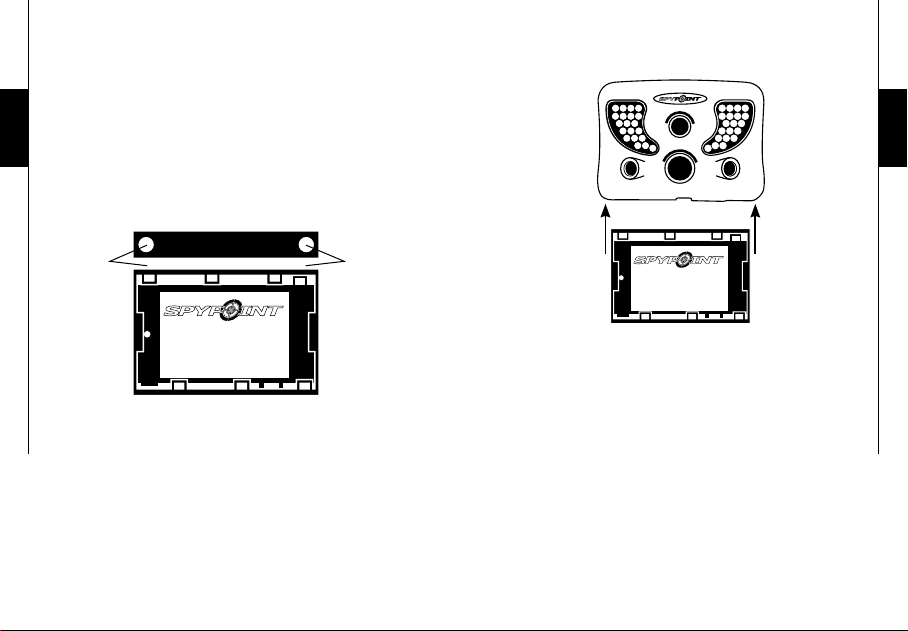

TO INSERT THE BATTERY CASE INSIDE
THE CAMERA
External (12V)
This camera can also be powered from an external 12-volt
DC input such as a 12-volt battery (KIT-12V/BATT-12V, sold
separately) or a 12-volt adapter (AD-12V, sold separately).
During the installation of a 12-volt connection, slide the switch
inside the battery case to ALK (the AA batteries can remain
safely inside the camera). If combined with a lithium battery
pack, slide the switch to RECH. For the accessories available,
refer to the section OPTIONS.
12 13
English
English
Solar panel
This model also offers the possibility of a connection to
a solar panel SP-12V (sold separately, refer to the section
OPTIONS) to maintain the charge of the lithium battery
(sold separately, refer to the section OPTIONS). During the
installation of the rechargeable lithium battery pack, slide
the switch inside the battery case to RECH to activate the
charging system of the solar panel.
Power source Switch position
• 6AA
• 12V
• 12V + 6AA
ALK
• LIT-09
• 12V + LIT-09
• Solar panel + LIT-09
RECH
MEMORY CARD
Using a memory card (sold separately, refer to the section
OPTIONS) is required to operate the camera. When the
camera is turned on, the screen displays "Insert memory
card" in PHOTO, VIDEO or TEST mode if no memory card
is used, the camera also beeps. The camera is compatible
with SD/SDHC memory card, up to 32 GB capacity. Before
inserting or removing the memory card, the camera must
be turned off. Failing to do so may cause loss of or damage
the pictures already recorded from the memory card. When
the SD card is full, the viewing screen indicates "Disk full"
when PHOTO, VIDEO or TEST mode are selected. The
following data shows an approximate quantity of photos or
video length that can be taken by the camera depending on
the memory card capacity.
RESOLUTION 2.0 GB 4.0 GB 8.0 GB 32 GB
3 MP
5 MP
7 MP
8 MP
2000
1700
1400
1200
4100
3400
2700
2400
8200
6800
5500
4800
32800
27300
21800
19000
VIDEO
RESOLUTION
2.0Go 4.0Go 8.0Go 32Go
640 x 480
1280 x 720 (720p)
65 min
20 min
2h10
40 min
4h10
1h20
16h40
5h20
"BUSY" LED
The "BUSY" light, located beside the LCD screen, lights up
when the camera records a file.
14 15
English
English
TEST
To set the camera or the distance. When TEST mode is
selected, no picture or video is recorded. Walk perpendicularly
in front of the camera. When the camera detects movement,
the light winks to indicate that normally, a photo or video
would have been recorded. If the system does not detect
the movement, increase the distance detection using the
"Settings" menu (the option "Sensitivity" allows the user to
set the sensitivity to "High", "Medium" or "Low"). You can
also realign the camera differently. Once you understand how
the device responds to detections, you can better adjust the
direction or the height of the camera.
In TEST mode, it is possible to take a picture by pressing
the OK button. The photo is saved and appears in the
VIEW mode.

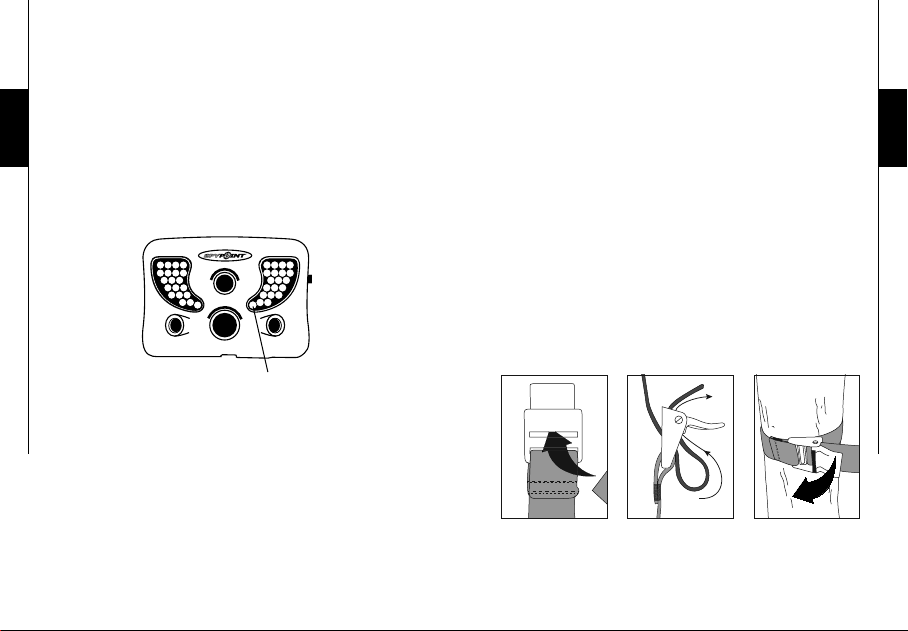

How to properly install your camera
using the supplied installation strap:
(Recommended installation height: about 3 feet).
PROGRAMMING
Turn on the camera to navigate in the interface by
pressing or and press OK for selection. To modify the
selection, press and again and press OK to confirm. To
return to the previous menu press .
To take pictures. The PHOTO mode must be selected by
pressing OK; the test light in front of the camera will flash
for 60 seconds to allow the operator to walk away from the
camera without being photographed.
VIDEO
To take videos. The VIDEO mode must be selected by
pressing OK; the test light in the front of the camera will
flash for 60 seconds to allow the operator to walk away from
the camera without being recorded.
TINY-W2s
Test light
16 17
English
English
SETTINGS
To define the options of the camera. To set the system in
English, hold the button until "Language" is highlighted.
Press OK, select "English" and confirm your choice with
OK. The system will than change all the menus to English.
Time Start /
Time Stop:
Allow the user to set the period of
operation of the camera. The start and stop
time are the hours during the camera is
in action and records pictures or videos.
Example: if the user selects a start time
"7:00 am" and a stop time "11:00 am",
the camera will only detect for that period
of time and will stay inactive for the
remaining hours. Press OK and use or
to adjust the hour. Press again OK to set
the minutes. When the time is properly set,
press OK once more to go back.
For an activation of 24 hours, the same
start and stop time must be entered
(example: 00:00 as start time and 00:00
as stop time. These hours are the basic
settings of your camera)
Note: The hours can be recorded over a
12 or 24 hours period. Refer to "Setting"/
"Time format" (00:00 means midnight).
Delay:
(10s/1m/3m/5m/
10m/15m/30m)
Select the time interval between photos or
videos.
Additional setting: It is possible to
decrease the delay between detections to
10 seconds (instead of 1 minute) by using
the following procedure. Note that the
battery life will be affected.
Turn OFF the camera. Press and hold the
button and turn the camera ON . "10sec
enabled" appears on the screen meaning
the minimum delay is now 10 seconds.
If this option is used, the 30 minute delay
disappears. To reset the camera to 1
minute delay, follow the same procedure.
"10sec disabled" appears on the screen
(see figure below)
Multi-shot:
(1/2/3/4/5/6
consecutive
shots)
Take up to 6 consecutive shots at each
detection, with a 10 second delay between
each photo. This option allows up to 6
pictures from different angles when the
camera is in PHOTO mode.
10SEC DISABLED10SEC ENABLED
10 sec delay 1 min delay
18 19
English
English
Video
length:
(10s/30s/60s/90s)
Allow the user to select the recording time
when the camera is set in VIDEO mode.
Language:
(English/Français/
Deutsch/Italiano)
Select a language for the camera menus.
Sensitivity:
(High/Medium/
Low)
Allow the user to choose between three
different levels of sensitivity: "High",
"Medium" or "Low". The camera will
only detect sources of heat in movement.
Make sure to have the least possible
objects in front of the camera during the
positioning. This prevents picture taken
by the camera when oriented towards the
sun while an object moves in front of the
camera (e.g. a branch)
Date: Set the date as Month/Day/Year
Time
format:
(12h/24h)
Allow the user to choose between a 12
or 24 hours period time displays on the
photos (eg. 6:00 pm or 18:00)
Time: Set the time as Hour/Minute
Stamp:
(Yes/No)
Select or cancel printing the date, time,
temperature and moon phases on photos.
New moon:
Waxing Crescent:
First Quarter:
Waxing Gibbous:
Full moon:
Waning Gibbous:
Last Quarter:
Waning crescent:
Resolution:
(High/Medium/
Low)
Set the photo resolution.
High: 7 MP (TINY-7)
8 MP (TINY-HD)
Medium: 5 MP
Low: 3 MP
Temperature:
(°C/°F)
Select the temperature display in °F or °C.
Continuous:
(Yes/No)
Allow the user to take pictures or videos
even if the memory card is full. The
camera will continue to record photos or
videos by deleting the first recorded files.
Questo manuale è adatto per i seguenti modelli
1
Indice
Lingue:
Altri manuali Spypoint Telecamera di sicurezza
Spypoint
Spypoint BF-8 Manuale utente
Spypoint
Spypoint BF-12HD Manuale utente
Spypoint
Spypoint HD-10 Manuale utente
Spypoint
Spypoint BF-6 Manuale utente
Spypoint
Spypoint IR-C Manuale utente
Spypoint
Spypoint TINY-W2 Guida rapida
Spypoint
Spypoint TINY-W Manuale utente
Spypoint
Spypoint IR-C Manuale utente
Spypoint
Spypoint BF-10HD Manuale utente
Spypoint
Spypoint LINK-EVO Istruzioni operative e di manutenzione
Spypoint
Spypoint TINY-W2s Manuale utente
Spypoint
Spypoint Bloodline Special Edition Manuale utente
Spypoint
Spypoint IR-A Manuale utente
Spypoint
Spypoint I-6 Manuale utente
Spypoint
Spypoint I-6 Manuale utente
Spypoint
Spypoint IR-5 Manuale utente
Spypoint
Spypoint IR-A Manuale utente
Spypoint
Spypoint Pro-X Plus Manuale utente
Spypoint
Spypoint SMART Manuale utente
Spypoint
Spypoint FL-A 2012 Manuale utente
