711 R Assembly Instruction
What‘s needed?
A clean handlebar mounted on the bike with enough space
to the Innerbarends® or the brake (at least length of the
grip), a brake cleaner, a pair of rubber gloves, safety glasses
(bike goggles are sufficient), a needle and the 711 R grip.
The 711 R is the lightest ergonomic grip on the market (59g). This is
made possible by dispensing with the clamp and the inner sleeve.
The rubber material must therefore be so tight that slipping is no
longer possible and no moisture can penetrate. This also explains
why the 711 R grip is completely closed, making installation a little
more complicated than with our existing grips. With a few tips and
tricks, however, this is easily done by anyone.
Assume the riding position by placing your hand
around the handlebars and memorizing/marking the
position of the Edge of the hand.
Place the middle row of knobs of the 711 R on the
outside at the level of the marking and note the
orientation of the grip to the handlebars.
1Step: The Preparation
Check the general 711 R position, as turning the 711 R when
mounted is only possible for a few seconds. You should also
note that the left handlebar grip is on the left side of the
handlebars and the right handlebar grip is on the right side
of the handlebars. The inscription "left" and "right" can be
seen on the grip.
3
Now pull the grip over the handlebars as quickly as
possible with twisting movements until you feel the
edge of the handlebars on the thin outside.
2Step: The Assembly
Put on gloves and safety goggles and spray sufficient brake
cleaner into the grip and onto the handlebars. Caution!
Please follow the instructions for use of the brake cleaner
and protect your eyes in particular!
Step: The Alignment
If you have successfully mounted the first grip, repeat this
for the second grip. But now press on the outside of the 711
R handle during assembly so that no overpressure occurs.
Last, small alignments are still possible for a short time.
Tip: At the height of the middle row of knobs, you can see
across, very faintly, the shape dividing line of the grip. If
this is straight and the middle row of knobs is in the right
place, the grip is optimally positioned!
4Step: If Required
Sometimes an overpressure can form on the outside of the
grip, causing the grip to bulge outwards. This occurs
because the air cannot escape through the closed grip.
You must get rid of this pressure!
To do this, take a thin needle and prick the middle of the
outside of the grip, thus allowing the air to escape. The
rubber material then closes the hole by itself and
prevents moisture from penetrating. Please make sure
that the hole is not too large when you prick the grip, this
is the only way to guarantee a good hold.
5Step
Wait about 10 minutes until the brake cleaner has
evaporated.
Questo manuale è adatto per i seguenti modelli
1
Altri manuali SQlab Accessori per biciclette
SQlab
SQlab 312 R Carbon Manuale utente
SQlab
SQlab Innerbarends 410 Manuale operativo
SQlab
SQlab M-D Series Manuale utente
SQlab

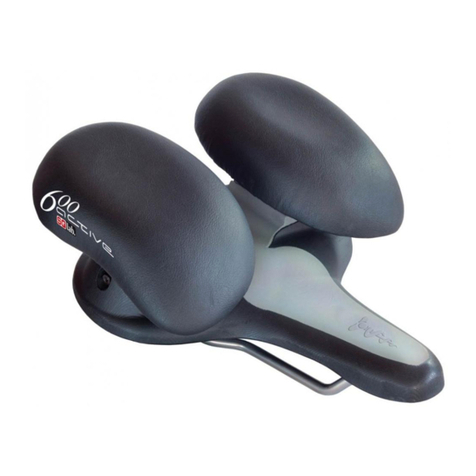

SQlab 600 active Manuale utente
SQlab

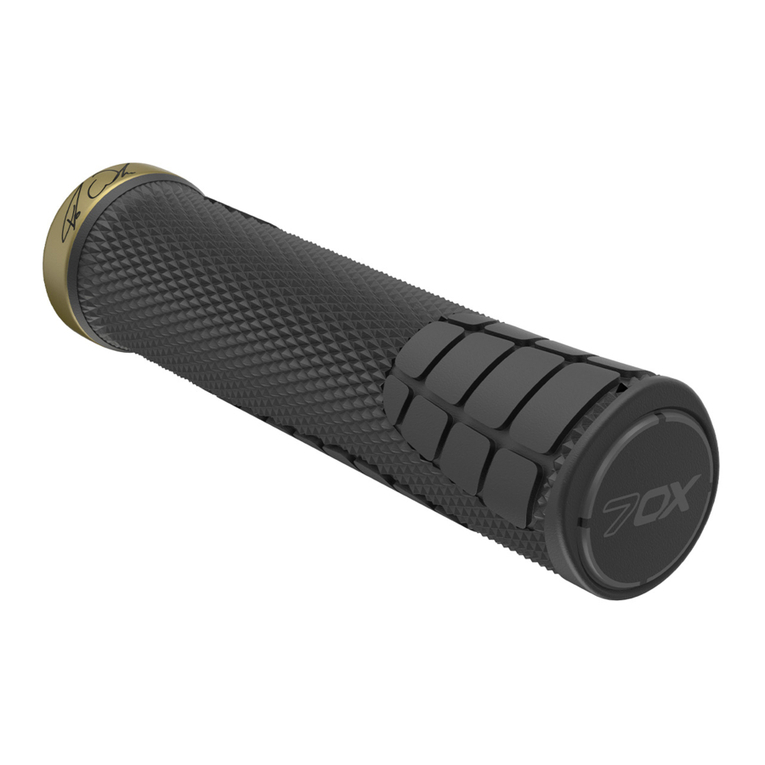

SQlab 70X Manuale utente
SQlab

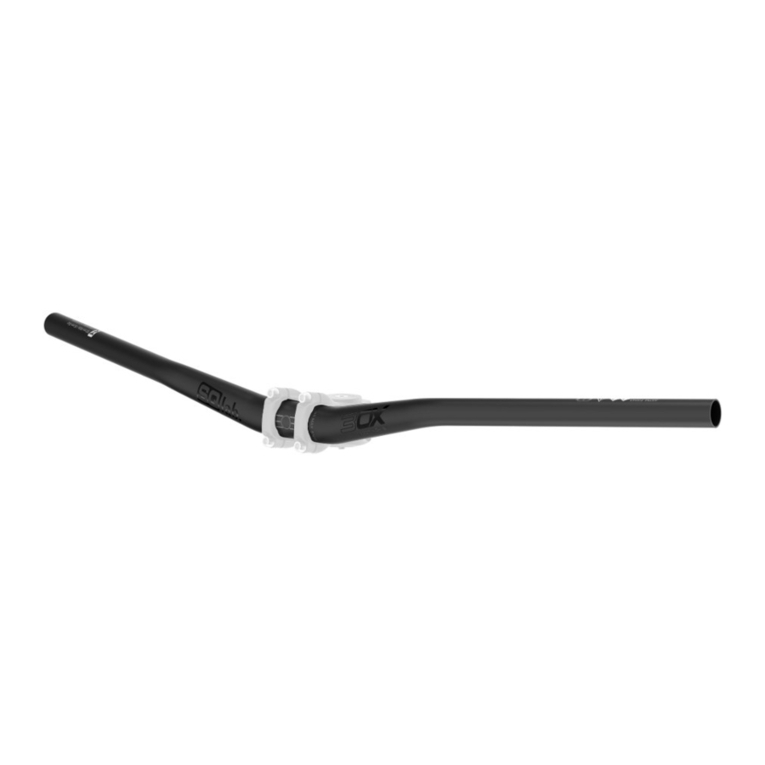

SQlab 3OX Manuale utente
SQlab
SQlab 312 R Carbon Manuale utente
SQlab
SQlab 810 3.0 Manuale utente
SQlab

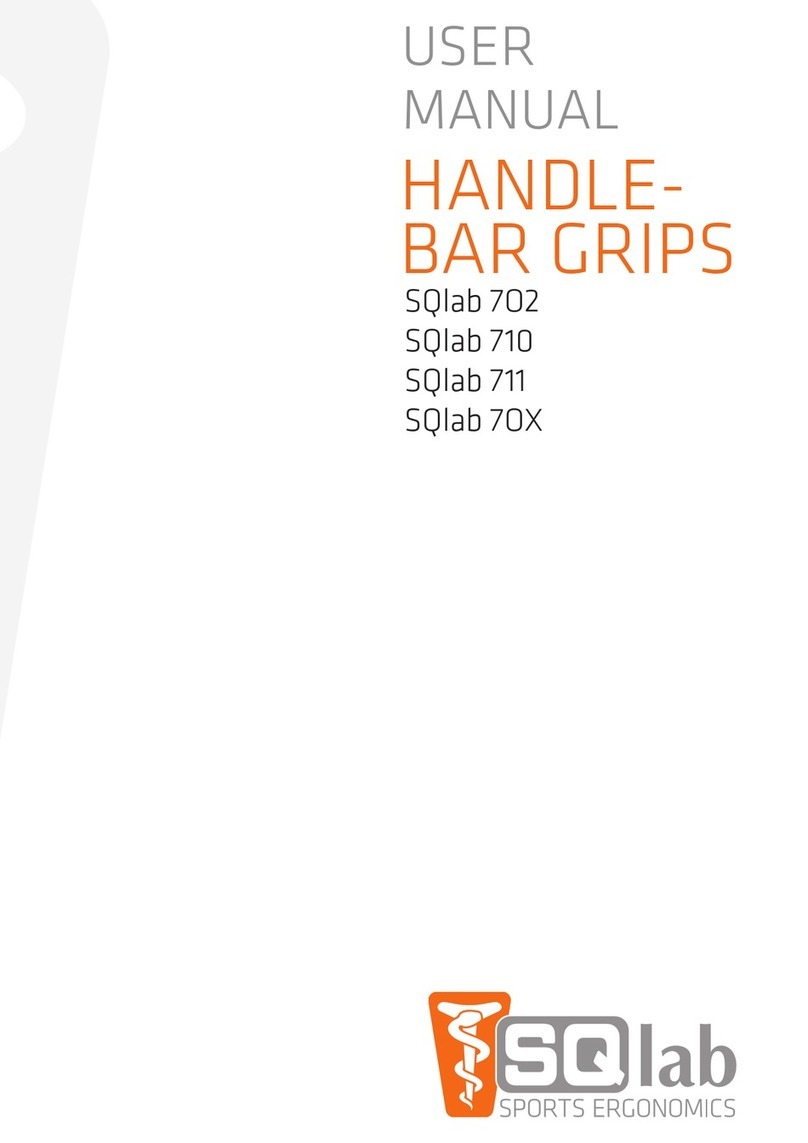

SQlab 702 Manuale utente
