GENERAL INFORMATION

0000-00

GENERAL INFORMATION

1. HOW TO READ ELECTRICAL WIRING

DIAGRAM............................................... 3

0-3

GENERAL INFORMATION

ACTYON 2008.01

0000-00

GENERAL INFORMATION

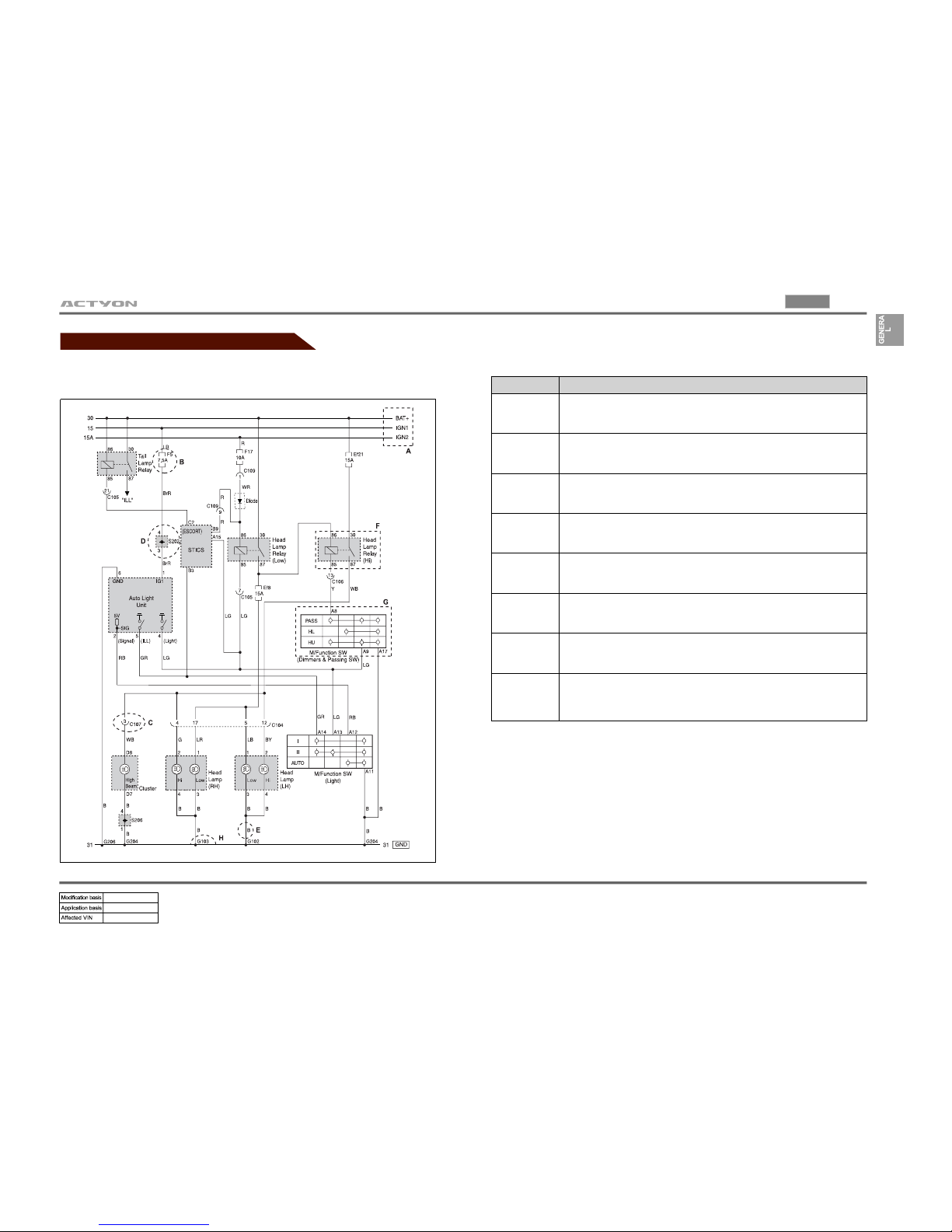

1. HOW TO READ ELECTRICAL WIRING DIAGRAM

Position Explanation

A- Upper horizontal lines : Power supply lines

- Power supply lines : 30, 15, 15A, 15C, 58

- Ef20 or F2 : Fuse Number

·Ef20 : Fuse No #20 in engine room compartment

·F2 : Fuse No #2 in passenger room compartment

- Connector (C101 ~ C903)

·Connector No C203 terminal No1

·Refer to Major Connector Position (Section 2)

D- S201 : Splice pack (S201 ~ S207)

·Refer to Major Splice Pack Position (Section2)

E- Wiring Harness Color

·Refer to Wiring Harness Color Abbreviation

F- Internal circuit of component (Relay)

(Component Name and Terminal Number)

G- Internal circuit of component (Switch)

(Component Name, Terminal Number and Connecting Wiring Circuit)

- Lower horizontal line : Ground line

·Ground position (G101 ~ G402)

·B : Body Ground

·Refer to Major Ground Position (Section2)

1) HOW TO READ ELECTRICAL WIRING DIAGRAM

2) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)

0-4

CTYON 2008.01

0000-00

GENERAL INFORMATION

3) CIRCUIT IDENTIFICATION SYMBOL

Identification Symbol Meaning

C Connector

D Diode

Ef Fuse in engine room fuse & relay box

F Fuse in passenger room fuse box

G Ground

S Splice pack (Junction connector)

5) WIRING HARNESS COLOR IDENTIFICATION

Abbreviation Color Abbreviation Color

Br Brown Sb Sky Blue

G Green R Red

V Violet L Blue

P Pink Y Yellow

W White Gr Gray

Gr Orange B Black

Lg Light Green

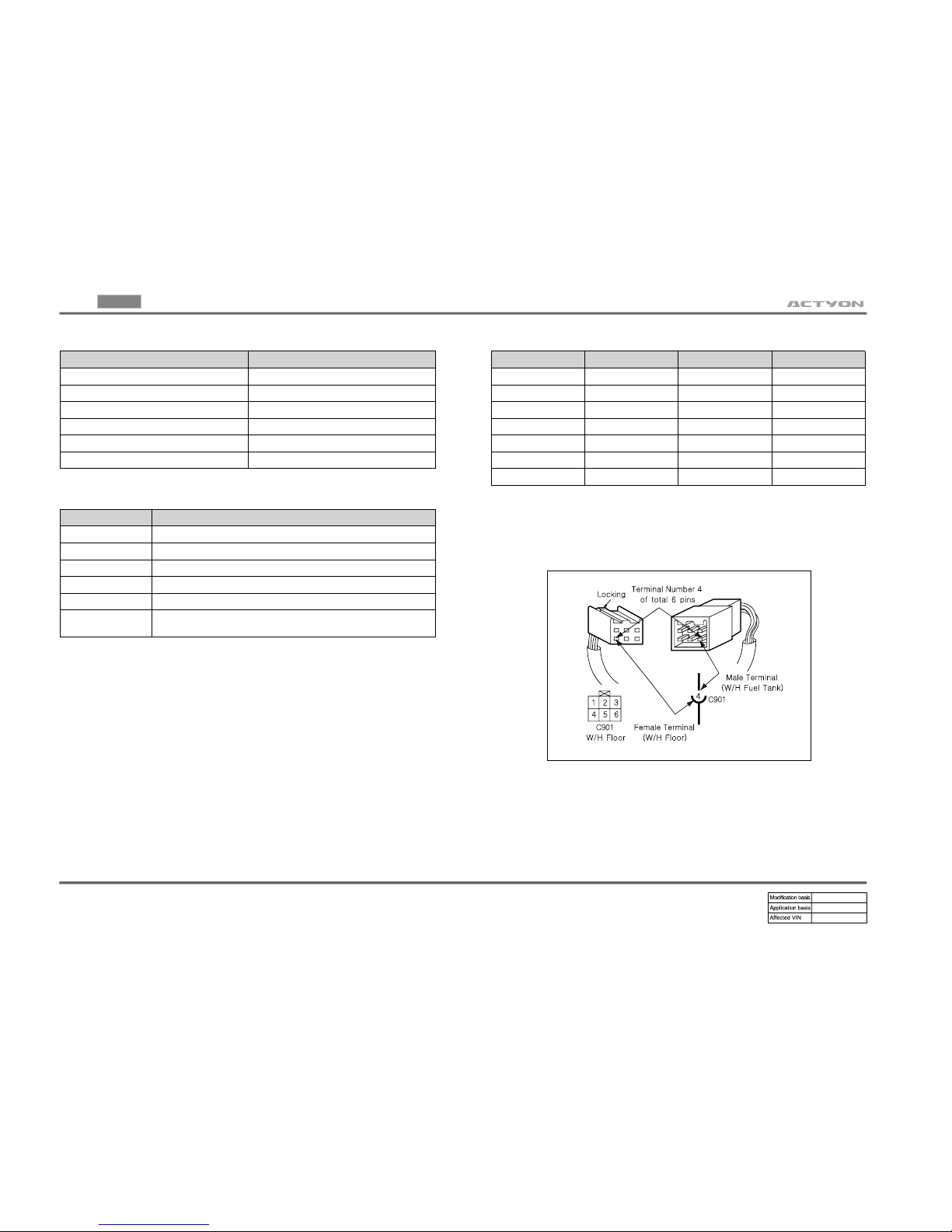

6) HOW TO CHECK TERMINAL NUMBER OF CONNECTOR

Terminal number is given based on Female Terminal Male Connector

▶

ex) Terminal Number 4 of C901 connection-

Power supply No. Power supply condition

15 Battery Voltage (B+) supply in Ignition Switch “ON” and “ST” (IGN

15A Battery Voltage (B+) supply in Ignition Switch “ON” (IGN 2)

15C Battery Voltage (B+) supply in Ignition Switch “ON” and “ACC”

30 Battery Voltage (B+) supply directly regardless of Ignition Switch

31 Ground connected to battery (-)

58 Battery Voltage (B+) supply in Head Lamp Switch 1st and 2nd step

(Illumination circuit)

4) FUNCTION OF POWER SUPPLY LINE (NUMBER)

0-5

GENERAL INFORMATION

ACTYON 2008.01

0000-00

7) PART LOCATION ACCORDING TO PART NUMBER

Ex.) C 1 0 2

▶

C : Symbol character for connector-

Symbol Character Description

C Connector (Connecting part that connects two wiring harness)

D Diode

G Ground

S Splice pack (Joint connector that connects various wiring harness)

1 : Part location number-

Part number according to locating section-

Part Numbe Location

□ 1□□ Engine compartment

□ 2□□ Instrument panel

□ 3□□ Passenger compartment

□ 4□□ Tailgate

□ 5□□ Underbody

In the locating section, the assignment for part number startsfrom left bottom and

proceeds clockwise.

In the fuse and relay box or the instrument panel, the partnumber is assigned from

left top to light bottom.

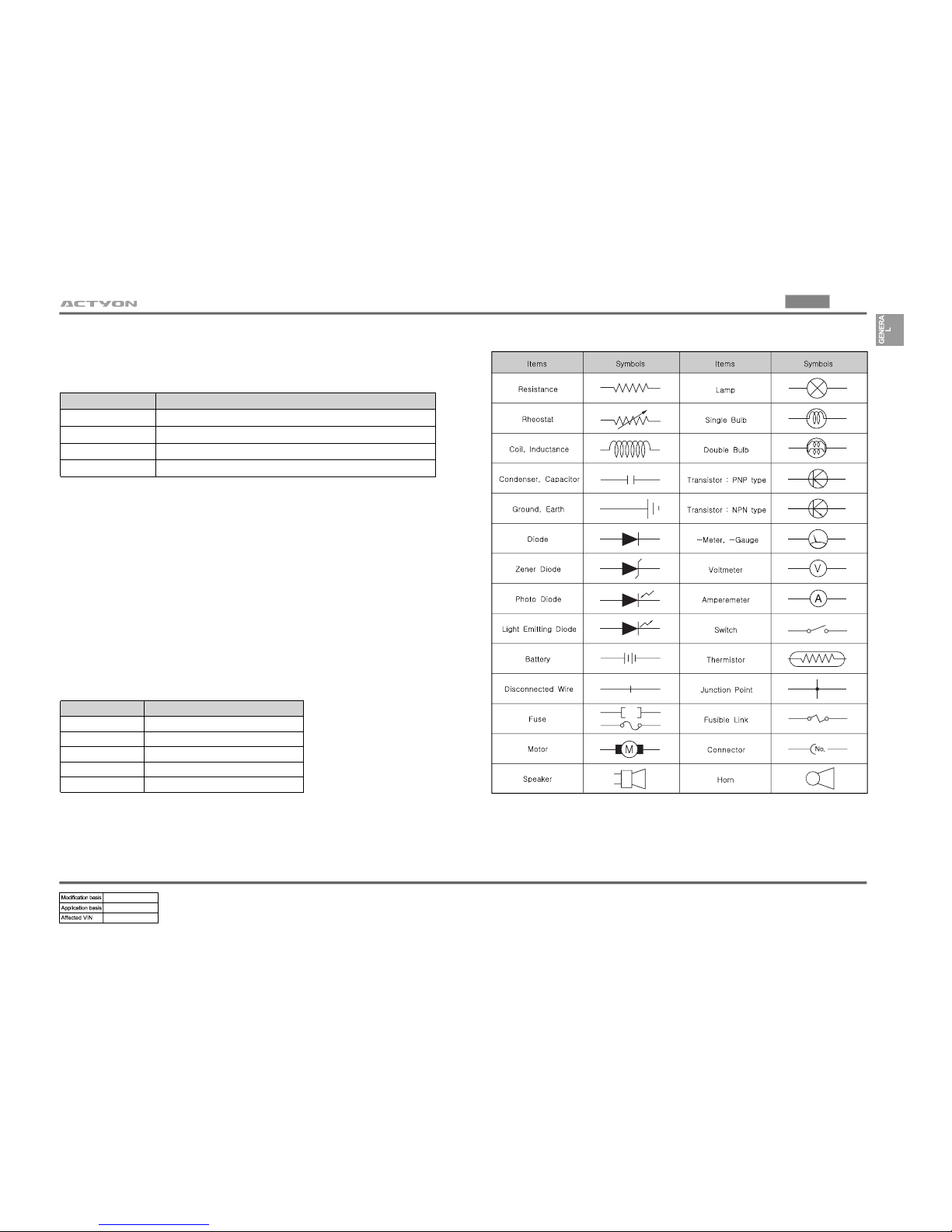

8) ELECTRIC SYMBOLS

CONNECTOR/GROUND

8201-00

CONNECTOR/GROUND

WIRING

8201-00 WIRING HARNESS,

COMPONENTS LOCATION.........

0-3

CONNECTOR/GROUND

ACTYON 2008.01

8201-00

WIRING HARNESS

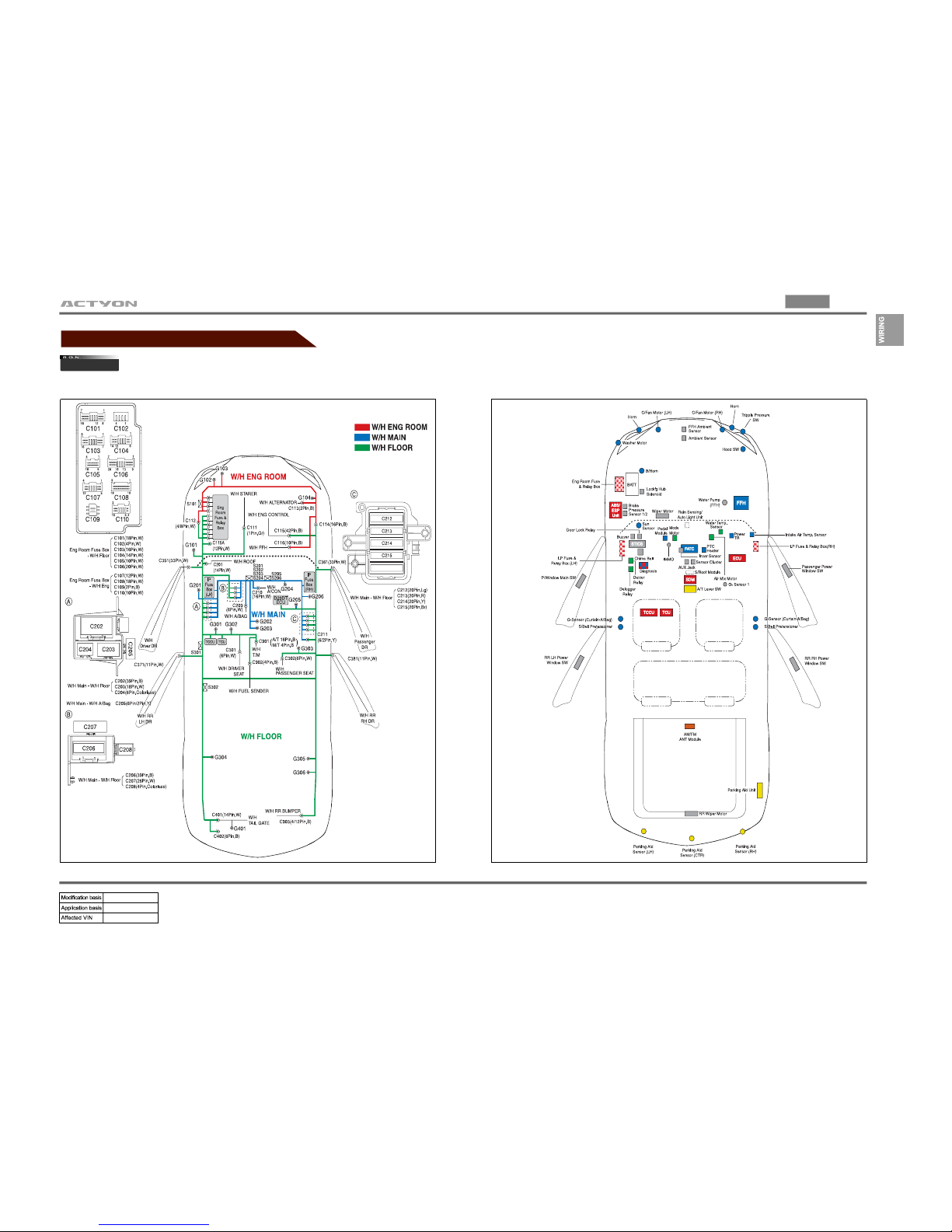

8201-00 WIRING HARNESS, COMPONENTS LOCATION

1) WIRING HARNESS 2) COMPONENTS LOCATION

0-4

CTYON 2008.01

8201-00

CONNECTOR/GROUND

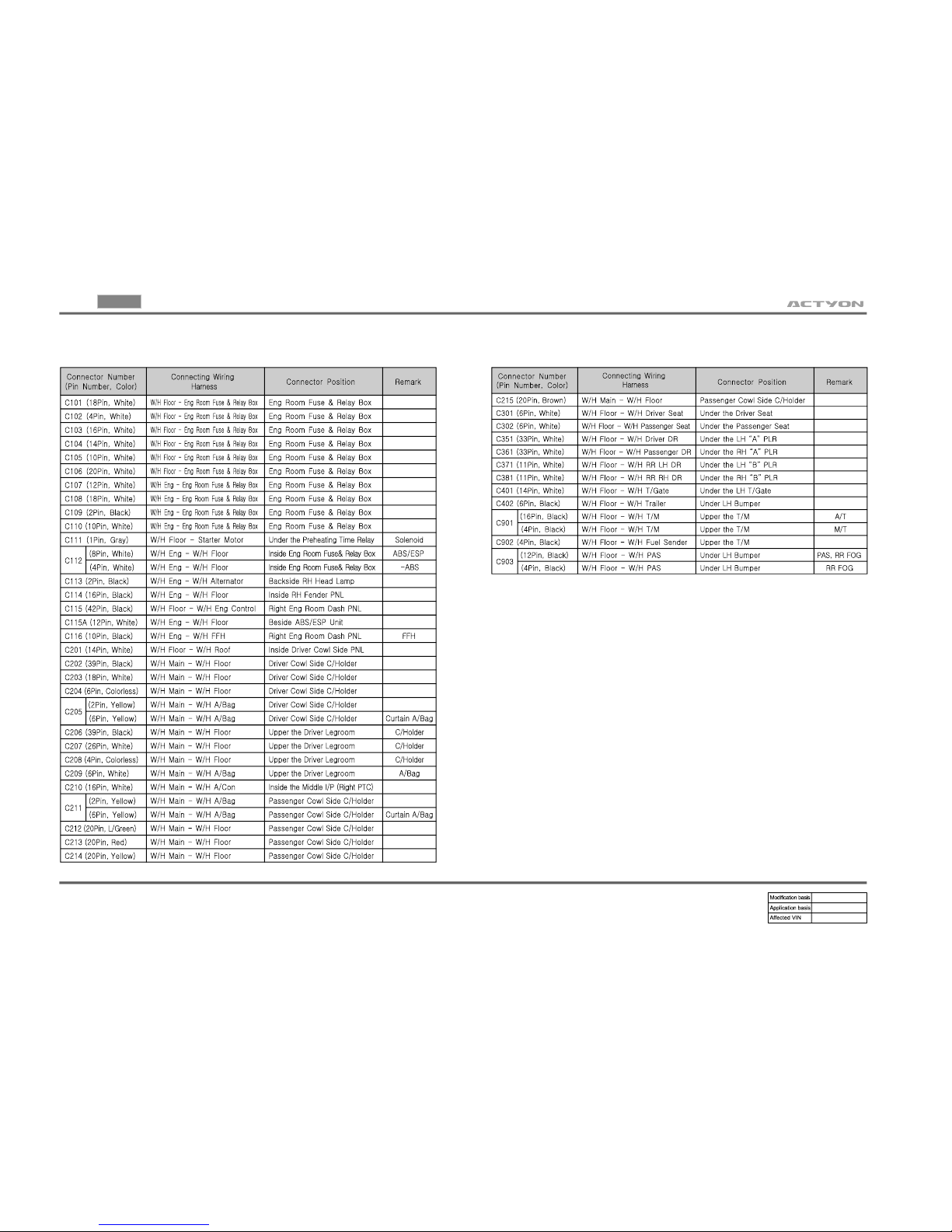

3) CONNECTOR, GROUND & SPLICE PACK INFORMATION

CONNECTOR

▶

0-5

CONNECTOR/GROUND

ACTYON 2008.01

8201-00

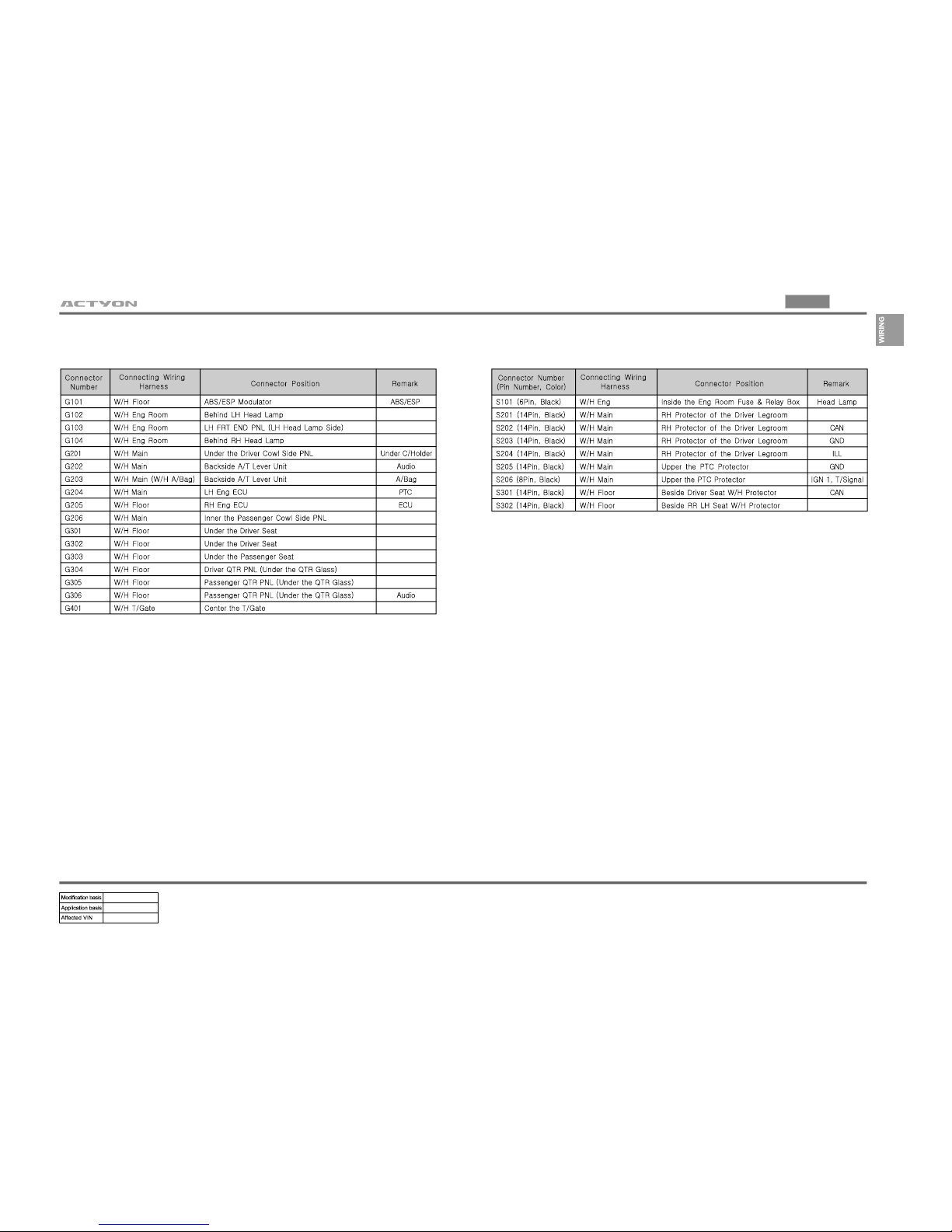

GROUND

▶SPLICE PACK

▶
