Introduction

The X-NUCLEO-OUT13A1 industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible

environment for the evaluation of the driving and diagnostic capabilities of the ISO808-1 octal high-side smart power solid

state relay with embedded galvanic isolation, in a digital output module connected to 1.0 A industrial loads.

The X-NUCLEO-OUT13A1 interfaces with the microcontroller on the STM32 Nucleo via Arduino® R3 connectors. The ISO808-1

integrated technology guarantees a 2 kVRMS galvanic isolation.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board. It is also

possible to evaluate a system composed of an X-NUCLEO-OUT13A1 stacked on other expansion boards.

Figure 1. X-NUCLEO-OUT13A1 expansion board

Getting started with the X-NUCLEO-OUT13A1 industrial digital output expansion

board for STM32 Nucleo

UM3081

User manual

UM3081 - Rev 1 - December 2022

For further information contact your local STMicroelectronics sales office. www.st.com

1Getting started

1.1 Overview

The X-NUCLEO-OUT13A1 embeds the ISO808-1 intelligent power switch (IPS), which features galvanic isolation,

overcurrent and overtemperature protection for safe output loads control.

The board is designed to meet the application requirements for the galvanic isolation between the user and power

interfaces.

The galvanic isolation embedded by the ISO808-1 satisfies this requirement, avoiding the necessity of external

optocouplers, with a consequent cost saving and a reduced application size.

The expansion board features:

• Based on the ISO808-1 octal high-side switch, which features:

– Operating range 9.2 to 36 V

– Low power dissipation (RON(MAX) = 260 mΩ)

– Process side operating current: up to 1 A per channel

– Embedded 2 kVRMS galvanic isolation

– Direct (jitter < 20us) and synchronous (jitter < 6us) control modes

– Fast decay for inductive loads

– Undervoltage lock-out

– Overload and overtemperature protections

– Loss of ground protection

– PowerSO36 package

• Application board process side operating range: 10 (J10 open) to 33 V (J9 closed)

• Extended operating range of process side from 9.2 (J10 closed) up to 36 V (J9 open)

• Application board logic side operating voltage 3.3 to 5 V

• Green LEDs for outputs on/off status (J6 and J7 close 1-2, 3-4, 5-6, 7-8)

• Red LED for common overheating and communication error diagnostic (J3 close 1-2)

• Yellow LED for output enable status signalization (J3 close 5-6)

• Direct control mode (J1, J2 closed)

• Synchronous control mode (J1, J2 open)

• Process and logic supply rails reverse polarity protections

• Compatible with STM32 Nucleo development boards

• Equipped with Arduino® UNO R3 connectors

• RoHS and China RoHS compliant

• CE certified

• Radiated emission: class B according to the standard EN 55032

UM3081

Getting started

UM3081 - Rev 1 page 2/19

1.2 Digital section

The digital section is associated with the STM32 interface and the digital supply voltage to and from the

X-NUCLEO-OUT13A1 expansion board.

Figure 2. X-NUCLEO-OUT13A1 expansion board: digital interface section

The dotted green line indicates the whole digital interface section. The pink rectangles identify the Arduino® UNO

R3 connectors.

The four Arduino® UNO R3 connectors:

•allow the expansion board to communicate with the STM32 Nucleo development board microcontroller

accessing the STM32 peripheral and GPIO resources;

• provide the digital supply voltage between the STM32 Nucleo development board and the X-NUCLEO-

OUT13A1 expansion board, in either direction.

Usually, the STM32 Nucleo development board supplies the expansion board by a 3.3 V or 5.0 V generated by

the USB.

Alternatively, it is possible to supply the STM32 Nucleo development board by the expansion board. In this case,

an external supply voltage (7-12 V) should be connected to the CN11 connector (not mounted by default) on the

expansion board and the ground loop should be closed by mounting D2 (enabling the reverse polarity protection)

or by closing J5 (without reverse polarity). In this scenario, the logic side of the ISO808-1 can be supplied by the

3.3 V supply rail generated by the expansion board: in this case, on the X-NUCLEO-OUT13A1, J4 must be closed

between pins 5 and 6.

To supply the VIN voltage rail, it is necessary to:

• close the JP5 jumper between pins 2 and 3 and open the JP1 jumper on the NUCLEO-F401RE;

• open the JP5 jumper between pins 1 and 2 and close the JP5 jumper between pins 3 and 4 on the

NUCLEO-G431RB.

The pin 3 of the connector CN11 can be used to supply the logic side of the ISO808-1 independently by the

expansion board. In this case, on the X-NUCLEO-OUT13A1, the pins 1 and 2 of J4 must be closed (pins 5-6

open).

UM3081

Digital section

UM3081 - Rev 1 page 3/19

1.3 Power section

The power section involves the power supply voltage (CN1, pin 1 for VCC, pin 2 for GND), the load connection

(eight loads can be connected between each pin of CN2, CN3, CN4, and CN12 and pin 2 of CN1), EMC

protections (U2), and supply reverse polarity protection (D1).

Figure 3. X-NUCLEO-OUT13A1 expansion board: power section components

1. ISO808-1

2. Output and power supply connector

3. Output channels - green LEDs

4. Status (overtemperature) red LED

5. Output Enable yellow LED

For EMC:

•the SM15T39CA transient voltage suppressor (U2), enabled by closing J9, is placed between VCC and

GND tracks to protect the ISO808-1 against surge discharge on the supply rail path up to ±1 kV/2 Ω

coupling;

• in the common mode surge testing, two single-layer capacitors (C11 and C12 - not included) must be

soldered at the predisposed locations;

• the ISO808-1 output stages do not require additional EMC protections with respect to the IEC61000-4-2,

IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8 standards.

The EMC performance of the X-NUCLEO-OUT13A1 is detailed below:

• for emission (when the DC input port of the board is powered by an AC-DC, DC-DC or battery with a cable

that does not exceed a three-meter length), compliance with standards:

– EN IEC 61000-6-3:2021

– EN 55032:2015 +A1:2020

• for immunity, compliance with standards:

– EN IEC 61000-6-1:2019

– EN 55035:2017 +A11:2020

UM3081

Power section

UM3081 - Rev 1 page 4/19

1.4 Hardware requirements

The X-NUCLEO-OUT13A1 expansion board is designed to be used with the NUCLEO-F401RE or NUCLEO-

G431RB STM32 Nucleo development boards.

To function correctly, the X-NUCLEO-OUT13A1 must be plugged onto the matching Arduino® UNO R3 connector

pins on the STM32 Nucleo board as shown below.

Figure 4. X-NUCLEO-OUT13A1 and STM32 Nucleo stack

1.5 System requirements

To use the STM32 Nucleo development boards with the X-NUCLEO-OUT13A1 expansion board, you need:

•a Windows PC/laptop (Windows 7 or above)

• a type A to mini-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

F401RE development board

• a type A to micro-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

G431RB development board

• the X-CUBE-IPS firmware and software package installed on your PC/laptop

UM3081

Hardware requirements

UM3081 - Rev 1 page 5/19

1.6 Board setup

Step 1. Connect the mini-USB or micro-USB cable to your PC to use the X-NUCLEO-OUT13A1 with NUCLEO-

F401RE or NUCLEO-G431RB development board

Step 2. Download the firmware (.bin) onto the STM32 Nucleo development board microcontroller through

STM32 ST-LINK utility, STM32CubeProgrammer, and according to your IDE environment as detailed in

the table below.

The X-NUCLEO-OUT13A1 must be configured coherently to the selected control mode for ISO808-1:

J1 and J2 open (synchronous) or J1 and J2 closed (direct).

The binary files provided with the X-CUBE-IPS software package are generated by enabling the

synchronous control mode. The user can anyway set the preferred control mode by using the

preprocessor directive USE_SCM (for synchronous) or USE_DCM (for direct). The modification to

control mode becomes effective on the binary files after rebuilding.

Table 1. NUCLEO-F401RE development board supported IDEs - bin files

NUCLEO-F401RE

IAR Keil STM32CubeIDE

EWARM-OUT11_13-

STM32F4xx_Nucleo.bin

MDK-ARM-OUT11_13-

STM32F4xx_Nucleo.bin

STM32CubeIDE-OUT11_13-

STM32F4xx_Nucleo.bin

Table 2. NUCLEO-G431RB development board supported IDEs - bin files

NUCLEO-G431RB

IAR Keil STM32CubeIDE

EWARM-OUT11_13-

STM32G4xx_Nucleo.bin

MDK-ARM-OUT11_13-

STM32G4xx_Nucleo.bin

STM32CubeIDE-OUT11_13-

STM32G4xx_Nucleo.bin

Step 3. Connect the ISO808-1 device supply voltage via CN1 (see Section 1.3 Power section).

Step 4. Provide the digital supply voltage (see Section 1.2 Digital section).

Step 5. Connect the load on the output connector (see Section 1.3 Power section).

Step 6. Reset the example sequence by pushing the black button on the STM32 Nucleo board.

Step 7. Push the blue button on the STM32 Nucleo board to choose among the examples provided in the

default firmware package.

UM3081

Board setup

UM3081 - Rev 1 page 6/19

2Schematic diagrams

Figure 5. X-NUCLEO-OUT13A1 circuit schematic (1 of 2)

Analog supply

10V - 36 V

DEFAULT

PC7

Alternate use

IOREF

PB10

DEFAULT

PA5

PA9

PA8

DEFAULT

PA0

Alternate use

PA1 PB5

PA7

(7V-12V NUCLEO supply voltage)

PC0

Alternate use

DEFAULT PA10

DEFAULT

PB3

Arduino Connectors

PA3

PC1

Alternate use

PB0

PA4

PB9

PB8

Alternate use

AVDD

PB4

PA2

NRST

Alternate use

PA6

DEFAULT

PB6

DEFAULT

Alternate use

DEFAULT

VCC

OUT1

OUT2

OUT3

ISO808-1 direct supply voltage:

-set to max 3.3V

when X-NUCLEO-OUT13A1 is usded with NUCLEO board

OUT4

OUT5

OUT6

OUT7

OUT8

IN1

can be set to max 5.5V

when X-NUCLEO-OUT13A1 is used stand-alone

IN2

IN3

IN4

IN5

IN6

IN7

IN8

STATUS

OUT_EN

SYNCH

LOAD

3v3 5v0

EXT_Vdd

R107 100 N.M.

R111 100

TP8

5001

R118 100

R101 100

R106 100 N.M.

R110 100

J10

default open

R117 100 N.M.

D12

N.M.

ESDA7P60-1U1M

D1 STPS1H100A

N.M.

ESDA15P60-1U1M

N.M.

BAT48JFILM

47uF

N.M.

C10

2.2uF

CN6

SSQ-108-04-F-S

R105 100 N.M.

R109 100

CN11

N.M.

691214110003

JUMPER-con2-strip-male

R116

N.M. default open

100

default closed

R114 100

R104 100 N.M.

CN8

SSQ-106-04-F-S

R115 100 N.M.

CN7

N.M.

SSQ-119-04-L-D

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

R113 100

C11

4700pF

N.M.

SM15T39CA

CN12

691214110002

R120 100 N.M.

R103 100 N.M.

C12

4700pF

N.M.

CN5

SSQ-110-04-F-S

CN4

691214110002

R112 100

CN9

SSQ-108-04-F-S

R108 100

CN3

691214110002

CN2

691214110002

R119 100

R102 100

CN10

N.M.

SSQ-119-04-L-D

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

CN1

691214110002

EARTH

STATUS

3V3

VIN

IN1

IN2

IN1

IN2

IN3

IN4

OUT_EN IN5

IN5

OUT_EN IN6

SYNCH IN7

IN6

SYNCH IN8

LOAD

IN7

LOAD

IN8

STATUS

OUT_EN

SYNCH

LOAD

VIN

UM3081 - Rev 1 page 7/19

UM3081

Schematic diagrams

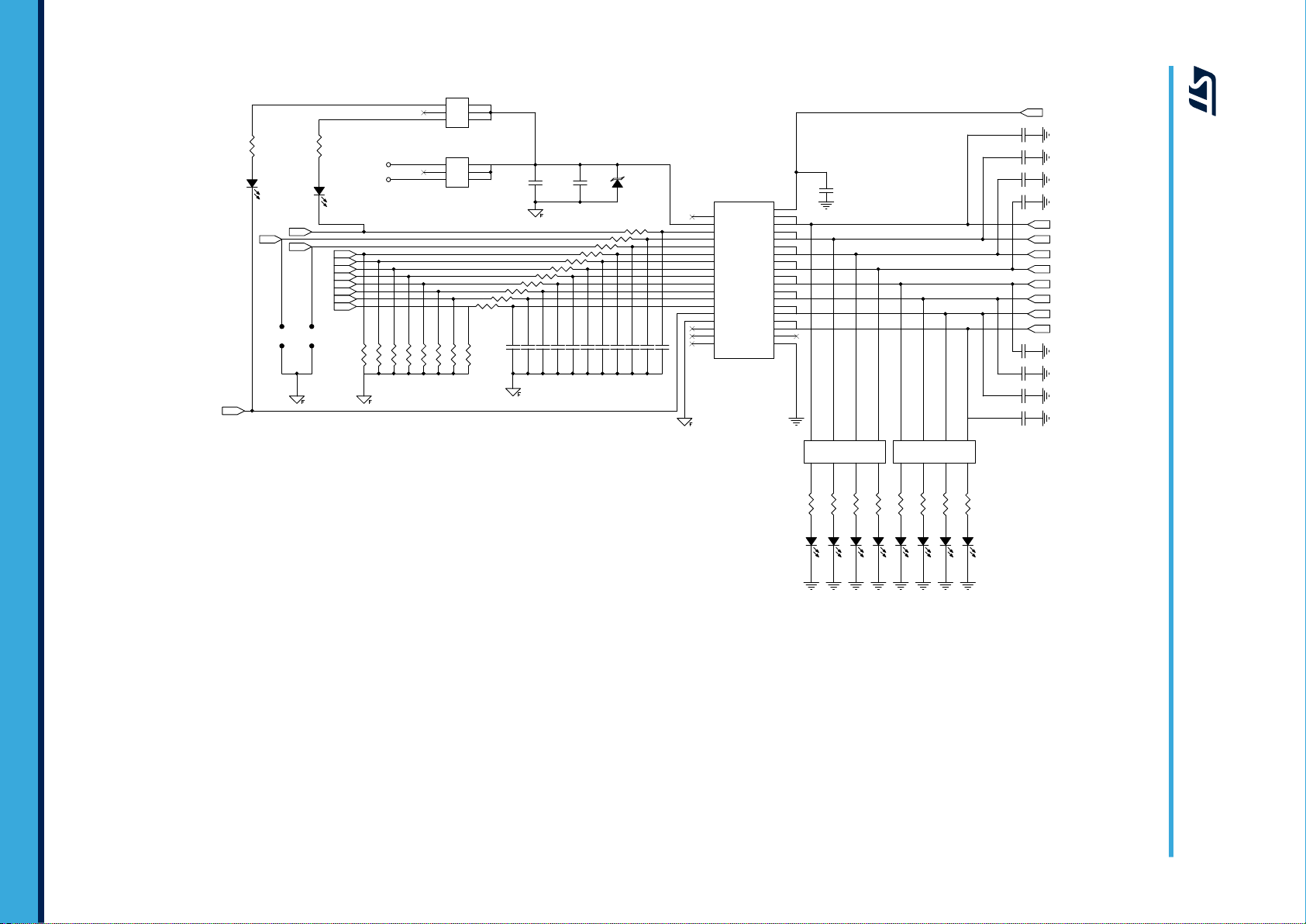

Figure 6. X-NUCLEO-OUT13A1 circuit schematic (2 of 2)

default:

close 1-2, 3-4, 5-6, 7-8

VCC

OUT1OUT_EN

SYNCH OUT2

LOAD

IN1

con8-2x4-strip-male

default:

close 1-2, 3-4, 5-6, 7-8

OUT3

IN2

IN3 OUT4

IN4

IN5 OUT5

IN6

IN7 OUT6

IN8

OUT7

OUT8

STATUS

EXT_Vdd

3v3

LED GREEN

C20 100pF

D11

RED LED

C14 100pF

R12 22k

R20 22k

R19

15k

R27

15k

R6 390

C5 10nF

R1 390

LED GREEN

C21 100pF

D13

SMBJ5.0A-TR

D15

LED YELLOW

C15 100pF

R13 22k

C6 10nF

R15

R21 22k

R28

15k

R7 390

R2 390

LED GREEN

C22 100pF

R17

390

con8-2x4-strip-male

C16 100pF

C7 10nF

R14 22k

LED GREEN

C1 10nF

R22 22k

C23 100pF

R8 390

R29

15k

R3 390

R11 390

con6-2x3-strip-male

1 2

3 4

default: close 5-6

5 6

C17 100pF

C8 10nF

C13

0.1uF

LED GREEN

C2 10nF

C24 100pF

default open

R23 22k

C25

2.2uF

R30

15k

C18 100pF

R4 390

R25

15k

R10 390

LED GREEN

C3 10nF

ISO808-1

NC1

Vdd

OUT_EN

SYNCH

LOAD

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

FAULT

GNDdd

NC16

NC17

NC18

GNDcc

NC20

OUT8_2

OUT8_1

OUT7_2

OUT7_1

OUT6_2

OUT6_1

OUT5_2

OUT5_1

OUT4_2

OUT4_1

OUT3_2

OUT3_1

OUT2_2

OUT2_1

OUT1_2

OUT1_1

VCC_EP

default open

LED GREEN

C19 100pF

C26

0.1uF

R24 22k

R18

15k

R5 390

R26

15k

R9 390

con6-2x3-strip-male

1 2

3 4

5 6

default: close 1-2, 5-6

D10

LED GREEN

C4 10nF

UM3081 - Rev 1 page 8/19

UM3081

Schematic diagrams

3Bill of materials

Table 3. X-NUCLEO-OUT13A1 bill of materials

Item Q.ty Ref. Part/value Description Manufacturer Order code

1 8 C1 C2 C3 C4

C5 C6 C7 C8

10nF 0603

(1608 Metric)

50V 10%

CAP CER

10000PF 50V

X7R 0603 N.M.

Wurth

Electronics Inc. 885382206002

2 0 C9 47uF Radial,

Can 100V 20%

CAP 47 UF

20% 100 V

Wurth

Electronics Inc. 860040875002

3 1 C10

2.2uF 1206

(3216 Metric)

100V 10%

CAP CER

2.2UF 100V

X7R 1206

AVX

Corporation 12061C225KAT2A

4 0 C11 C12

4700pF 1825

(4564 Metric)

3000V (3kV)

10%

CAP CER

4700PF 3KV

X7R 1825 N.M.

Vishay Vitramon HV1825Y472KXHATHV

5 2 C13 C26

0.1uF 0805

(2012 Metric)

100V 10%

CAP CER

0.1UF 100V

X7R 0805

Wurth

Electronics Inc. 885012207128

6 11

C14 C15 C16

C17 C18 C19

C20 C21 C22

C23 C24

100pF 0402

(1005 Metric)

10V 5%

CAP CER

100PF 10V

C0G/NP0 0402

Wurth

Electronics Inc. 885012005013

7 1 C25

2.2uF 0402

(1005 Metric)

10V 20%

CAP CER

2.2UF 10V X5R

0402

Wurth

Electronics Inc. 885012105013

8 5 CN1 CN2 CN3

CN4 CN12

691214110002

7.4X7 pitch 3.5

TERM BLK

2POS SIDE

ENT 3.5MM

PCB

Wurth

Electronics Inc. 691214110002

9 1 CN5 10 ways, 1 row

CONN RCPT

10POS 0.1

GOLD PCB

SAMTEC

4UCON ESQ-110-14-T-S 17896

10 2 CN6 CN9 8 ways, 1row

CONN RCPT

8POS 0.1

GOLD PCB

SAMTEC

4UCON ESQ-108-14-T-S 15782

11 0 CN7 CN10

CONN RCPT

38POS 0.1

GOLD PCB

N.M.

Samtec Inc. SSQ-119-04-L-D

12 1 CN8 6 ways, 1 row

CONN RCPT

6POS 0.1

GOLD PCB

SAMTEC

4UCON ESQ-106-04-T-S 15781

13 0 CN11

691214110003

10.5X7.4 pitch

3.5mm

TERM BLK

3POS SIDE

ENT 3.5MM

PCB N.M.

Wurth

Electronics Inc. 691214110003

14 1 D1

STPS1H100A

DO-214AC,

SMA 1A

DIODE

SCHOTTKY

100V 1A SMA

ST STPS1H100A

15 0 D2

BAT48JFILM

SC-76,

SOD-323

750mV @

200mA 350mA

(DC)

DIODE

SCHOTTKY

40V 350MA

SOD323 N.M.

ST BAT48JFILM

UM3081

Bill of materials

UM3081 - Rev 1 page 9/19

Item Q.ty Ref. Part/value Description Manufacturer Order code

16 8 D3 D4 D5 D6

D7 D8 D9 D10

LED GREEN

0603 (1608

Metric) 20mA

LED GREEN

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060VS75000

17 1 D11

RED LED 0603

(1608 Metric)

20mA

LED RED

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060RS75000

18 0 D12 ESDA7P60-1U1

M 2-UDFN

TVS DIODE

5VWM 11.6VCL

1610 N.M.

ST ESDA7P60-1U1M

19 1 D13

SMBJ5.0A-TR

DO-214AA,

SMB 600W

TVS DIODE 5V

13.4V SMB ST SMBJ5.0A-TR

20 1 D15

LED YELLOW

0603 (1608

Metric) 20mA

LED YELLOW

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060YS75000

21 2 J1 J2 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

22 1 J3 con6-2x3-strip-

male

CONN

HEADER .100

DUAL STR

6POS

Wurth

Electronics Inc. 61300621121

23 1 J4 con6-2x3-strip-

male

CONN

HEADER .100

DUAL STR

6POS

Wurth

Electronics Inc. 61300621121

24 0 J5 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

25 2 J6 J7 con8-2x4-strip-

male

CONN

HEADER VERT

8POS 2.54MM

Wurth

Electronics Inc. 61300821121

26 2 J9 J10 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

27 11

R1 R2 R3 R4

R5 R6 R7 R8

R9 R10 R11

390 0402 (1005

Metric) 0.1W,

1/10W 5%

CHIP

RESISTOR

SMD 5% 1/10W

0402

Panasonic ERJH2GJ391X

28 8

R12 R13 R14

R20 R21 R22

R23 R24

22k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 22K

OHM 1% 1/10W

0603

Yageo RC0603FR-0722KL

29 1 R17

390 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 390

OHM 1% 1/10W

0603

Yageo RC0603FR-07390RL

30 1 R15

1k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 1K

OHM 1% 1/10W

0603

Yageo RC0603FR-071KL

31 8

R18 R19 R25

R26 R27 R28

R29 R30

15k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 15K

OHM 1% 1/10W

0603

Yageo RC0603FR-0715KL

UM3081

Bill of materials

UM3081 - Rev 1 page 10/19

Indice

Altri manuali ST Hardware per computer

ST EVSPIN958 Manuale utente

ST UM3039 Manuale utente

ST STEVAL-MIC008A Manuale utente

ST X-NUCLEO-OUT10A1 Manuale utente

ST X-NUCLEO-OUT16A1 Manuale utente

ST X-NUCLEO-OUT02A1 Manuale utente

ST STSW-ST25DV002 Manuale utente

ST X-NUCLEO-OUT01A2 Manuale utente

ST STMPE2401 Manuale utente

ST STEVAL-IFP045V1 Manuale utente

ST X-NUCLEO-IDW04A1 Manuale utente

ST STEVAL-IFS013V2 Manuale utente

ST X-NUCLEO-53L3A2 Manuale utente

ST STM32 Nucleo Manuale utente

ST STM32U5G9J-DK2 Manuale utente

ST TDA911 Series Istruzioni per l'installazione e il funzionamento

ST STM32 Nucleo Manuale utente

ST UM2033 Manuale utente

ST X-NUCLEO-53L8A1 Manuale utente

ST STM32F10 Series Istruzioni per l'installazione e il funzionamento

ST X-NUCLEO-USBPDM1 Manuale utente

ST STEVAL-SCR002V1 Manuale utente

ST STEVAL-IFP046V1 Manuale utente

ST X-CUBE-SBSFU Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente

Advantech

Advantech ASMB-935 Series Manuale utente
