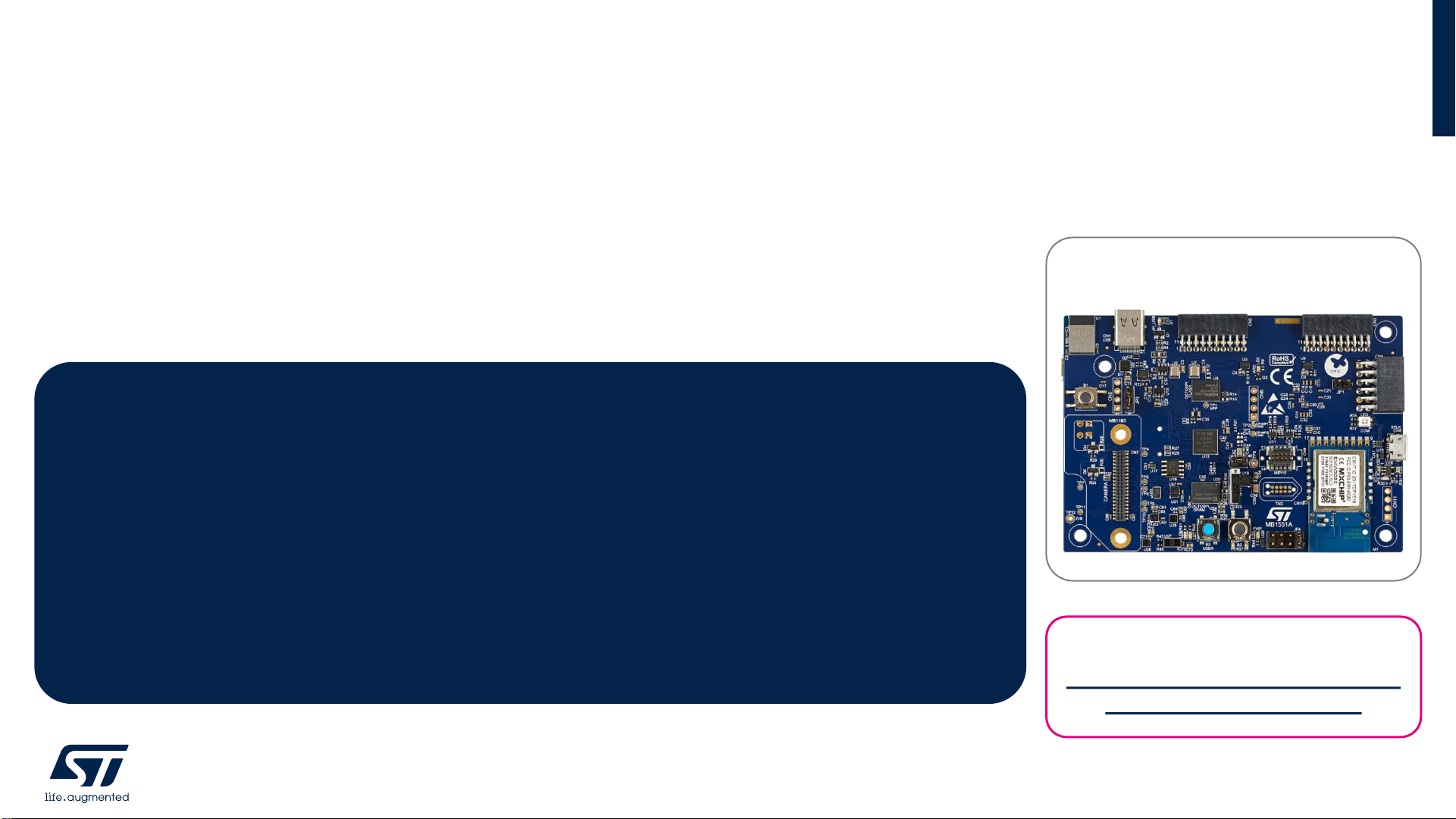

STWIN.box - SensorTile Wireless Industrial Node
The STWIN.box (STEVAL-STWINBX1) is a development kit and reference design that simplifies prototyping and testing
of advanced industrial sensing applications in IoT contexts such as condition monitoring and predictive maintenance.
It is an evolution of the original STWIN kit (STEVAL-STWINKT1B) and features a higher mechanical accuracy in the
measurement of vibrations, an improved robustness, an updated BoM to reflect the latest and best-in-class MCU and
industrial sensors, and an easy-to-use interface for external add-ons.
The STWIN.box kit consists of an STWIN.box core system, a 480mAh LiPo battery, an adapter for the ST-LINK
debugger (STEVAL-MKIGIBV4), a plastic case, an adapter board for DIL 24 sensors and a flexible cable.
Key Features
•Multi-sensing wireless platform for vibration monitoring and ultrasound detection
•Built around STWIN.box core system board with processing, sensing, connectivity, and expansion capabilities
•Ultra-low power Arm® Cortex®-M33 with FPU and TrustZone at 160 MHz, 2048 kBytes Flash memory (STM32U585AI)
•MicroSD card slot for standalone data logging applications
•On-board Bluetooth® low energy v5.0 wireless technology (BlueNRG-M2), Wi-Fi (EMW3080) and NFC (ST25DV04K)
•Wide range of industrial IoT sensors: Ultra-wide bandwidth (up to 6 kHz), low-noise, 3-axis digital vibration sensor (IIS3DWB),
3D accelerometer + 3D gyro iNEMO inertial measurement unit (ISM330DHCX) with Machine Learning Core, High-
performance ultra-low-power 3-axis accelerometer for industrial applications (IIS2DLPC), Ultra-low power 3-axis
magnetometer (IIS2MDC), Dual full-scale, 1.26 bar and 4 bar, absolute digital output barometer in full-mold package
(ILPS22QS), Low-voltage, ultra low-power, 0.5°C accuracy I²C/SMBus 3.0 temperature sensor (STTS22H), Industrial grade
digital MEMS microphone (IMP34DT05), Analog MEMS microphone with frequency response up to 80 kHz (IMP23ABSU)
•Expandable via a 34-pin FPC connector
Latest info available at
https://www.st.com/en/evaluation
-tools/steval-stwinbx1.html
