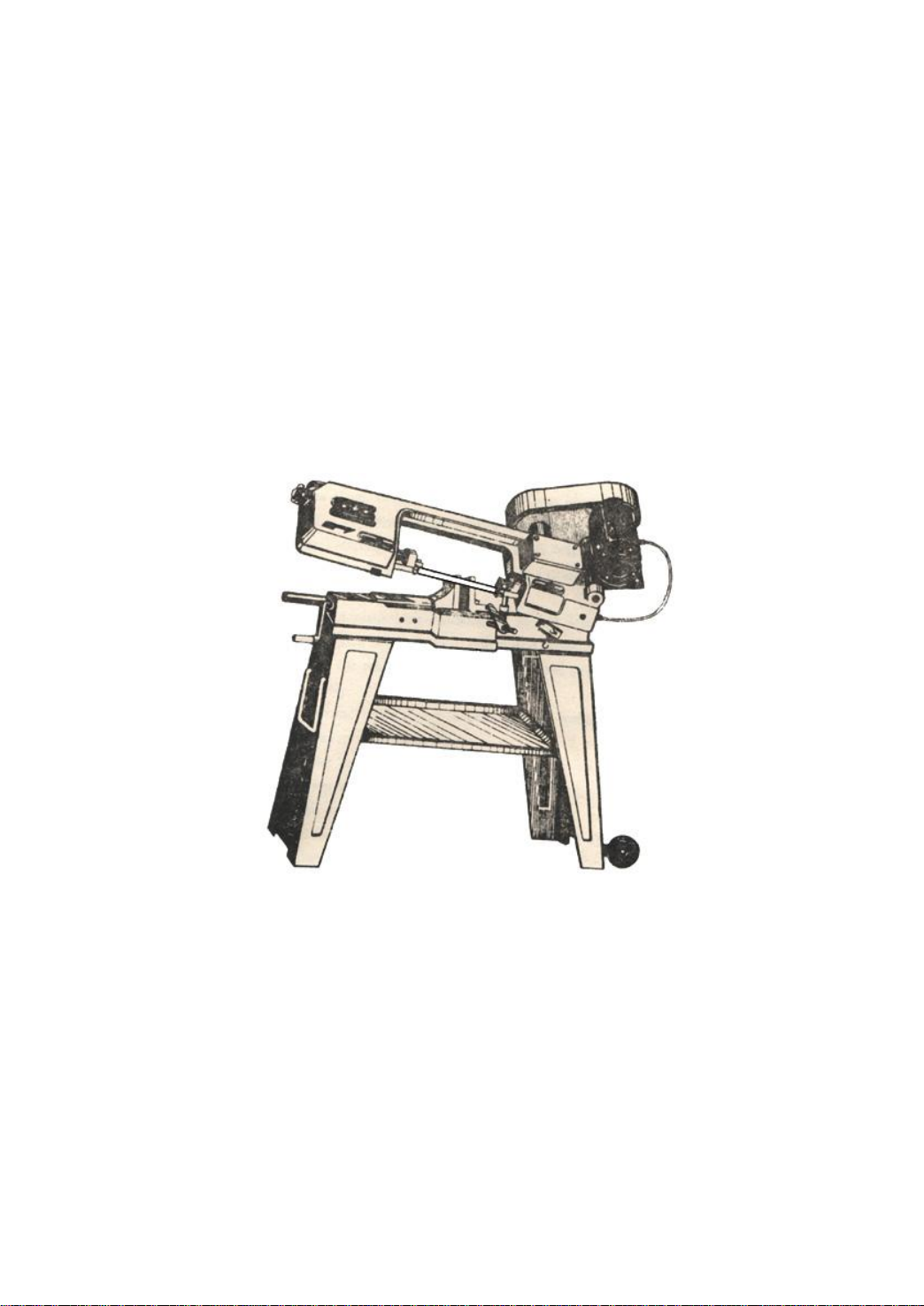

STALEX BS-115 Manuale utente

Horizontal and Vertical

Metal Cutting Band Saw

MODEL: BS-115

SAFETY

1. Know your band saw. Read the operator’s Manual carefully. Learn the

operations, applications and limitation.

2. Use recommended accessories. Improper accessories may be

hazardous.

3. Wear proper apparel.

4. Keep unnecessary people away.

5. Don’t overreach or stand on tool.

6. Avoid dangerous environment. Don’t use band saw in damp or wet

locations. Keep work area well lighted.

7. Keep work area clean. Cluttered and slippery floors invite accidents.

8. Remove adjusting keys and wrenches from band saw before turning on

power.

9. Avoid accidental starting. Mark sure switch is off before plugging in

power cord.

10. Don’t force band saw. It is safe to operate at the cutting rate for which it

was designed.

11. Be specially careful when using band saws in vertical position to keep

fingers and hands out of the path of blade, both above and beneath the

table.

12. Never hand hold the material with saw in horizontal position. Always

use the vise, clamp securely.

13. Keep belt guard and wheel covers in place and in working order.

14. Support long, heavy work from the floor.

15. Always remember to switch off the machine when the work is

completed.

16. Disconnect power cord before adjusting. Servicing and changing

blade.

17. Check damaged parts. Damaged parts must be replaced or repaired.

18. Moving parts should keep in alignment. All adjustments are to be made

with power disconnected.

19. Use a sharp blade and keep tool clean for best and safest

performance.

20. Safety is a combination of operator’s common sense and alertness at

all times when the saw is functioning.

21. Keeping the band saw in top condition is essential for safety.

FEATURES

1. Special designed horizontal and vertical band saw.

2. Offers three speeds for cutting metal plastic or wood.

3. Shuts off automatically when material is cut.

4. With scale for the mitering vise.

5. No noise while operating.

6. Casters (optional) quick and easy moving.

SPECIFICATION

1. Capacity: 41/2’’ (115mm) round

4’’x6’’ (100mmx150mm) rectangular

2. Speeds: 80-120-200 FPM 60HZ (65-95-165 FPM 50HZ)

3. Motor: 1/3HP or 1/2HP 1700 RPM 60HZ (1400RPM 50 HZ)

4. Blades: 1/2’’x1/40’’x641/2’’ (12.5mmx0.64mmx1638mm)

5. Blades wheels: 73/8’’ (187mm) High strength flanged cast iron.

ASSEMBLY

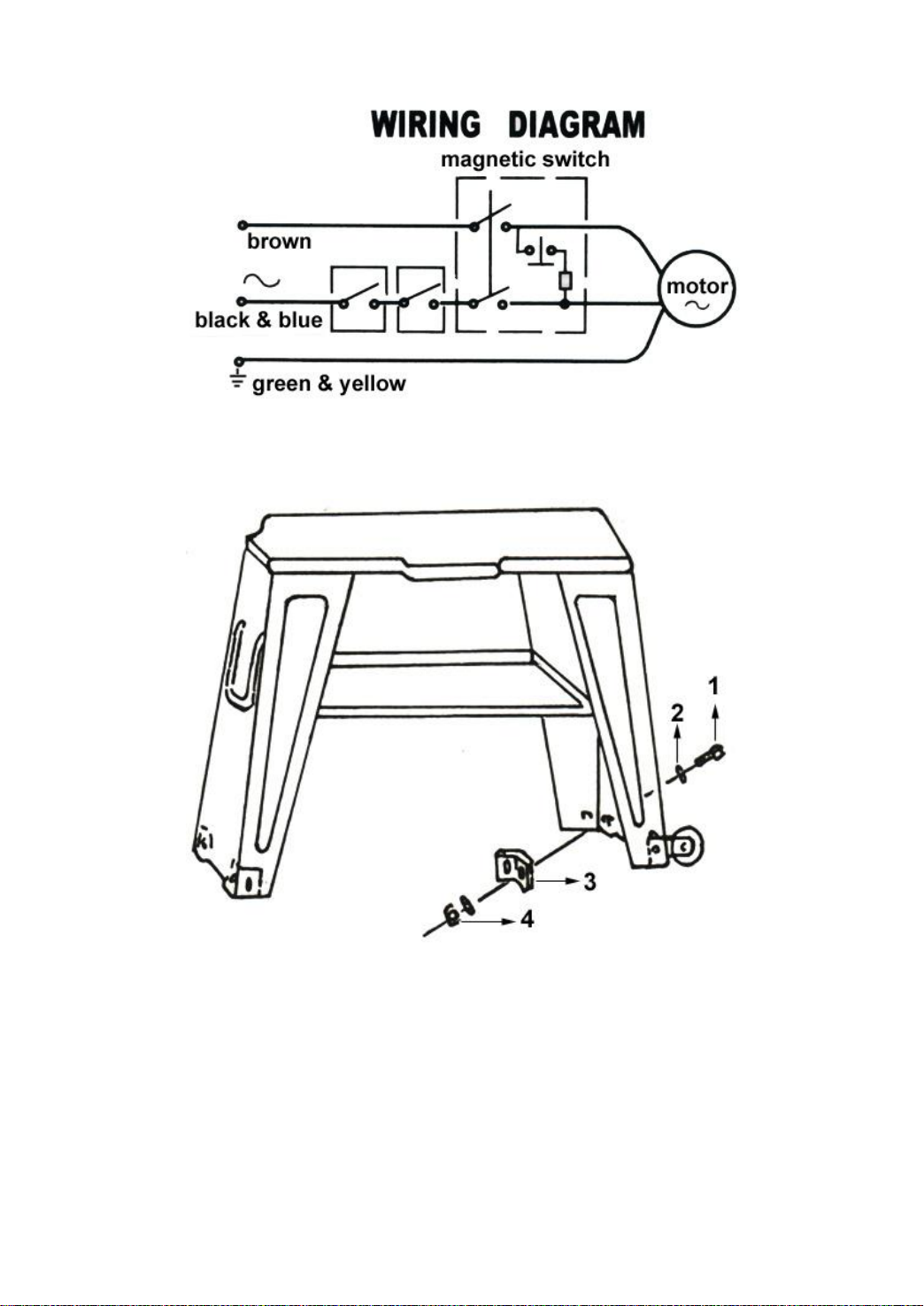

1. Assemble stand legs on Band Saw Base. See assembly diagram

2. Assemble handle vice wheel, tighten set screw.

BLADE GUIDE BEARING ADJUSTMENT

This is the most important adjustment on your saw. It is impossible to get

satisfactory work from your saw if the blade guides are not properly

adjusted. The blade guide bearings for your Metal cutting Band saw are

adjusted and power tested with several test cuts before leaving the factory

to insure proper setting. The need for adjustment should rarely occur

when the saw is used properly. If the guides to get out of adjustment, it is

extremely important to readjust immediately. If proper adjustment is not

maintained, the blade will not cut straight and if the situation is not

corrected, it will cause blade damage.

Because guide adjustment is a critical factor in the performance of your

saw, it is always best to try a new blade to see if this will correct poor

cutting before beginning to adjust the bearings. If a blade becomes dull on

one side sooner than the other, for example, it will begin cutting crooked. A

simple blade change should correct this problem-the more difficult guide

adjustment will not.

If a new blade does not correct the problem, check the blade guides for

proper spacing.

There should be 0.001’’ clearance between the 0.025’’ thickness blade

and guide bearing. To obtain this clearance adjust as follows:

1. The inner guide bearing is fixed and cannot be adjusted.

2. The outer guide bearing is mounted to an eccentric bolt and can be

adjusted.

3. Loosen the nut while holding the bolt with a wrench.

4. Position the eccentric by turning the bolt to the desired position of

clearance.

5. Tighten the nut

6. Adjust the second blade guide bearing in the same manner.

7. The back edge of the blade should just touch the lip of the Blade Guide

Bearing.

BLADE GUIDE ASSEMBLY ADJUSTMENT

The Metal Cutting Band Saw is equipped with two adjustable blade guide

assemblies. This feature will permit you to adjust the position of the blade

guide for various widths work pieces.

To effect the most accurate cut and prolong the life of the blade. The blade

guide assemblies should be adjusted to just clear the piece to be cut. This

is done as follows:

1. Place the work piece in the vise of band saw and clamp tightly.

2. Adjust catch blade guide assembly to the desired position by loosening

the hand knobs and positioning the guides required.

3. Tighten the hand knobs.

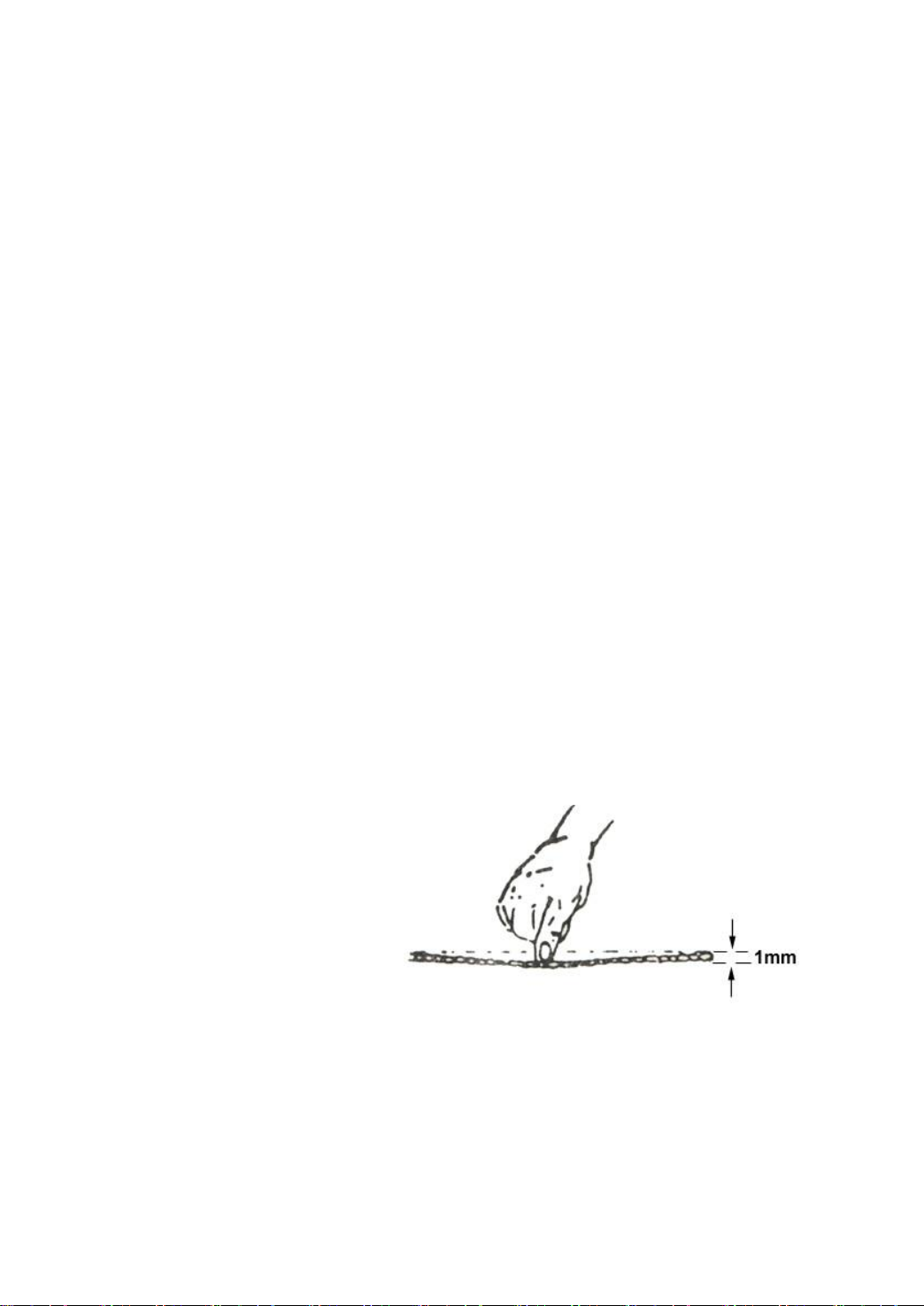

ADJUSTING BLADE TENSION

1. Make sure the motor is

shut off.

2. Press the blade lightly with

left hand, make the rear

blade against the flange of

blade wheel and test the

blade tension.

3. Adjust the blade tension

adjustable knob with the Figure (1) Adjusting Blade Tension

right hand until the blade obtain the proper tension.

CHANGING SPEED

1. When using your Band Saw, always change the blade speed to best

suit the material being cut. Cutting chart is shown in figure (2).

2. Cut off power. Open the pulley guard cover. Loosen the lead screw

(#98), you are now able to change the position of the belt to gain the

desired speed. Check the belt tension as instructed before. When the

tension the belt is well adjusted, lock the motor firmly. Close the pulley

guard cover. MATERIAL CUTTING CHART

Material, Stainless or

Alloy Steel, Bearing

Bronzes/Mild Steel, Hard

Brass or Bronze Soft

Brass/Aluminum

Other light materials

Speed (SFM) Belt Groove Used

60Hz

Motor Pulley

Saw Pulley

80FPM

120FPM

200FPM

Small

Medium

Large

Medium

Small

Figure (2) Material Cutting Chart

BLADE SELECTION

1. Special note: 1(1/2’’ x 0.025’’x 641/2min, 651/2max) tooth per inch

general use blade is furnished with the metal cutting Band Saw.

Additional blades in 10 and 14 tooth sizes are available.

2. The choice of blade pitch is governed by the thickness of the work to be

cut; the thinner the work piece, the more teeth advised. A minimum of 3

teeth should be in the work piece at all times for proper cutting.

3. If the teeth of the blade are so far apart that they straddle the work,

server damage to the work piece and to the blade can result.

CHANGING BLADE

Raise saw head to vertical position. Loosen blade tension adjustable knob

sufficiently to allow the saw blade to slip off the wheels. Install the new

blade as follows:

1. Place the blade in between each of guide bearing.

2. Slip the blade around the motor pulley (bottom) with left hand and hold

in position.

3. Hold the blade taut against the motor pulley by pulling the blade

upward with the right hand which is placed at the top of the blade.

4. Remove left hand from bottom pulley and it s the top side of the blade

to continue the application on the upward pull on the blade.

5. Remove right hand from blade and adjust the position of top pulley to

permit left hand to slip the blade around the pulley using the thumb,

index and little finger as guides.

6. Adjust the blade tension knob clockwise until it is just right enough so

no blade slippage occurs. Do not tighten excessively.

7. Place 2-3 drops of oil on the blade.

8. Replace the blade guard.

ADJUSTING THE BLADE TRACKING

This adjusting has been completed and power-tested at the factory. The

need for adjusting should rarely occur when the saw is used properly. If

the tracking goes out of adjusting is listed below:

Figure (3)

HORIZONTAL CUTTING OPERATION

Before operating, please read instruction manual and examine every part

including speed, Blade selection, guide assemble position, etc. Operation

is as follows:

WORK SET UP

1. Raise the saw head to the vertical position.

2. Open the vise to accept the piece to be cut by rotating the wheel at the

end of base (counter clockwise).

3. Place the work piece on the saw bed. If the price is long, support the

end.

4. Clamp the work piece securely in the vise by rotating the hand wheel

clockwise.

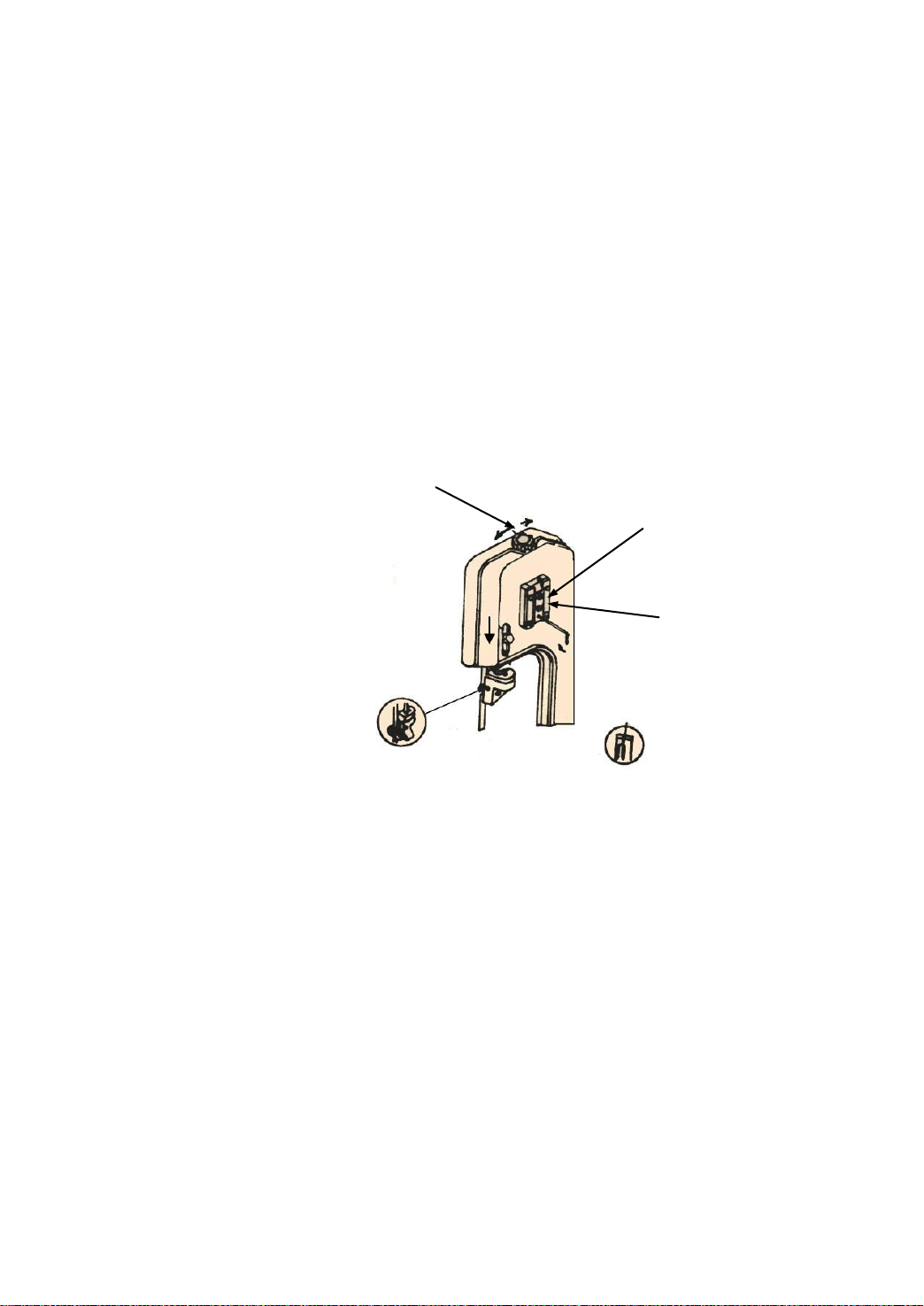

Step 1: Turn simultaneously with adjusting set screw to

make the blade track against the shoulder of the pulley.

To increase blade tension

Step 2: Loosen this hex.

Head screw-before turning

the adjusting set screw.

Step 4: Tighten after adjusting

Step 3: Turn simultaneously with

blade tension knob to make

blade track against shoulder of

pulley

Step 5: Adjust the blade

adjustable seat according to the

material size.

To relieve blade tension

The arrow indicates the moving direction

Step 6: Adjust guide assembly to

where the blade just touches the

back-up bearing.

CUTTING

Close switch, letting the head down slowly onto the work, Do not drop or

force. Let the weight of the saw head provide the cutting force. The saw

automatically shuts off at end of the cut.

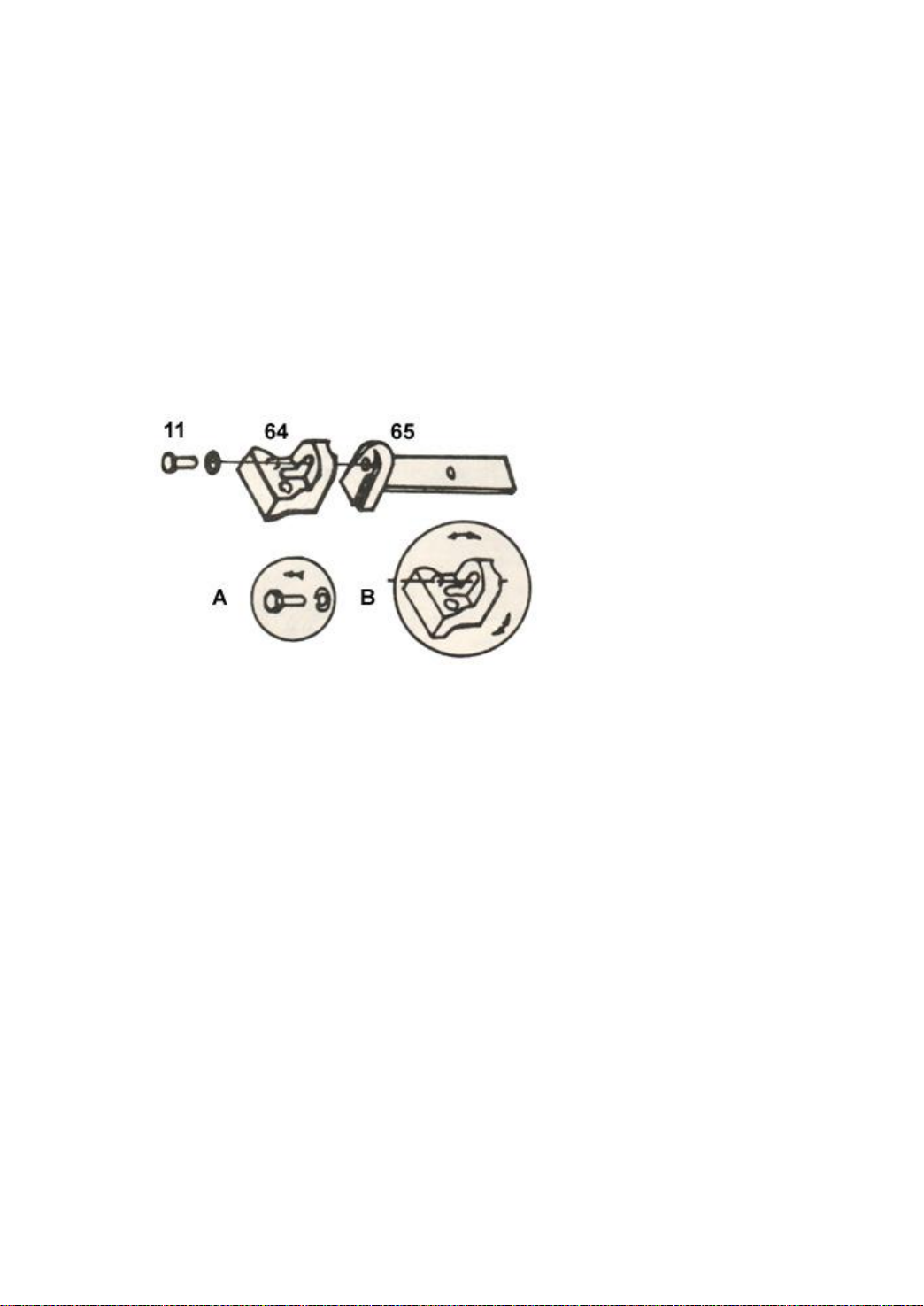

Method of adjusting blade:

A. Loosen the screw #11.

B. Adjust the blade adjustable seat #64 to make the blade vertical to bed.

C. Place the square on the bed to check if the blade is vertical, if not,

repeat the process A to C.

D. Tighten the screw #11.

Figure (4)

Adjusting the blade

LUBRICATION

Lubricate the following components using lubricant, L-HV32

1. Ball bearing –none.

2. Blade guide bearing-none

3. Driven wheel bearing-none.

4. Vise lead screw- as needed.

5. The driven gears run in the bath and will not require a lubricant change

more than then once a year. When needing a change, first put down

the bead to a Horizontal position, then loosen 4 screw (#75) of the gear

box open the cover (#93). Placing a pan under the tight lower corner of

the gear box, slowly raise the head until the oil flows out, Lower corner

of the gear box, slowly raise the head until the oil flows out, Lower head.

Then wipe up excess oil and foreign matter with soft rags. Then add

lubricant into the box until it is full and not flow over. Close the cover,

tighten 4 screws.

THE VERTIACAL CUTTING PLATE ASSEMBLY DRAWING.

Steps for assembling:

1. Loosen the A.B.C. three screws from the blade guide. And take away

the part “D”

2. To lock the vertical cutting plate stand on the valve.

3. To put the plate on the guide and vertical cutting plate stand, then lock

the A.B.C. three screws.

4. Please operate the vertical cutting.

5. Use the miter gauge in the work table grooves to obtain any angle up to

45 degree either left or right.

CAUTION-The use of any other accessories may be hazardous.

CAUTION-Always use push sticks particularly when cutting small pieces.

Plate

Vertical cutting plate stand

The manual of V shape fixed plate

1. Hexagon head screw

8PCS

2. Washer

16PCS

3. V. shape fixed plate

4PCS

4. Hexagon nut

8PCS

TROUBLE SHOOTING CHART

Symptom

Possible Cause (s)

Corrective Action

Excessive Blade

Breakage

1. Material loose in vise

2. Incorrect speed or feed

3. Blade teeth spacing too

large

4. Material too coarse

5. Incorrect blade tension

6. Teeth in contact with

material before saw is

started

7. Blade rubs on wheel

flange

8. Misaligned guide

bearings

9. Cracking at weld

1. Clamp work securely

2. Adjust speed or feed

3. Replace with a small teeth

spacing blade

4. Use a blade of slow speed

and small teeth spacing

5. Adjust where blade just

does not slip on wheel

6. Place blade in correct with

work after motor is started

7. Adjust wheel alignment

8. Adjust guide bearings

9. Weld again, note the weld

skill

Premature Blade

Dulling

1. Teeth too coarse

2. Too much speed

3. Inadequate feed pressure

4. Hard spots or scale on

material

5. Work hardening of

material

6. Blade twist

7. Insufficient blade

1. Use finer teeth

2. Decrease speed

3. Decrease spring tension

on side of saw

4. Reduce speed, in crease

feed pressure

5. Increase feed pressure by

reducing spring tension

6. Replace with a new blade,

and adjust blade tension

7. Tighten blade tension

adjustable knob

Unusual Wear on

Side/Back of Blade

1. Blade guides worn

2. Blade guide bearings not

adjusted properly

3. Blade guide bearing

bracket is loose

1. Replace

2. Adjust as per operators

manual

3. Tighten

Indice

Altri manuali STALEX Sega

STALEX

STALEX VS-400 Manuale utente

STALEX

STALEX BS-712R Manuale utente

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
