Star FL3X Media 100BASE-T1 Manuale utente

FL3X Media 100BASE-T1

Instructions for Use

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 2 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

Contact Information

STAR ELECTRONICS GmbH & Co. KG

A Company of the STAR COOPERATION Group

Jahnstraße 86

73037 Goeppingen

Phone: +49 (0)7031 6288-5656

Phone: +49 (0)7031 6288-5330 (Support)

Sales: sales-ee@star-cooperation.com

Support: support-ee@star-cooperation.com

www.flex-product.com

Company Data

STAR ELECTRONICS GmbH & Co. KG, registered offices: Göppingen, register court Ulm, HRA 721096

Partner liable to unlimited extent: STAR ELECTRONICS Verwaltungs-GmbH, registered offices: Göppingen, register

court Ulm, HRB 722565

Represented by the executive board: Rolf Wittig, Henning Lange

No part of this document may be reproduced in any form (photocopy, microfilm or another procedure) without

prior written consent from STAR ELECTRONICS GmbH & Co. KG.

Trademarks

Any trademarks used in this document are the property of their respective owners.

Disclaimer

The information contained in this document does not affect or change General Terms and Conditions of STAR

ELECTRONICS GmbH & Co. KG.STAR ELECTRONICS GmbH & Co. KG does not guarantee the completeness and

accuracy of the content of this document and assumes no responsibility for any errors which may appear in this

document or due to this document. The content of this document or the associated products are subject to

change without notice at any time.

Based on currently state of arts and science it is impossible to develop software that is bug-free in all

applications. Therefore, the product is only allowed to be used in the sense of the product use case described

herein.

STAR ELECTRONICS GmbH & Co. KG makes no warranty express or implied, as to this document or the

information content, materials or products for any particular purpose, nor does STAR ELECTRONICS GmbH & Co.

KG assume any liability arising out of the application or use of this product, and disclaims all liabilities, including

without limitation resulting damages, as permissible by applicable law.

All operating parameters which are provided in this document can vary in different applications or over time. The

herein described product solely is allowed to be used as described in chapter “Intended use”.

Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced

into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying,

recording, or otherwise), or for any purpose, without the express written consent of STAR ELECTRONICS GmbH &

Co. KG.

STAR ELECTRONICS GmbH & Co. KG may have patents, patent applications, trademarks, copyrights, or other

intellectual property rights covering subject matter in this document. Except as expressly stated in a written

license agreement from STAR ELECTRONICS GmbH & Co. KG,the furnishing of this document does not give you

any license to these patents, trademarks, copyrights, or other intellectual property.

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 3 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

Any semiconductor devices have an inherent chance of failure. You have to protect against injury, damage or loss

from such failures by incorporating safety design measures into your facility and equipment such as redundancy,

fire protection, and prevention of over-current levels and other abnormal operating conditions.

The safety and handling instructions in this document have to be followed strictly.

EC Conformity

The FL3X Media 100BASE-T1 complies with the essential requirements of the following applicable European

Community Directive(s) including current amendments, and carries the CE marking accordingly:

2014/30/EU EMC Directive

The following standard(s) have been used to assess the product:

EN 61000-4-2:2009

EN 61000-4-3:2006 + A1:2008 + A2:2010

EN 61000-4-4:2012

EN 61000-4-6:2014

EN 61000-6-2:2005

EN 61000-6-4:2007 + A1:2011

EN 61326-1:2013

The FL3X Media 100BASE-T1 is designed, intended and authorized for industrial use only. Using the product in

domestic environment may lead to electromagnetic disturbances.

This product is compliant with the European Community Directive 2011/65/EC on the restriction of the use of

certain hazardous substances in electrical and electronic equipment (RoHS).

UK Conformity

The FL3X Media 100BASE-T1 complies with the essential requirements of the following applicable UK Regulations

including current amendments, and carries the UK marking accordingly:

2016 Electromagnetic Compatibility Regulations

The following standard(s) have been used to assess the product:

EN 61000-4-2:2009

EN 61000-4-3:2006 + A1:2008 + A2:2010

EN 61000-4-4:2012

EN 61000-4-6:2014

EN 61000-6-2:2005

EN 61000-6-4:2007 + A1:2011

EN 61326-1:2013

The FL3X Media 100BASE-T1 is designed, intended and authorized for industrial use only. Using the product in

domestic environment may lead to electromagnetic disturbances.

This product is compliant with “the Restriction of the Use of Certain Hazardous Substances in Electrical and

Electronic Equipment Regulations 2012”.

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 4 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

Revision History

Document number: 3-0093-0A01-D04

Version

Date

Description

D1V0-4 25-Jun-2018 Preliminary release

D1V0-F 23-Apr-2019 First release

D1V1-F 01-Feb-2022 Updated chapter EC Conformity

Added chapter UK Conformity

changed product pictures

D1V2-F 20-Feb-2023 Product name changed

Related Hardware / Software Versions

Product

Reference No.

Version

Remarks

FL3X Media 100BASE-T1 3-0093-A01-01 20 Old Product:

FL3X Media 100BASE-T1

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 5 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

Contents

1General ..................................................................................................................................................6

1.1 Intended use........................................................................................................................................6

1.2 Used Pictograms..................................................................................................................................6

1.3 Safety and Handling Instructions..........................................................................................................6

1.4 User Group ..........................................................................................................................................7

1.5 Meaning of Text Styles .........................................................................................................................7

2Product Description ..............................................................................................................................8

2.1 FL3X Media 100BASE-T1 at a glance ....................................................................................................8

2.2 Accessory Parts ...................................................................................................................................8

3Technical Data.......................................................................................................................................9

3.1 Electrical Characteristics .....................................................................................................................9

3.2 Physical Characteristics .......................................................................................................................9

3.3 Environmental Conditions ....................................................................................................................9

3.4 Interfaces ............................................................................................................................................9

3.4.1 Power ..................................................................................................................................................9

3.4.2 Ethernet (RJ45) ..................................................................................................................................10

3.4.3 Status LED and DIP-switch .................................................................................................................11

3.4.4 2-Wire Ethernet (D-Sub) .....................................................................................................................11

4Getting Started................................................................................................................................... 13

4.1 Assembly and Line-up ........................................................................................................................13

4.2 Configuration and Operation ..............................................................................................................13

5Shipping, Maintenance and Disposal................................................................................................. 14

6Troubleshooting ................................................................................................................................. 15

7Ordering Information ......................................................................................................................... 16

7.1 FL3X Media 100BASE-T1....................................................................................................................16

7.2 Accessory Parts .................................................................................................................................16

7.3 Related Documents............................................................................................................................16

8Appendix............................................................................................................................................. 17

8.1 Appendix A: Guideline for handling ESD sensitive Products.................................................................17

8.2 Appendix B: .......................................................................................................................................17

8.2.1 Acronyms and Abbreviations ..............................................................................................................17

8.2.2 List of Tables .....................................................................................................................................17

8.2.3 List of Figures ....................................................................................................................................17

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 6 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

1General

1.1 Intended use

The FL3X Media 100BASE-T1 is solely used to convert “100BASE-TX” into “100BASE-T1” and vice versa.

Only the herein described accessory parts are allowed to be used together with the FL3X Media 100BASE-

T1.

The FL3X Media 100BASE-T1 is designed, intended, and authorized only for laboratory applications use.

Any other use without the prior written consent of STAR ELECTRONICS GmbH & Co. KG prohibited.

The FL3X Media 100BASE-T1 is NOT designed, intended, or authorized for

use as part of medical systems,

life support applications,

aviation, space, nuclear, or military applications,

use in areas where combustible or explosive gas mixtures are likely to occur,

other applications in which a mistake or malfunction may result in death, personal injury or

severe physical damage.

The product described in this document is an industrial device, i.e. is designed, intended, or authorized for

professional use. It is not designed, intended, or authorized for home applications or consumers. For this

reason, use by non-professionals is forbidden.

1.2 Used Pictograms

The meaning of used pictograms is shortly described below.

Follow the specific instructions in the document where these pictograms are placed.

NOTICE

Used to indicate a situation which may result in an operating failure.

Damage of the product may occur, but there is no hazard of injury

if not avoided.

Information

Used to indicate information provided only for purposes of clarification, illustration, and

general information.

Reference

References to other documents.

Product marking which shows the compliance of the product with the European Waste

Electrical and Electronic Equipment Directive 2012/19/EU.

1.3 Safety and Handling Instructions

Please read the instructions for use carefully. To protect the device or the application against damage, or

to avoid personal injury the FL3X Media 100BASE-T1 has to be handled as described herein.

Changes or modifications of the FL3X Media 100BASE-T1 are not allowed for safety and warranty reasons!

STAR ELECTRONICS GmbH & Co. KG is not liable for any damages arising from non-observance of the

product information.

Follow the

a) specific safety and handling instructions placed at dedicated document positions

b) general safety and handling instructions below:

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 7 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

NOTICE

To prevent damage to the FL3X Media 100BASE-T1, or consequential damages:

Do not open the FL3X Media 100BASE-T1.

Do not connect any other signals to the interfaces as described in the chapter

“Interfaces”. Ensure that all signals are within the specified range.

High temperatures can damage the FL3X Media 100BASE-T1. Keep the FL3X Media

100BASE-T1 away from heaters, stoves, fireplaces, and other sources of heat.

Do not expose the FL3X Media 100BASE-T1 to rain or use it near water.

Do not use the FL3X Media 100BASE-T1 in areas of explosion hazard.

The maximum allowed length of the power cable is 3m.

Do not use the FL3X Media 100BASE-T1 in DC power supply networks.

1.4 User Group

This document is written for expert technicians who are familiar with electronic components and systems.

Each person involved with assembly, line-up, operation, maintenance, or disposal of the FL3X Media

100BASE-T1 has to

be a qualified technician, or electrician, or engineer

strictly adhere to this manual

receive a briefing by an authorized person

1.5 Meaning of Text Styles

In this document filenames, are marked with a different text format.

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 8 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

2Product Description

2.1 FL3X Media 100BASE-T1 at a glance

The FL3X Media 100BASE-T1 is a bidirectional 100 Mbit Ethernet converter between the 2-wire standard

100BASE-T1 and the 4-wire standard 100BASE-Tx.

The Broadcom BCM89810 transceiver is used for the 100BASE-T1 conversion.

•Master and slave feature selectable with DIP-switch

•RJ45 connector for Ethernet

•D-Sub 9 pin for 2 wire Ethernet

•Power supply range: 8 – 48 V

Field of application

•Testing

•Diagnostics

2.2 Accessory Parts

For further information about accessories for the FL3X Media 100BASE-T1 see chapter 7.2 Accessory

Parts.

NOTICE

Use only accessory parts from STAR ELECTRONICS GmbH & Co. KG listed in chapter 7.2

Accessory Parts to ensure proper function and for warranty reasons!

Other accessories without prior written consent of STAR ELECTRONICS GmbH & Co. KG

must not be used.

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 9 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

3Technical Data

3.1 Electrical Characteristics

Supply voltage

Min. Typ. Max.

Operating +8.0 V - +48.0 V

Absolute maximum

(non-operating)

-60.0 V - +60.0 V

Supply current - operating Typ.: 80 mA; Max.: 140 mA

Table 1: Electrical characteristics

3.2 Physical Characteristics

Connectors RJ45, D-Sub 9

Weight approx.

145 g

Dimensions approx. L x W x H

92 * 65 * 28 mm

Table 2: Physical characteristics

3.3 Environmental Conditions

Temperature

Operating: -40°C – +85°C

Non-operating: -40°C – +85°C

Storage: -40°C – +85°C

Relative Humidity 0% – 90% r. H., non-condensing

Table 3: Environmental conditions

3.4 Interfaces

The FL3X Media 100BASE-T1 has a power cable, two connectors, a 2 pin DIP-switch and some LED’s. The

following figures show the position of each interface.

Figure 1: Side with Power and Ethernet

Figure 2: Side with 100BASE-T1

3.4.1 Power

The valid range of the power supply for the FL3X Media 100BASE-T1 is within 8 - 48 V DC. The power

supply input of the FL3X Media 100BASE-T1 is EMC and reverse protected.

Created by STAR ELECTRONICS GmbH & Co. KG

Date created 2022-02-16 Date modified 2023-02-20 Page 10 of 19

3 -0093 -0A01 -D04_I nstruction_fo r_Use_FL3X_Media 1 00BASE-T1 _D1 V2-F .docx

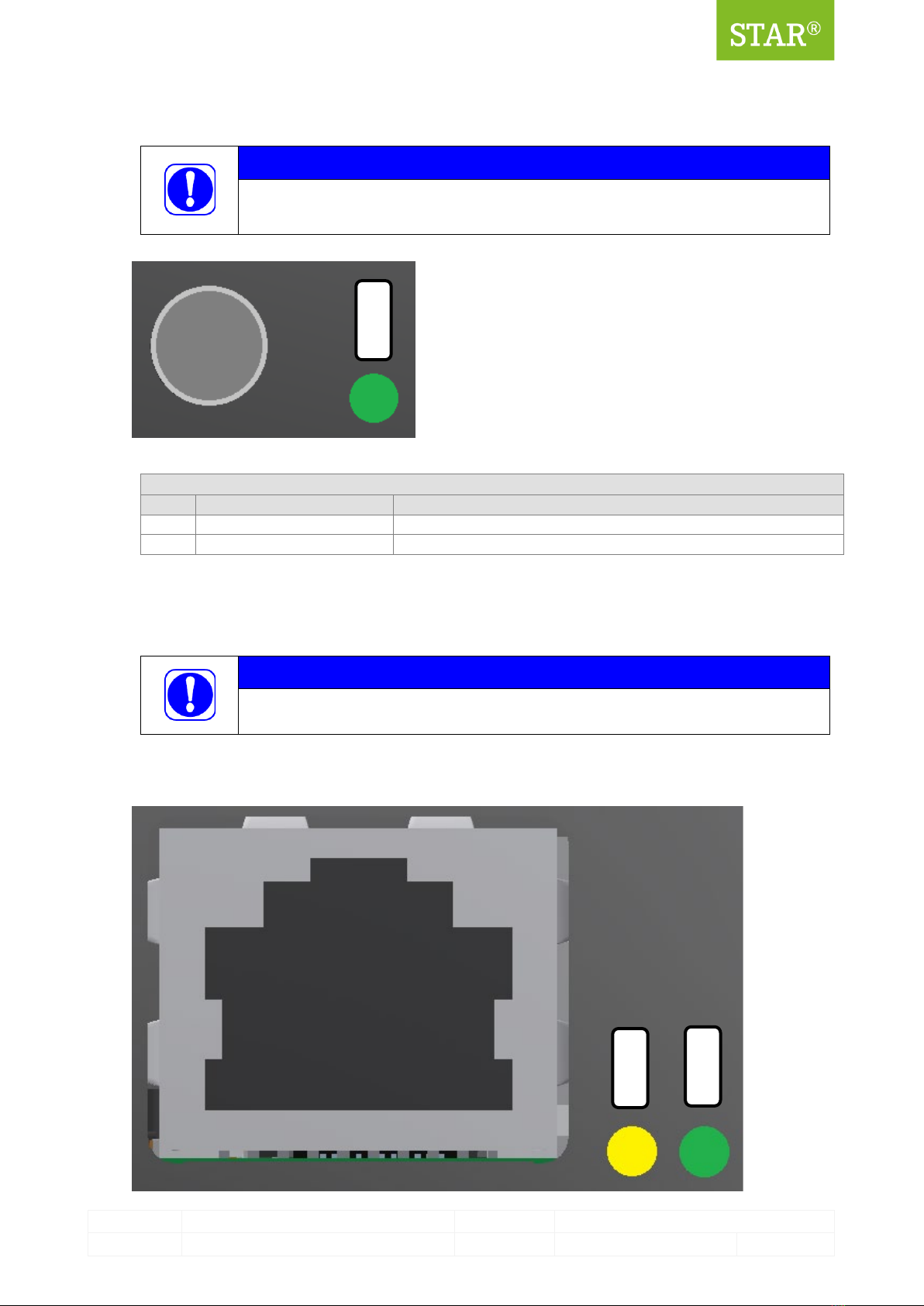

Internal voltage regulators generate the operating voltages out of this supply voltage.

NOTICE

The maximum allowed length of the power cable is 3m.

not

use the FL3X Media 100BASE-T1 in DC power supply networks.

The green LED near the power cable shows the power supply status, if the LED is on, the power is OK.

Figure 3: Power cable and green power LED

Power cable

Signal Name

Description

GND

Ground signal

Uin

Power in allowed in the range from 8 – 48 V

Table 4: Power cable

3.4.2 Ethernet (RJ45)

The FL3X Media 100BASE-T1 support a 100BASE-TX (100 Mbit/s Ethernet) interface at the power

connector side. This connector supports only “100MBit/s full-duplex” mode.

NOTICE

The maximum allowed length of the Ethernet cable is 30m.

There are two LEDs near the RJ45 connector, a green LED and a yellow LED. The yellow LED shows the link

state. The green LED shows traffic.

Link

Active

Power

Indice
