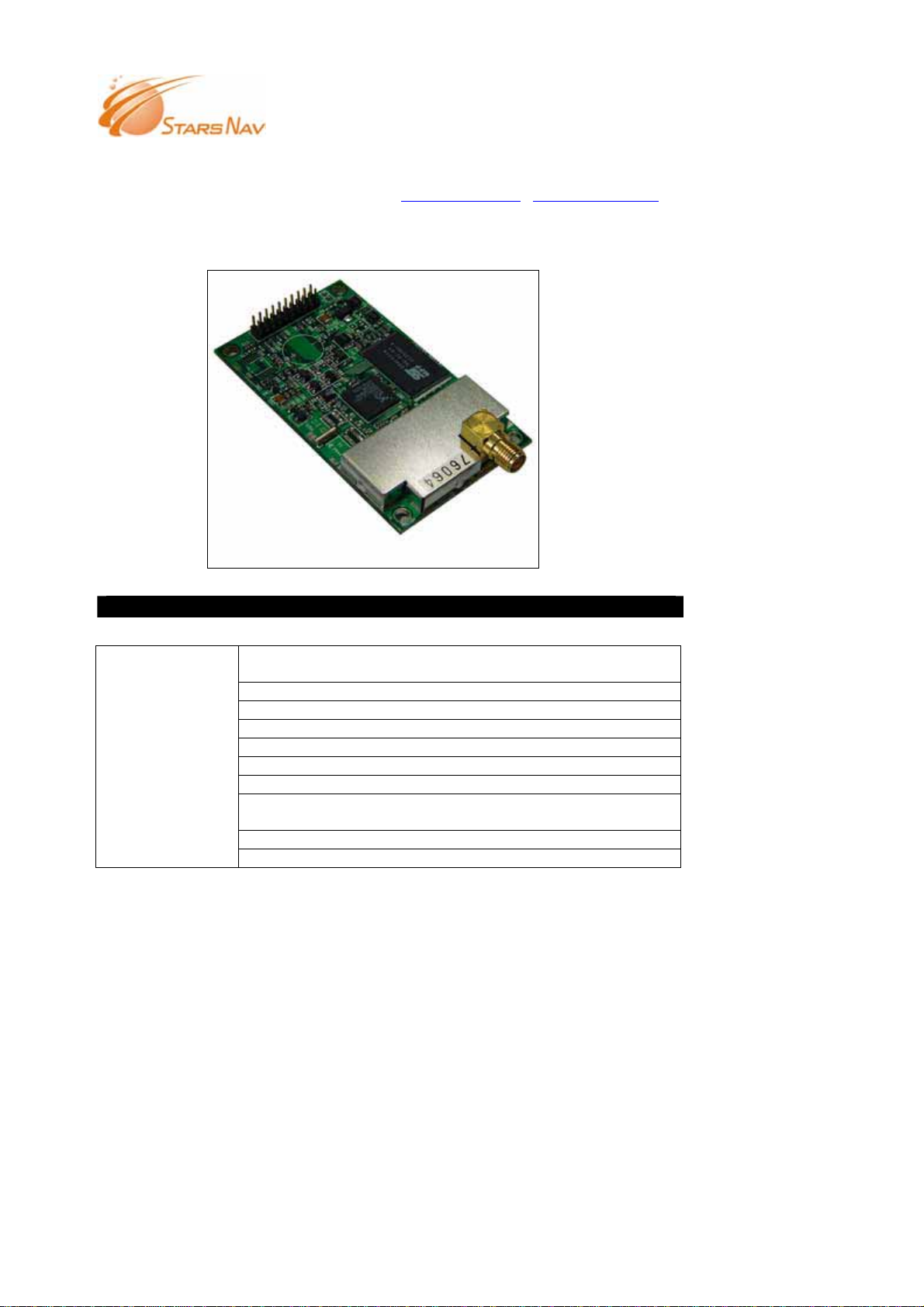

6
N/S Indicator n N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
UTC Position 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Checksum *2C
<CR><LF> End of message termination
GSA-GNSS DOP and Active Satellites
Table B-5 contains the values for the following example:
$GPGSA,A,3,07,02,26,27,09,04,15,,,,,,1.8,1.0,1.5*33
Table B-5 GSA Data Format
Table B-6 Mode1
Value Description
M Manual-forced to operate in 2D or 3D mode
A 2Dautomatic-allowed to automatically switch 2D/3D
Table B-7 Mode 2
Value Description
1 Fix Not Available
2 2D
3 3D
GSV-GNSS Satellites in View
Table B-8 contains the values for the following example:
$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71
$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41
Table B-8 GSV Data Format
Name Exam
le Descri
tion
Message ID $GPGSV GSV protocol header
Number of Messages12 Range 1 to 3
Message Number11 Range 1 to 3
Satellites in View 07
Name Example Units Description
Message ID $GPGSA GSA protocol header
Mode1 A See Table B-6
Mode2 3 See Table B-7
Satellite Used107 Sv on Channel 1
Satellite Used102 Sv on Channel 2
…..
Satellite Used1Sv on Channel 12
PDOP 1.8 Position dilution of Precision
HDOP 1.0 Horizontal dilution of Precision
VDOP 1.5 Vertical dilution of Precision
Checksum *33
<CR><LF> End of message termination
