ICUSB232IS

1 Port Industrial USB to RS232 Serial

Adapter with 5KV Isolation and 15KV ESD

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Overview ..................................................................................1

Front View .................................................................................................................................................... 1

Rear View...................................................................................................................................................... 1

RS232 Pinout............................................................................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Installation ..............................................................................................3

DIN Rail Bracket Installation .................................................................................................................. 3

Driver Installation...................................................................................................................................... 4

Verifying Installation................................................................................................................................ 6

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Product Overview

Front View

Rear View

RS232 Pinout

USB Mini-B

(5 pin) Female

DB-9 (9 pin;

D-Sub) Male

Pin 1 DCD Pin 6 DSR

Pin 2 RXD Pin 7 RTS

Pin 3 TXD Pin 8 CTS

Pin 4 DTR Pin 9 RI

Pin 5 GND

Instruction Manual

Introduction

Add an optically isolated RS232 serial port with ESD protection through a USB

port - DIN Rail Mountable

Packaging Contents

• 1x USB to Serial Adapter

• 1x DIN Rail Bracket

• 1x 1m (3ft) USB Cable

• 1x Driver CD

• 1x Instruction Manual

System Requirements

• Available USB Port

Instruction Manual

Installation

DIN Rail Bracket Installation

If you are mounting the ICUSB232IS product onto a DIN Rail, you will rst need to

attach the included DIN Rail Bracket to the device. Note that the spring clip portion of

the bracket should be at the bottom.

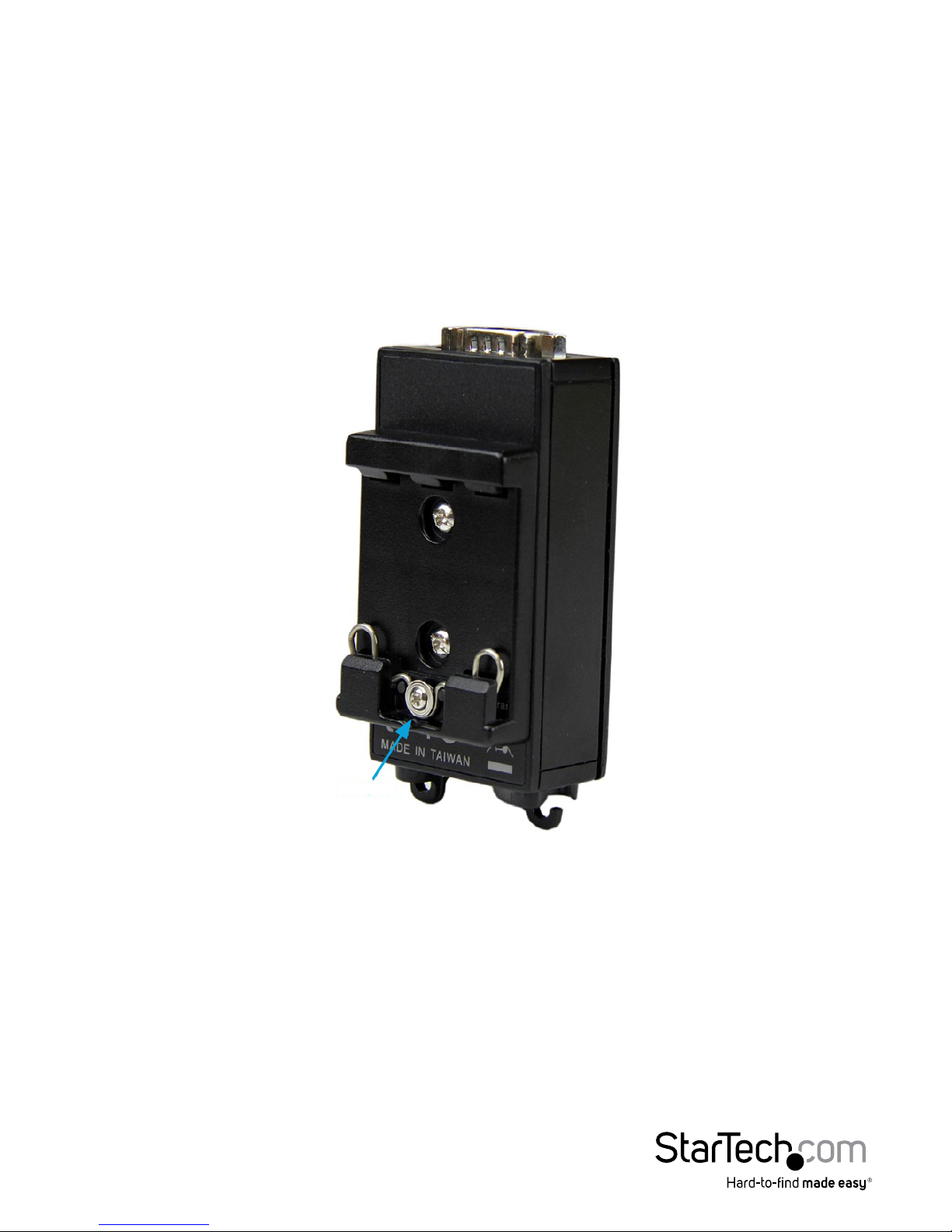

1. Hold the ICUSB232IS device with the USB port facing down and place the DIN rail

bracket on the back of the device, lining up the screw holes.

2. Insert the 2 included screws and tighten.

Spring

Clip

Instruction Manual

Driver Installation

Windows

1. Upon starting Windows, if the Found New Hardware wizard appears on the screen,

cancel/close the window and insert the included Driver CD into the computer’s CD/

DVD drive.

2. Open the Device Manager by right-clicking on Computer, and then select Manage.

In the new Computer Management window, select Device Manager from the left

window panel (For Windows 8, open the Control Panel and select

Device Manager).

3. Expand the Universal Serial Bus Controllers section and right-click on the newly

detected “USB Serial Converter” device

4. Select Update Driver Software, which will start the Update Driver Software Wizard.

5. On the How do you want to search for driver software? window, click Browse my

computer for driver software.

6. Click the Browse button, and navigate to your CD/DVD drive, then to the“Win XP

Vista Win 7 8”folder.

7. Select the appropriate 32 (i386) or 64-bit (amd64) OS folder for the system you are

using and click Next to install the drivers.

8. Repeat steps 4-7 for the “USB Serial Port” device located in the Other

Devices section.

Instruction Manual

Mac OS

1. Connect the USB Serial Adapter to an available USB port.

2. Insert the provided CD into your DVD/CD-ROM drive.

3. Browse to the Mac OS folder on the disc.

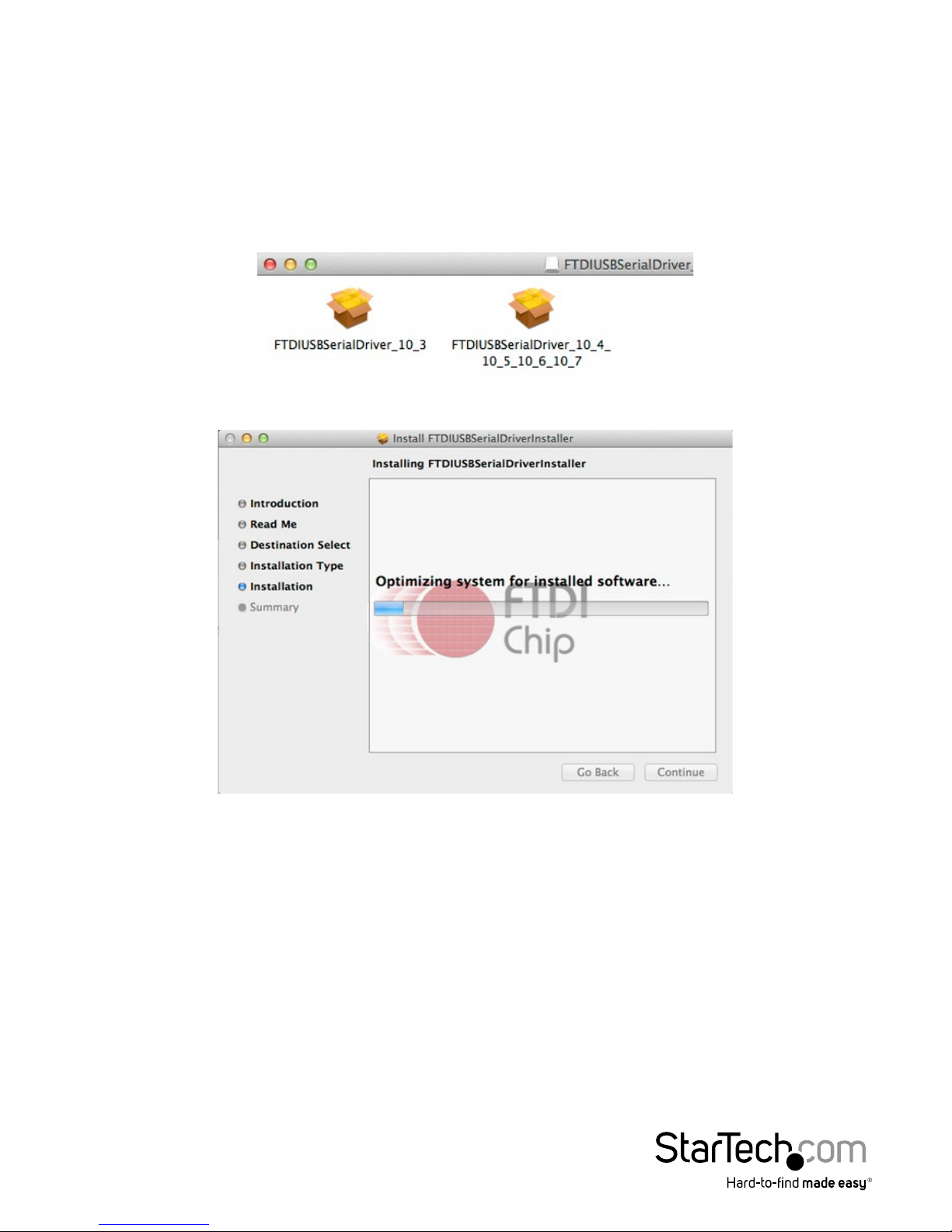

4. Mount the FTDIUSBSerialDriver_v2_2_18.dmg le, and then run the

FTDIUSBSerialDriver.pkg application le that is appropriate for the version of Mac

OS you are running to start the install.

5. Follow the on-screen instructions to complete the installation.

NOTE: You may be prompted to restart once the install completes.

Instruction Manual

Verifying Installation

1. Open the Device Manager by right-clicking on Computer, and then select Manage.

In the new Computer Management window, select Device Manager from the

left window panel (For Windows 8, open the Control Panel and select Device

Manager).

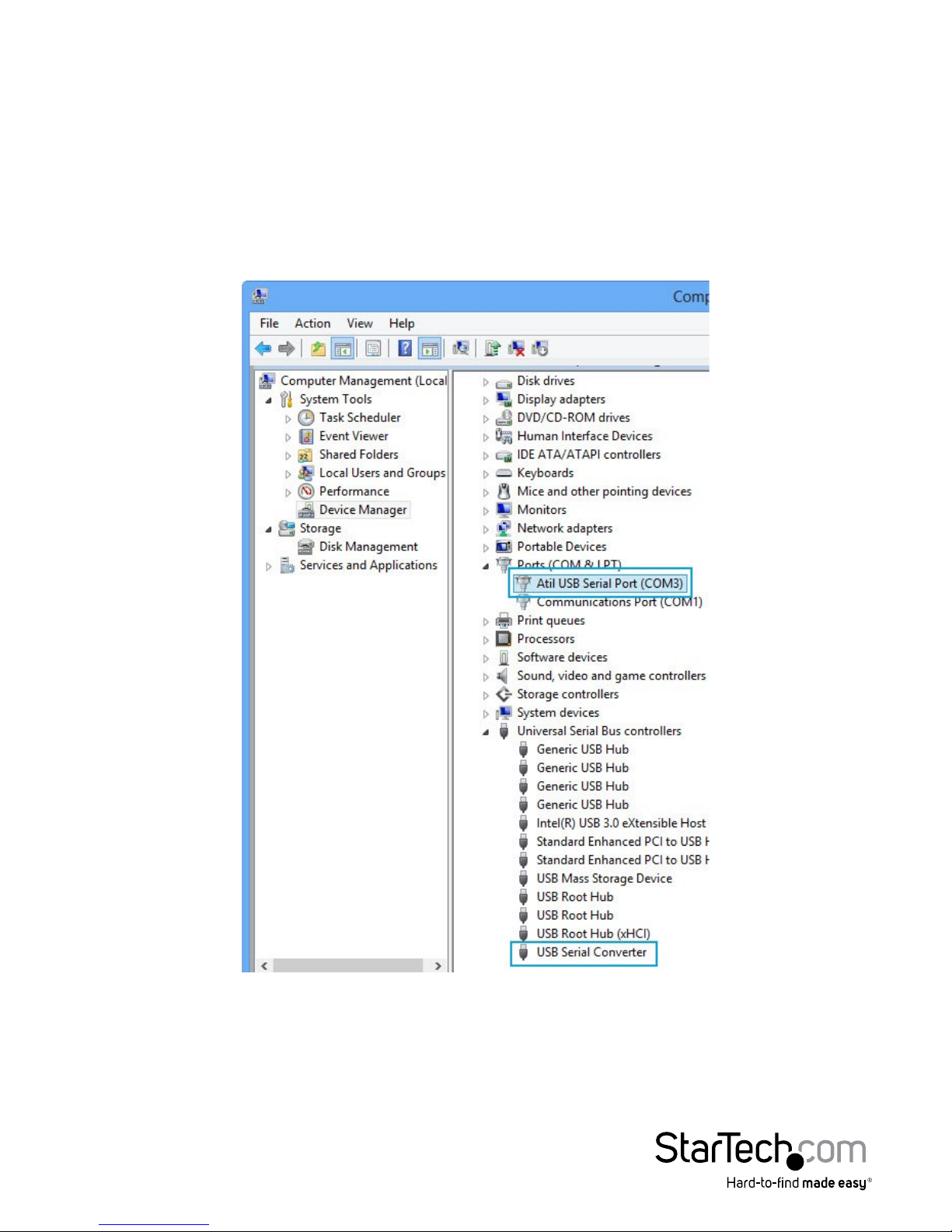

2. Expand the Ports (COM & LPT), and Universal Serial Bus Controllers sections. On a

successful install, you should see 1 Atil USB Serial Port (COMx) device under the Ports

(COM & LPT) section, and 1 USB Serial Converter device under Universal Serial Bus

Controllers with no exclamation points or question marks.

Instruction Manual

Mac OS

1. Open the System Proler by clicking the Apple symbol in the top left corner,

selecting About this Mac, then select System Report

2. Expand the“Hardware” section and click “USB” in the left column. With the adapter

connected, you should see the following device in the list.
