StarTech.com ST1000SPEXDP Manuale utente

2 Port PCI Express

10/100/1000 Mbps Gigabit

Ethernet Network Adapter

Card

ST1000SPEXDP

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Installation....................................................................... 1

Package Contents .......................................................................1

Hardware Installation...................................................................1

Driver Installation.........................................................................1

Speciﬁcations.................................................................. 3

Technical Support........................................................... 5

Warranty Information...................................................... 5

Installation

Package Contents

1 x Driver CD•

1 x Low Proﬁle Bracket•

1 x Manual•

1 x ST1000SPEXDP Network Adapter•

Hardware Installation

Turn the system power off before beginning installation.1.

Use static electricity discharge precautions. To avoid damaging any2.

components on the card, handle it by edges.

Remove the chassis cover from your computer.3.

Locate an unused PCI Express slot (typically white and smaller) and4.

remove the corresponding slot cover from computer chassis.

Plug the ST1000SPEXDP into the unused PCI Express expansion5.

slot and attach the I/O card bracket to the computer chassis.

Put the chassis cover back onto the computer.6.

Power on your computer and peripherals.7.

Driver Installation

Windows 98SE, ME, 2000, XP and XP-64 Installation

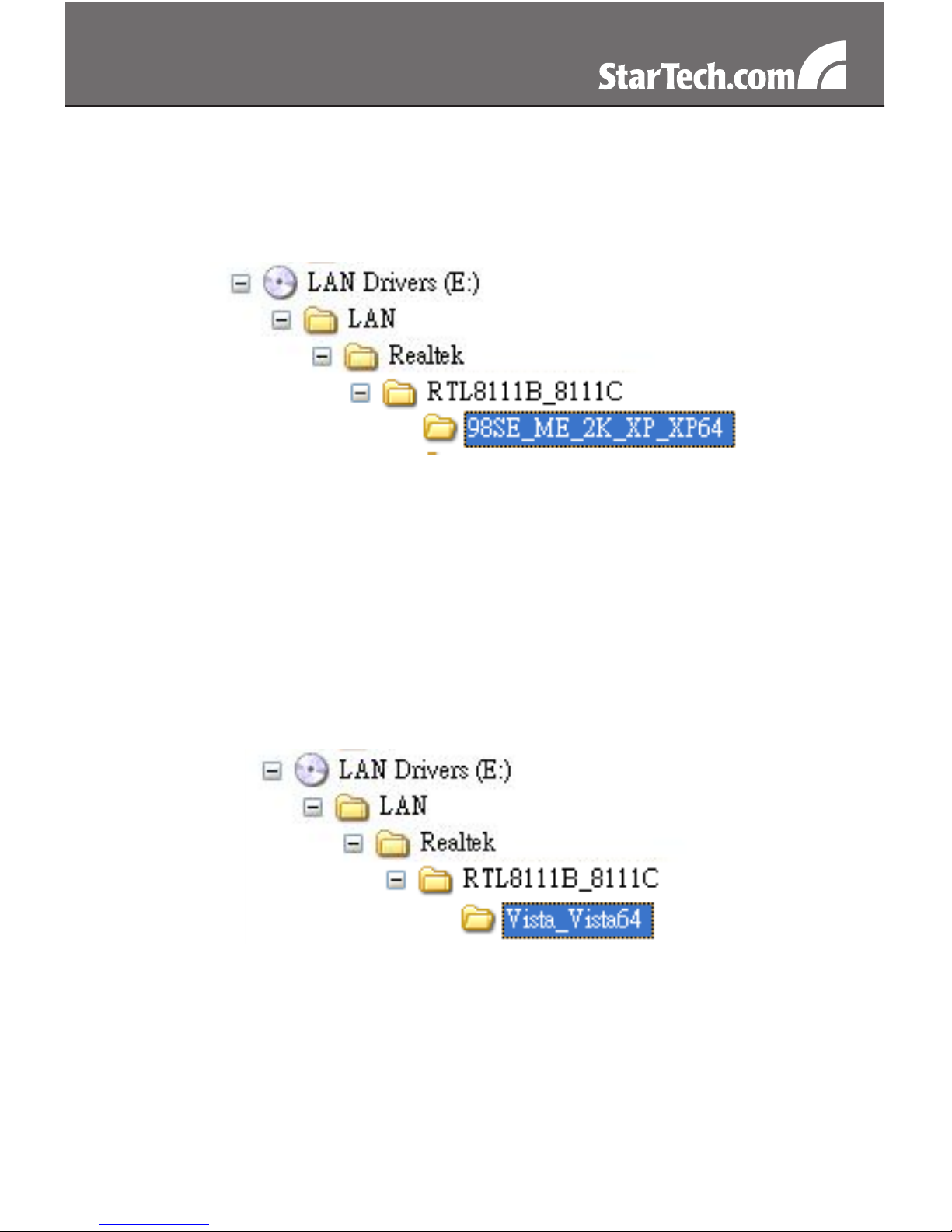

Insert the included driver CD into your computer’s CD-ROM drive.1.

Navigate to the following directory:2. LAN\

RealtekRTL8111B_8111C\98SE_ME_2K_XP_XP64

Open the ﬁle3. Setup.exe.

Follow the on-screen instructions to complete driver installation.4.

Windows Vista™

Insert the included driver CD into your computer’s CD-ROM drive.1.

Navigate to the following directory:2. LAN\Realtek\RTL8111B_8111C\

Vista_Vista64

Open the ﬁle3. Setup.exe.

Follow the on-screen instructions to complete driver installation.4.

Specications

OS Support

Windows 98SE, ME, 2000, XP,

XP-64bit, Vista, Vista-64bit

WinCE 4.2, 5.0

Linux Support: Kernel 2.4.x and

later

MAC OS 10.4 (on Intel-based

Mac’s)

Buffer Size On-chip 48KB Big Transmit/Re-

ceive Buffer Support

Bus Type PCI Express

Chipset ID Realtek RTL8111C

Full Duplex Support Yes

LED Indicators 2 x Link and Active LED’s

Maximum Data Transfer Rate 1000 Mbps

Number of Ports 2

Technical Support

StarTech.com’s lifetime technical support is an integral part of our com-

mit-ment to provide industry-leading solutions. If you ever need help

with your product, visit www.startech.com/support and access our com-

prehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not war-

rant its products from defects or damages arising from misuse, abuse,

alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com

USA LLP (or their ofﬁcers, directors, employees or agents) for any dam-

ages (whether direct or indirect, special, punitive, incidental, consequen-

tial, or otherwise), loss of proﬁts, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price

paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limita-

tions or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Serv-

er Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
