StarTech.com U2M2E125 Manuale utente

Manual Revision: 03/24/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/U2M2E125.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

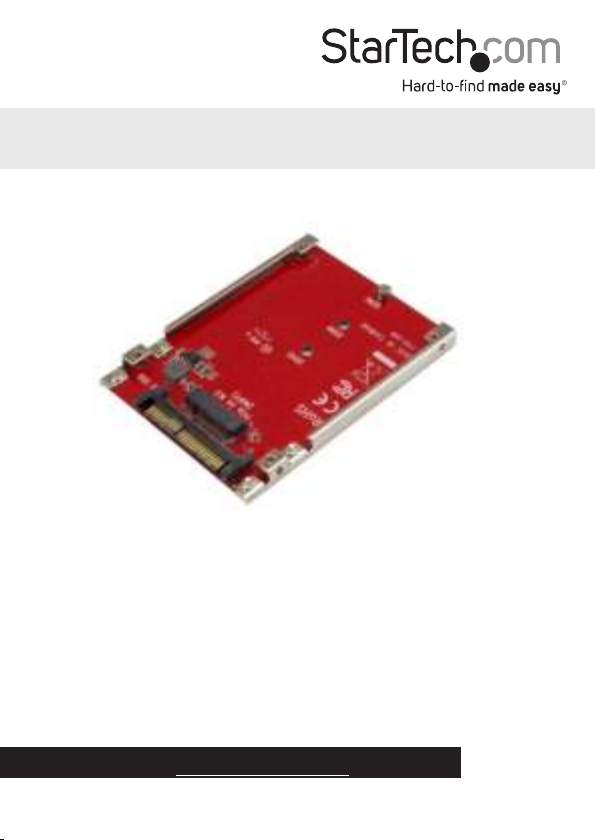

U2M2E125

M.2 Drive to U.2 (SFF-8639) Host

Adapter for M.2 NVMe SSDs

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Product diagram ....................................................................................1

Package contents ...................................................................................1

Requirements .........................................................................................2

Connect an M.2 NVMe SSD...................................................................2

Install the adapter..................................................................................3

Technical support...................................................................................4

Warranty information............................................................................4

Instruction manual

Product diagram

Drive-mounting holes

Drive-mounting hardware

Adapter-mounting hole

Adapter-mounting hole Adapter-mounting

hole

Adapter-mounting

hole

M.2 NVMe

connector

U.2 SFF-8639 connector

Package contents

• 1 x M.2 drive to U.2 adapter

• 4 x adapter-mounting screws

• 1 x set of drive-mounting hardware

• 1 x quick-start guide

Instruction manual

Requirements

• M.2 NVMe SSD

• Computer or server with a 2.5” SSD or HDD mounting bay

• Computer or server with an SFF-8643 port

• SFF-8643 to SFF-8639 cable

• Screwdriver

• Pliers

This adapter is OS independent and doesn’t require any additional drivers or software.

Note: To determine if the drive and motherboard that you’re using are compatible,

consult the technical specications that came with the drive and motherboard.

Requirements are subject to change. For the latest requirements, please visit

www.StarTech.com/U2M2E125.

Connect an M.2 NVMe SSD

Warning! Drives should be handled carefully, especially when you transport them. If

you’re not careful with your drives, you may experience lost or corrupted data. Make

sure that you’re properly grounded by wearing an anti-static strap when you install

any computer component. If an anti-static strap isn’t available, touch a large, grounded

metal surface for several seconds to discharge any built-up static electricity.

1. Depending on the length of the drive, you may need to move the preinstalled

drive-mounting hardware. Place the drive next to the adapter and note the

drive-mounting hole that matches the length of your drive. If the drive-mounting

hardware is already installed in the correct position, proceed to step 4.

2. Use a small pair of pliers to remove the nut from the reverse side of the converter.

3. Place the nut and stando that you removed in the previous step in the drive-

mounting hole that matches the length of the drive, and use a screwdriver to

tighten them.

4. Gently slide the connector on the drive into the M.2 NVMe connector on the

adapter.

5. Insert the drive-mounting screw through the drive and into the stando, and use

a screwdriver to tighten the drive-mounting screw.

Instruction manual

To remove a drive, use a screwdriver to remove the drive-mounting screw that is

holding the drive in place and slide the drive out of the adapter.

Install the adapter

Warning! Computer components can be severely degraded by static electricity. If an

anti-static strap isn’t available, discharge any built-up static electricity by touching a

large, grounded metal surface for several seconds.

1. Turn o your computer and any devices or peripherals that are connected to it

(for example, printers, external storage, and so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your computer.

4. Open your computer case.

For more information about how to do this, consult the documentation that

came with your computer system.

5. Connect an SFF-8643 to SFF-8639 cable to the U.2 SFF-8639 connector on the

adapter and to the system motherboard or controller card.

6. The top or side mounting holes and provided adapter-mounting screws may or

may not be required to secure the adapter.

For more information about how to secure the adapter to the motherboard or

controller card, consult the documentation that came with the system

motherboard or controller card.

7. Place the cover back onto your computer case.

8. Reconnect the power cable to the back of your computer.

9. Reconnect the peripheral devices.

10. Turn on your computer.

Instruction manual

Technical support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship

for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
