StarTech.com USB External Sound Card Adapter Manuale utente

USB External Sound Card

Adapter

7.1 Channel USB Audio Adapter

Exernal Sound Card

ICUSBAUDIO7D

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction ..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Driver Installation.........................................................................3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information...................................................... 5

Introduction

Packaging Contents

1 x ICUSBAUDIO7D adapter•

1 x USB A-B cable•

1 x Software CD•

1 x Instruction Manual•

System Requirements

An available USB port•

Microsoft WIndows• ®2000/XP/Server 2003/Vista, Mac OS®10.4/10.5

Installation

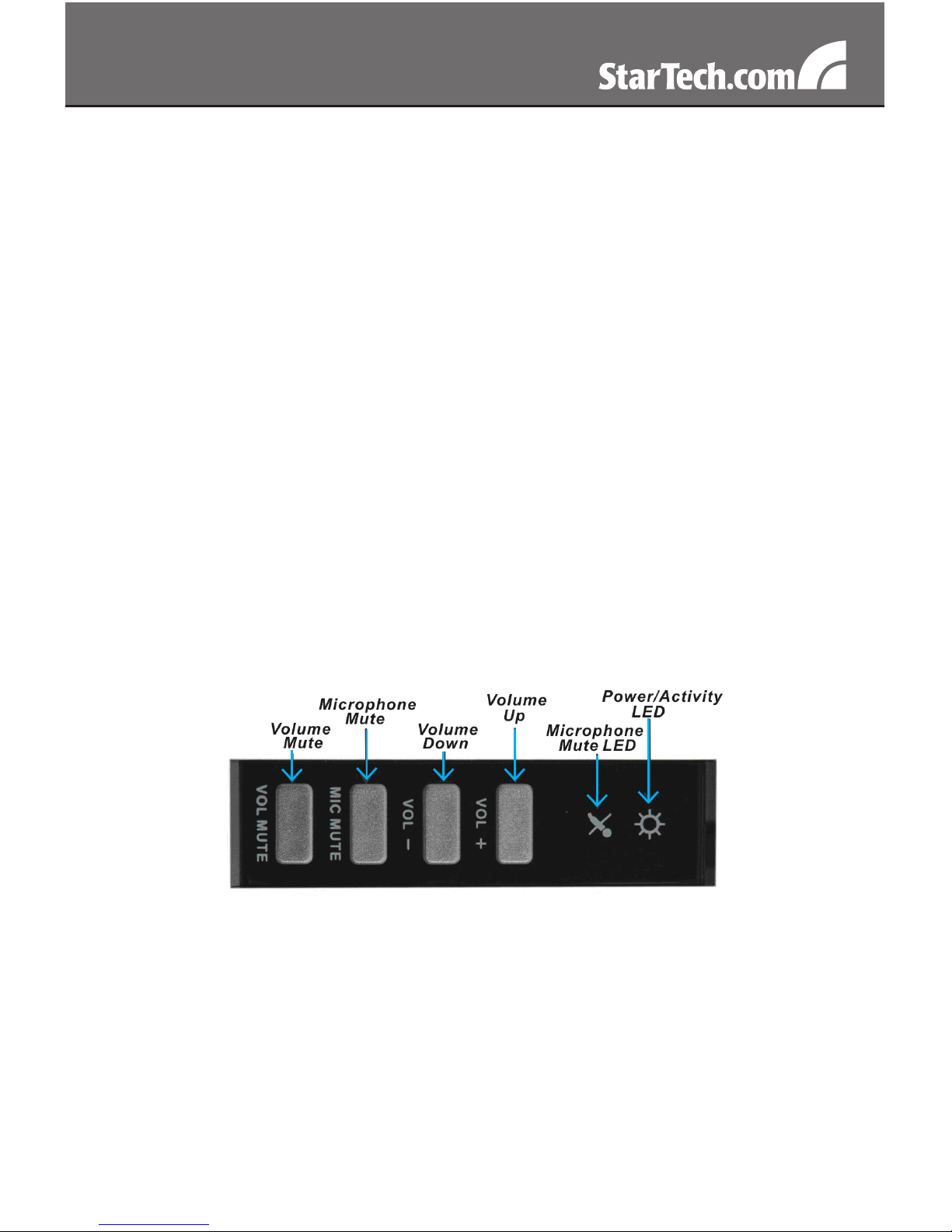

Top Controls

Volume Mute: Press this button to mute/un-mute audio outputs.

Microphone Mute: Press this button to mute/un-mute microphone.

Volume (UP, Down): Increases or decreases audio output volume.

Microphone Mute LED: When the microphone inputs are muted, the

light will turn on.

Power/Activity LED: The light will be on when the system is powered

up. The light will blink when activity is detected.

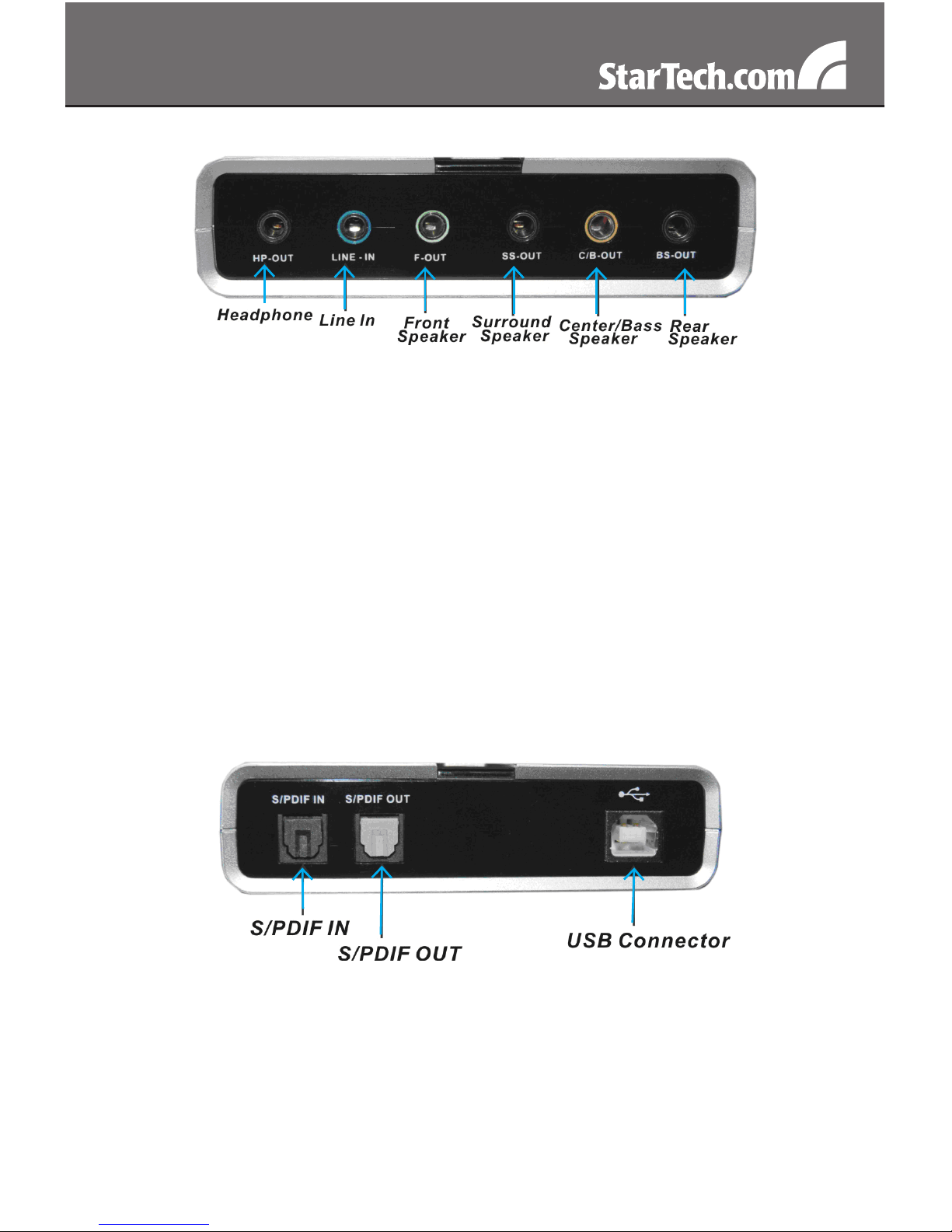

Front View

Headphone: Connect to headphone.

Line In: Connect to tape/CD/DVD Player, or other audio sources for

output mixing and/or recording.

Front Speaker: Connect to Front speakers (via external ampliﬁer).

Surround Speaker: Connect to Surround speakers while in 4/6/8

channel modes (via external ampliﬁer).

Center/Bass Speaker: Connect to Center/Bass speakers while in 6/8

channel modes (via external ampliﬁer).

Rear Speaker: Connect to Rear speakers while in 8 channel mode (via

external ampliﬁer).

Rear View

S/PDIF IN: Connect to the digital optical output of external audio device

via a Toslink cable. The signal only passes through to the S/PDIF OUT.

S/PDIF OUT: Connect to the digital optical input of an external audio

device via aToslink cable.

USB Connector: Plugs into the system’s USB port.

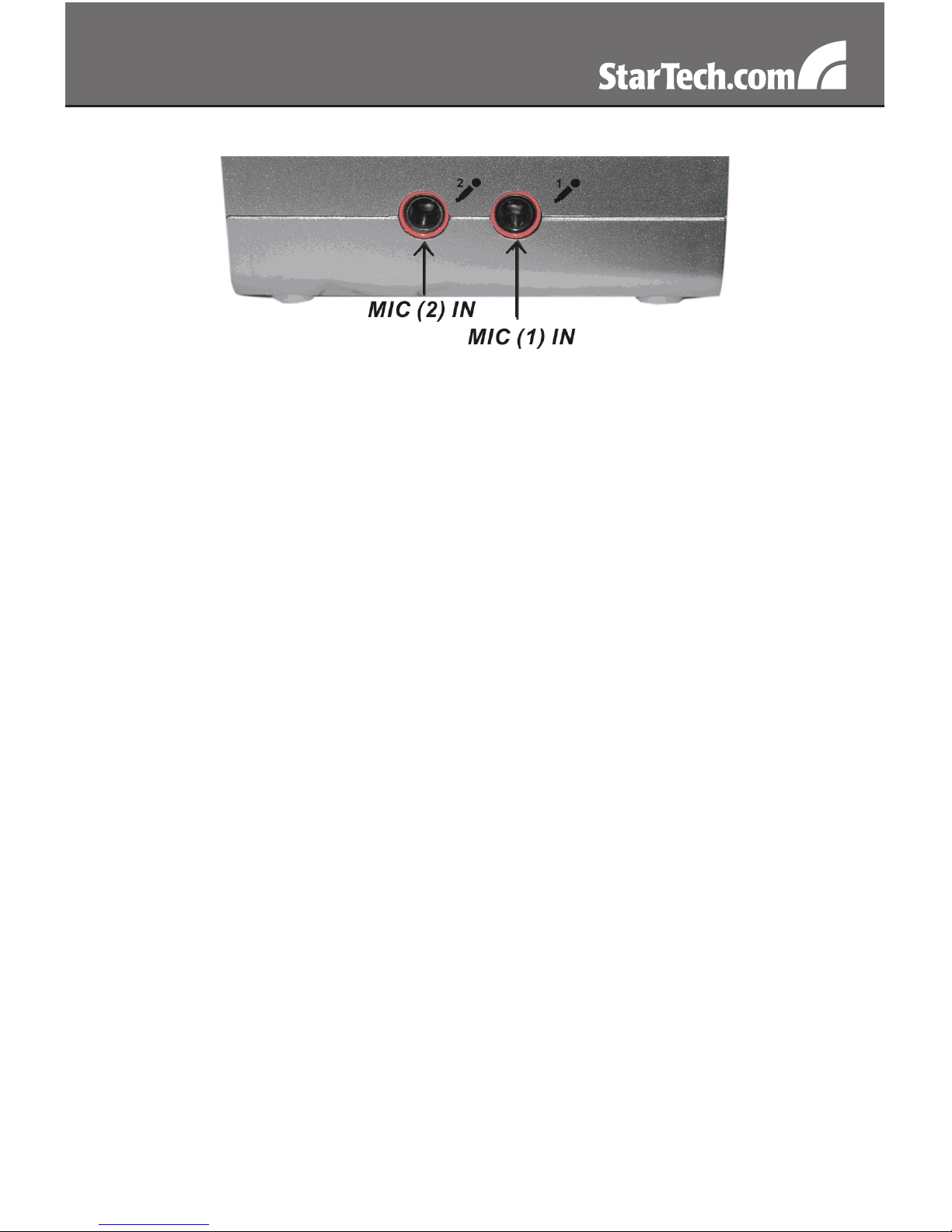

Side View

MIC (1) IN: Connect to a microphone (right channel only).

MIC (2) IN: Connect to a microphone (left channel only).

Driver Installation

Windows 2000/XP/Server 2003/Vista

Plug the USB Sound Adapter into an available USB port.1.

Place the Driver CD into the CD-ROM drive. Click the Start button on2.

the taskbar and click Run. Type “D:\SOUND\CMedia6206\setup.exe”.

(Assuming you have placed the CD in CD-ROM drive labeled as D).

Follow the on-screen instructions to complete the software3.

installation.

Restart your system. Once you have rebooted the computer, the4.

USB Sound Adapter is now ready to be used.

The Sound and Audio Devices settings in Control Panel (or the5.

application) may need to be changed to make the USB Sound

Adapter the default audio device before it outputs any audio.

Mac OS 10.4/10.5

No driver or software installation is required for Mac OS X, as this

sound card is natively supported, so the drivers are already installed.

Specications

Bus Interface USB 2.0

Connectors

8 x 3.5mm mini-jack•

(headphone, line-in,

front speaker, surround speaker,

rear speaker, center/bass,

mic 1, mic 2)

2 x Toslink (S/PDIF in/out)•

USB type B•

Buttons Volume Up, Volume Down,

Volume Mute, Mic Mute

LEDs Power/Activity, Mic Mute

Chipset C-Media CM6206

Sampling Rate 48/44.1KHz, 16-bit

Dimensions 100.0mm x 60.0mm x 25.0mm

Weight 100g

Compatible Operating

Systems

Windows®2000/XP/Server 2003/

Vista, Mac OS®10.4/10.5

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
