USB to IDE or SATA Adapter

USB2SATAIDE Instruction Manual

Actual product may vary from photo

USB 2.0 to IDE or SATA Adapter Cable

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Instruction Manual

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Hardware Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Assemble the Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Connect the drive(s) to the Hard Drive Adapter . . . . . . . . . . . . . . . . . .3

Connect the drive(s) to the Power Adapter . . . . . . . . . . . . . . . . . . . . .5

Connect the Hard Drive Adapter to the host computer . . . . . . . . . . . .5

Removing Connected Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Instruction Manual

Thank you for purchasing a StarTech.com USB 2.0 to IDE or SATA Adapter Cable. Now,

you will be able to copy, backup, or transfer large amounts of data from one drive to

another, while taking advantage of USB2SATAIDE’s convenient Plug and Play design.

Plus, this product offers a convenient way to externally test hard drives for function

IInnttrroodduuccttiioonn

Features

BBeeffoorreeYYoouuBBeeggiinn

•Switch button power supply

•Plug and Play USB installation

•Backward compatible with USB 1.1 standard

•One available USB port

System Requirements

•Supports Windows 98SE/ME/2000/XP/Vista/Mac OS 8.6+/9.x/10

•1 x USB to SATA/IDE cable

Package Contents

•1 x AC power cord

This package should contain:

•Operating System: Windows 98SE/ME/2000/XP/Vista/Mac OS 8.6+/9.x/10

•1 x Power Supply (for all hard drives)

•An available power outlet

•1 x Instruction Manual

Instruction Manual

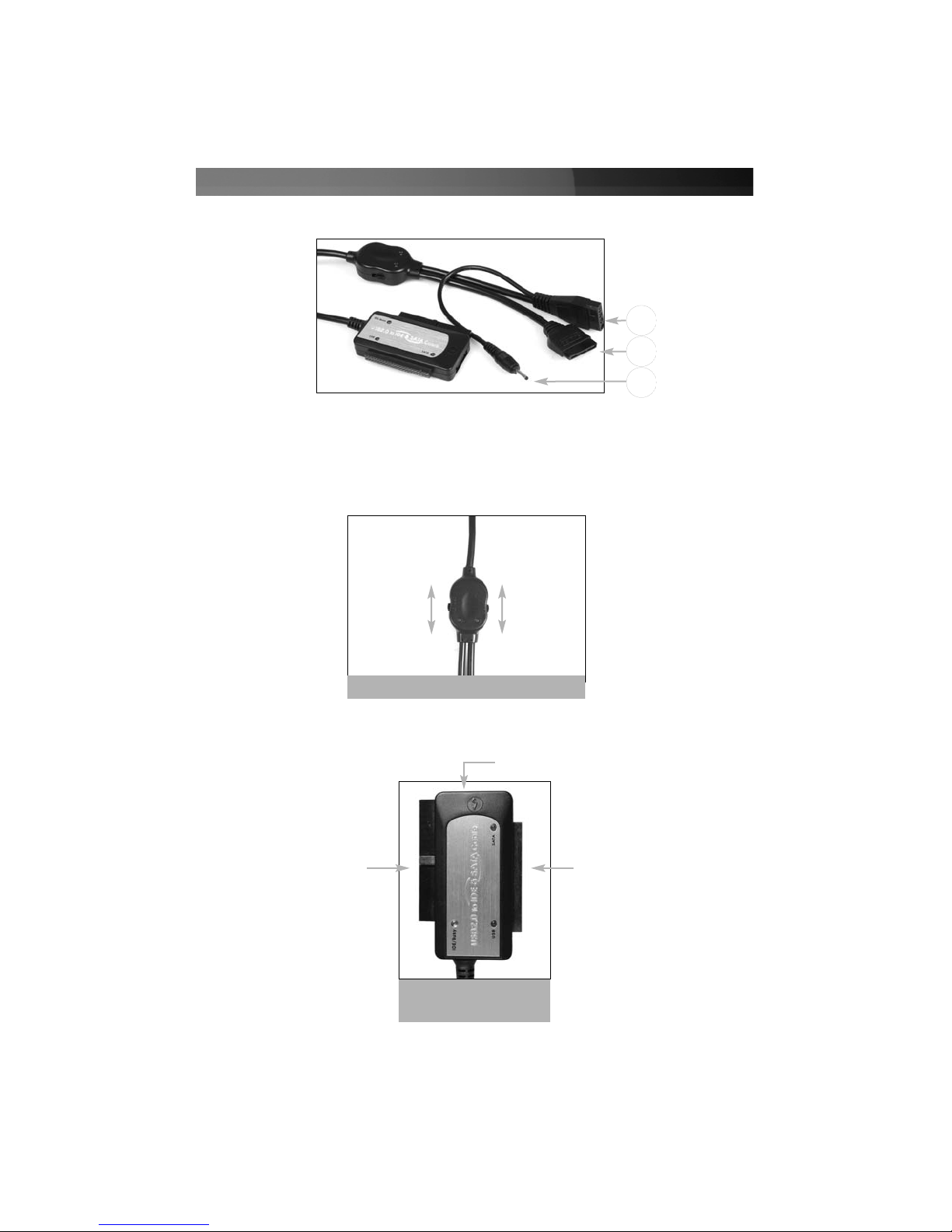

HHaarrddwwaarreeGGuuiiddee

Hard Drive Power Switch

ON ON

OFF

40-Pin IDE Connector

44-Pin IDE Connector

SATA Connector

Hard Drive

Adapter

1LP4 IDE 3.5” Power Connector

2SATA Power Connector

3Additional Power Connector

Instruction Manual

IInnssttaallllaattiioonn

WARNING: Do not disconnect any cables or power sources while the

connected hard drive(s) is/are active. This can result in data loss and possible

damage to the hard drive. To avoid this, please follow the steps outlined in the

section entitled Removing Connected Drives.

1 - Assemble the Power Adapter

a. Ensure the mini-switches on the main hard drive power switch are set to the OFF

position.

WARNING: Do not connect the Hard Drive Adapter to the host computer, while

the host computer is in a powered state. This could result in data loss or

physical damage to the drive.

WARNING: Please ensure that the hard drive(s) has(have) been connected to

the adapter prior to connecting the adapter to the host computer.

c. Connect the small, cylindrical metal connector (splits off from LP4 connector)

provided by the Switching Adapter to the corresponding power port on the Hard

Drive Adapter

d. Connect the remaining connector of the assembled power adapter to an available

wall outlet or power bar

b. Insert the dual-cylinder connector

provided by the main power cable into

the corresponding port on the Switching

Adapter.

2 - Connect the drive(s) to the hard drive adapter

WARNING: Hard drives require careful handling. If you are not careful with

your hard disk, lost data may result. Always handle your hard drive with

caution.

Please note that if you are using two IDE hard drives concurrently, one of the

drives must be set to act as a Master drive, and the other as slave. If you are

using a 3.5” IDE drive and a SATA drive together, the IDE drive must be set to

act as a Slave drive. For further information on this, please consult the

documentation that accompanied the hard drive(s) at the time of purchase.

Instruction Manual

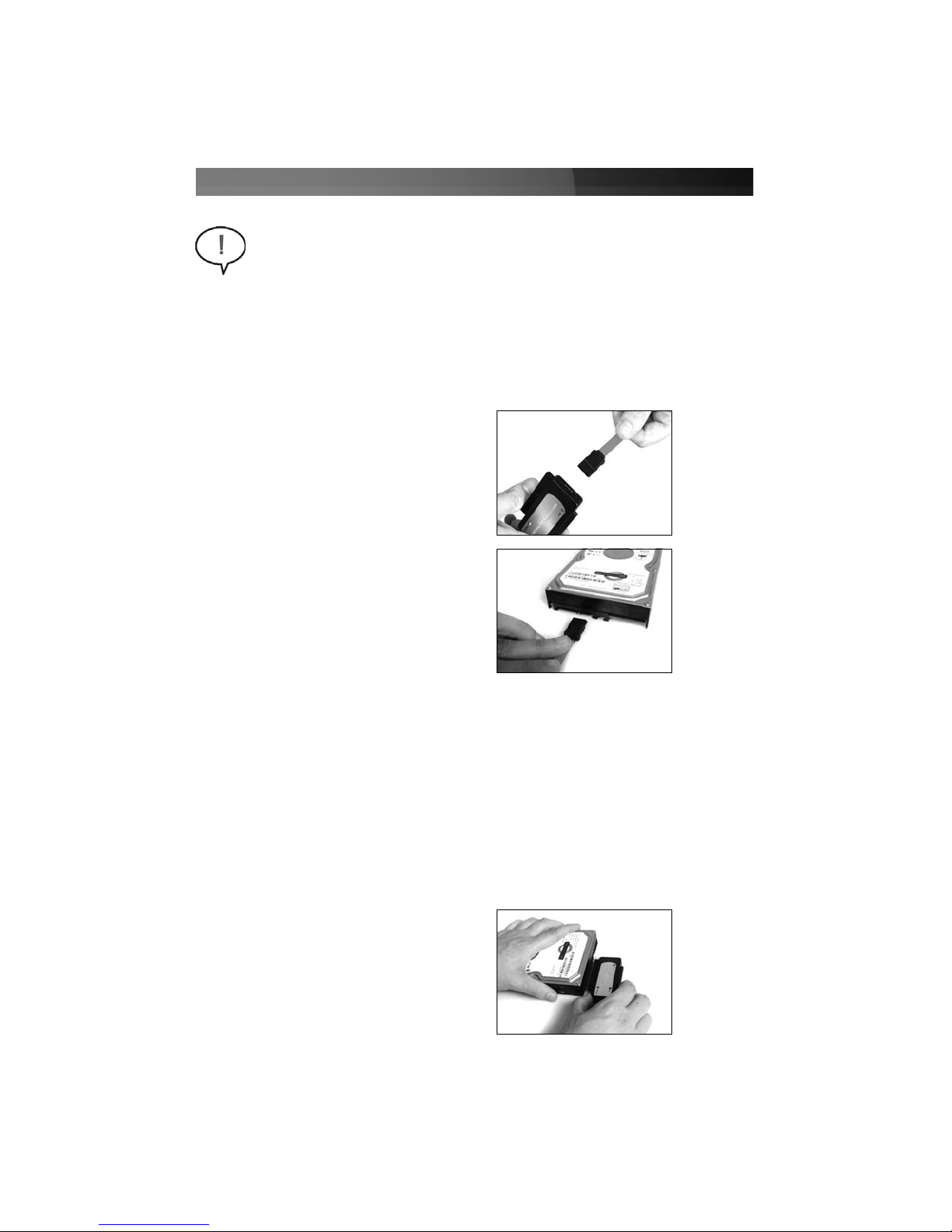

a. Insert one connector provided by a

SATA data cable, into the SATA port on

the Hard Drive Adapter.

SATA Drive

b. Insert the remaining connector provided

by the SATA data cable, into the SATA

data port on the SATA hard drive.

40/44-pin IDE Drive

Please note that if you are using two IDE hard drives concurrently, one of the drives is

set to act as a Master, and the other a Slave. If one of the drives does not allow mode

selection, please set the remaining drive to act as a Slave.

a. Align the drive interface with the appropriate port provided by the hard drive adapter.

If you are connecting a SATA hard drive to the hard drive adapter:

b. Gently, but firmly insert the IDE

Connector (provided by the adapter)

into the port on the rear panel of the

hard drive. Ensure the drive is

connected snugly.

Windows 98 users please note:

If the hard drive(s) being used with USB2SATAIDE will be using the Windows

98 operating system, you are required to install driver files before the drive will

be accessible. To do so, locate and execute the setup.exe file, located on the

included Driver CD, in the x:\Win98 folder (where xis the designation for the

CD/DVD-ROM drive).

Instruction Manual

3 - Connect the drive(s) to the Power Adapter

WARNING: When connecting the hard drive to the Power Adapter, please

ensure that the mini-switches (located on the main power switch) are set to the

OFF position, prior to establishing a connection. Failure to do so could result in

damage to the drive, or an electrical shock to the user.

a. Insert the SATA power connector

provided by the power adapter into the

power port on the rear panel of the

SATA hard drive.

SATA Drive

WARNING: Do not connect the Hard Drive Adapter to the host computer, while

the host computer is in a powered state. This could result in data loss or

physical damage to the drive.

40-pin IDE Drive

a. Insert the LP4 power connector

provided by the power adapter into the

power port on the rear panel of the hard

drive.

4 - Connect the Hard Drive Adapter to the host computer

a. With the host computer powered down insert the USB connector into an available

USB port on the host computer. Move the mini-switch on the Hard Drive Adapter

Power Switch to the ON position, to enable the selected drives.

b. Power on the host computer.

b. Once booted, the operating system will detect the connected adapter, and prepare

the drives for use.

Instruction Manual

RReemmoovviinnggCCoonnnneecctteeddDDrriivveess

Removing a connected drive safely requires that the drive not be in use. To ensure that

this is the case, you can remove the drive in one of the two following ways:

WARNING: Do not remove a connected hard drive while the drive is in use. To

prevent data loss or damage to the drive(s), please follow the instructions

below.

Click on the Safely Remove Hardware icon, in the taskbar, and select Safely Remove

USB Mass Storage Device.

Following this, you will be notified that it is safe to remove the USB Mass Storage device:

You can now remove the

connected hard drive(s)

Or...

If you do not wish to use the Safely Remove Hardware Wizard:

Move the mini-switch that corresponds with the drive you wish to remove to the OFF

position. As an added precaution, power down the host computer. Once the computer

has been turned off, it is safe to remove the connected drive(s).

Instruction Manual

SATAPOW36

36 inch Serial ATA 15 pin power cable

SATA18

18 in Serial ATA Drive Connection Cable

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

IDE44

2-inch Laptop Computer Hard Drive Cable

PYO2SL

Power Y-splitter Cable (2 Large & 1 Small end)

SSppeecciiffiiccaattiioonnss

Regulatory Certifications FCC, CE

Connectors

USB to IDE and SATA cable

1 x USB type A

1 x IDE 2.5” female connector

1 x IDE 3.5” female connector

1 x SATA female connector

Power Adapter 2A AC power supply

Maximum Data Transfer Rate 480 Mbits/Sec

OS Support

Windows

98SE/ME/2000/XP/Vista/Mac OS

8.6+/9.x/10
