StarTech.com VSEDIDHD Manuale utente

Manual Revision: 06/20/2019

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/VSEDIDHD.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

VSEDIDHD

EDID Emulator and Copier for HDMI

Displays

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Product diagram ....................................................................................1

Front view .................................................................................................................................................... 1

Rear view...................................................................................................................................................... 1

Side view ...................................................................................................................................................... 1

Introduction............................................................................................2

Package contents...................................................................................................................................... 2

Requirements ............................................................................................................................................. 2

Mode switch............................................................................................3

PC mode....................................................................................................................................................... 3

AV mode....................................................................................................................................................... 3

Memory mode............................................................................................................................................ 3

Rotary switch ..........................................................................................4

Dip switches............................................................................................6

Operation ................................................................................................8

EDID copying.............................................................................................................................................. 8

EDID emulating.......................................................................................................................................... 10

About the LED indicators......................................................................12

Technical support...................................................................................13

Warranty information............................................................................13

Instruction manual

Product diagram

Front view

Rear view

HDMI® output port

Power adapter port

Status LED

HDMI input port

Mode switch

Side view

Rotary switch EDID copy button

Dip switches

Instruction manual

Introduction

When a video source is connected to a display, EDID information is shared between

devices to ensure video and audio performance is aligned.

However, if you are using a third party device, such as a video extender, between your

source and display, the EDID information may not pass through correctly.

This EDID Emulator and Copier lets you clone or emulate the EDID settings from your

display and deliver it to your video source to ensure proper signaling between your

devices.

Package contents

• 1 x EDID emulator

• 1 x USB power cable

• 1 x screwdriver

• 4 x foot pads

• 1 x quick-start guide

Requirements

• An HDMI display device.

• An HDMI video source device.

• A USB port (power).

• Two HDMI cables (for the display device and video source device).

Instruction Manual

Mode switch

The Mode switch on this EDID Emulator and Copier lets you set the operation mode

depending upon your application. Reference the glossaries below to determine the

best mode for your application.

PC mode

AV mode

Memory mode

PC mode lets you copy EDID settings from your display for use with a computer

system and/or emulate EDID settings for use with your computer that are commonly

supported by most computers and in the performance range of your display.

AV mode lets you copy EDID settings from your display for use with consumer

electronics devices (such Blu-ray™ or DVD players) and/or emulate EDID settings

that are commonly supported by most consumer electronics devices, and in the

performance range of your display.

Memory mode lets you copy and store up to 15 EDID settings from dierent displays

and then choose between which is outputted to your video source.

Instruction Manual

Rotary switch

PC (DVI) mode

Position Resolution

0AUTO

1 MANUAL

2 1024x768

3 1280x720

4 1280x1024

5 1366x768

6 1440x900

7 1600x900

8 1600x1200

9 1680x1050

A 1920x1080

B 1920x1200

C 1280x800

D 2048x1152

E --

F --

PC (HDMI) mode

Position Resolution

0AUTO

1 MANUAL

2 1024x768

3 1280x720

4 1280x1024

5 1366x768

6 1440x900

7 1600x900

8 1600x1200

9 1680x1050

A 1920x1080

B 1920x1200

C 1280x800

D 2048x1152

E 720x480

F 720x576

Memory mode

Position Presets

0 Preset 1

1 Preset 2

2 Preset 3

3 Preset 4

4 Preset 5

5 Preset 6

6 Preset 7

7 Preset 8

8 Preset 9

9 Preset 10

A Preset 11

B Preset 12

C Preset 13

D Preset 14

E Preset 15

F --

The Rotary switch on this EDID Emulator and Copier is used to dene dierent

settings depending upon the mode the EDID Emulator and Copier is set to. It may be

necessary to review the tables below to determine what settings are ideal for your

application.

Notes:

• AUTO programs the EDID Emulator and Copier for a direct EDID copy from the

device it’s connected to.

• MANUAL programs the EDID Emulator and Copier for a combination of copied EDID

and emulated EDID programming that’s done using the Dip switches.

Instruction Manual

AV mode

Position Resolution

Frame Rate: 50 Hz Frame Rate: 60 Hz

Interlaced Progressive Interlaced Progressive

0AUTO Automatically record the connected display’s EDID (ignoring all dip switches)

1 MANUAL Combines copied EDID with using dip switches 1~4 (ignoring DIP swithces 5~6)

2 1024 x 768 576i@50Hz

640x480p@60Hz

576p@50Hz

640x480p@60Hz

480i@60Hz

640x480p@60Hz

480p@60Hz

640x480p@60Hz

3 1280 x 720

720p@50Hz

720p@24Hz

576i@50Hz

640x480p@60Hz

720p@50Hz

720p@24Hz

576p@50Hz

640x480p@60Hz

720p@50Hz

720p@24Hz

480i@60Hz

640x480p@60Hz

720p@60Hz

720p@24Hz

480p@60Hz

640x480p@60Hz

4 1280 x 1024

5 1366 x 768

6 1440 x 900

7 1600 x 900

8 1600 x 1200

9 1680 x 1050

A 1920 x 1080 1080i@50Hz

1080p@24Hz

720p@50Hz

720p@24Hz

576i@50Hz

640x480p@60Hz

1080i@60Hz

1080p@24Hz

720p@60Hz

720p@24Hz

480i@60Hz

640x480p@60Hz

1080i@60Hz

1080p@24Hz

720p@60Hz

720p@24Hz

480i@60Hz

640x480p@60Hz

1080p@60Hz

1080p@24Hz

720p@60Hz

720p@24Hz

480p@60Hz

640x480p@60Hz

B 1920 x 1200

C 1024 x 768 576i@50Hz

640x480p@60Hz

576p@50Hz

640x480p@60Hz

480i@60Hz

640z480p@60Hz

480p@60Hz

640x480p@60Hz

D 2048 x 1152 1080i@50Hz

1080p@24Hz

720p@50Hz

720p@24Hz

576i@50Hz

640x480p@60Hz

1080p@50Hz

1080p@24Hz

720p@50Hz

720p@24Hz

576p@50Hz

640x480p@60Hz

1080i@60Hz

1080p@24Hz

720p@60Hz

720p@24Hz

480i@60Hz

640x480p@60Hz

1080p@60Hz

1080p@24Hz

720p@60Hz

720p@24Hz

480p@60Hz

640x480p@60Hz

E 720 x 480 480i@50Hz

640x480p@60Hz

480p@50Hz

640x480p@60Hz

480i@60Hz

640x480@60Hz

480p@60Hz

640x480p@60Hz

F 720 x 576 576i@50Hz

640x480p@60Hz

576p@50Hz

640x480p@60Hz

480i@60Hz

640x480p@60Hz

480p@60Hz

640x480@60Hz

AV mode enables the EDID Emulator and Copier to work with consumer electronics

equipment. Even if your equipment doesn’t support the exact resolution that’s

specied by the rotary dial, each setting supports a range of resolutions and refresh

rates. The table below lists resolutions and refresh rates that are still supported by

each setting.

Instruction Manual

Dip switches

The dip switches on this EDID Emulator and Copier enable you to dene dierent

settings. The mode your EDID Emulator and Copier is set to changes how the dip

switches work as can the dip switches in relation to each other. It may be necessary to

review the information below to determine what settings are ideal for your application.

PC mode (HDMI)

Audio Color

Not active

DVI or HDMI

PC mode (DVI)

Not active DVI or HDMI

Audio

1 2 Setting

ON ON Use copied

ON OFF 7.1 CH

OFF ON 5.1 CH

OFF OFF 2 CH

Color

3 4 Setting

ON ON Use copied

ON OFF RGB

OFF ON YCbCr

OFF OFF Deep color

DVI or HDMI

6 Setting

ON DVI mode

OFF HDMI

DVI or HDMI

6 Setting

ON DVI mode

OFF HDMI

Dip switch 6 on (up)

Dip switch 6 on (down)

Instruction Manual

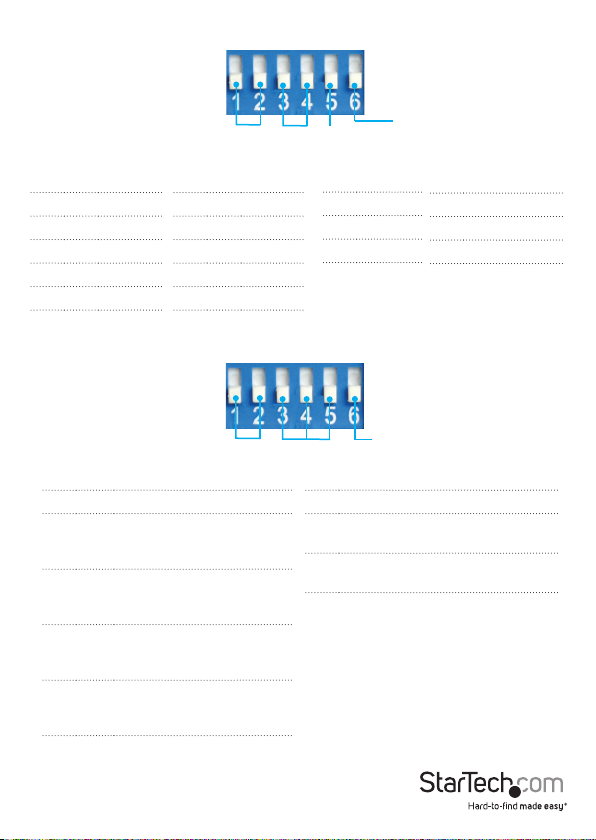

AV mode

Audio Color Scanning

Audio

1 2 Setting

ON ON Use copied

ON OFF 7.1 CH

OFF ON 5.1 CH

OFF OFF 2 CH

Color

3 4 Setting

ON ON Use copied

ON OFF RGB

OFF ON YCbCr

OFF OFF Deep color

Refresh rate

6 Setting

ON 50 Hz

OFF 60 Hz

Scanning

5 Setting

ON Interlaced

OFF Progressive

Memory mode

Audio Not active Audio recall type

Audio

1 2 Setting

ON ON Combine the video EDID from your

rotary dial selection with the audio

EDID on inventory 0

ON OFF Combine the video EDID from your

rotary dial selection with the audio

EDID on inventory 1

OFF ON Combine the video EDID from your

rotary dial selection with the audio

EDID on inventory 2

OFF OFF Combine the video EDID from your

rotary dial selection with the audio

EDID on inventory 3

Audio recall type

6 Setting

ON Use dierent audio EDID from Audio inventory

0, 1, 2 or 3

OFF Use audio and video EDID saved to the same

rotary switch setting

Refresh Rate

Altri manuali per VSEDIDHD

Indice

Altri manuali StarTech.com Hardware per computer

StarTech.com

StarTech.com ST20000SPEXI Manuale utente

StarTech.com

StarTech.com PEXUSB312A Manuale utente

StarTech.com

StarTech.com PCI1S950DV Manuale utente

StarTech.com

StarTech.com SDOCK1EU3P22 Manuale utente

StarTech.com

StarTech.com 8STPEX2MPEX Manuale utente

StarTech.com

StarTech.com EC230USB Manuale utente

StarTech.com

StarTech.com FANK8AM2 Manuale utente

StarTech.com

StarTech.com M2-REMOVABLE-PCIE-N1 Manuale utente

StarTech.com

StarTech.com 4P6G-PCIE-SATA-CARD Manuale utente

StarTech.com

StarTech.com PEX2MPEX Manuale utente

StarTech.com

StarTech.com MPEX1394B3 Manuale utente

StarTech.com

StarTech.com EC13941A1B Manuale utente

StarTech.com

StarTech.com PCISATA4R1 Manuale utente

StarTech.com

StarTech.com 8STUSBDUP12 Manuale utente

StarTech.com

StarTech.com MPEX1394B3 Manuale utente

StarTech.com

StarTech.com PEX4S953 Manuale utente

StarTech.com

StarTech.com PEX1RISERF Manuale utente

StarTech.com

StarTech.com PEXUSB311EI Manuale utente

StarTech.com

StarTech.com MPEX1394B3 Manuale utente

StarTech.com

StarTech.com PCISOUND5CH Manuale utente

StarTech.com

StarTech.com ST10GPEXNDPI Manuale utente

StarTech.com

StarTech.com ECESATA22 Manuale utente

StarTech.com

StarTech.com PEXESAT322I Manuale del sistema

StarTech.com

StarTech.com USBPS2PLATE Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
