StarTech.com USB6N1DOCK Manuale

USB 2.0 Mobile Docking Station

USB6N1DOCK

Instruction Guide

The Professionals’ Source For Hard-to-Find Computer Parts

DOCKING STATION

* Actual product may vary from photo

FCC COMPLIANCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Using Your Docking Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction

Thank you for purchasing a StarTech.com USB 2.0 docking station. This six-in-1

expansion kit turns your laptop machine into the equivalent of a desktop computer.

You’ll give your laptop all the benefits of a desktop, with two high-speed USB 2.0 ports,

a PS/2 keyboard port, a PS/2 mouse port, a parallel port, a serial port, USB data link

port, and a 10/100 Mbits/sec Ethernet port. The USB6N1DOCK is lightweight and

compact so it won’t weigh down your laptop.

Features

•Adds two high-speed USB 2.0 ports, PS/2 keyboard and mouse ports, a parallel port,

a serial port, a USB data link port, and a 10/100 Mbits/sec Ethernet port while using

only one USB port

•Backwards compatible with USB 1.1 devices

•Alllows you to add additional hubs or docking stations for increased connectivity

•Easy to transport thanks to its compact, lightweight design

•Supports Plug and Play installation

Before You Begin

To ensure a quick and easy device installation, please read through this section carefully

before attempting to install the device.

System Requirements

•IBM-compatible Pentium-233 MHz or faster PC running Windows XP, 2000, Me, 98SE

•64 MB of RAM or higher

•An open USB port

WARNING! This device must be installed and operated in an environment with

temperatures between 32-158ºF (0-70ºC) and humidity levels of 10-90% (non-

condensing). Make sure that the switch is kept away from heating sources and that the

vents at the side of the device are not blocked. Do not place any objects on top of the

device. Make sure that no water or moisture enters the unit. If necessary, use a

dehumidifier to reduce humidity near the device. Make sure the device is on a flat

surface. Do not drop or jostle the device.

Package Contents

•1x USB 2.0 docking station

•1x power adapter

•1x driver disk

Installation

Initial Installation

1. Plug the power adapter into the Power port on the left side of the device. Plug the

other end of the adapter into an appropriate power source.

2. Plug the rectangular (Type A) end of the USB 2.0 cable into an open USB 2.0 port on

your computer.

3. Plug the square (Type B) end of the USB 2.0 cable into the Upstream port on the left

side of the device.

Windows will now recognize that new hardware has been added. Follow the instructions

below on your screen to install the software. When installation is complete, a PC-Linq

icon will appear on your desktop.

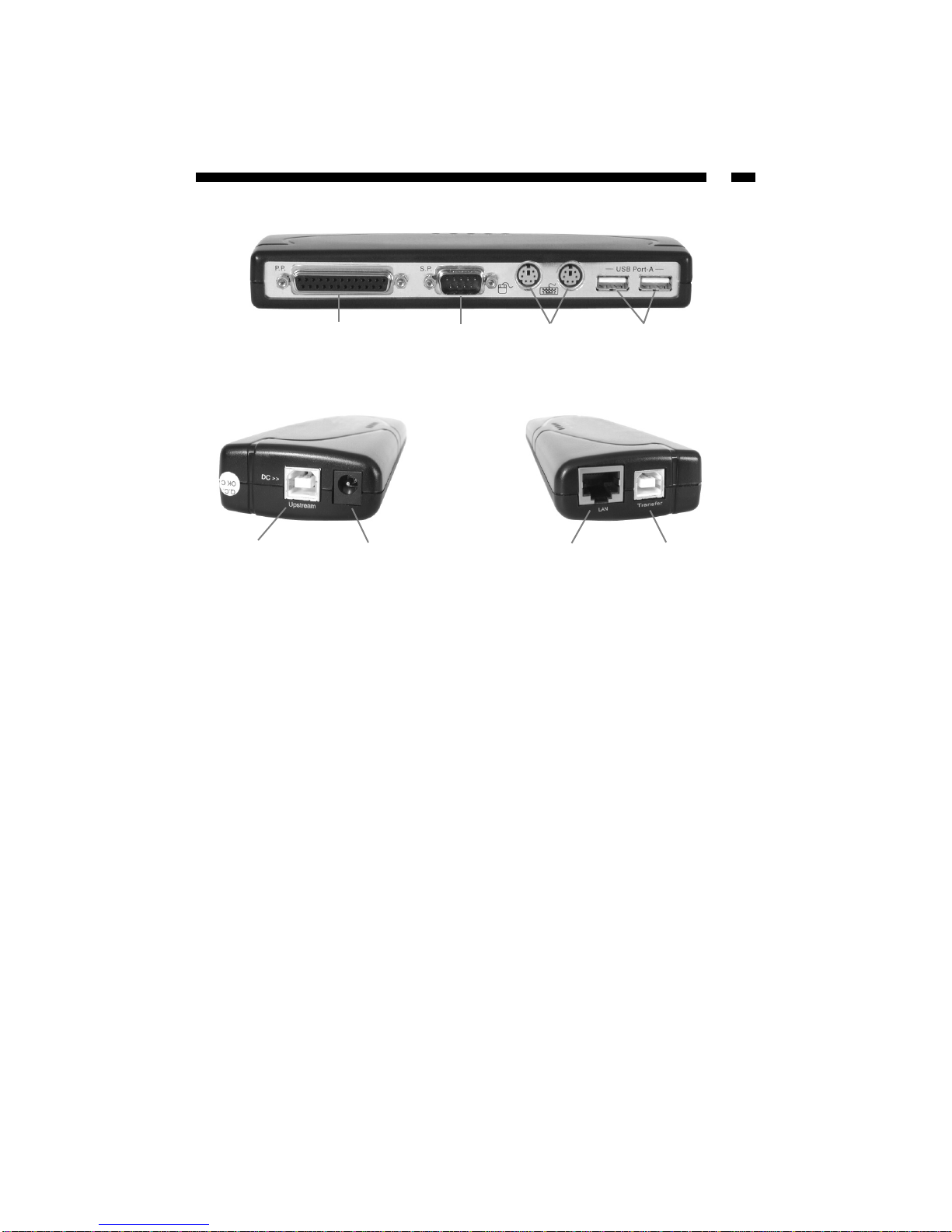

Parallel

(DB-25 female)

* A DB-25 to Centronics 36 cable

may be needed to work with

some parallel printers

Serial

(DB-9 male) Keyboard & Mouse

(PS/2 female) USB 2.0

(Downstream)

Upstream

(USB type B female) Power 10/100 LAN

(RJ-45 female) Data Link

(USB type B female)

Left Right

Back

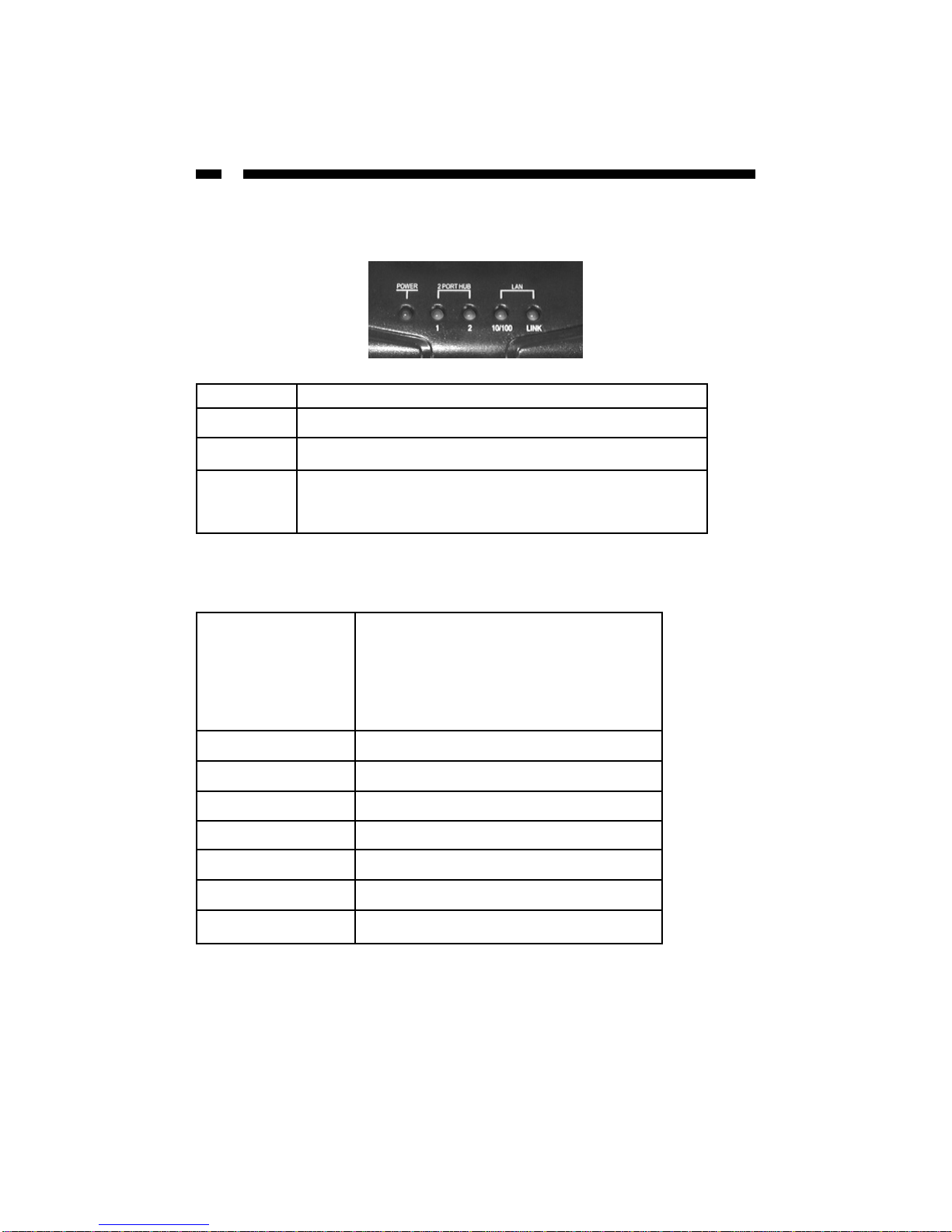

Using Your Docking Station

The LEDs on the device are the best indication of the device’s activity.

Technical Specifications

LED Description

Power When lit, the device is powered.

2Port Hub When lit, the USB 2.0 downstream ports are ready and active.

LAN

10/100 When lit, the link is operating at 100 Mbits/sec.

Link When lit, a valid link is established.

Ports Serial Port: 1 x DB 9-pin (male)

Parallel Port: 1 x DB 25-pin (male)

Keyboard: 1 x PS/2 (6-pin MINDIN)

Mouse: 1 x PS/2 (6-pin MINDIN)

Ethernet: 1 x 10/100 Mbits/sec Ethernet LAN

USB 2.0: 2 x 6-pin (Type A)

USB File Transfer: 1 x 4-pin (Type B)

Standards USB 2.0, IEEE 1284, IEEE 802.3, IEEE 802.3u

Power Bus Powered or Self Powered

Power Adapter 5V DC (2.5A)

Operating Temperature 32 ~ 122ºF (0 ~ 50ºC)

Storage Temperature -4 ~ 158ºF (-20 ~ 70ºC)

Dimension 7.0 x 2.2 x 1.0” (178 x 55 x 25 mm)

Weight 0.35 lbs (0.16 kg)

Technical Support

The following technical resources are available for this StarTech.com product:

On-line help:

We are constantly adding new information to the Tech Support section of our web site. To

access this page, click the Tech Support link on our homepage, www.startech.com. In the

tech support section there are a number of options that can provide assistance with this

product.

Knowledge Base - This tool allows you to search for answers to common issues using

key words that describe the product and your issue.

FAQ - This tool provides quick answers to the top questions asked by our customers.

Downloads - This selection takes you to our driver download page where you can

find the latest drivers for this product.

Call StarTech.com tech support for help:

USA/Canada: 1-800-265-1844

UK/Ireland/Europe: 00-800-7827-8324

Support hours: Monday to Friday 9:00AM to 5:00PM EST (except holidays)

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not warrant its products

from defects or damages arising from misuse, abuse, alteration, or normal wear and

tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the actual

price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Revised: March 1, 2004

Indice

Altri manuali StarTech.com Stazione di attracco

StarTech.com

StarTech.com USB3SDOCKDD Manuale utente

StarTech.com

StarTech.com 116E-USBC-DOCK Manuale utente

StarTech.com

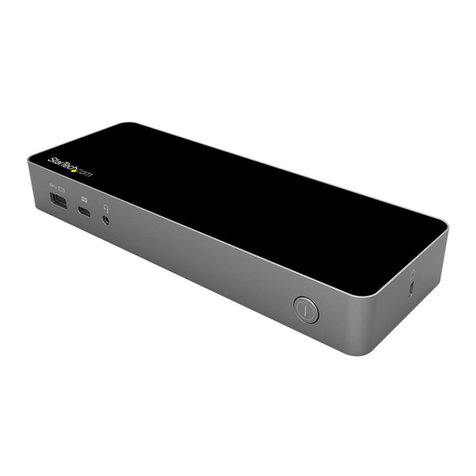

StarTech.com DK30C2DPPD Manuale utente
