StarTech.com 2636CABINET Manuale utente
Manual Revision: 01/17/2019
For the most up-to-date information, please visit: www.startech.com
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
IT: Guida per l’uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
2636CABINET
Black Standard Universal Server Rack Cabinet Shelf
*actual product may vary from photos
Instruction Manual
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
i
Table of Contents
Introduction ...........................................................................................1
Package Contents ..................................................................................................................................... 1
Installation ..............................................................................................2
Posts............................................................................................................................................................... 2
Doors ............................................................................................................................................................. 3
Changing the door position.................................................................................................................. 4
Stabilizer Feet ............................................................................................................................................. 5
Front Legs .................................................................................................................................................... 5
Technical Support ..................................................................................10
Warranty Information............................................................................10
Instruction Manual
1
WARNING! To prevent bodily injury, please ensure that the rack is installed in a
structurally sound environment with a level oor and that all hardware has been
assembled securely, and checked for stability before loading equipment. When
installing equipment into the rack, start from the bottom of the rack rst and move
upwards, keeping the heaviest equipment at the bottom to avoid a situation where
the rack becomes top-heavy.
Introduction
The Rack cabinet is a high quality, lockable, secure and dust-reduced environment for
rackmount servers and network equipment. This sturdy, space-saving unit is made
from extruded aluminum for an appealing appearance. A standard lockable smoked
plexiglass see-through front door and solid aluminum rear door provides quick
access to equipment. The internal front and rear mounting rails are completely depth
adjustable to t virtually any piece of equipment. A standard roof-mounted triple
motor AC fan unit and high-ow air lter below the rear door provide up to 300 CFM
of bottom to top air ow through the cabinet, removing the heat produced by the
enclosed equipment. In addition to the standard equipment that are options on most
other cabinets, the Rack cabinet also has a full compliment of optional accessories
like xed shelving, storage drawers, keyboard drawers, front panel spacer plates and
slide-out shelves.
Package Contents
• 1 x 15U Cabinet Equipment Rack 26x36x19 inch
• 42 x Cage nuts
• 30 x M5 Rack screws
• 2 x keys
Requirements
For the latest requirements, please visit www.startech.com/2636CABINET
Installation:
• 1 x Wrench
• 1 x 13 mm Socket
Instruction Manual
2
Unpacking the Rack
Warnings: The Rack is heavy and you should exercise caution when you remove it
from the pallet.
At least three people are required to unpack the Rack. Do not attempt to unpack the
Rack by yourself.
1. Carefully move the shipping pallet to a level surface.
2. Using a Socket and Wrench, remove the Bolts from the Brackets.
3. Carefully remove the Rack from the pallet and place it on a rm surface.
Securing the Rate to the Floor
You can use the Brackets and Bolts used to secure the Rack to the shipping pallet to
securely fasten the Rack to the oor.
1. Carefully place the Rack onto a at surface.
1. Align the Bracket with the Bracket Hole on the Rack.
2. Insert two of the Bolts through the Bracket and into the Rack. Tighten the Bolts
using a Socket and Wrench.
3. Insert the other two Bolts through the Bracket and into the surface you are
securing the Rack to.
Note: Pilot holes may need to be drilled in the surface you are securing the Rack to
prior to installing the Bracket.
Installation
Posts
Depending on the size of the device you are mounting or the type of mounting
brackets that are used, you may want to move the posts forward or back, or replace
the cabinets posts. To do this, simply remove the front and back posts from the xed
rails by removing the screws which secure them to the rails. Move the nuts to the
location where you would like the post to go. Align the holes on the posts with the
nuts and secure the posts to the rails.
1. For the posts you will need to insert the cage nuts, which are supplied, where you
would like the device to go. To insert the cage nut press on either side of the nut.
Insert the clamps into the hole and release the nut. Screw the device into place.
2. If your device has mounting brackets with hooks, just hook the bracket to the
position where you want your device to go.
Instruction Manual
3
Doors
There are 2 doors on each cabinet. Both the front and rear doors are removable. To
remove them
1. Pull down the top tab while holding the door with the other hand. The top
should fall out of place.
2. Pull up on the bottom tab and lift door out of the frame. The same method can
be applied to the rear door.
Changing the Door Position
1. Inside the top corner of the door frame, pull down the Door Hinge Release Tab.
2. While holding the top Door Hinge Release Tab, tilt the bottom on the door
forward and lift the bottom Door Peg out of the Mounting Hole and set the door
aside.
3. Using a Phillips Head Screwdriver, remove the two screws holding the Locking
Plate in place.
4. Using a Phillips Head Screwdriver, remove the two door stoppers from the top
and bottom of the door frame.
5. Insert the bottom Door Peg into the Mounting Hole on the door frame. Keeping
in mind the orientation on the Door Handle.
6. Pull down the top Door Hinge Release Tab and align the Door Peg with the
Mounting Hole. Release the Door Hinge Release Tab once the Door Peg is aligned
with the Mounting hole.
7. Align the Lock on the Door with two of the Mounting Nuts on the slide rail.
Ensuring that when the Locking Plate is attached to the Mounting Nuts that the
Locking Plate will catch the Door Lock when the door handle is turned.
Note: When attaching the Locking Plate use two of the middle Mounting Nuts leaving
at least one Mounting Nut on either side, for use when attaching the Door Stoppers.
8. Align the Locking Plate with the two Mounting Nuts on the Slide Rail, making
sure that the raise portion of the Locking Plate is facing out.
9. Insert the two Locking Plate Screws through the Locking Plate and into the
Mounting Nuts. Tighten the screws using a Phillips Head Screwdriver.
10. On the same side of the door frame as the Locking Plate, align a Mounting Nut in
the top and bottom corners on Slide Rail.
11. Align the Stoppers with the Mounting Nuts positioned in step 10.
12. Insert a Stopper screw through the Stopper and into the Mounting Nut. Tighten
the screws using a Phillips Head Screwdriver.
Instruction Manual
4
Instruction Manual
5

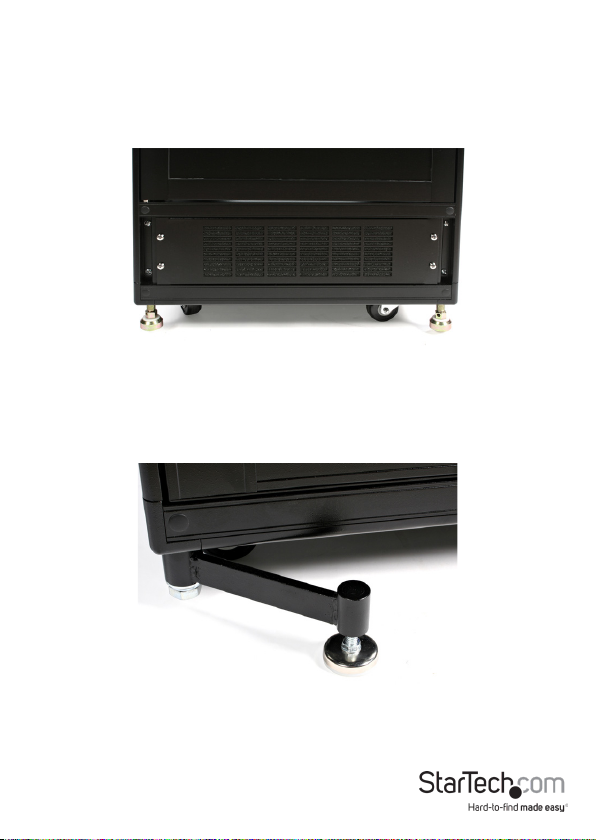

Stabilizer Feet
Though each cabinet is equipped with wheels for easy movement, there may be times
when you would prefer that the cabinet not be mobile. There are two adjustable legs
on the back of the cabinet. To lower them, use a wrench and turn them until the legs
are lowered enough that the wheels are slightly o the ground.
Front Legs
There are two leveler legs on the front of the cabinet. We suggest that they be used to
ensure that the cabinet does not tip forward when a heavy drawer is pulled out. To do
this, grab the end of the legs and pull them towards you.
Instruction Manual
6
Removing/Cleaning the Air Filter
1. Using a Phillips Head Screwdriver, remove the four Air Filter Housing Screws
located at the back of the rack, below the door.
2. Pull at Air Filter Housing out of the Air Filter Slot.
3. Wipe both side of the Air Filter down with a dry or slightly damp cloth.
4. Align the Air Filter Housing back into the Air Filter Slot.
5. Insert the four Air Filter housing screws and tighten them using the Phillips Head
Screwdriver.
Instruction Manual
7
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a lifetime warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
