S2510BPU33

2.5” Tool-less USB 3.0 to SATA III HDD

Enclosure with UASP Support

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Top View ....................................................................................................................................................... 1

Front View .................................................................................................................................................... 1

Introduction ............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements .............................................................................................................................. 2

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

How to Use ..............................................................................................5

Specications ..........................................................................................8

Technical Support ..................................................................................9

Warranty Information ............................................................................9

Instruction Manual

Product Diagram

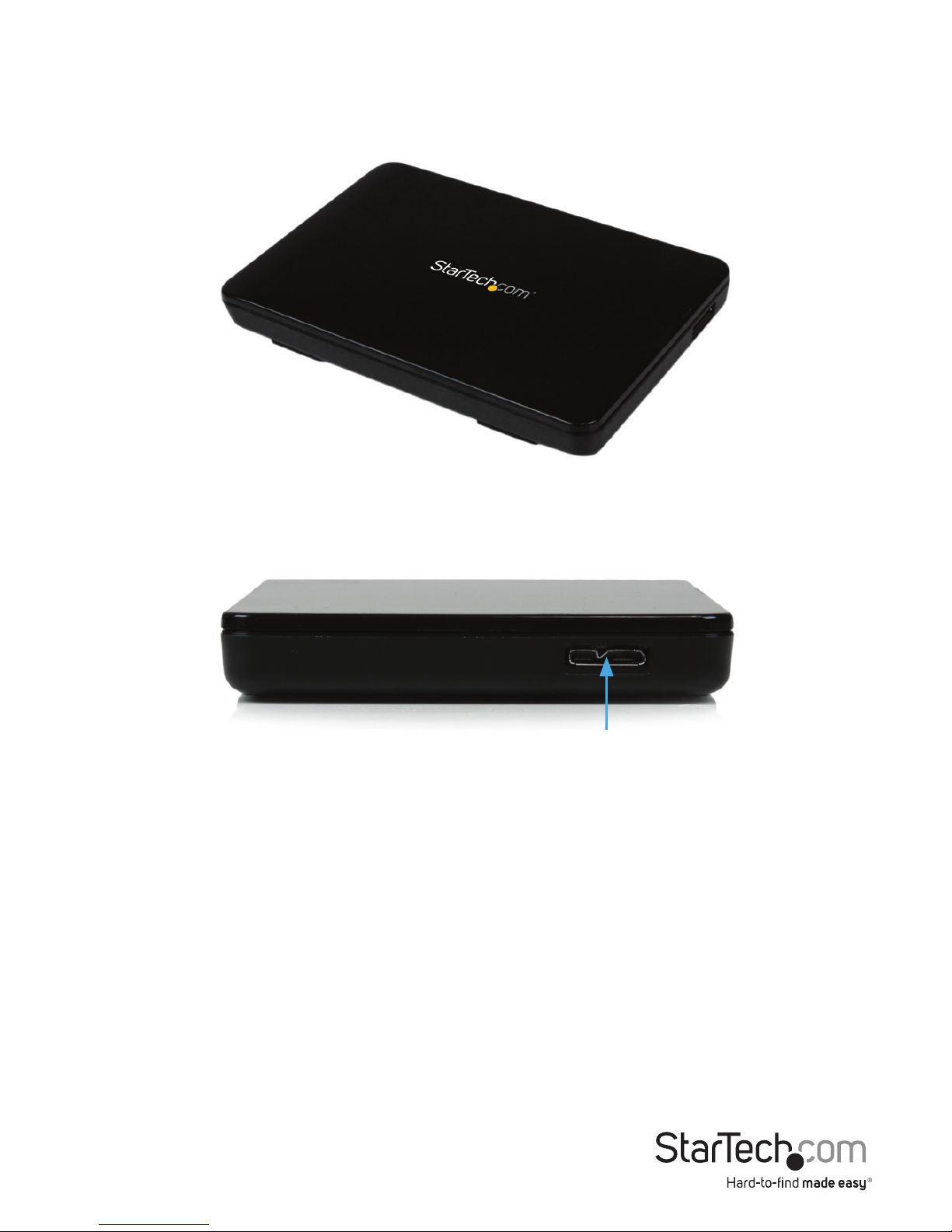

Top View

Front View

USB 3.0 Micro-B

(10 pin; SuperSpeed)

Instruction Manual

Introduction

Packaging Contents

• 1x 2.5” USB 3.0 to SATA III HDD Enclosure

• 1x HDD Pad

• 1x USB 3.0 Cable

• 1x Product Manual

System Requirements

• Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps)

• 2.5” SATA hard drive or solid state drive (9.5mm height)

• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), or

Apple® Mac® OS 9.x/10, or Linux®

Instruction Manual

Installation

Hardware Installation

WARNING! Hard drives and storage enclosures require careful handling, especially

when being transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution. Be sure that

you are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

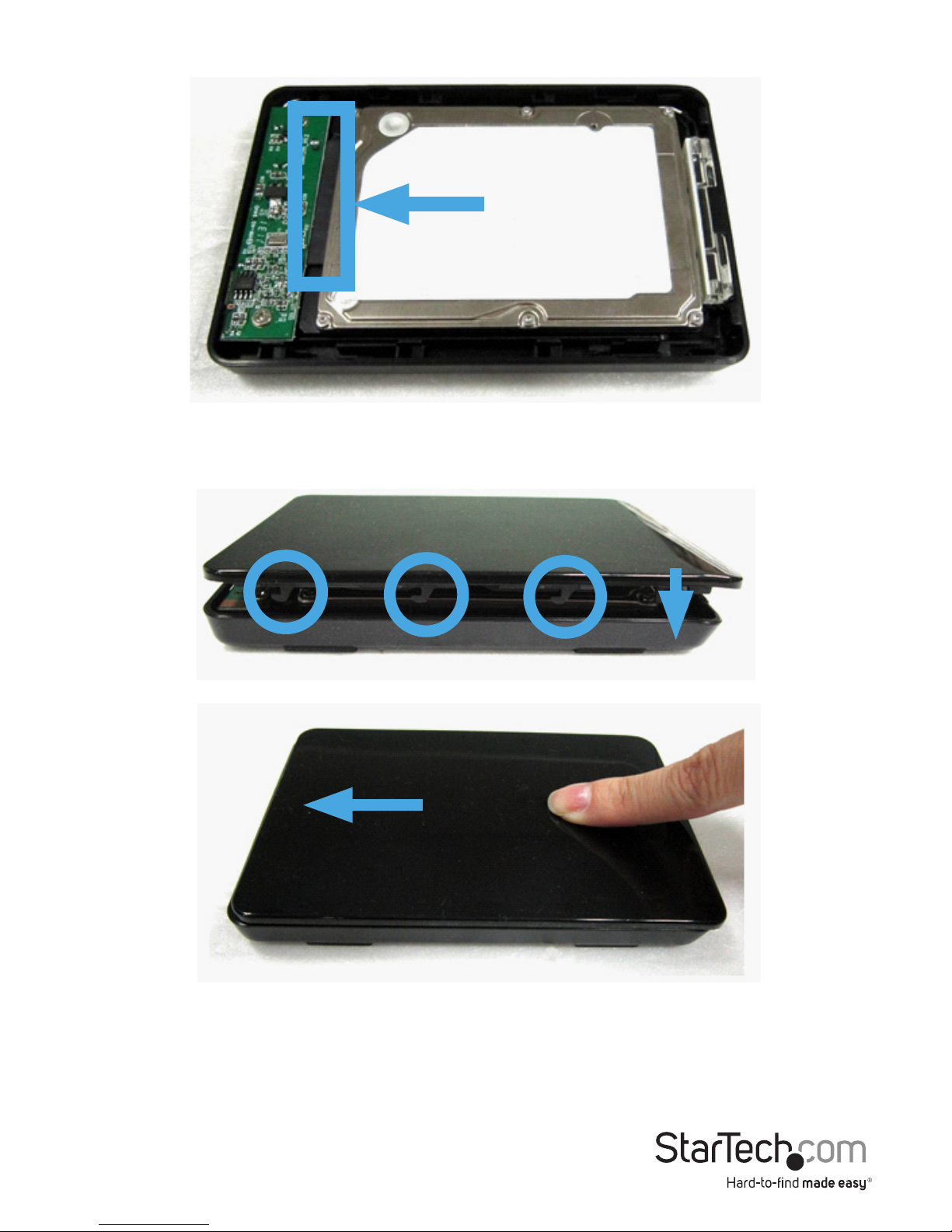

1. Open the enclosure by sliding the top panel away from the USB port, and lifting

from the enclosure base.

2. Attach the included “HDD Pad” to the back side of the 2.5” Hard Drive, oposite the

SATA connector.

Instruction Manual

3. Connect the the 2.5” SATA Hard Drive

4. Align the hooks on the top panel with the groves on the Base of the enclosure and

slide the top panel back into place.

Instruction Manual

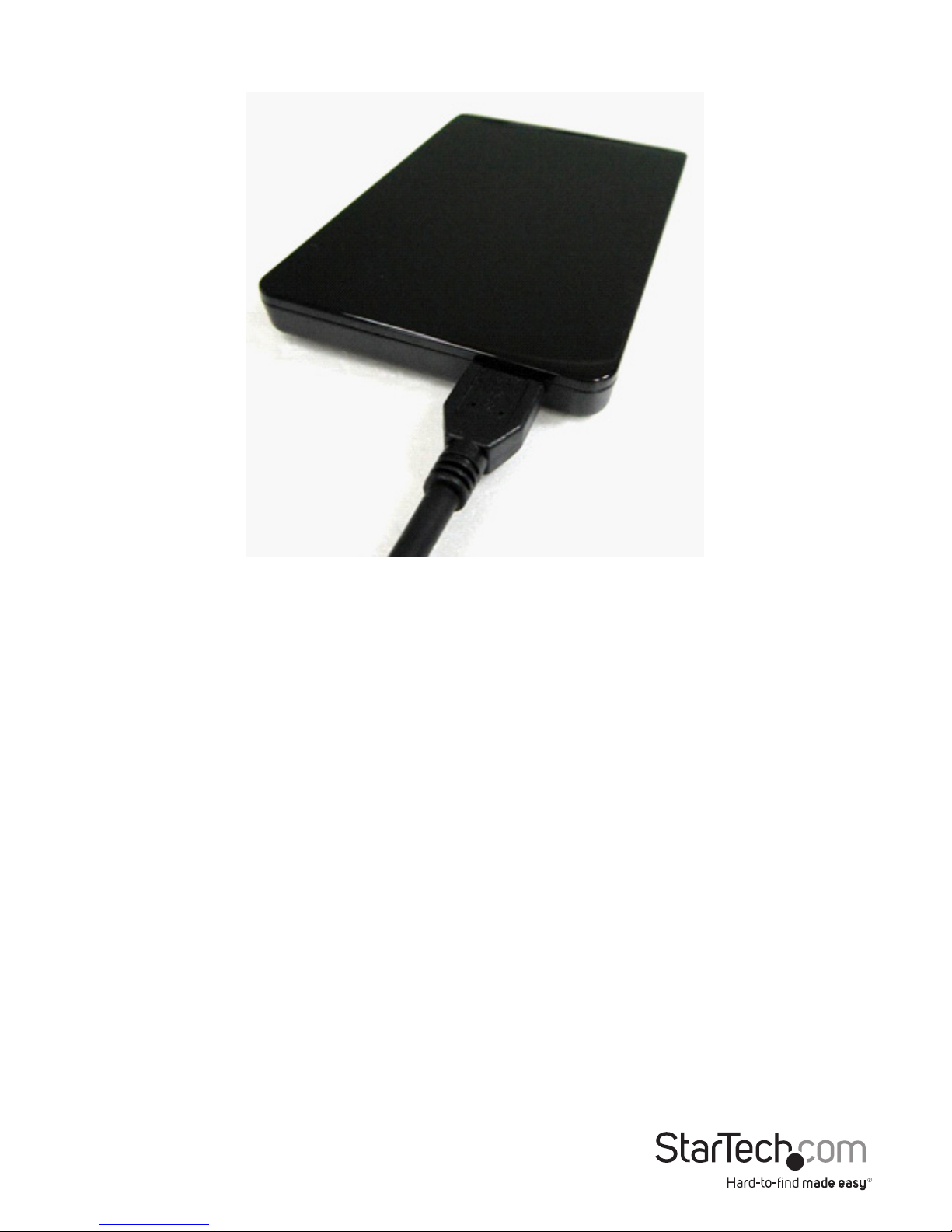

5. With the enclosure fully assembled, connect the USB 3.0 cable from the enclosure to

a USB port on the host computer system using the included cable.

How to Use

Connecting the Hard Drive

Once the enclosure has been attached to a computer, and the necessary software has

been installed, the drive will be accessible as though it were installed within

the system.

Prior to using the drive, it will need to be formatted according to your operating

system requirements. To format your newly attached hard drive, or create partitions,

please consult the documentation that accompanied your operating system at the

time of purchase.

Powering the Drive Enclosure

The hard drive enclosure requires no external power supply, as it is capable of receiving

enough power from the USB Bus to which it is connected.

LED Indicator

The hard drive enclosure oers an LED indicator, to enable you to monitor drive

activity. When the enclosure is powered, the LED will illuminate. While the hard drive

is being accessed, the LED will blink. Do not remove the enclosure from the host

computer while the LED is ashing, as it could damage the drive or the enclosure,

resulting in data loss.

Instruction Manual

Disconnecting the Hard Drive

Windows

1. Select the “Safely remove Hardware and Eject Media” icon, located in the task bar.

2. Select “Eject USB Device” from the list that appears.

3. Wait for the message indicating that it is now safe to remove the device.

NOTE: Removing the connected drive prior to receiving notication that it is safe

to do so, could result in losing or corrupting data stored on the drive. Once the Safe

to Remove Hardware message appears, please disconnect the enclosure from the

computer by removing the USB connection.

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows

listing the contents of the removable drive. Once all windows are closed, click on the

USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop.

Allow 5 seconds before physically removing the enclosure/drive from the computer.

Initializing the Hard Drive

1. If the SATA Hard Drive is blank it may need to be initialized and formatted before

use. From the main Windows desktop, right-click on “My Computer” (“Computer” in

Vista/ 7 / 8), then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Instruction Manual

2. A dialog window should automatically appear, asking you to initialize the drive.

Depending on the version of Windows, it will give you the option of either creating

an “MBR” or “GPT” disk. GPT (GUID partition) is not compatible with some older

operating systems, while MBR is supported by newer and older operating systems.

3. Once initialized, locate the Disk that says it is “Unallocated” (check the listed hard

drive capacity to conrm it’s the correct hard drive) and then right-click in the

section that says “Unallocated” and select “New Partition”.
