The SAT2510B12U3 2.5in SuperSpeed USB 3.0 External SATA Hard Drive Enclosure lets
you connect a 2.5in (SATA, SATA II, SATA III) hard drive or solid state drive (SSD) through
USB 3.0. Uniquely designed to be able to t both 9.5mm and high capacity 12.5mm
height hard drives for compatibility with virtually any available SATA hard drive.
Supporting data transfer rates of up to 5 Gbps, this external HDD enclosure delivers
access to les at lightning fast speeds - 10x that of USB 2.0, and 60% faster than eSATA
(SATA II). Plus, the USB 3.0 interface is backward compatible with USB revisions 2.0 and
1.1, so the enclosure can be used with older systems that don’t support the newest
USB standard (at speeds of 480 Mbps and 12 Mbps, respectively).
Packaging Contents
• 1 x 2.5in USB 3.0 Hard Drive Enclosure
• 1 x USB 3.0 cable
• 1 x Package of screws
• 1 x Screw Driver
• 1 x Instruction Manual
System Requirements
• USB enabled computer system with available USB port
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), or
Apple® Mac OS® X, or Linux®
*If used with the Apple Mac OS operating system, this device will function in USB 2.0 mode only as
USB 3.0 is not currently supported by Apple.
Instruction Manual 2
Installation
WARNING! Hard drives and storage enclosures require careful handling,
especially when being transported. If you are not careful with your hard disk,
lost data may result. Always handle your hard drive and storage device with
caution. Be sure that you are properly grounded by wearing an anti-static
strap when handling computer components or discharge yourself of any
static electricity build-up by touching a large grounded metal surface (such
as the computer case) for several seconds.
Hardware Installation
1. Use the provided screw driver to remove the 4 screws from the outside of the
enclosure (2 screws on either side).
2. Slide the drive tray out from the enclosure. The tray slides out from the USB
connector side.
3. Insert the 2.5in SATA drive into the drive tray furthest from the connectors. Slide the
SATA drive towards the SATA drive connector until rmly connected.
*installation photos for reference only
Instruction Manual 3

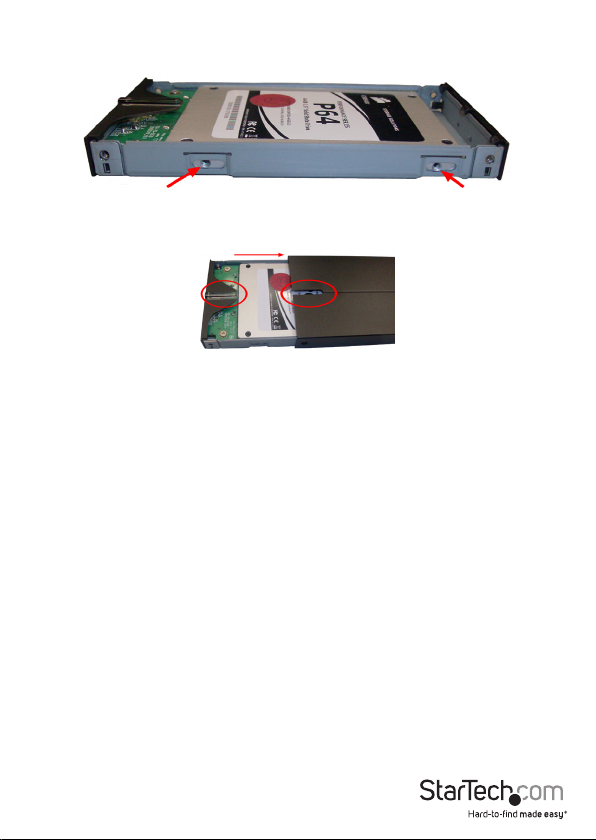

4. Use the provided drive mounting screws to secure the drive to the tray. Use 2
screws on either side of the SATA drive.
5. Insert the drive tray back into the enclosure. Ensure the LED on the drive tray is
aligned with the cutout in the enclosure for the LED.
6. Fasten the screws removed in Step 1 to secure the drive tray to the enclosure.
Driver Installation
No driver installation is required for the supported operating systems, as this hard
drive enclosure is natively supported, so the drivers are already installed.
Instruction Manual 4
Using the Storage Device
Windows 2000/XP/Vista/7
If you are using a brand new hard drive that does not contain any data, then you will
rst need to prepare the hard drive for use. From the main desktop, right-click on
“My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer
Management window, select Disk Management from the left window panel.
Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the
correct hard drive) and then right-click in the section that says “Unallocated” and select
“New Partition”.
Instruction Manual 5
The New Partition Wizard will appear. Follow the instructions in the wizard to
complete setting up the drive. Once complete, the Disk should show up as “Healthy”
with a drive letter assigned (i.e. E:). This drive letter should now appear within My
Computer.
If you are installing a hard drive that already has data on it, then after plugging it in, the
drive should automatically show up with a drive letter assigned within My Computer.
Instruction Manual 6
Specications
Drive Bays 1
Host Interface USB 3.0 revision 1.0
Chipset ID ASMedia ASM1051
External Connectors 1 x USB 3.0 micro-B female
LEDs 1 x Power/Activity
Maximum Data Transfer Rate USB: 5 Gbps
Compatible Hard Drives 2.5in SATA hard drives/solid state drives
up to 12.5mm in height
Enclosure Material Aluminum
Power Adapter USB powered
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Humidity 10% ~ 90% RH
Dimensions 138.0mm x 77.0mm x 17.0mm
Weight 188.5g
Compatible Operating Systems Windows 2000/XP/Server 2003/Vista/
Server 2008 R2/7 (32/64-bit)
Instruction Manual 7
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
