StarTech.com ST121HDBTL Manuale utente

Manual Revision: 12/08/2020

Forthemostup-to-dateinformation,pleasevisit:www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

ST121HDBTL

HDMI over CAT5 HDBaseT Extender - 4K

*actualproduct mayvary fromphotos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of contents

Product Diagram ....................................................................................1

Front View - Transmitter / Receiver Unit............................................................................................ 1

Rear View - Transmitter/Receiver Unit ............................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Preparing Your Site ................................................................................3

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

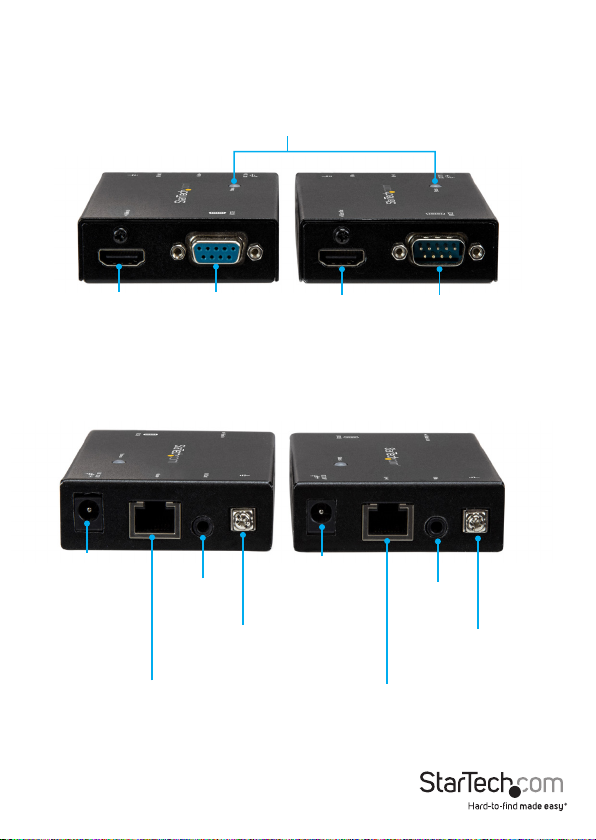

Product diagram

Front view - transmitter and receiver units

Rear view - transmitter and receiver units

Link LEDs

Power

adapter

port

Grounding

bolt

Link port

(RJ-45 connector)

Local IR

port

HDMI in

port

HDMI out

port

Local RS-232

port

Remote RS-232

port

Power

adapter

port

Grounding

bolt

Link port

(RJ-45 connector)

Remote

IR port

Instruction Manual

Package contents

• 1 x HDBaseT transmitter

• 1 x HDBaseT receiver

• 2 x Mounting brackets

• 1 x universal power adapter (NA, EU, UK, ANZ)

• 1 x IR receiver

• 1 x IR blaster

• 2 x mounting brackets

• 8 x foot pads

Requirements

• An HDMI® video source device

• An HDMI display with cabling

• An available AC electrical outlet for either the transmitter or receiver

Instruction Manual

Preparing your site

1. Determine where your local video source will be located and set up the device.

2. Determine where your remote display will be located and place/ mount the display

appropriately.

Note: This HDBaseT kit features Power over cable, allowing both the transmitter

and receiver to be powered from a single power source that connects to either

the transmitter or receiver unit. Please ensure that unit you’ve chosen to power is

situated near an available AC electrical outlet. Make sure all devices are turned o

before beginning installation.

Before you begin the installation steps, ensure both the transmitter and receiver

are properly grounded. The grounding nuts on the transmitter and receiver may be

used to do this, depending on your environment.

Installation

1. Install the transmitter

a) Position and ground the HDBaseT transmitter near your video source.

b) Connect your video source device to the HDMI in port on the transmitter.

c) (Optional) If you’ve chosen to power the HDBaseT kit using the transmitter, connect

the included power adapter to the power adapter port on the transmitter and to an

AC outlet.

d) (Optional)If you’re using the HDBaseT kit to extend an infrared (IR) signal.

If the device receiving the IR signal is at the remote side, connect the IR receiver to

the Local IR port on the transmitter, and position the IR sensor where you’ll point

your IR remote control.

If the device receiving the IR signal is at the local side, connect the IR blaster to the

Local IR port on the transmitter side, and position the IR sensor directly in front of

the video source’s IR sensor (if you’re unsure, check the manual of your video source

to determine the IR sensor location).

e) (Optional) If you’re using HDBaseT kit to transmit a serial signal, connect a serial

cable (not included) from the Local RS-232 port on the transmitter unit to the serial

port on the local device.

Instruction Manual

2. Install the receiver

a) Position and ground the HDBaseT receiver near your video source.

b) Connect your remote display to the HDMI out port on the receiver.

c) (Optional) If you’ve chosen to power the HDBaseT kit using the receiver, connect

the included power adapter to the power adapter port on the transmitter and to an

AC outlet.

d) ((Optional)If you’re using the HDBaseT kit to extend an infrared (IR) signal.

If the device receiving the IR signal is at the remote side, connect the IR blaster to

the remote IR port on the receiver, and position the IR sensor directly in front of

the device’s IR sensor (if you’re unsure, check the manual of your video source to

determine the IR sensor location).

If the device receiving the IR signal is at the local side, connect the IR receiver to the

remote IR port on the receiver, and position the IR sensor where you’ll point your IR

remote control.

e) (Optional) If you’re using the HDBaseT kit to transmit a serial signal, connect a serial

cable (not included) from the Remote RS232 port on the receiver to the serial port

on the remote device.

3. Install RJ-45 terminated CAT5e/6/7 Cable

a) Connect an RJ-45 terminated CAT5e/6/7 cable (sold separately) to the Link port on

the transmitter.

b) Connect the other end of the RJ-45 terminated CAT5e/6/7 cable (not included) to

the Link port on the receiver.

Notes:

• The cabling should not go through any networking equipment (i.e. router, switch)

• If you are using surface cabling, ensure you leave enough cabling to connect the

transmitter to the receiver, and that each end is terminated with an RJ-45 connector.

The cabling should not go through any networking equipment (i.e. router, switch).

• If you are using premises cabling, ensure that the cabling between the transmitter

and receiver has been properly terminated in a wall-outlet at each location and

there is a patch cable long enough to connect the transmitter and receiver to their

respective wall-outlet.

4. Power on your video source and your display and the source image will now

appear on the remote video display.

Instruction Manual

Specications

Supported resolutions

3840x2160 (4K at 30Hz), 2560x1600,

1920x1200 (60Hz), 1920x1080 (1080p),

1280x720 (720p)

Max Distance

70 m (230 ft.) - 1080p @ 60Hz

35 m (115 ft.) - 4K @ 30Hz

Audio Specications Supports Dolby® TrueHD, DTS-HD MA

Note: The resolution performance of this HDBaseT extender will vary depending

on the length of your cabling. Please review the chart below to determine the best

solution for your setup. For best results, StarTech.com recommends shielded CAT6

cable.

Distance Maximum resolution

35 m (115 ft.) or less 4K x 2K at 30 Hz

Up to 70 m (230 ft.) 1080p at 60 Hz

The transmitter and receiver feature an LED indicator that communicates the Link

status. Review the chart below to determine the signicance of the LED status.

LED indicators

LED Behavior Signicance

Link LED (local and

remote)

The LED

is illuminated.

The HDBaseT transmitter and receiver

are connected and powered.

The LED

is o.

The HDBaseT transmitter and receiver

are not connected or not powered.

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Indice

Altri manuali StarTech.com Estensione

StarTech.com

StarTech.com RS232EXTC1 Manuale utente

StarTech.com

StarTech.com IPUSB2VGA2 Manuale utente

StarTech.com

StarTech.com ST121USBHD Manuale utente

StarTech.com

StarTech.com DPBOOST Manuale utente

StarTech.com

StarTech.com SV565FXDUSA Manuale utente

StarTech.com

StarTech.com ST121HDT4P Manuale utente

StarTech.com

StarTech.com 8STST121HDBT20S Manuale utente

StarTech.com

StarTech.com SV565UTP Manuale utente

StarTech.com

StarTech.com ST121HDBT5 Manuale utente

StarTech.com

StarTech.com ST124HDBT Manuale utente

StarTech.com

StarTech.com ST12MHDLAN Manuale utente

StarTech.com

StarTech.com ST122UTPAL Manuale utente

StarTech.com

StarTech.com ST121UTPMINI Manuale utente

StarTech.com

StarTech.com USBthere USB100EXT Manuale utente

StarTech.com

StarTech.com USBthere USB100EXT Manuale utente

StarTech.com

StarTech.com USBthere USB120EXT Manuale utente

StarTech.com

StarTech.com POEEXT1GAT Manuale utente

StarTech.com

StarTech.com 110VDSLEXT2 Manuale utente

StarTech.com

StarTech.com ST1212T Manuale utente

StarTech.com

StarTech.com SV565FXDUSA Manuale utente

StarTech.com

StarTech.com USBthere USB204EXTFIB Manuale utente

StarTech.com

StarTech.com USB2004EXTGB Manuale utente

StarTech.com

StarTech.com USBthere USB221EXT Manuale utente

StarTech.com

StarTech.com USB2G4LEXT2 Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
