StarTech.com SV565UTPDUA Manuale utente

Manual Revision: 03/01/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV565UTPDUA

DVI USB KVM Console Extender with

USB 2.0 and Audio - 500m

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

•

Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Connecting Your KVM Extender...........................................................2

Preparing Your Site ................................................................................................................................... 2

Local Unit Installation.............................................................................................................................. 2

Installing the Remote Unit..................................................................................................................... 2

How to Use .............................................................................................3

Audio ............................................................................................................................................................. 3

LEDs................................................................................................................................................................ 4

Compatibility ..........................................................................................4

Setup & Equipment .................................................................................................................................. 5

Specications..........................................................................................6

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Packaging Contents

• 1 x Local Unit

• 1 x Remote Unit

• 2 x Universal Power Adapter

• 1 x USB cable

• 1 x DVI-D cable

• 1 x Instruction Manual

System Requirements

• USB and DVI-D enabled KVM switch or computer system

• A DVI-D (digital) enabled display device (i.e. monitor, projector, HDTV, etc)

• A standard 104-key wired USB keyboard

• A standard 3-button wired USB mouse

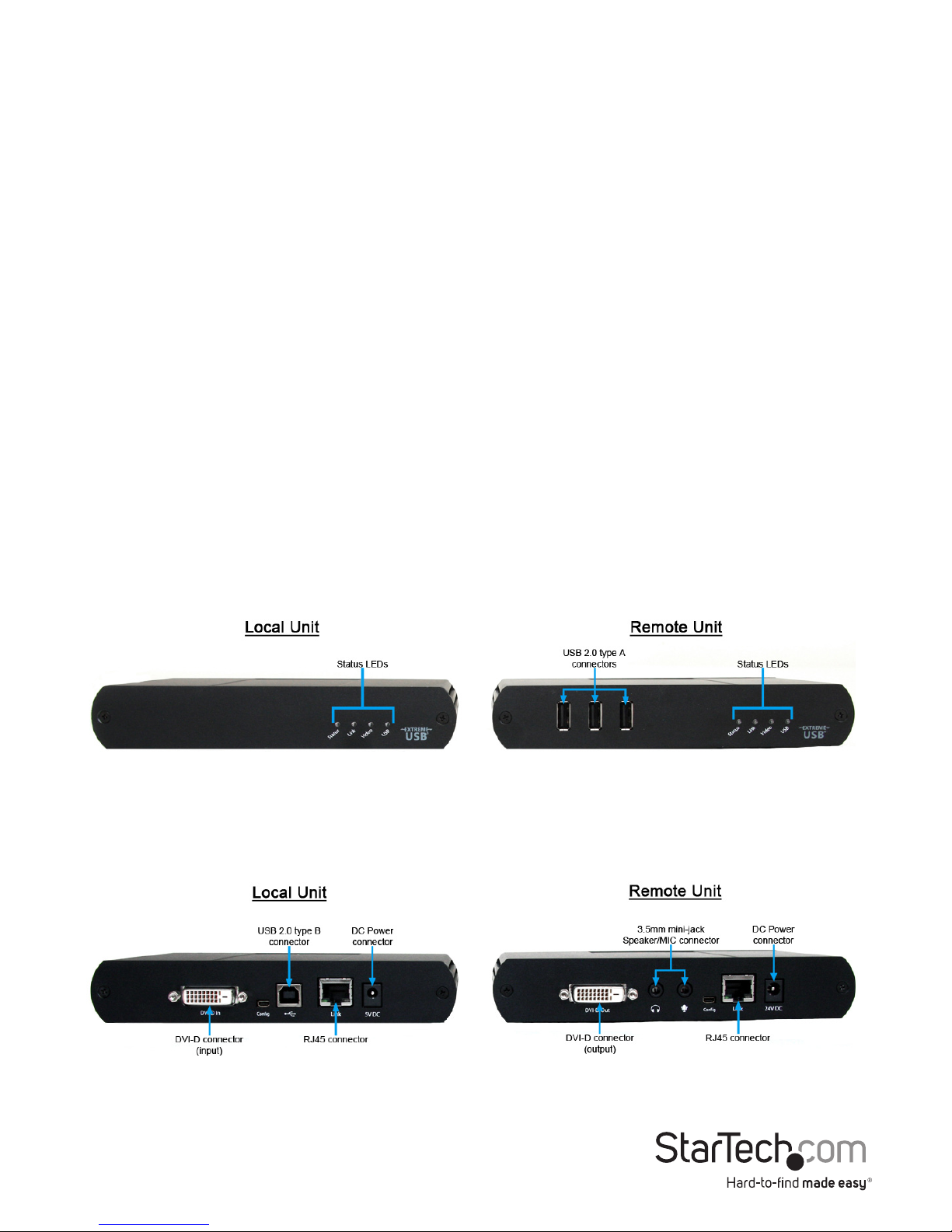

Front View

Rear View

Instruction Manual

Connecting Your KVM Extender

Preparing Your Site

Before you can install the product, you need to prepare your site.

1. Determine where the host computer will be located and set up the computer.

2. Determine where the console devices (mouse, keyboard, monitor) will be located

and place them appropriately.

3. a) If you are using surface cabling, ensure you have enough Category 5 unshielded

twisted pair (UTP) network cabling to connect the Local unit to the Remote unit’s

location, and that each end is terminated with a RJ45 connector. The cabling should

not go through any networking equipment (i.e. router, switch).

b) If you are using premises cabling, ensure that the Category 5 unshielded twisted

pair (UTP) network cabling between the Local unit and the Remote unit has been

properly terminated in a wall outlet in each location and there is a patch cable long

enough to connect the Remote Unit and the Local unit to their respective outlets.

The cabling should not go through any networking equipment (i.e. router, switch).

Local Unit Installation

1. Switch o the computer and disconnect any unnecessary devices/peripherals.

2. Using the provided cables, connect the USB cable from the USB type B connector on

the Local unit to an available USB port on the computer system. Connect the DVI-D

cable from the Local unit to the DVI connector on the computer system.

NOTE: If using audio, no separate cables are required, as it will be carried over USB.

3. Connect the UTP cable connection for the Remote unit to the RJ45 connector on the

Local unit. If using premises cabling, connect the opposite end of the patch cable to

the terminated wall outlet.

Installing the Remote Unit

1. Place the Remote Unit near the remote station.

2. Using a DVI-D cable (not included) connect a monitor to the DVI-D connector on the

Remote unit.

3. Connect a USB keyboard and/or mouse to any of the USB Hub ports on the

Remote unit.

4. OPTIONAL: Connect any additional USB peripherals you wish to use to the Remote

unit. An external USB hub (powered) may be connected to the Remote unit, if

additional USB ports are required.

Instruction Manual

5. Connect the UTP cable connection from the Local unit to the RJ45 connector on the

Remote unit. If using premises cabling, connect the opposite end of the patch cable

to the terminated wall outlet.

6. Connect the power adapters to the Local and Remote units. Each unit uses a

specic power adapter (5VDC for Local, 24VDC for Remote), so ensure the correct

power adapter is connected, otherwise damage may occur.

7. The“Status”LED should light up on both units to indicate power. The“Link”LED should

also light up to indicate a connection between the Local and Remote units is established.

Note: It may take up to one minute for the system to boot up.

How to Use

Audio

The audio component of the extender uses a built-in USB Audio Device to transmit

audio from the Host computer to the Remote unit. The Host computer system should

detect and automatically install the audio adapter once the USB cable is connected,

usually setting it as the default audio adapter for the system. Check in the Audio

Properties of the operating system (i.e. “Sound and Audio Devices” in Control Panel for

Windows XP or “Sound” in System Preferences for Mac OS X) to verify the installation

and status of the USB audio adapter. If the audio component of the extender will not

be used, then you may wish to set the default audio device back to the onboard audio.

Instruction Manual

LEDs

LEDs Description

Status

• Solid green indicates ready status.

• Flashing green indicates the unit is

booting up.

• O indicates no power.

Link

• Solid green indicates a connection

between the Local and Remote units.

• O indicates no connection between

the Local and Remote units.

Video

• Solid green indicates a connection

to the Remote unit and the Host

computer.

• Flashing green indicates a video

signal from the Host computer is

being transmitted.

• Solid amber indicates that no video

source is connected to the Local unit

or no monitor isconnected to the

Remote unit.

• Flashing amber indicates an

incompatible video resolution is

detected.

• O indicates no connection between

the Local and Remote units.

USB

• Solid green indicates a successful USB

connection to the Host computer.

• Flashing green indicates USB data

transmission.

• Solid amber indicates no USB

connection to the Host computer.

• Flashing amber indicates over-

current (short) on one of the USB

connections.

• O indicates no connection between

the Local and Remote units.

Instruction Manual

Compatibility

The product is compatible with many graphic cards, Operating Systems, and monitors.There

is no guarantee that all devices are compatible with the product, as there are a number of

dierent congurations that may impact the operation of the KVM Extender.The product

complies with USB 1.1 and USB 2.0 specications governing the design of USB devices.There

is no guarantee that all USB devices are compatible with the product, as there are a number of

dierent congurations that may impact the operation of USB devices over extended distances.

Setup & Equipment

The following devices are recommended to be used in the system.

Monitors

• Samsung•Dell•HP

• Viewsonic•Acer•BENQ

• ASUS

Discrete Graphics Cards

• ATI Radeon HD 2000 Series and Above

• NVIDIAION•IntelGMA950andGMAHD

• MatroxP-Series•ATIFireGL/FireProSeries

• NVIDIAQuadroSeries•NVIDIAGeforce6000SeriesandAbove

• NVIDIAGeforceMobility9000

Resolutions

• 640x480(4:3)•1280x1024(5:4)

• 800x600(4:3)•1360x768(16:9)

• 1024x768(4:3)•1366x768(16:9)

• 1280x720(16:9)•1440x900(16:10)

• 1280x768(5:3)•1680x1050(16:10)

• 1280 x 800 (16:10)

Host Operating Systems

• Windows7(32bit&64bit)•WindowsXP(32bit)

• WindowsVista(32bit&64bit)•Linux

• Mac OS X (Leopard/Snow Leopard)

Peripherals

• Keyboard

• Mouse

• Mass Storage Device

• Speakers

• Printer/Scanner

• High Compression/Low Resolution Web Camera

• DAQs

Instruction Manual

Specications

Video Signal DVI-D (digital)

Connectors

Local Unit:

1 x 25-pin DVI-D female

1 x USB type B female

1 x RJ45 Ethernet female

1 x DC Power

Remote Unit:

1 x 25-pin DVI-D female

3 x USB type A female

1 x RJ45 Ethernet female

2 x 3.5mm mini-jack Audio female

1 x DC Power

LEDs

Local Unit:

1 x Status

1 x Link

1 x Video

1 x USB

Remote Unit:

1 x Status

1 x Link

1 x Video

1 x USB

Compatible Cabling Cat 5/5e/6, UTP

Maximum Cable Length 500m / 1640ft

Maximum Video Resolution 1680 x 1050

Maximum Data Transfer Rate USB 2.0: 80Mbps

Audio Support Yes (via built-in USB audio adapter)

DDC Support Yes

Instruction Manual

Power Adapter

Local Unit:

5VDC, 3000mA, center positive

Remote Unit:

24VDC, 1000mA, center positive

ESD Protection 4kV Contact, 8kV Air

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)

Humidity 20% ~ 80% RH

Dimensions (LxWxH) 175.0mm x 112.0mm x 30.0mm

Weight 400g

Altri manuali per SV565UTPDUA

Indice

Altri manuali StarTech.com Estensione

StarTech.com

StarTech.com SV565UTPUL Manuale utente

StarTech.com

StarTech.com USBthere USB204EXTFIB Manuale utente

StarTech.com

StarTech.com SV565UTPU Manuale utente

StarTech.com

StarTech.com ST121HDFXA Manuale utente

StarTech.com

StarTech.com USB3004EXT2 Manuale utente

StarTech.com

StarTech.com EOC1110R Manuale utente

StarTech.com

StarTech.com ST121R Manuale utente

StarTech.com

StarTech.com STUTPEALR Manuale utente

StarTech.com

StarTech.com ST121HD20V Manuale utente

StarTech.com

StarTech.com ST121 Series Manuale utente

StarTech.com

StarTech.com USBthere USB201EXT Manuale utente

StarTech.com

StarTech.com USBthere USB221EXT Manuale utente

StarTech.com

StarTech.com USBthere USB221EXT Manuale utente

StarTech.com

StarTech.com SV565UTPDUV Manuale utente

StarTech.com

StarTech.com WIFI2VGA Manuale utente

StarTech.com

StarTech.com POEEXT1GAT Manuale utente

StarTech.com

StarTech.com ST128UTPE Manuale utente

StarTech.com

StarTech.com SV565FXDUSA Manuale utente

StarTech.com

StarTech.com C15012-USB-EXTENDER Manuale utente

StarTech.com

StarTech.com ST121SHD50 Manuale utente

StarTech.com

StarTech.com ST121HDFXA Manuale utente

StarTech.com

StarTech.com ST121WHDS Manuale utente

StarTech.com

StarTech.com ST121HDBTE Manuale utente

StarTech.com

StarTech.com USBthere USB100EXT Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
