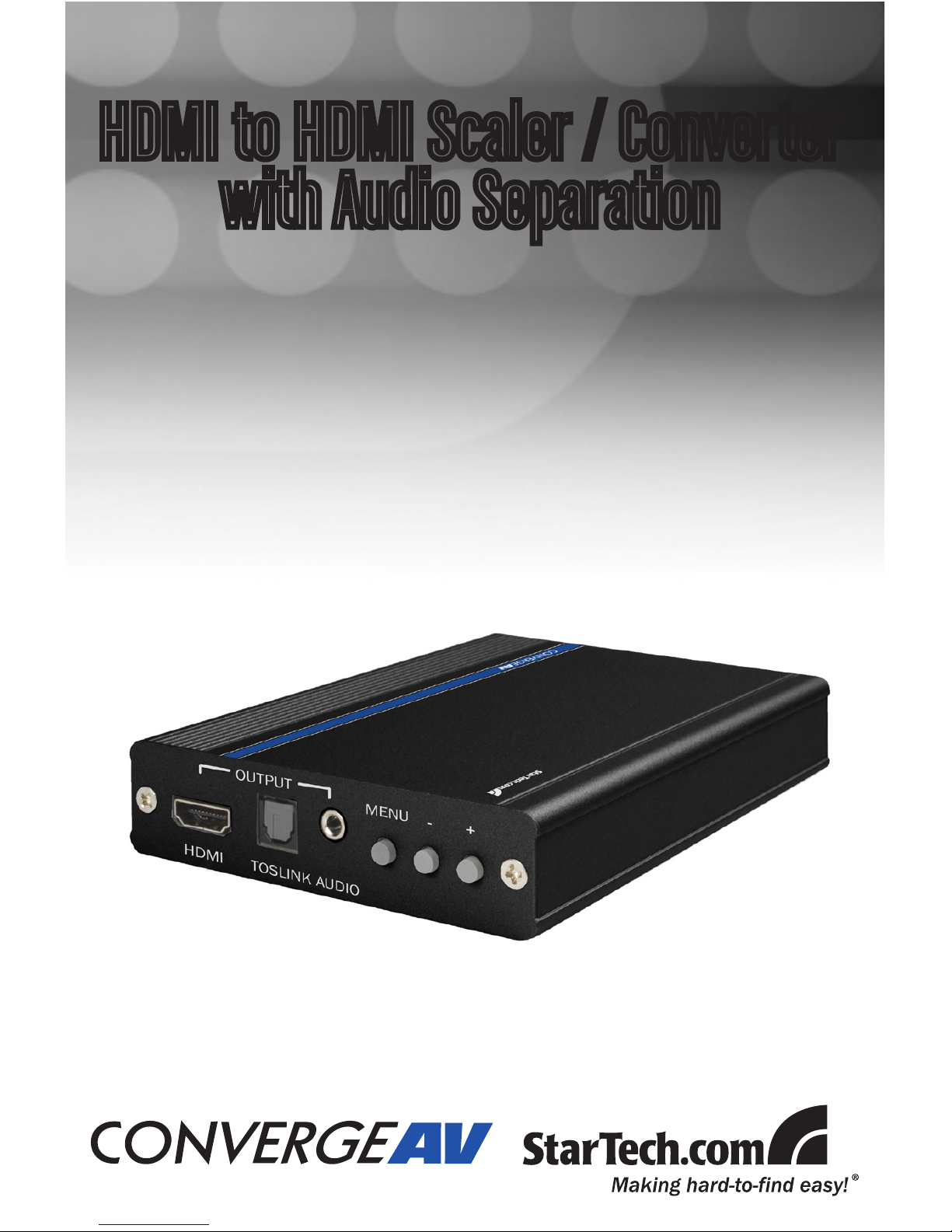

StarTech.com HDMI2HDMI Manuale utente

HDMI to HDMI Scaler / Converter

with Audio Separation

HDMI2HDMI

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any

direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Package contents ........................................................................1

Operating Controls and Functions .............................................. 2

Front Panel ..................................................................................2

Rear Panel...................................................................................3

OSD Operation............................................................................... 4

Connection and Installation ......................................................... 5

Supported Resolutions................................................................. 5

Speciﬁcations ................................................................................ 6

Technical Support ......................................................................... 7

Warranty Information .................................................................... 7

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com HDMI to HDMI Scaler/

Converter with Audio Separation. This compact device accepts HDMI

input with a separate Toslink or analog audio signal, and scales it to HDMI

output - adjusting the resolution to match the display’s native resolution,

while allowing you to add external analog or digital audio that can be

combined with the HDMI video signal or separated to an analog or digital

output.

Features

HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant•

Supports 50/60Hz frame rate conversion•

Supports 3-D motion video adaptive de-interlacing,•

Supports 3:2 / 2:2 pull-down detection and recovery•

Output picture adjustment•

Supports digital and analog audio input and output•

Package contents

This package should contain:

1 x• HDMI to HDMI Scaler with Audio Separation

1 x 5VDC Power Supply Adapter•

1 x Instruction Manual•

Instruction Manual

Operating Controls and Functions

Front Panel

HDMI OUTPUT:1. Connect the HDMI output port to the HDMI input port

of your display.

TOSLINK OUTPUT:2. Connect the digital audio output port to the input

port of your digital audio equipment (i.e.

ampliﬁer or receiver, using Optical Fiber cable.

AUDIO OUTPUT:3. Connect the analog audio output port to the input

port of your analog audio equipment (speakers etc.)

MENU Button4.

a. Press the MENU button to bring up OSD operation menu

b. When in the OSD menu mode, use MENU button as an OK key to

conﬁrm the selection.

+/- Buttons:5.

a. On the ﬁrst tier of OSD menu, use + and - buttons to scroll up/down

the highlight bar for selection.

b. Once the desired option is selected, use + and - buttons to toggle

between setting values.

1 2 3 4 5

Instruction Manual

Operating Controls and Functions - Cont’d

Rear Panel

HDMI INPUT:1. Connect the HDMI input port to the HDMI output port of

your source equipment (i.e. DVD player or Set-Top-Box)

AUDIO INPUT:2. Connect the analog audio input port to the output port

of your source equipment

TOSLINK INPUT:3. Connect the digital audio input port to the Toslink

output port of your source equipment such as DVD

player or Set-Top-Box

Power Supply:4. Plug the 5VDC power supply into the unit and connect

the adaptor to AC wall outlet.

12 3 4

Instruction Manual

OSD Operation

1st Tier Option 2nd Tier

Option Adjustment/Function

CONTRAST 0 ~ 100% of Contrast Level

BRIGHTNESS 0 ~ 100% of Brightness Level

FINETUNE

HUE 0 ~ 100% of Hue Level

SATURATION 0 ~ 100% of Saturation Level

SHARPNESS 0 ~ 100% of Sharpness Level

EXIT Back to 1st Tier

COLOR

RED 0 ~ 100% of Red Color Level

GREEN 0 ~ 100% of Green Color Level

BLUE 0 ~ 100% of Blue Color Level

EXIT Back to 1 Tier

OUTPUT

NATIVE / VGA / SVGA / XGA / SXGA /

UXGA / 480i / 480p / 720p@60Hz /

1080i@60Hz / 1080p@60Hz / 576i / 576p /

720p@50Hz / 1080i@50Hz /1080p@50Hz /

WXGA / WSXGA / WUXGA

AUDIO HDMI / EAR PHONE / OPTICAL

OSD

HPOSITION 0 ~ 100% of OSD Horizontal Position

VPOSITION 0 ~ 100% of OSD Vertical Position

TIMER 0 ~ 100% of OSD Existing Time (sec.)

TRANSP 0 ~ 100% of OSD Transparent Level

EXIT Back to 1st Tier

INFORMATION

SOURCE (Input Interface)

INPUT (Input Resolution)

OUTPUT (Output Resolution)

VERSION (Firmware Version)

EXIT Close OSD Menu

Instruction Manual

Connection and Installation

Supported Resolutions

Input

PC VGA@60Hz, 72Hz, 75Hz, 85Hz; SVGA@52Hz, 60Hz, 72Hz,

75Hz, 85Hz

XGA@60Hz, 70Hz, 75Hz, 85Hz; SXGA@60Hz, 75Hz, 85Hz,

UXGA@60Hz; WXGA@60Hz; WSXGA@60Hz; WUXGA@60Hz;

TV 480i, 480p, 576i, 576p, 720p @50/60Hz

1080i@25/30Hz; 1080p@50/60Hz

Output

PC VGA@60Hz, 72Hz, 75Hz, 85Hz; SVGA@52Hz, 60Hz, 72Hz, 75Hz,

85Hz

XGA@60Hz, 70Hz, 75Hz, 85Hz; SXGA@60Hz, 75Hz, 85Hz;

UXGA@60Hz; WXGA@60Hz; WSXGA@60Hz; WUXGA@60Hz

TV 480i, 480p, 576i, 576p, 720p @50/60Hz

1080i@25/30Hz, 1080p@50/60Hz

Input Device

HDMI Cable

HDMI to HDMI

Scaler Box

HDMI Cable

Instruction Manual

Specications

Frequency Bandwidth 1.65Gbps (single link)

Input Ports 1 x HDMI; 1 x Toslink; 1 x 3.5mm Audio jack

Output Ports 1 x HDMI; 1 x Toslink;1 x 3.5mm Audio jack

Power 5V/2.6A DC Power Supply

Dimensions 102(w) x 145(d) x 25(h)mm

Weight 3.2Kgs

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com

warrants its products against defects in materials and workmanship for the

periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.
