StarTech.com VID2VGATV2 Manuale utente
Manual Revision: 05/12/2011
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
VID2VGATV2
Composite/S-Video to VGA Video Converter
*actual product may vary from photos
Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual i
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Front View .................................................................................................................................................... 2
Rear View ...................................................................................................................................................... 2
Side View ...................................................................................................................................................... 3
Installation ..............................................................................................4
Hardware Installation .............................................................................................................................. 4
Driver Installation ...................................................................................................................................... 4
How to Use ..............................................................................................5
On Screen Display ..................................................................................................................................... 5
Specications ..........................................................................................6
Technical Support ..................................................................................7
Warranty Information ............................................................................7
Instruction Manual 1
Introduction
The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter with Scaler
provides a simple way to convert Composite or S-Video signals to VGA (or Component
RCA) output for use with computer monitors, projectors or HDTV sets.
Equipped with an On Screen Display (OSD) menu and dip switches for simple
conguration and selection of your video output settings, this compact video scaler
installs quickly and easily for a true plug-and-play experience. An integrated scaler
circuit dynamically converts the input video signal, giving you multiple output
resolutions to choose from to ensure compatibility with your display or projector.
An included VGA to Component (RCA) breakout cable adds the ability to connect to TV
sets that are not equipped with a VGA port.
Packaging Contents
• 1 x Video Converter
• 1 x VGA to Component (RCA) breakout cable
• 1 x Universal Power Adapter
• 3 x Power Adapter plug (NA/UK/EU)
• 1 x Instruction Manual
System Requirements
• Composite or S-Video enabled video source (i.e. DVD player, PVR/DVR, etc.)
• Composite or S-Video cable
• VGA or component video enabled display device (e.g. monitor, projector, etc.)
• VGA cable (if connecting to VGA display device)
• Available AC electrical outlet
Instruction Manual 2

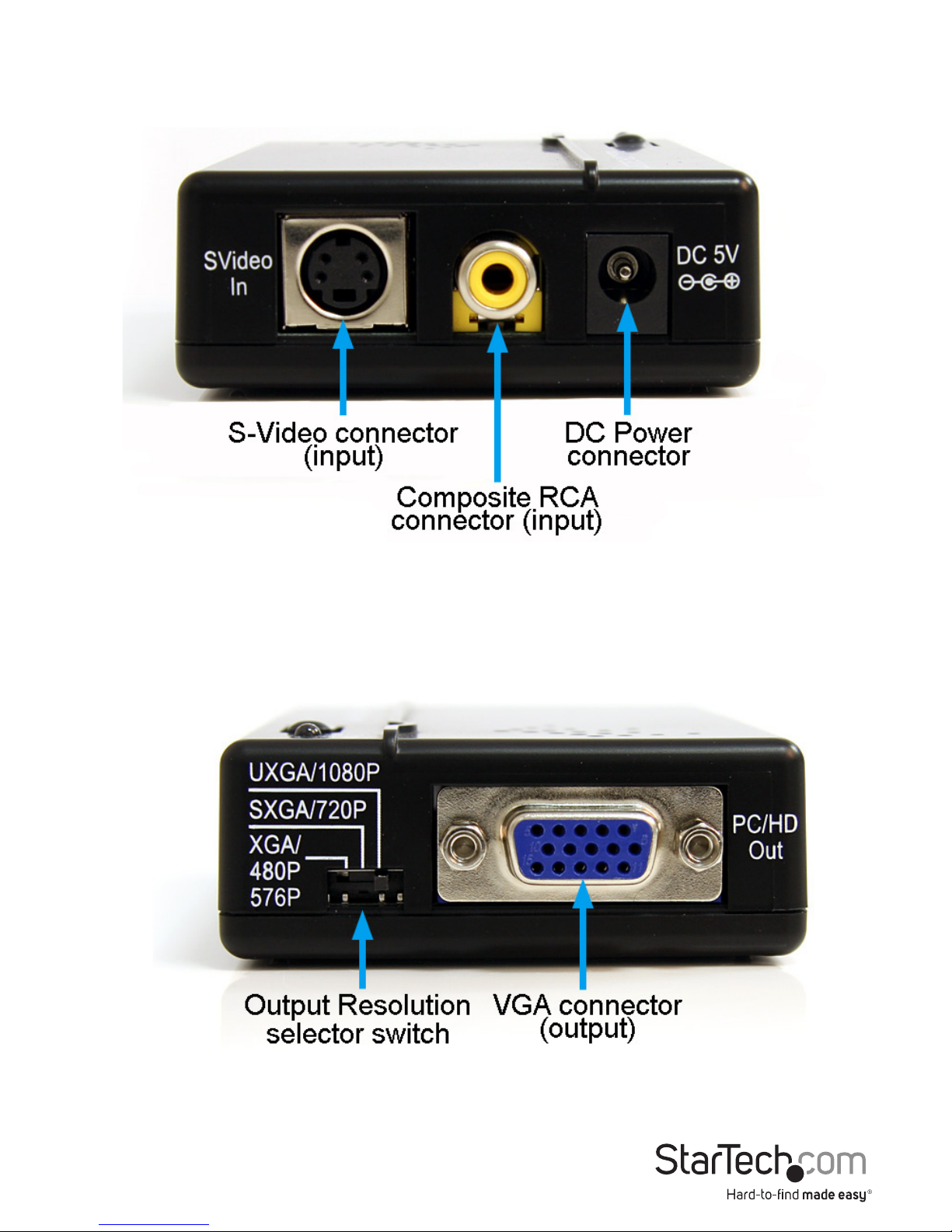

Front View
Rear View
Instruction Manual 3
Side View
Instruction Manual 4
Installation
Hardware Installation
1. Make sure all devices and components are powered o.
2. Connect the video source to the input side of the video converter using either an
S-Video or composite RCA cable (both sold separately).
3. Plug the power adapter into the video converter. The Input indicator LED will light
up steady.
4. If not already set to the correct input, press the Input selector button to change the
input source. The LED will light up green for composite and red for S-Video.
5. Connect the display to the converter using either the VGA to component RCA
breakout cable (included), or a male/male VGA cable (sold separately).
6. Set the Output Signal Mode selector switch along the side of the video converter to
the type of display you are using: “HD” for component and “PC” for VGA.
7. Select the output resolution using the slide switch next to the VGA output
connector. Make sure to select an output resolution that is supported by the display
device.
8. Power on the display device.
9. Power on the video source.
Driver Installation
The video converter is an external pure hardware converter, so no driver or software
installation is required.
Instruction Manual 5
How to Use
On Screen Display
The video converter has a built in on screen display (OSD) that will show the current
input and output signal properties on the connected display. If outputting a
component video signal (HD mode), the option to enable or disable 50Hz to 60Hz scan
rate conversion is available.
HD Output Mode
PC Output Mode
The OSD can be accessed by pressing and holding the Input Mode selection button
for 5 seconds. In HD mode, the scan rate conversion settings can be toggled between
by pressing the Input Mode button. The OSD will automatically close after several
seconds of inactivity.
Instruction Manual 6
Specications
Video Signal (Input) Composite
S-Video
Video Signal (Output) VGA (RGBHV)
YPbPr component
Connectors
1 x RCA Composite female
1 x S-Video 4-pin female
1 x DE-15 VGA female
1 x DC Power
LEDs 1 x Input Selection
Supported Video Systems NTSC, PAL
Supported Video Output
PC: XGA (1024x768), SXGA (1280x1024),
UXGA (1600x1200) @ 60 Hz
HD: 480p, 720p, 1080p @ 50/60 Hz
On Screen Display Yes
Power Adapter 5V DC, 1000mA, center positive
Enclosure Material Plastic
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature 0°C ~ 60°C (32°F ~ 140°F)
Humidity 0% ~ 60% RH
Dimensions (LxWxH) 112.0mm x 64.0mm x 26.0mm
Weight 90g
Instruction Manual 7
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
