StarTech.com DS5105 Manuale del sistema

5 Port Mini Desktop 10/100 Ethernet Switch

StarTech ID: DS5105

Include this Fast Ethernet Switch in your networking solution if you need to extend your connection distance,

segment network traffic, or bridge both 10BaseT and 100BaseTX together. One set of status leds

for each of the 5 half/full duplex RJ45 ports, indicate network connections, activity, collisions, and

full duplex mode at a glance. This product replaces Switch DS5100, DS5102 and Hub DS5102E.

Applications and Solutions

> An extremely fast small business network

> Provides a 200Mbps link for servers

> Segmenting hubs to improve network performance

Features

> All RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function.

> Auto MDIX (crossover) function provides automatic crossover when cascading switches or

hubs - crossover cables or special uplink ports are no longer required

> Complies with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards

> IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex.

> Simple and economical way to bridge 10BaseT network and 100BaseTX network.

> Store-and-forward switching architecture

> Supports full duplex connections of up to 200Mbps

> Wall Mountable

Specifications

> Auto MDIX Yes

> Color Beige

> Connector Types 5 - RJ45 Female

> Full Duplex Support Yes

> Product Height 1.18 in [30 mm]

> Input Current 0.5

> Input Voltage 12 DC

> Product Length 5 in [127 mm]

> Number of Ports 5

> Power Adapter Included Yes

> Power Adapter - DC Voltage DC 12

> Carton Quantity 25

> Industry Standards IEEE 802.3x

> Switching Architecture Store and Forward

> Shipping (Package) Weight 1.15 lb [0.52 kg]

> Product Weight 6.35 oz [180 g]

> Product Width 3.27 in [83 mm]

> Dimension 127 x 83 x 30 mm (5.0 x 3.27 x 1.18 inches).

> Weight 180g (0.40lbs).

> Port Led’s LNK/ACT(Link/Activity) Yellow--100Mbps, Green--10Mbps, COL/FDX(Collision/Full Duplex)

> Power 12V AC/DC, 0.5A <br> Note: This product will work with an AC or DC power adapter

Indice

Altri manuali StarTech.com Router di rete

StarTech.com

StarTech.com IES5100 Manuale utente

StarTech.com

StarTech.com R150WN1X1T Manuale utente

StarTech.com

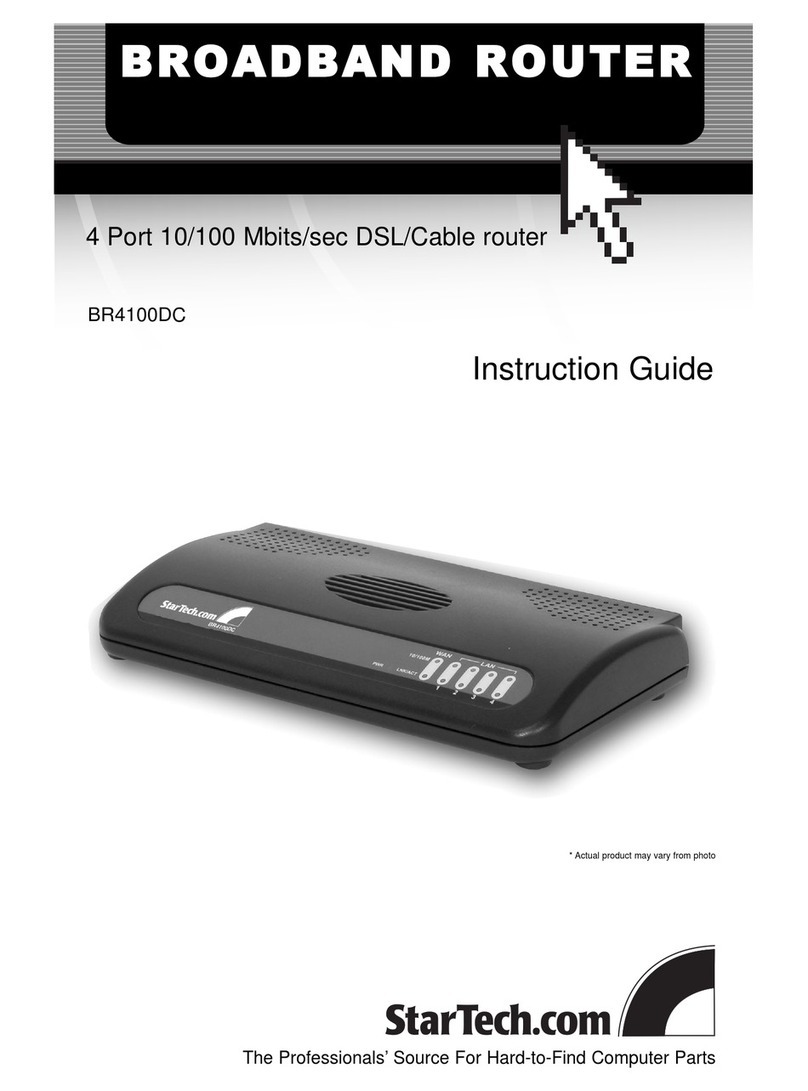

StarTech.com BR4100DC Manuale
