StarTech.com PCISOUND5LP Manuale utente

PCI Sound Adapter Card

5.1 Channel Low Proﬁle PCI

Sound Adapter Card - 24 bits

PCISOUND5LP

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Introduction ..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Hardware Installation...................................................................1

Driver Installation.........................................................................2

Physical Layout............................................................... 3

Internal Header Connectors ........................................................3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information ...................................................... 5

Introduction

Packaging Contents

1 x PCISOUND5LP adapter card•

1 x Full Proﬁle Bracket•

1 x Driver CD•

1 x User Manual•

System Requirements

Available 5V compatible PCI slot•

Microsoft Windows• ®2000/XP/Server 2003/Vista

Microsoft DirectX• ®8.1 or above

Installation

It is recommended that you remove any previously installed sound card

and drivers/software prior to installing the PCISOUND5LP sound card

to avoid any conﬂicts. If previously installed drivers are not removed,

the PCISOUND5LP sound card may not function properly. (Note: If

your computer has on-board sound you may need to disable it on

the motherboard. For more information please see your computer’s

documentation or contact your computer’s manufacturer.)

Hardware Installation

Turn your computer off and any peripherals connected to the1.

computer (ie. Printers, external hard drives, etc.). Unplug the power

cable from the rear of the power supply on the back of the computer.

Remove the cover from the computer case.2.

Locate an open PCI slot and remove the metal cover plate on the3.

rear of the computer case.

Insert the card into the open PCI slot and screw the bracket to the4.

rear of the case.

NOTE: If the computer takes full proﬁle expansion cards, the low

proﬁle bracket on the card will need to be changed with the included

full proﬁle bracket.

Place the cover back onto the computer.5.

Insert the power cable into the socket on the power supply and6.

reconnect your other peripherals.

Driver Installation

Windows®2000/XP/Server 2003/Vista

After installing the card in the PC, power up the PC. You will be1.

presented with the Found New Hardware prompt. Cancel this

prompt.

Place the Driver CD into the CD-ROM drive. Click the Start button2.

on the taskbar and click Run. Type “D:\SOUND\VT1723\setup.exe”.

(Assuming you have placed the CD in CD-ROM drive D:).

Follow any on-screen instructions to complete the software3.

installation.

Restart your system.4.

Once you have rebooted the computer, the PCISOUND5LP sound5.

card will be ready to use.

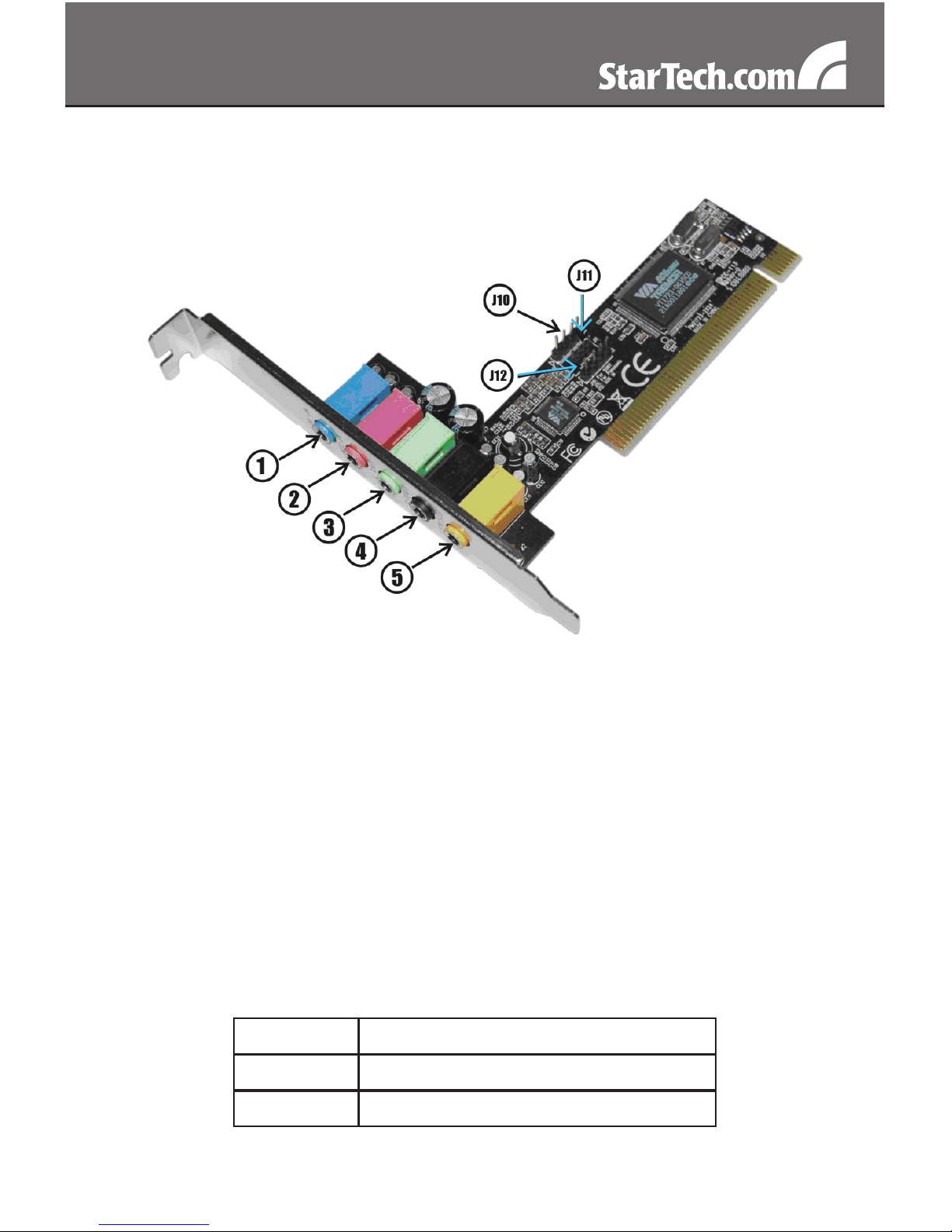

Physical Layout

Line In1. (blue) – Connect to the audio output of a stereo receiver, CD

player, etc.

Mic In2. (pink) – Connect to the microphone (Mono).

Front-Speaker3. (green) – Connect to front speakers or earphones or

audio-in of a stereo receiver.

Rear-Speaker4. (black) – Connect to the rear speakers when 4 or 6

channel speaker mode is enabled.

Center/Sub-woofer5. (orange) – Connect to the center speaker and

sub-woofer when 6 channel speaker mode is enabled.

Internal Header Connectors

J10 Analog CD/IN (L-G-G-R)

J11 Analog CD/IN (G-R-G-L)

J12 Aux In

Specications

Bus Interface PCI v2.2 (5V)

Internal Connectors 1 x Aux-In header

2 x Analog CD/IN header

External Connectors

5 x 3.5mm Mini Jack

(Line-In, Mic, Front Out, Rear

Our, Center/Sub Out)

Chipset VIA Tremor VT1723

Duplex Mode Full Duplex: 6 output streams, 2

input streams

Maximum Sampling Rate Playback: 96k/24-bit

Recording: 48k/16-bit

Support Operating Systems Windows®2000/XP/Server 2003/

Vista

Technical Support

StarTech.com’s lifetime technical support is an integral part of our com-

mit-ment to provide industry-leading solutions. If you ever need help

with your product, visit www.startech.com/support and access our com-

prehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not war-

rant its products from defects or damages arising from misuse, abuse,

alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com

USA LLP (or their ofﬁcers, directors, employees or agents) for any dam-

ages (whether direct or indirect, special, punitive, incidental, consequen-

tial, or otherwise), loss of proﬁts, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price

paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limita-

tions or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Serv-

er Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
