StarTech.com PEX1000SFP2 Manuale utente

Manual Revision: 08/03/2018

User Manual

For the latest information and specications visit

www.startech.com/PEX1000SFP2

PCI Express Gigabit Ethernet Fiber Network

Card with Open SFP Slot

Actual product may vary from photos

SKU#: PEX1000SFP2

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Compliance Statements

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit dierent from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

For the State of California

WARNING: Cancer and Reproductive Harm

www.P65Warnings.ca.gov

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and

other protected names and/or symbols of third-party companies not related in

any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service

by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com

hereby acknowledges that all trademarks, registered trademarks, service marks,

and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

• Wiring terminations should not be made with the product and/or electric

lines under power.

• Product installation and/or mounting should be completed by a certied

professional as per the local safety and building code guidelines.

• Cables (including power and charging cables) should be placed and routed

to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

• Les terminaisons de câblâge ne doivent pas être eectuées lorsque le produit

et/ou les câbles électriques sont sous tension.

• L’installation et/ou le montage du produit doit être réalisé par un

professionnel certié et dans le respect des normes locales et du code de

construction local.

• Les câbles (y compris les câbles d’alimentation et de chargement) doivent

être placés et acheminés de façon à éviter tout risque électrique, de chute ou

de sécurité

安全対策

• 電源が入っている状態の製品または電線の終端処理を行わないでくださ

い。

• 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に

従い、有資格の専門業者が行うようにしてください。

• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し

を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう

にしてください。

Misure di sicurezza

• I terminiali dei li elettrici non devono essere realizzate con il prodotto e/o le

linee elettriche sotto tensione.

• L’installazione e/o il montaggio dei prodotti devono essere eseguiti da un

tecnico professionale certicato che conosca le linee guida locali sulle norme

edilizie e sulla sicurezza.

• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati

e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o

pericoli per la sicurezza.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Säkerhetsåtgärder

• Montering av kabelavslutningar får inte göras när produkten och/eller

elledningarna är strömförda.

• Installation och/eller montering får endast göras av behöriga yrkespersoner

och enligt gällande lokala förordningar för säkerhet och byggnormer.

• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så

sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.

Warning Statements

Make sure to assemble this product according to the instructions. Failure to do

so might result in personal injury or property damage.

Never use this product if parts are missing or damaged.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements........................................................................1

Safety Statements..................................................................................2

Warning Statements ..............................................................................3

Product Diagram ....................................................................................5

Card................................................................................................................................................................ 5

Jumper.......................................................................................................................................................... 5

Product Information .............................................................................6

Package Contents ..................................................................................................................................... 6

System Requirements.............................................................................................................................. 6

Installation ..............................................................................................7

Hardware Installation .............................................................................................................................. 7

Driver Installation...................................................................................................................................... 8

Verifying Installation................................................................................................................................ 11

Software Utility ......................................................................................14

Connecting to a Network......................................................................14

Network Conguration ........................................................................................................................... 14

Card to Card Direct Conguration.......................................................16

LEDs..........................................................................................................17

Specications..........................................................................................17

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

Card

Jumper

Link LED

SFP

Slot Activity

LED

JP2 Jumper

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

• Port PCI Express Gigabit SFP Network Card x 1

• Low Prole Bracket x 1

• Driver CD x 1

• User Manual x 1

System Requirements

• PCI Express enabled computer with an available PCI Express

slot

• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP

(32/64), Windows Server® 2012, 2008 R2, 2003, Mac OS

10.5 and up (Tested up to 10.9), Linux 2.4.x, 2.6.x and 3.5.0,

Microsoft Hyper-V®

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installation

Hardware Installation

WARNING! PCI Express cards, like all computer equipment,

can be severely damaged by static electricity. Be sure that

you are properly grounded before opening your computer

case or touching your PCI Express card. StarTech.com recom-

mends that you wear an anti-static strap when installing any

computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touch-

ing a large grounded metal surface (such as the computer

case) for several seconds. Also be careful to handle the PCI

Express card by its edges and not the gold connectors.

1. Turn your computer o and any peripherals connected to

the computer (i.e. Printers, external hard drives, etc.). Unplug

the power cable from the rear of the power supply on the

back of the computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. See

documentation for your computer system for details.

3. Locate an open PCI Express slot and remove the metal

cover plate on the rear of the computer case (Refer to

documentation for your computer system for details).

Note: This card will work in PCI Express slots of additional

lanes (i.e.x4, x8, or x16 slots).

4. Gently insert the card into the open PCI Express slot and

fasten the bracket to the rear of the case.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Note: If installing the card into a small form factor/low

prole system, replacing the pre-installed full prole bracket

with the included low prole installation bracket may be

necessary.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply

and reconnect all other connectors removed in Step 1.

Driver Installation

Windows

Note: The card may auto-install using native drivers, how-

ever it is recommended to use the procedure below to update

to the latest driver version.

1. Upon starting Windows, if the Found New Hardware dialog

appears on the screen, cancel/close the window and insert

the included Driver CD into the computer’s CD/DVD drive.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

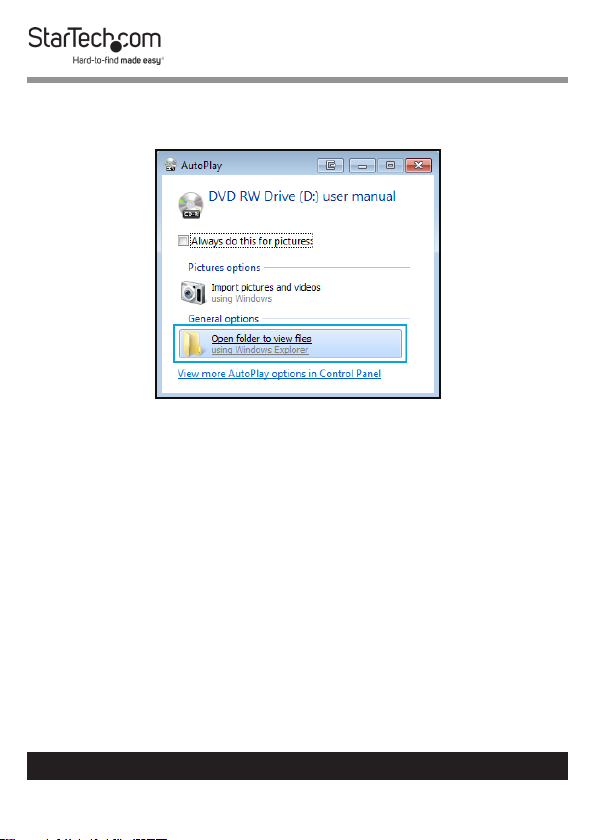

2. If AutoPlay is enabled, select the “Open folder to view les”

option when the dialog appears.

Autoplay screen

3. Open the “PEX1000MMSC2_SFP2_Driver” folder, and run the

“Setup.exe” application within the appropriate Operating

System folder for the system you are using.
