StarTech.com PM111UW Manuale utente

1 Port USB 802.11b 11 Mbps Wireless Print Server

StarTech ID: PM111UW

Save yourself time and money with an 802.11b wireless USB print server. This palm-sized print server

plugs into your USB printer and must be placed within range of your wireless network. You’ll spend

less time managing your printers and your users will experience fewer printing interruptions.

Straight forward Installation Wizards and remote web-based management make it easy to configure and

use. Compatible with most USB network-ready printers and major operating systems, the PM111UW is

the perfect printer solution for 802.11b wireless networks.

Applications and Solutions

> PM111UW offers wireless network printing solution for home, small office, educational & government institutions and any other environments that require printer sharing

> Connects your wireless network to one USB printer

Features

> Compact and light weight wireless USB print server only weighs 2.4 ounces

> Compliant with USB V1.1 and 802.11b standard

> Configurable using a web based browser or a windows based configuration

> Creates wireless peer-to-peer network in Ad-Hoc mode or connects to Ethernet LAN infrastructure mode

using wireless Access Point

> Data transfer rate of up to 11 Mbits/sec

> Easy setup and configuration

> Eliminates the need to purchase additional printers for individual workstations

> Enhanced 64/128 bit WEP Data Encryption for high level of security

> Share 1 USB printer with computers connected to a home or small office network

> Support DHCP client and SNMP for remote printer management and works with any SNMP based application

to access and manage

> Wireless USB Print Server works within a communication range of up to 150meters (492 feet)

Specifications

> Color Gray

> Enclosure Type Plastic

> Product Height 0.98 in [25 mm]

> LED Indicators 1 - Activity

> LED Indicators 1 - Signal Strength

> Product Length 2.76 in [70 mm]

> Maximum Wireless Data Rate 11000000

> Number of Ports 1

> Supported Protocols IPX

> Supported Protocols TCP/IP

> Supported Protocols NetBEUI

> Supported Protocols LPR

> Carton Quantity 20

> Remote Management Ability Yes

> Security Features WEP Data Encryption

> Shipping (Package) Weight 1.06 lb [0.48 kg]

> Product Weight 2.37 oz [67 g]

> Product Width 2.36 in [60 mm]

> Ports : USB: 1 x 4-pin (male)

> Standards IEEE 802.11b & USB V1.1

> Radio Technology Direct Sequence Spread Spectrum (DSSS)

> Radio Frequency 2.4 GHz ISM Band

> Modes Ad-Hoc and Infrastructure

> Data transfer rate Up to 11 Mbits/sec

> Management SNMP

> LEDs

> Status Yellow for Power/POST Process

> WLAN Green/Yellow indicates the strength of radio signal and transmission

> Output Power +13 ~ +17 dBm

> Encryption 64/128-bit WEP Encryption

> Communication Range

> Indoor 35~50 M @ 11Mbps

> 80 M @ 5.5 Mbps

> 120 M @ 2 Mbps

> 150 M @ 1 Mbps

> Outdoor 250 M @ 11 Mbps

> 350 M @ 5.5 Mbps

> 400 M @ 2 Mbps

> 500 M @ 1 Mbps

> Network Protocols TCP/IP, IPX, NetBEUI, LPR and Apple Talk

> Software Drivers Novell NetWare 3.12, 4.x, 5.x (Bindery, NDS and NDPS)

> Microsoft Windows 95/98/Me

> Microsoft Windows NT/2000/XP/2003

> Power Adapter 3.3V (2A)

> Weight .15 Lbs (67 grams)

> Dimensions 60 x 70 x 25 mm

> Safety Standards FCC & CE

Indice

Altri manuali StarTech.com Server di stampa

StarTech.com

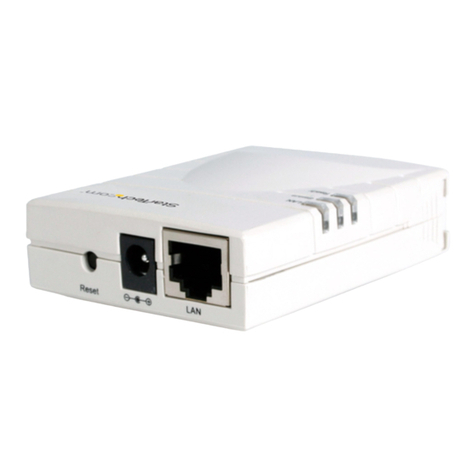

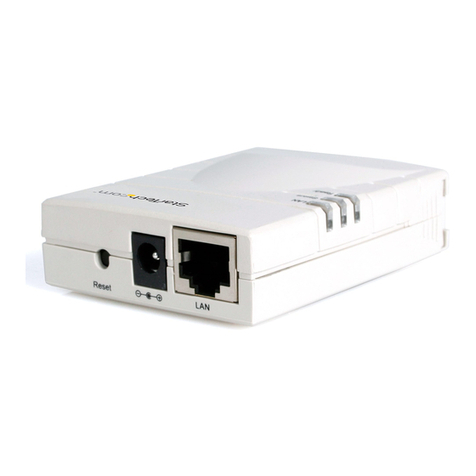

StarTech.com PM1115U Manuale utente

StarTech.com

StarTech.com PM1115P Manuale utente

StarTech.com

StarTech.com PS1100A Manuale utente

StarTech.com

StarTech.com PM1115P Manuale utente

StarTech.com

StarTech.com PM1000IPNDS Manuale utente

StarTech.com

StarTech.com PM1000IPNDS Manuale utente

StarTech.com

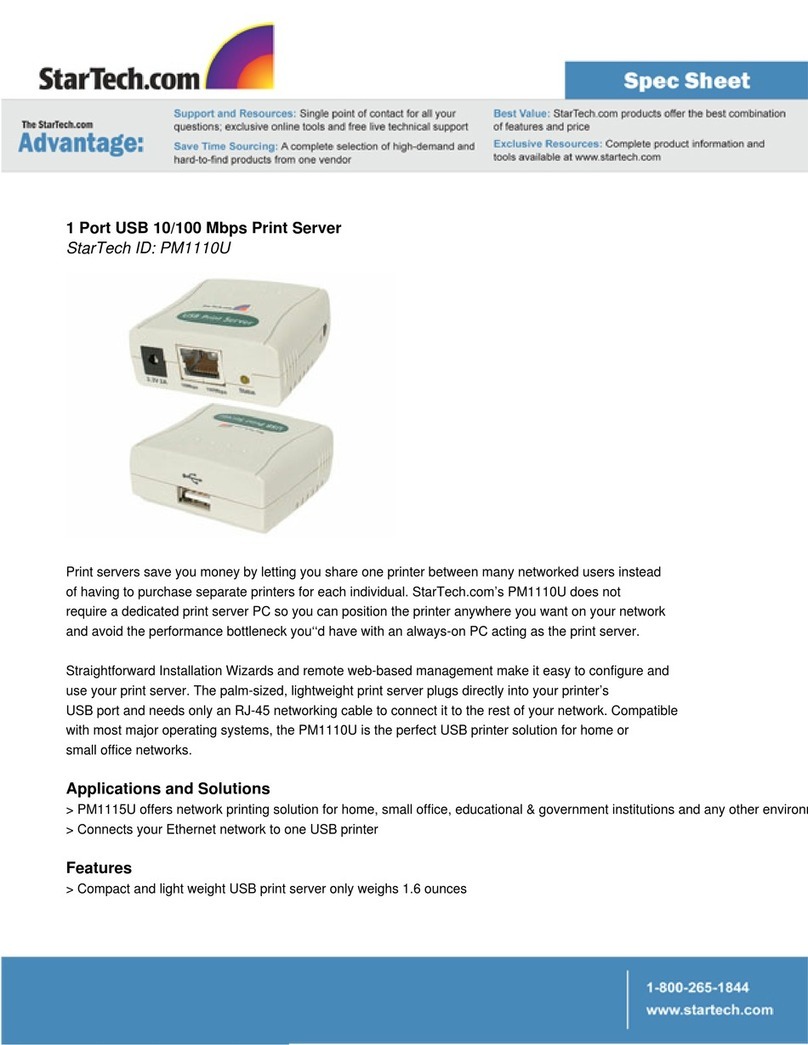

StarTech.com PM1110U Manuale utente

StarTech.com

StarTech.com PM1115P2 Manuale utente

StarTech.com

StarTech.com PM1115U Manuale utente

StarTech.com

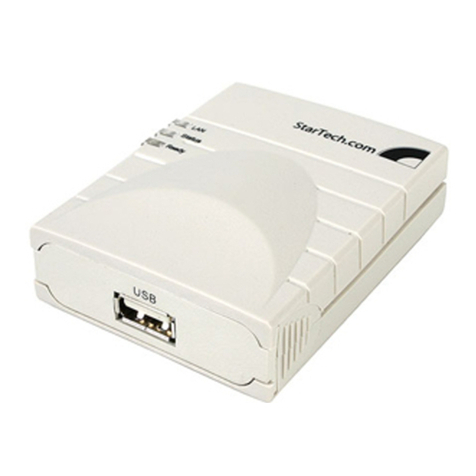

StarTech.com PM1115UMF Manuale utente

StarTech.com

StarTech.com PM1115UMF Manuale utente

StarTech.com

StarTech.com PM1115U2 Manuale utente

StarTech.com

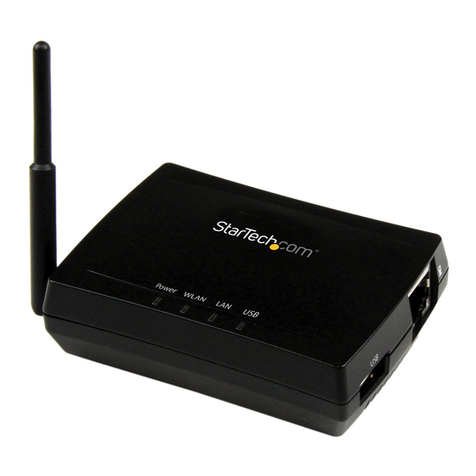

StarTech.com PM1115UA Manuale utente
