StarTech.com DRW110SAT Manuale utente

Manual Revision: 10/04/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

*actual product may vary from photos

DRW110SAT / DRW110SATBK

5.25in Bay SATA Hard Drive Mobile Rack

*DRW110SATBK shown

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Installing Hard Drive in the Caddy...................................................................................................... 2

Installing the Bay in the PC.................................................................................................................... 3

Installing the Caddy in the Bay ............................................................................................................ 3

Removing the Drive Drawer.................................................................................................................. 4

Monitoring Your Hard Disk Drive and Drawer ................................................................................ 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a

convenient SATA hot-swap solution, allowing you to quickly swap Serial ATA hard

drives in and out of a computer without having to open the computer case.

Simply install the (included) drive bay into a 5.25in drive bay on the host computer,

then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard

drive to the computer is as easy as inserting the caddy into the drive bay, which can be

locked to prevent unauthorized removal of the installed SATA drive.

A suitable solution for large volume drives, the HDD drawer supports SATA, SATA II, and

SATA III-6Gbps hard drives allowing you to swap in large amounts of data in a matter of

seconds. With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane

is fully compatible with RAID installations to ensure maximum performance and

versatility for enhanced storage applications.

The drive caddy features a rear panel ball bearing fan that helps keep the enclosed

drive cool, in turn helping to optimize operation while preserving drive lifespan.

To prevent damage to the hard drive(s) while being transferred in and out of the

computer, the drive caddy features shock absorbers and rubber cushioning that help

limit vibration/shock to the drive. This mobile rack is also compatible with DRW113-

series SATA hard drive caddies.

Packaging Contents

• 1 x Hard Drive Caddy

• 1 x Drive Bay

• 2 x Keys

• 1 x Screw Kit

• 1 x Instruction Manual

System Requirements

• Computer with an available 5.25 inch Drive Bay

• 1 x 7-pin SATA data cable

• Computer Power supply with available LP4 Molex power connector

Instruction Manual

Installation

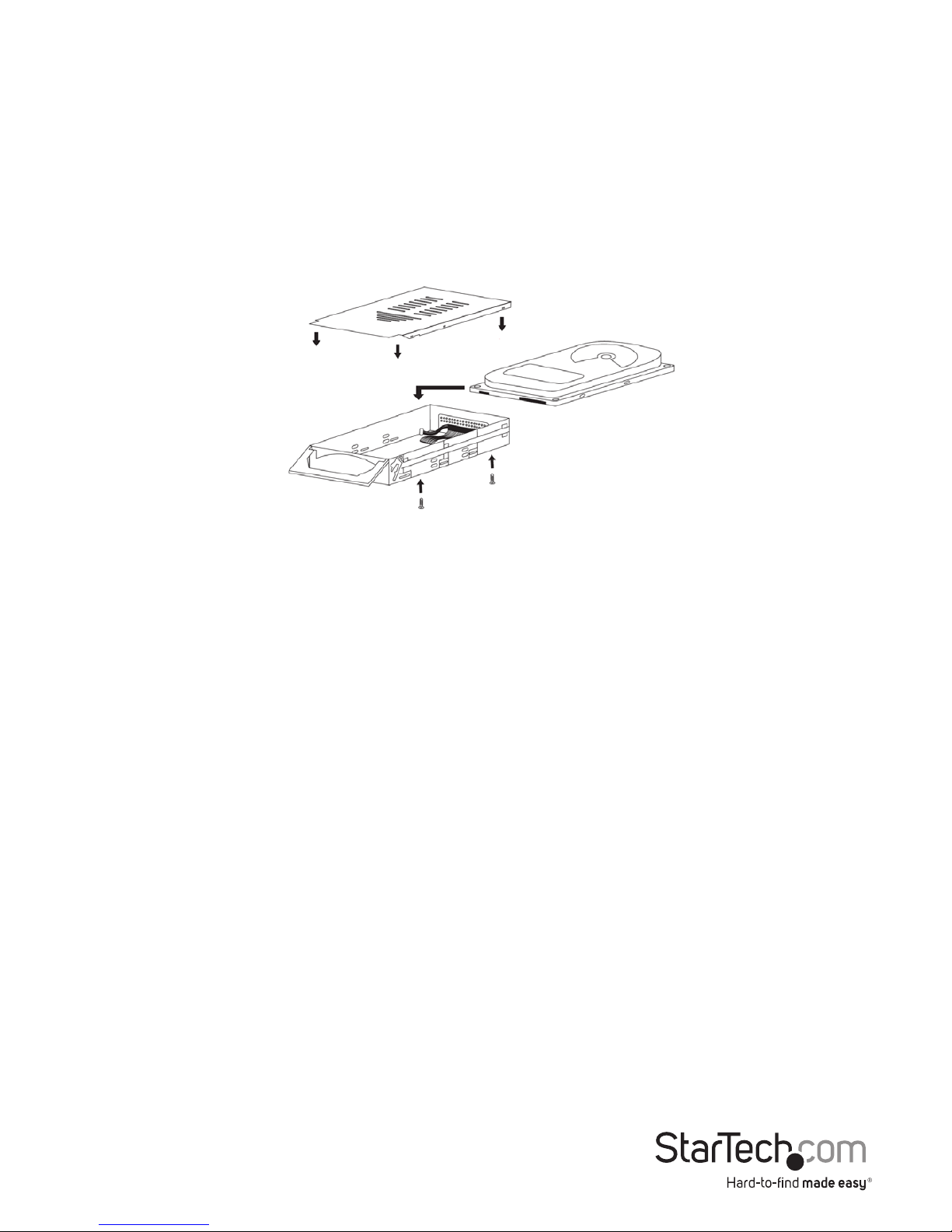

Installing Hard Drive in the Caddy

WARNING! Hard drives and storage enclosures require careful handling, especially

when being transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution. Be sure that

you are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

1. Remove the caddy from the bay by lifting the handle and sliding the caddy out of

the bay.

2. Remove the top panel from the caddy by pressing the cover release button and

sliding the lid towards the back of the caddy.

3. Connect the short SATA data cable inside the drive caddy to the hard drive.

4. Attach the SATA power cable inside the drive caddy to the hard drive.

5. Gently place the hard drive in the caddy, making sure that the screw-holes on the

bottom of the hard drive line up with the holes in the caddy.

6. Firmly hold the hard drive to the shock absorber plate and use the four #6-32 x

1/4”(coarse thread) screws to mount your hard drive to the drawer from underneath.

7. Replace the top panel of the caddy.

Instruction Manual

Installing the Bay in the PC

WARNING! Computer parts can be severely damaged by static electricity. Be sure

that you are properly grounded before opening your computer case. StarTech.

com recommends that you wear an anti-static strap when installing any computer

component. If an anti-static strap is unavailable, discharge yourself of any static

electricity build-up by touching a large grounded metal surface (such as the computer

case) for several seconds.

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,

external hard drives, etc.). Unplug the power cable from the rear of the power

supply on the back of the computer and disconnect all peripheral devices.

2. Remove the side covers from your system and remove the front cover from an

available 5.25”drive bay (see your computer’s user manual for details, if necessary).

3. Insert the bay into the 5.25” bay slot, making sure that the screw-holes on the side of

the bay line up with the holes in the bay slot.

4. Connect a SATA data and LP4 Molex power cable to the rear of the bay from the

computer systems SATA controller and power supply respectively.

NOTE: If the drive will be hot-swapped, the SATA host controller and operating system

must both support hot-swapping. The “System” drive cannot be hot-swapped, as it

contains the operating system. Only secondary drives can be hot-swapped through

the operating system.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Installing the Caddy in the Bay

1. With the handle on the caddy fully raised, insert the caddy into the bay.

2. Once inserted as far as it will allow, lower the handle to rmly seat the caddy into

the bay.

3. Use the provided key to lock the caddy into the bay by turning the lock counter-

clockwise. The caddy must be locked in order for the drive to power up.

Instruction Manual

Removing the Drive Drawer

1. Insert the key and turn clockwise to unlock the drive drawer.

2. Lift the handle and gently pull the caddy out of the bay.

NOTE: Do not unlock the drawer when the hard drive is in use (See “Monitoring Your

Hard Disk Drive and Drawer” below). Only power down the drive when the hard drive is

idle. Once you have powered down the hard drive, wait about 15 seconds to let the

hard drive“spin down” before removing the caddy from the bay.

Monitoring Your Hard Disk Drive and Drawer

The status LED is located on the right side of the drive drawer. It is your best indication

of the hard drive’s status, and is lit when the drawer is successfully inserted and locked

into the caddy.

NOTE: It is recommended that you avoid removing a drawer during hard disk activity,

as doing so could damage the drive and/or data.

Instruction Manual

Specications

Number of Drive Bays 1

Host Interface SATA (pass through)

Host Connectors 1 x 7-pin SATA data male

1 x 4-pin LP4 Molex male

LEDs 1 x Power

Compatible Hard Drives 3.5in SATA

Fans 1 x 40mm (ball bearing)

Insertion Rating 3, 000

Enclosure Material Plastic

Dimensions (LxWxH) 220.0mm x 148.0mm x 41.0mm

Weight 530g

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Altri manuali per DRW110SAT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali StarTech.com Rack e supporto

StarTech.com

StarTech.com ARMSTSCP1 Manuale utente

StarTech.com

StarTech.com ARMUNONB Manuale utente

StarTech.com

StarTech.com RK3236BKF Manuale utente

StarTech.com

StarTech.com FPWARTB2 Manuale utente

StarTech.com

StarTech.com HSB43SATSASB Manuale utente

StarTech.com

StarTech.com HSB225S3R Manuale utente

StarTech.com

StarTech.com 4POSTRACK12 Manuale utente

StarTech.com

StarTech.com RK4242BK24 Manuale utente

StarTech.com

StarTech.com 4POSTRACKBK Manuale utente

StarTech.com

StarTech.com APLVESAMNTP Manuale utente

StarTech.com

StarTech.com A2-LAPTOP-DESK-MOUNT Manuale utente

StarTech.com

StarTech.com ARMSLIM2USB3 Manuale utente

StarTech.com

StarTech.com FPWHANGER Manuale utente

StarTech.com

StarTech.com HSB3SATSASBA Manuale utente

StarTech.com

StarTech.com A-LAPTOP-DESK-MOUNT Manuale utente

StarTech.com

StarTech.com RK619WALLV Manuale utente

StarTech.com

StarTech.com ST121MOUNT Manuale utente

StarTech.com

StarTech.com MNRISERCLMP Guida rapida

StarTech.com

StarTech.com ARMQUADSS Manuale utente

StarTech.com

StarTech.com ADJ-TABLET-STAND-W Manuale utente

StarTech.com

StarTech.com 4POSTRACK12U Manuale utente

StarTech.com

StarTech.com SHELF-2U-14-CENTER-V Manuale utente

StarTech.com

StarTech.com RK419WALVS Manuale utente

StarTech.com

StarTech.com RK1236BKF Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
